Human and Robot Kickboard Collaborative Assembly Work

Past issues

●It has been difficult to automate all tasks that require human senses and judgment.
●Industrial robots require safety fences, making it difficult for them to work in collaboration with humans.

Solution

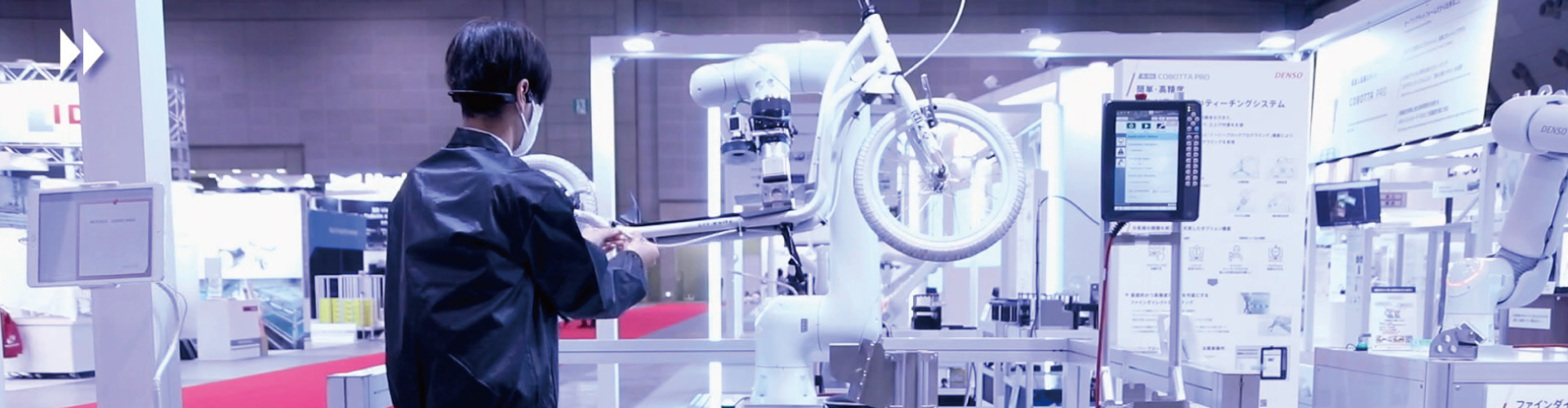

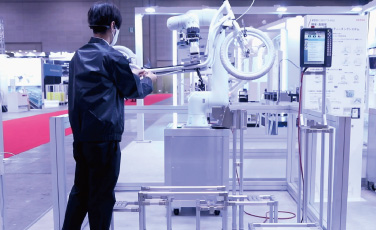

Improved work efficiency in kickboard assembly operations through the use of collaborative robots

assembly work performed collaboratively between humans and robots, utilizing the strengths of each.
Collaborative robotics reduces the burden on workers through cooperation, increasing work efficiency.

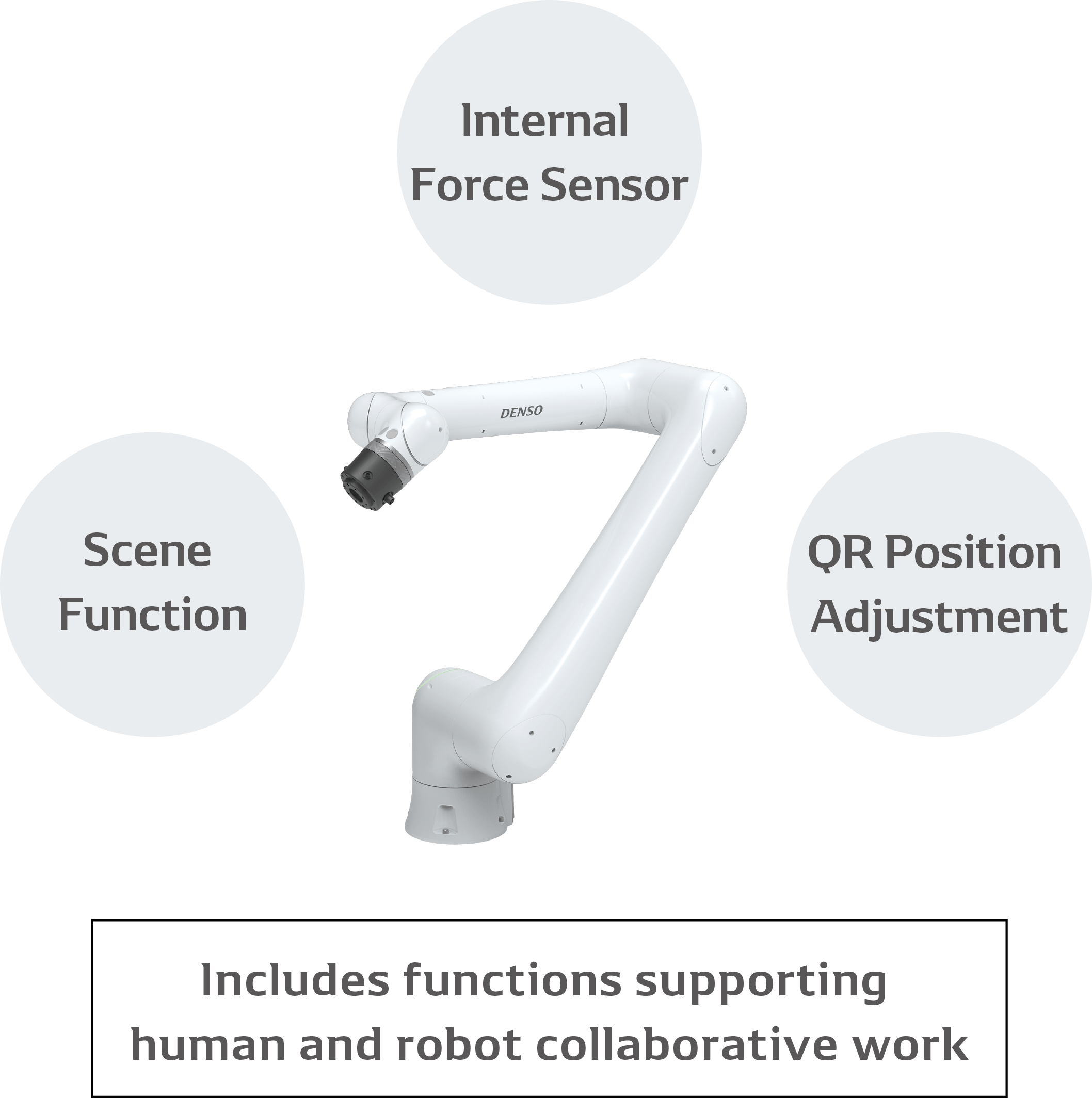

Safety and productivity are both achieved by using the "Scene Function" safety option to change the force and speed according to the work scene

Scene Function

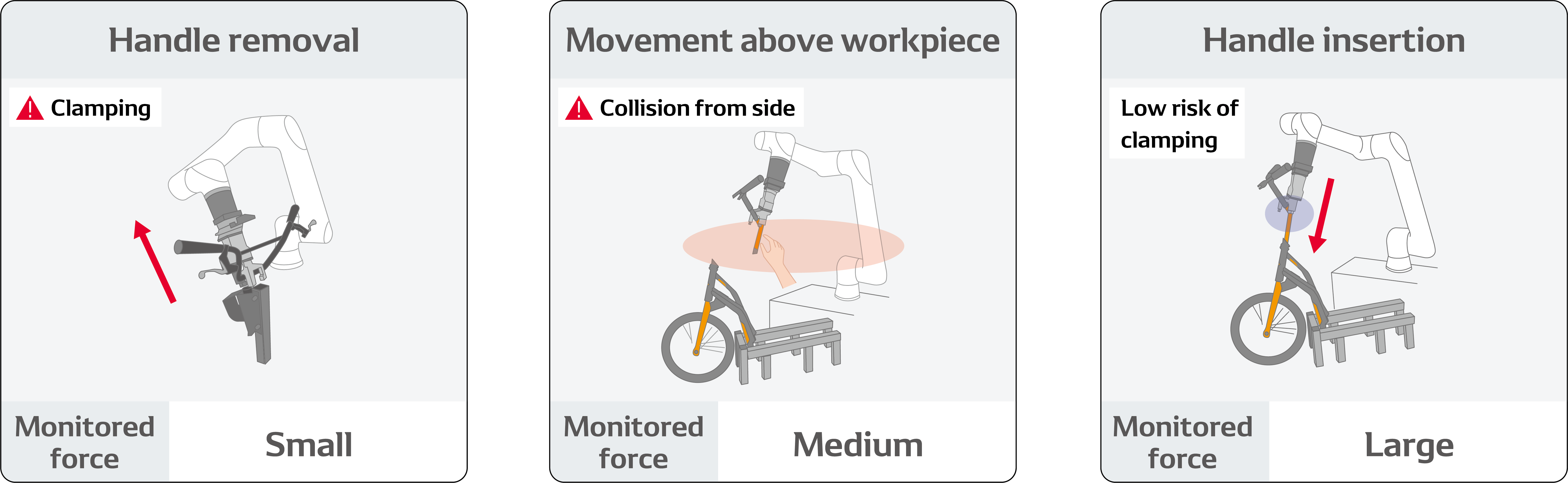

Safety parameters, such as speed and force, can be set for each work scene, and switched from inside the robot program.
During handdle removal or movement above the workpiece, it operates by monitoring small forces so that if contact occurs, operation can be stopped immediately.

see more about this function


Internal force sensors enable high-accuracy assembly work

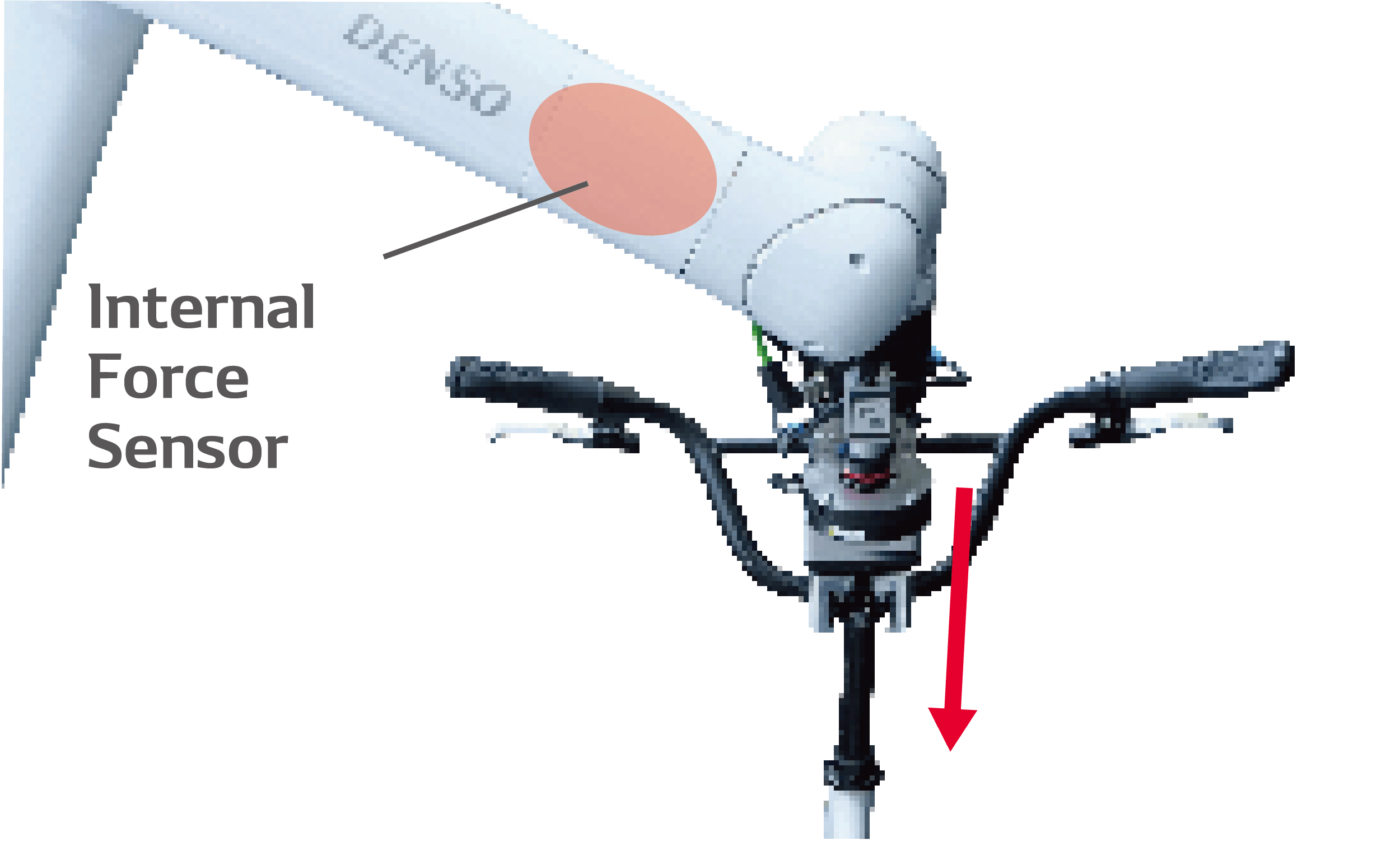

Copying actions using COBOTTA PRO's internal force sensor enable the robot arm to be directly and manually operated up to the handle insertion position.
When fitting the handle into the frame, the force is maintained in the forward direction and the force is limited along the other axes to prevent prying, achieving high-accuracy assembly work.

Precise positioning with the QR position adjustment function* *Release planned

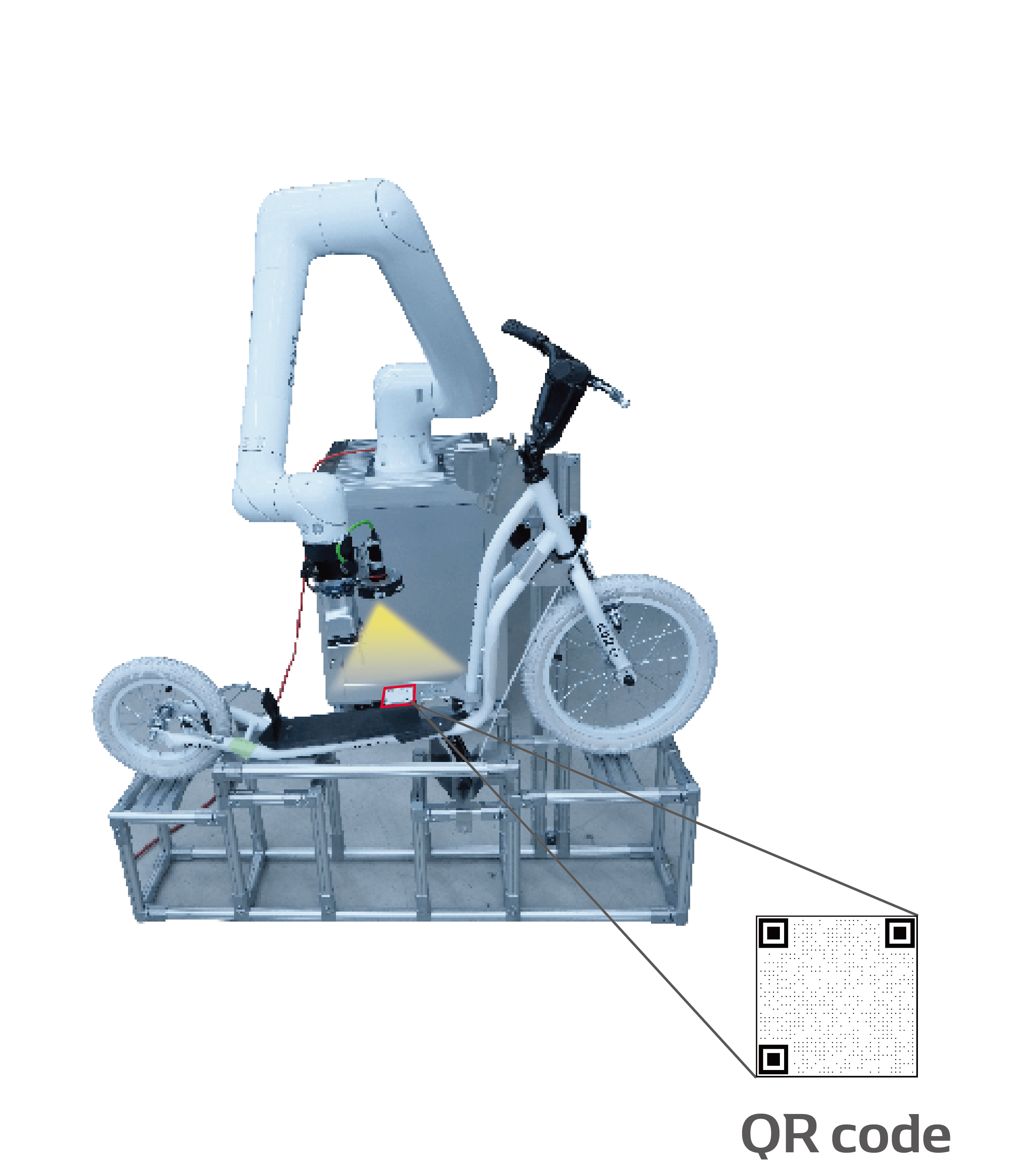

The QR code attached to the work stand is read and the robot coordinates are adjusted automatically based on the corresponding coordinate system. Even if the relative positions between the robot arm and work stand change, the coordinates are calibrated by reading the QR code, with no need for repeat teaching.
QR code makes it easy to add information and give work or other instructions to the robot
