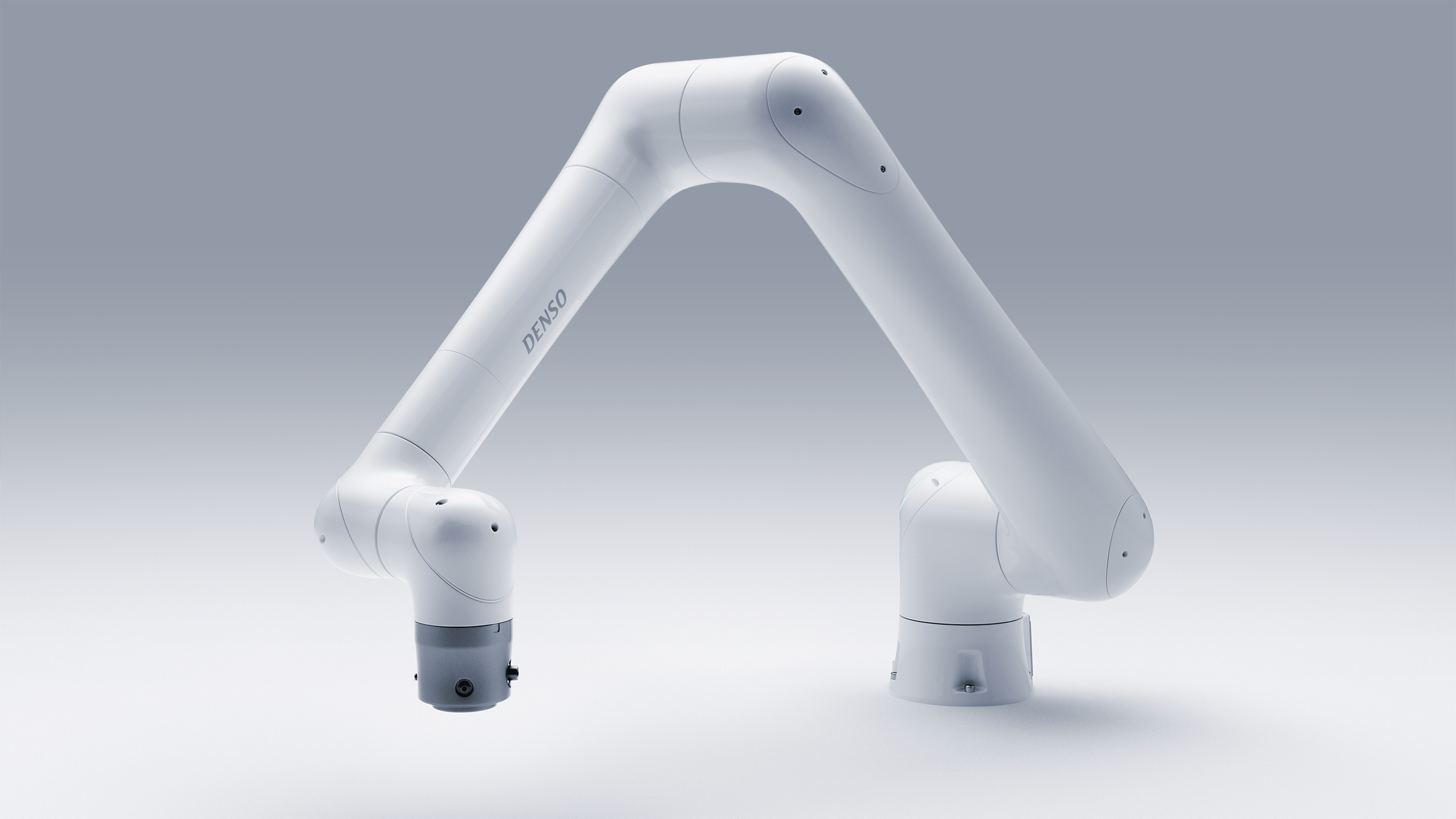

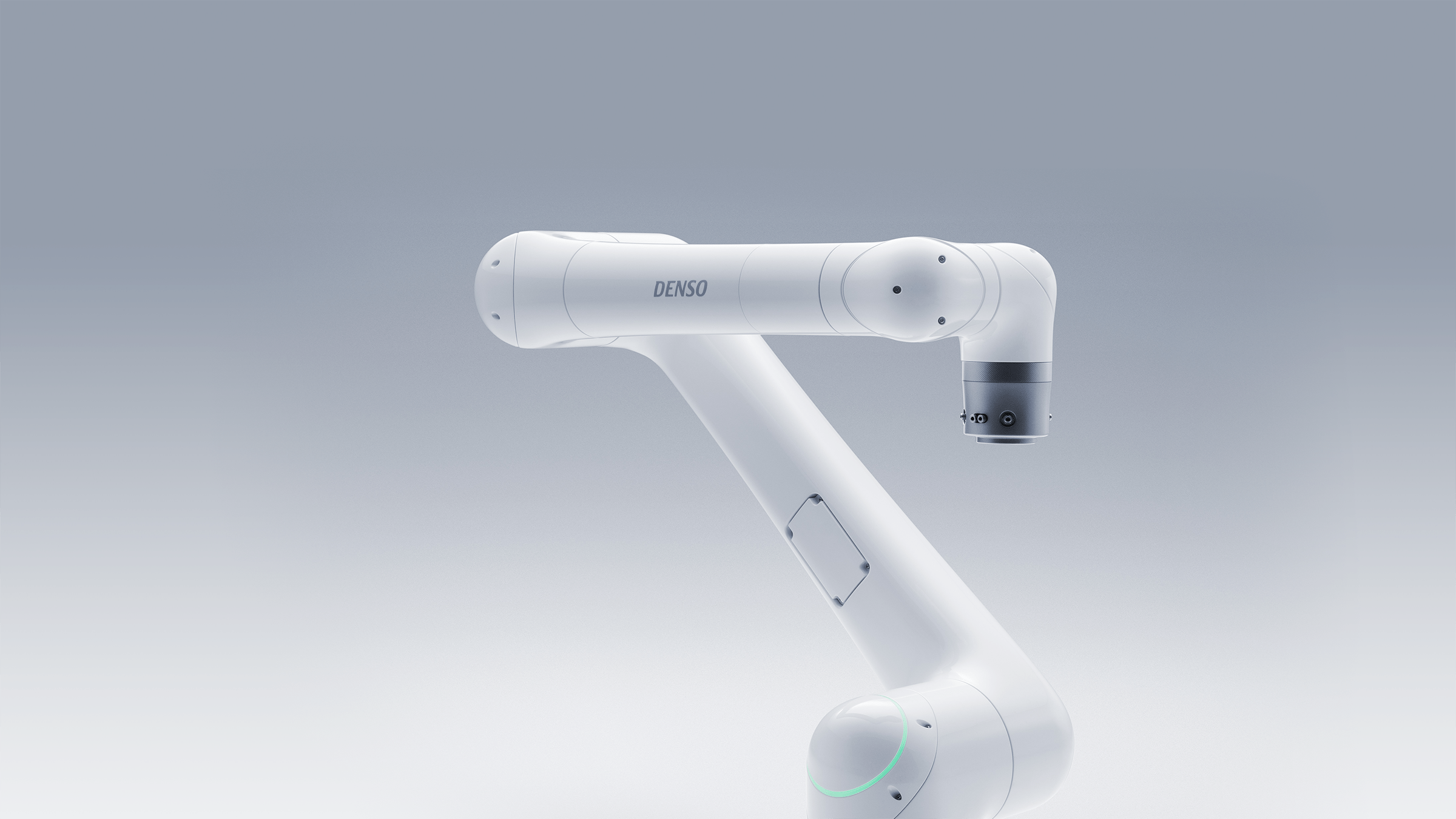

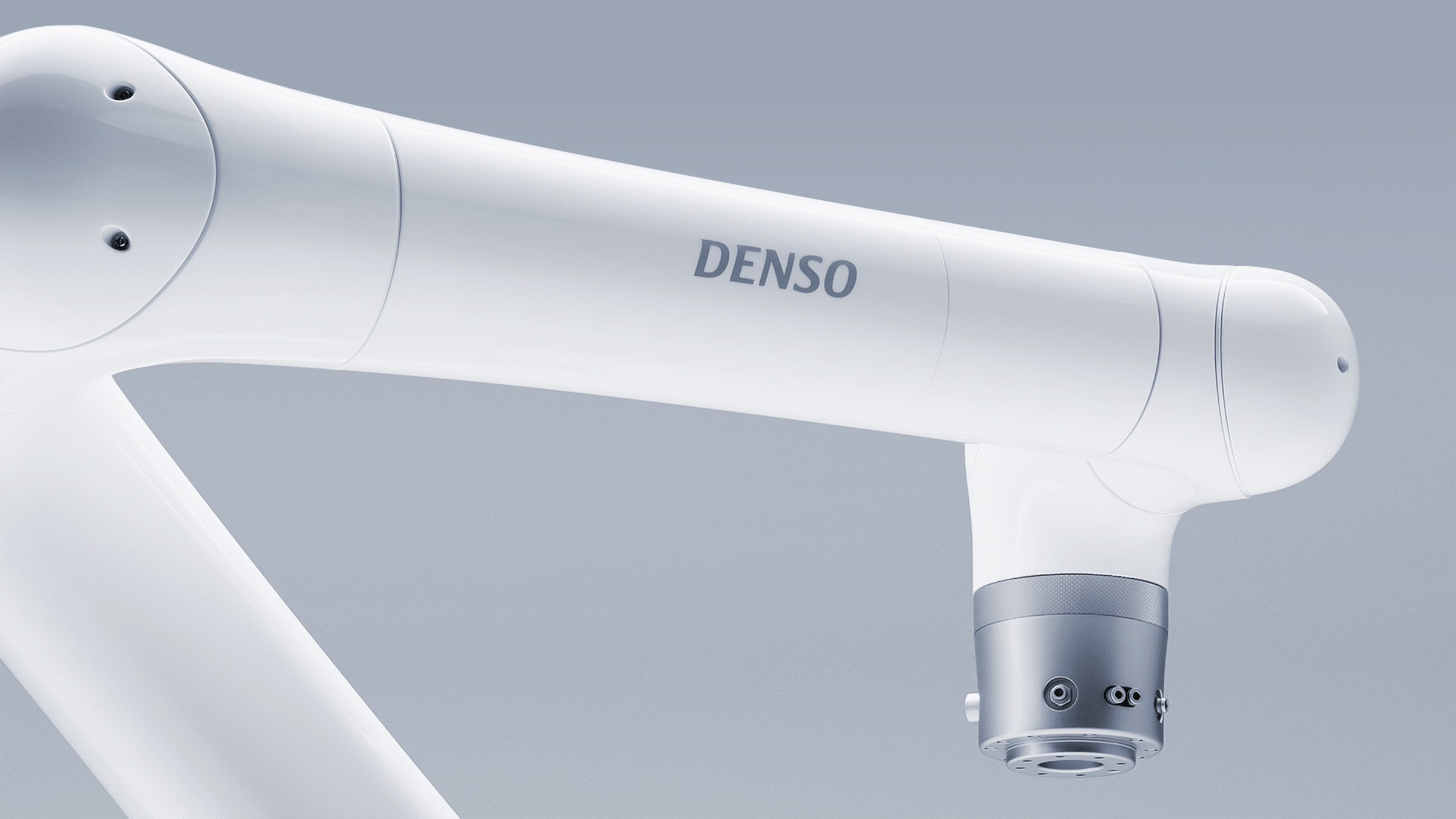

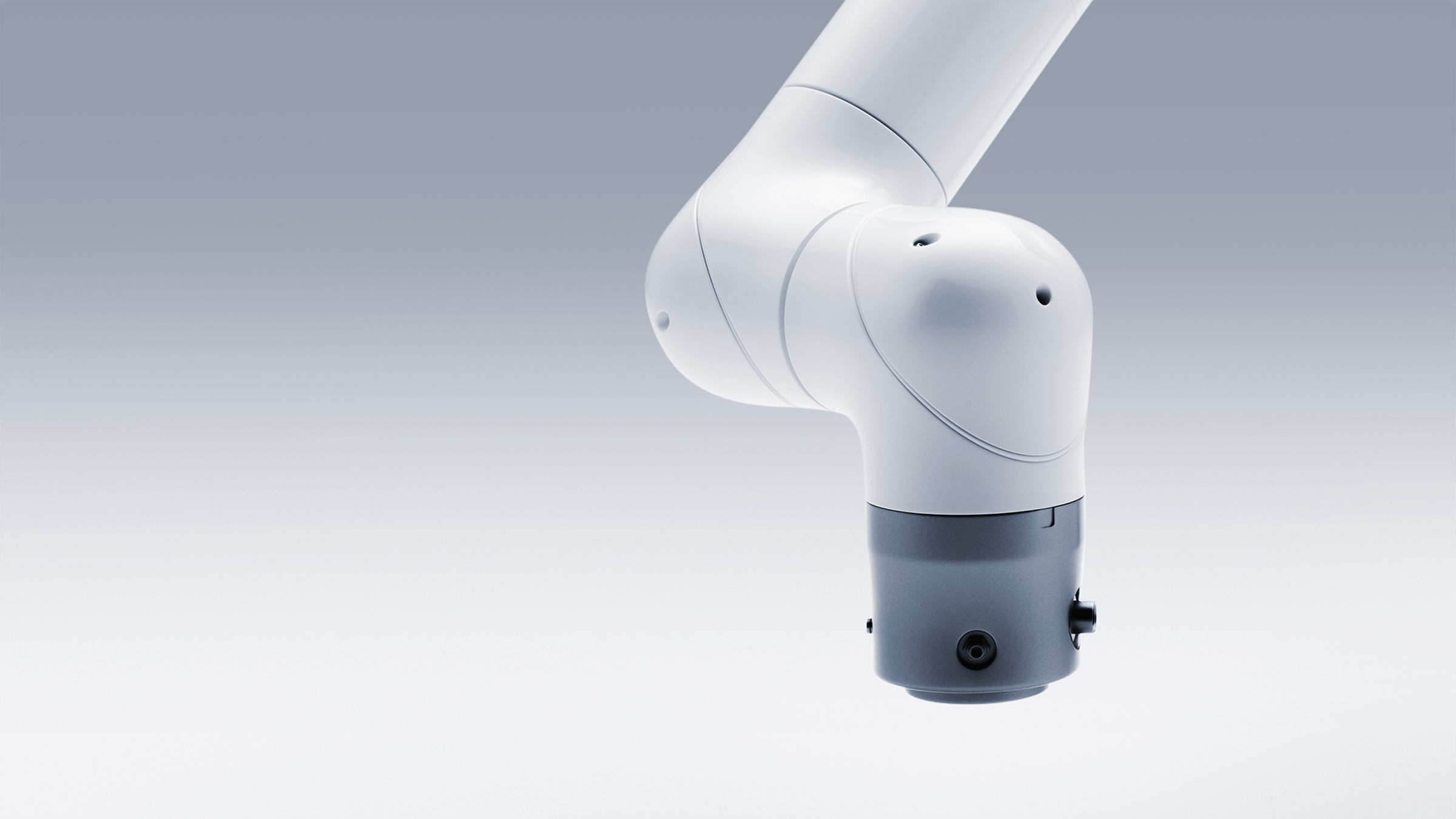

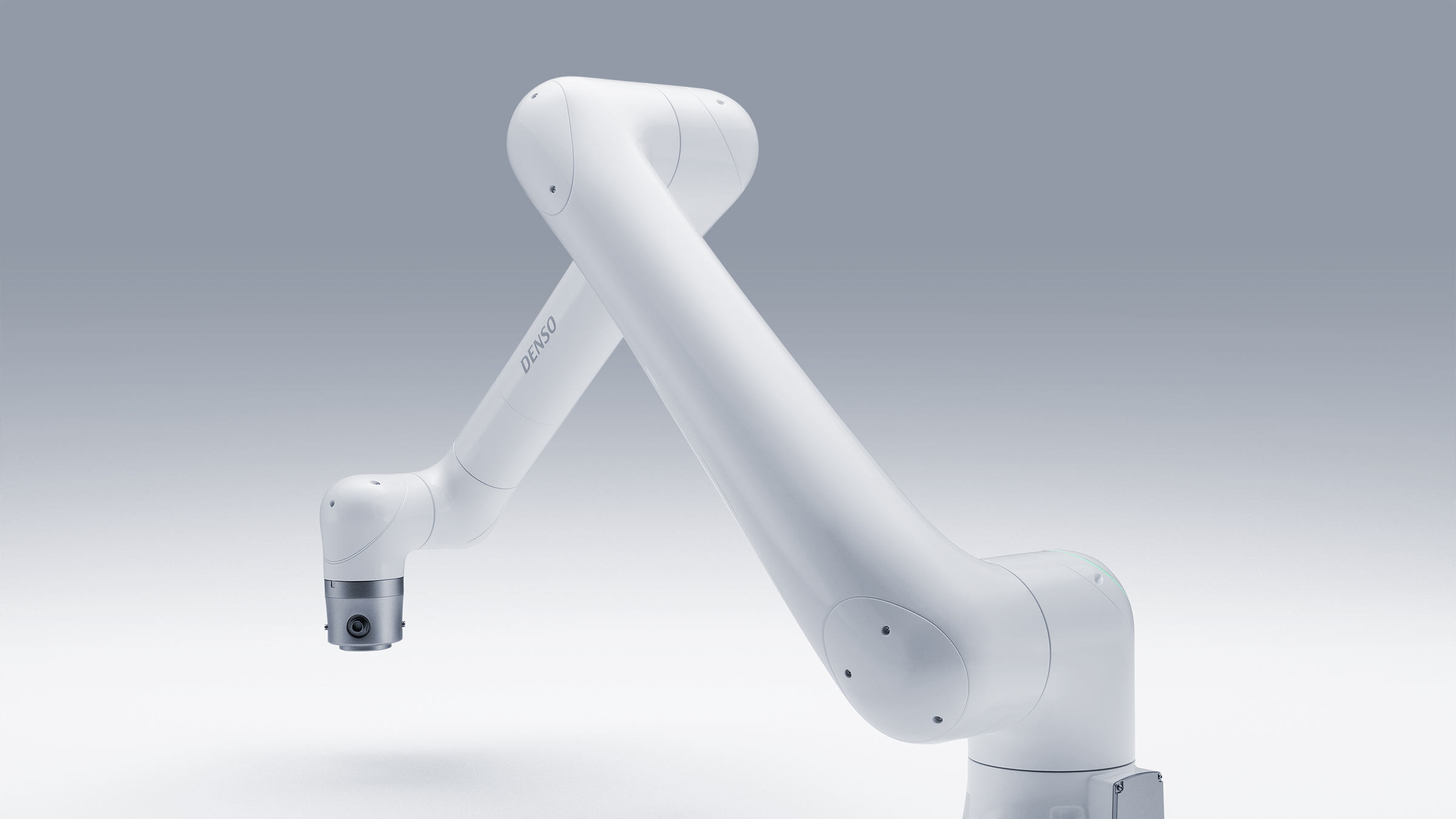

High-Speed Collaborative Robot Pursuing Productivity and Safety COBOTTA PRO



The COBOTTA PRO is designed not only to facilitate collaboration
between human workers and robots,
but also to consistently maximize productivity.
It delivers a blend of productivity and safety
for both simple tasks and multi-step processes like assembly and inspection work.

Functional safety designed to consistently maximize productivity
while collaborating with human workers

The COBOTTA PRO delivers a mix of productivity and safety by maximizing its operating speed when no workers are nearby while minimizing the distance needed to slow or stop when workers approach.
When not collaborating with human workers, the unit operates at a maximum TCP speed of 2,500 mm/s with repeatability of ±0.04 mm. The COBOTTA PRO safeguards worker safety by augmenting proprietary torque sensors, which are standard equipment at each axis, with functional safety like torque, speed, and area monitoring. In addition, a touch-sensing soft cover that embeds high-sensitivity contact sensors in a silicon cushioning material further reduces collision risk. This design helps improve productivity safely.

Ease of use and precision:
A development environment that’s easy for everyone

We developed a new concept in direct teaching so that the COBOTTA PRO can be used to easily and quickly automate highly difficult, complex tasks that require a high level of precision, for example assembly work.
Functionality accommodates a variety of teaching situations, from track memorization to fine-tuning down to 0.1 mm.
In addition, the robot uses the visual programming language Blockly as a new development environment. Utilized in conjunction with direct teaching, this approach lets even novice programmers implement high-precision, highly difficult applications like assembly processes intuitively and visually.

Automating work that conventionally has depended on human workers
with a robot that sees, thinks, and moves

Collaborative robots are often used as an alternative means of performing work usually performed by human workers.
Automating such work has been a challenging process that requires advanced technologies and expertise so that robots can see, think, and move like humans. Highly difficult work like assembly processes can be automated by using tools like Mech-Eye, a high-precision 3D image recognition camera, and AI Imitative Learning, general-purpose AI software that automates tasks performed by human workers that are difficult to verbalize, to implement integrated control of the COBOTTA PRO and peripherals using the RC9 controller.

LINEUP

  COBOTTA PRO 900 COBOTTA PRO 1300
Maximum arm reach 908mm 1,303mm
Maximum payload 6kg 12kg
Maximum TCP speed*1 Translational motion: 2,100 mm/s Translational motion: 2,500 mm/s
Position repeatability ±0.03mm ±0.04mm
Degree of protection IP54
Cleanliness *2 Clean class 5
Standards *3 EN ISO10218-1:2011
EN ISO13849-1:2015
ISO/TS15066:2016

*1 Maximum TCP speed during high-speed operation *2 Cleanroom type *3 Planned acquisition
