Robotics

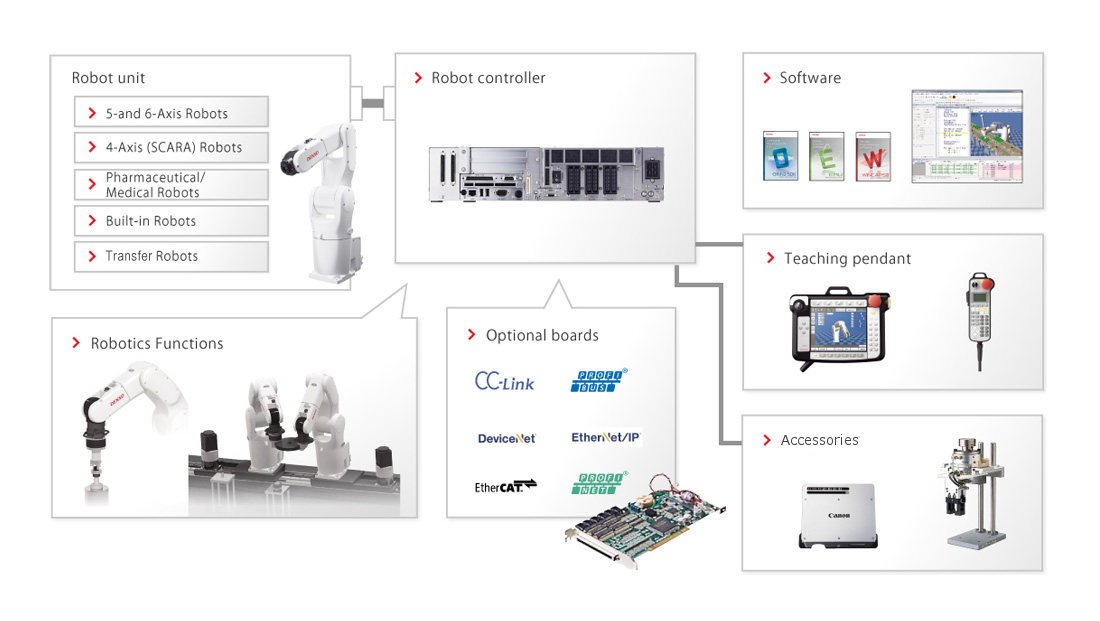

Introduction of a system configuration based on the RC8 controller. Selection of other products and extension of functions are possible according to the customer application.

collaborative robot

Robot Series Payload Maximum Reach Stroke Variation Installation

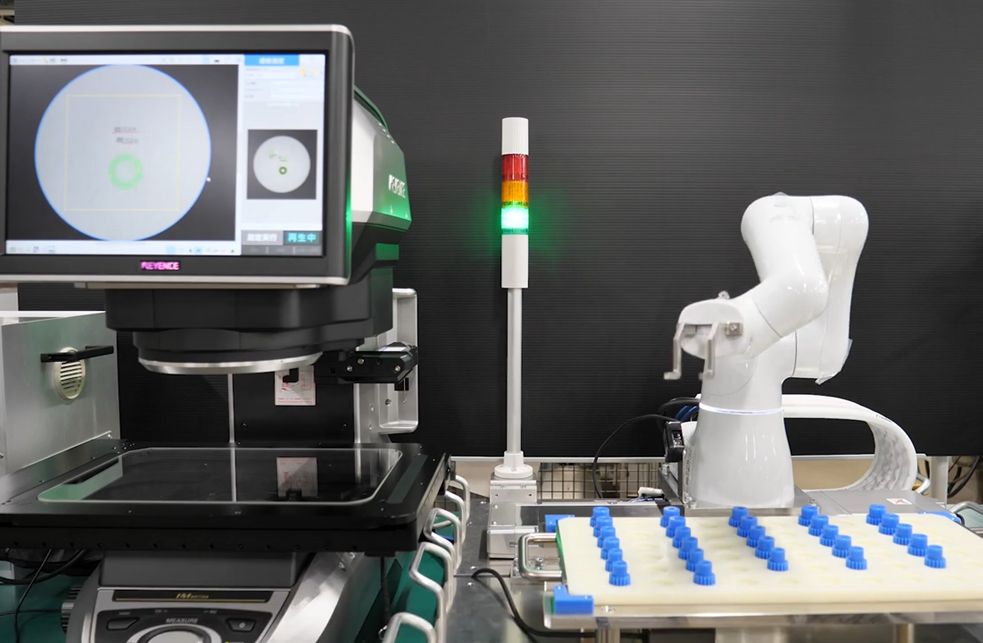

COBOTTA 0.5kg 342.5mm Floor-mount
COBOTTA PRO 900/1300 6kg/12kg 1,066mm/1,463mm Dust- & splash-proof(IP54)
Clean
Floor-mount

5-and 6-Axis Robots

Robot Series Payload Maximum Reach Stroke Variation Installation
VP Series 2.5~3kg 430~432mm Standard Floor-mount or Overhead-mount
VS050/060 Series 4kg 505~605mm Standard
Dust- & splash-proof (IP65)
Environment-resistant (IP67)
Clean ISO class
5/3
UL
Floor-mount or Overhead-mount
VS068/087 Series 7kg 710~905mm Standard
Dust- & splash-proof (IP65)
Environment-resistant (IP67)
Clean ISO class
5/3
UL
Floor-mount or Overhead-mount
VS-6556/6577 Series 6kg 653~854mm Standard
Dust- & splash-proof (IP65)
Clean 100
Clean 10
Floor-mount or Overhead-mount
VM Series 13kg 1,021~1,298mm Standard
Dust- & splash-proof (IP65)
Clean 100
Floor-mount or Overhead-mount
VMB-2515/2518 25kg 1,506mm/1,804mm Standard
Environment-resistant (IP67)
Clean ISO class 5
Floor-mount
VLA-4025/6022 40kg/60kg 2,503mm/2,257mm Standard(IP65) Floor-mount
VS-050S2 Series 4kg 520mm H2O2-proof Floor-mount or Overhead-mount

4-Axis (SCARA) Robots

Robot Series Payload Maximum Reach Stroke Variation Installation
HSR Series 8kg 480~650mm 100~320mm Standard Floor-mount or Overhead-mount
HS-A1 Series 5kg 350~550mm 100~320mm Standard
Bellows
Dustproof/splash-proof (IP65)
Clean
Floor-mount or Overhead-mount
HM Series 10~20kg 600~1,000mm 200~400mm Standard
Dust- & splash-proof (IP65)
Floor-mount or Overhead-mount

Built-in Robots

Robot Series Payload Maximum Reach Stroke Variation Installation
XR Series 5kg X-axis stroke: 450 to 1,060 mm
Arm length: 200 to 300 mm
135~200mm Standard Overhead-mount

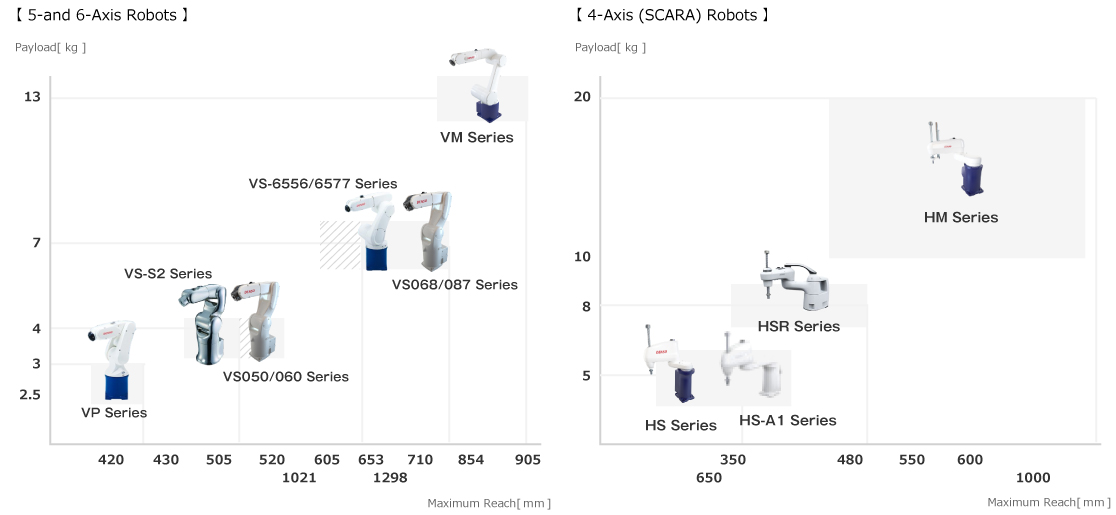

Graph
