Teaching pendant

Teaching pendant/Mini-pendant is an input and operating device for creating programs and teaching.

Other products
CLOSE
  • Features
  • Spec
  • Dimensions

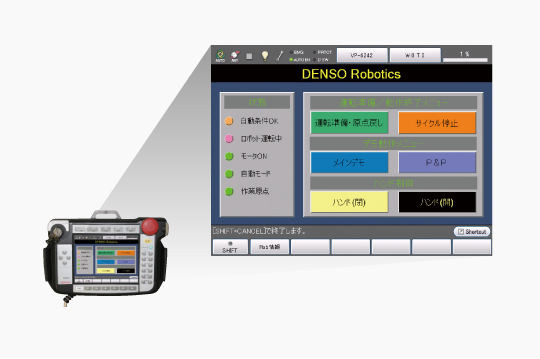

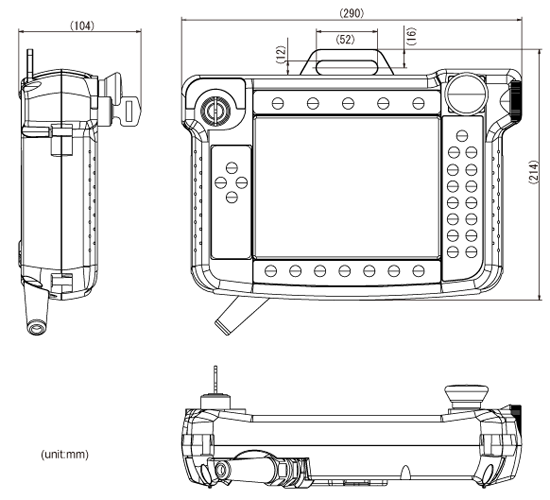

Multi-functional teaching pendant

The multi-functional teaching pendant is an input and operating device for programming and teaching. All operations other than external automatic operation can be conducted with the teaching pendant.
This product, equipped with a 7.5-inch TFT display, enhances work efficiency with its color display and touch panel.
  • Improved GUI for increased efficiency

    Easy-to-view menu configuration and user-friendly operability are realized. With improved GUI or functions, simulation of robot introduction can be checked on the pendant and work time can be reduced.

  • The screen can be customized using control panel functions.

    Control panel of robot and peripheral devices can customize the teaching pendant screen.

  • Mounted with an enable switch

    The pendant is mounted with a 3-position enable switch.

  • Protect grade

    Splash proof equivalent to IP65.

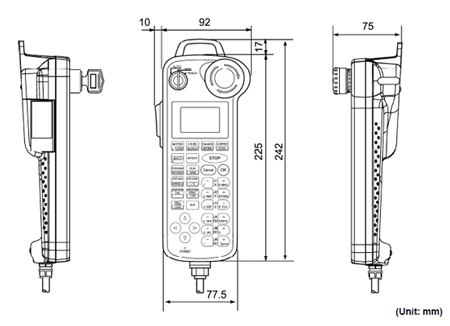

Mini-pendant

The mini-pendant is an input and operating device for manually operating the robot, starting a program and teaching.
Although it does not have a programming function, it enhances the efficiency of programming and teaching by using WINCAPS III or WINCAPS III Light together.

  • Mounted with an enable switch

    The pendant is mounted with a 3-position enable switch.

  • Protect grade

    Splash proof equivalent to IP65.

Teaching pendant

Item Teaching pendant
Type TP-RC7/8
Power supply DC24V (supplied by the controller)
Display LCD Liquid crystal display with back light
7.5" TFT Color LCD, 640x480 pixels
LED 3 LEDs (POWER, MOTOR, LOCK)
Operation Switch & Key Emergency stop button, deadman switch, jog dial, operating mode switch, motor key, lock key, robot selection key, motion mode key, speed key, cursor key, stop key, OK key, cancel key, moving direction key, shift key function key
Touch Panel Use LCD screen as touch panel.
Emergency stop button 4B contact point, 4-circuit output (forced separation type)
Deadman switch(Enable switch) 3-position type (OFF-ON-OFF), 2-circuit output
Operating mode switch 3-position switching with keys (AUTO, MANUAL, and TEACHCHECK) Note: Mode can be switched only with keys.
Installation Conditions Temperature 0 to 40 degree C, humidity 90% RH or less (dew condensation is not allowed)
Degree of protection IP65
Weight 1.3kg or less
Cable length 4m, 8m, 12m
  1. Precautions for Handling
  2. 1.Since LCD is made of glass, please do not drop or apply any strong impact to it.
  3. 2.Since the surface of touch panel is easily scratched, please use fingers to operate it. Do not use a pen or any other sharp object.

Mini-pendant

Item Mini-pendant
Type   Type Cable length Key sheet display Deadman switch
(Enable switch)
Domestic model MP7/8J3P4 4m Japanese 3POS
MP7/8J3P8 8m Japanese 3POS
MP7/8J3P12 12m Japanese 3POS
Overseas model MP7/8E3P4 4m English 3POS
MP7/8E3P8 8m English 3POS
MP7/8E3P12 12m English 3POS
Power supply 24 VDC (supplied from robot controller)
Display LCD Liquid crystal display, 128 X 64 pixels
LED 3 LEDs (POWER, MOTOR and LOCK)
Operation 33 membrane switches, Emergency stop button,
deadman switch, mode selector switch
Emergency stop switch(Emergency stop button) Four B contacts, 4 circuit outputs (Forced disjunction type)
Deadman switch(Enable switch) 3-position switch (OFF-ON-OFF), 2 circuit outputs
Operating mode switch 3-position switch (AUTO, MANUAL and TEACHCHECK) with lock key
Note: Switchable only with the lock key inserted.
Installation Conditions Temperature 0 to 40 degree C, humidity 90% RH or less (dew condensation is not allowed)
Degree of protection IP65
Weight Approx. 0.3 kg (excluding cables. See Note below.)(*1)
Cable length 4m, 8m, 12m
Accessory WINCAPS (3) Light
  1. *1.Cable weight Approx. 0.2 kg (4 m), 0.4 kg (8 m), 0.6 kg (12 m)
  Standard type
Teaching pendant Download
Mini-pendant Download
