I/O Optional boards

With a wide range of communication functions and extensions, this product supports EtherNet/IP, CC-Link and various other standards, enabling flexible network construction.

  • Features/Boards

Supporting more than 80% of field networks throughout the world

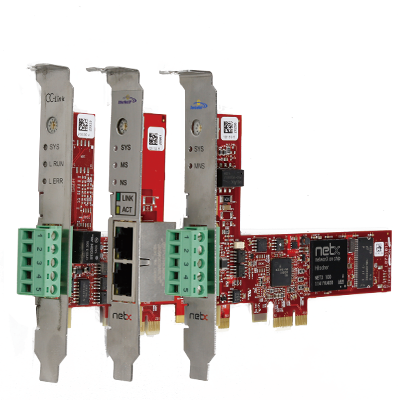

When robots are controlled through a field network or a parallel I/O is added, I/O extension boards can be added. By inserting this product into the PCI or PCI Express slot on the controller and entering the license code, it can be used.
* EDS, ESI and other field network setting files can be downloaded
from: Download >> Application software >> Others.
(Membership registration is required.)

Boards

Board name Number of input / output points
Parallel I/O board(NPN/PNP) Bus: PCI Input: User open 40 points / Output: User open 48 points
DeviceNet master board Bus : PCI Express Input : 1024 points / Output : 1024 points
DeviceNet slave board Bus : PCI Express Input : 256 points / Output : 256 points
CC-Link remote device board Bus : PCI Express Input : 128 points / Output : 128 points  Remote register Input : 256 points / Output : 256 points
PROFIBUS slave board Bus : PCI Express Input : 256 points / Output : 256 points
EtherNet/IP Adapter board Bus : PCI Express Input : 4032 points / Output : 4032 points
PROFINET IO Device board Bus : PCI Express Input : 8192 points / Output : 8192 points
EtherCAT slave board Bus : PCI Express Input : 2048 points / Output : 2048 points
