Compliance Control Function with Force Sensor

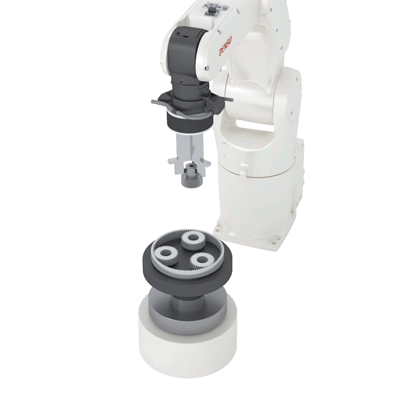

Constant control of a pressing force of a tip of the robot hand with force sensor. Stable operation on assembling, grinding and other work by using this function.

5- and 6- Axis Robots from Ver.1.6.*
4-Axis Robots from Ver.2.3*

  • Features / System Configuration

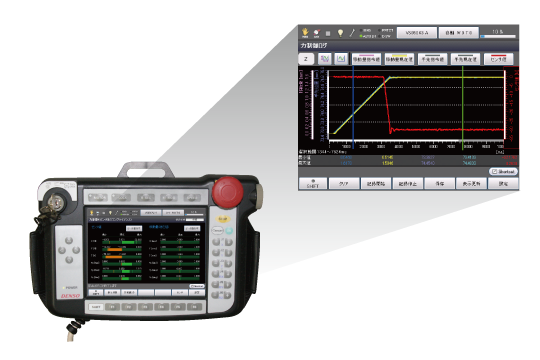

Feedback control from the force sensor and DENSO's original force control algorithm enable the fine control of copying, fitting and pressing motions. The dedicated GUI enables the monitoring of feedback values from the force sensor and the adjustment of force control settings, helping reduce the man-hours required for startup.

Applications / Systeme Configuration

  • Applications

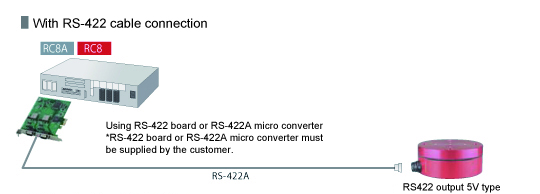

  • System Configuration

*This function is not a safety function that reduces the force of a robot when it collides or comes into contact with a person.

  • Features / System Configuration
