Smart TP

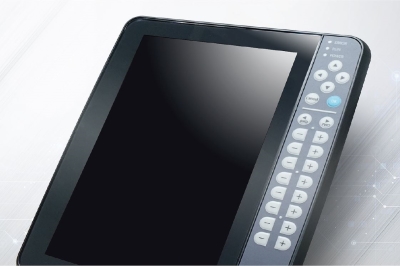

Smart TP is a high performance teaching pendant that can be used in a variety of situations, such as confi guring robot settings, teaching, and serving as an HMI.

  • Features
  • Spec

Features

Smart TP is a high performance teaching pendant that can be used in a variety of situations, such as confi guring robot settings, teaching, and serving as an HMI.
  • Embedded with the large touch panel

    Smart TP runs on Windows 10 and features a large 10.1” screen for improved operability.

  • Improved GUI for increased effi ciency

    Easy-to-view menu confi guration and user-friendly operability are realized. With improved GUI or functions, simulation of robot introduction can be checked on the pendant and work time can be reduced.

  • plashproof with IP54 protection rating




Functions

  • RC8A compatible UI

    Compatible with the existing RC8A controller, maintaining the legacy development environment and ensuring operability.

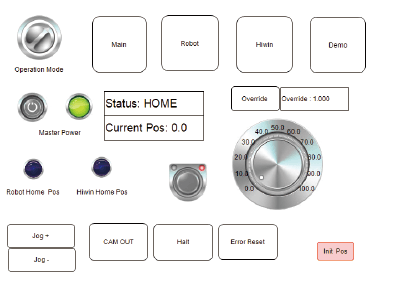

  • Customizable control panel screen

    Screens created by TwinCAT3 PLC HMI can be displayed.

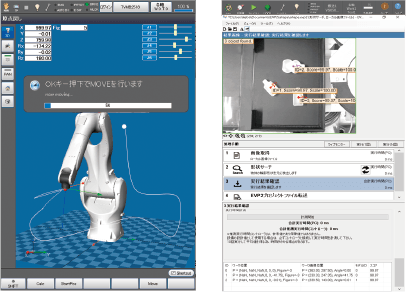

  • WINCAPS Plus UI

    Compatible with the GUI of “WINCAPS Plus,” an Offl ine Programming Software group.

  • Software PLC UI

    Programming screens created with TwinCAT3 PLC can be displayed.




Applications

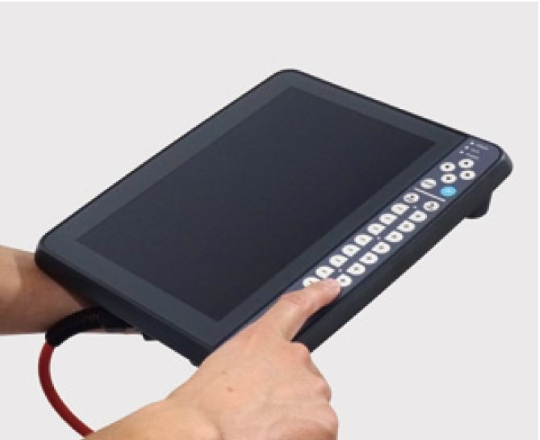

  • As a teaching pendant

    Smart TP is equipped with a teaching function that allows each axis of the robot to be adjusted.

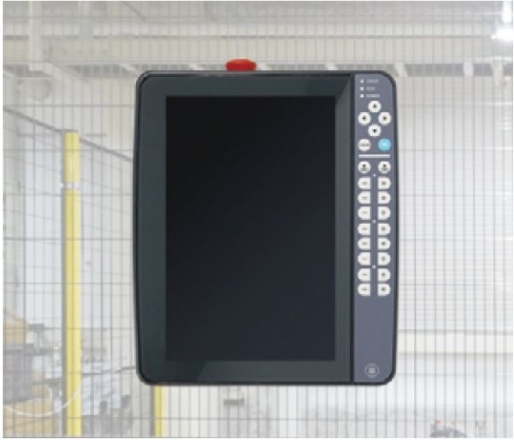

  • As an HMI

    It can be used as an indicator not only for robots but for the entire facility.

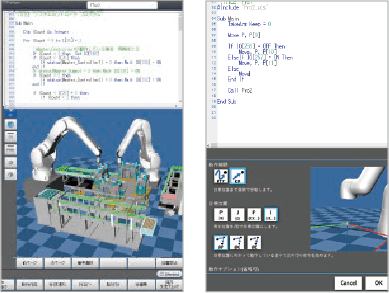

  • As a PC for programming

    In addition to WINCAPS Plus, customer-developed applications and general-purpose applications can also be installed. A keyboard can be connected to create programs.

Smart TP

Size 10,1"(16:10)
Resolution WXGA 800×1,280 pixels
Touch screen Transmissive capacitance type
Backlight LED
Dimensions (L x W x H) 215×284×69mm
Weight About 1,120 g
