VP-5243/6242

The VP-5243 and the VP-6242 are ideal for use in confined areas.

Maximum arm reach｜430 / 432mm
Maximum payload｜2.5 / 3kg
Cycle time｜0.99sec

Features
Spec
Dimensions
Standard Components
Option

Lineup offers 5-axis and 6-axis models.

To meet a wide variety of needs, the 5-axis model "VP-5243" and the 6-axis model "VP-6242," which can handle
multi-directional operations, are offered.

Maximum payload of 3 kg (for 5-axis model)1 and 2.5 kg (for 6-axis model)2

The VP-5243 and the VP-6242 are very powerful for their small size.

Lightweight

The body unit weight is just 13 kg (for 5-axis model). These small and lightweight robots can be carried and installed easily, flexibly responding to changes in plant layout.

Compact design

The footprint is only 160 x 160 mm. The entire body fits into an area of two standard postcards, helping size reduction of facilities.

Low-power servo motor adopted in each axis

An AC servo motor with up to 80 W is adopted in each axis. The total motor capacity is up to 300 W, contributing to energy saving.

Standard equipment includes: air piping for tools (4 lines) and electric wiring (9 core wires).

Can be placed on the floor or suspended from the ceiling.

*1: When the wrist is oriented at more than ±45 degrees with respect to the downward vertical direction, the maximum payload is 2.5 kg (for 5-axis model).
*2: When the wrist is oriented at more than ±45 degrees with respect to the downward vertical direction, the maximum payload is 2.0 kg (for 6-axis model).

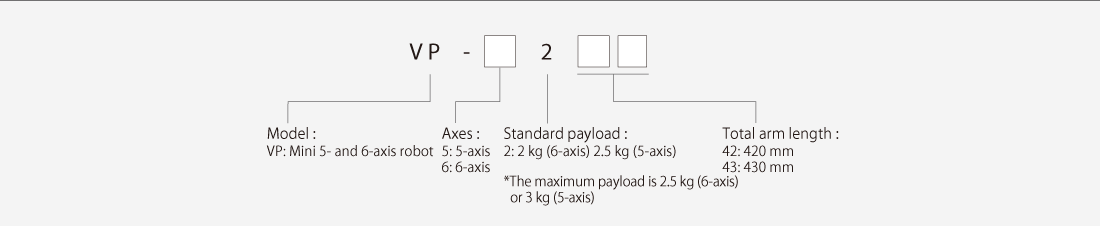

Legend

Item		Unit	Specifications
Model of robot unit		-	VP-5243	VP-6242
Axes		-	5	6
Position detection		-	Absolute encoder
Drive motor and brake		-	AC servomotors for all joints, Brakes for all joints
Overall arm length(first arm + second arm)		mm	430(210+220)	420(210+210)
Arm offset	J3 (front arm)	mm	-	75
Maximum motion area(Point P)		mm	430	432
Motion range	J1	°	±160
	J2		±120
	J3		+136, -128	+160, +19
	J4		-	±160
	J5		±120
	J6		±360
Maximum payload		kg	3(Wrist downward movement is within ±45°)(*3)	2.5(Wrist downward movement is within ±45°)(*4)
Maximum composite speed(at the center of an end-effector mounting face)		mm/sec	3,900	-
Cycle time(*1)		sec	0.99	-
Position repeatability(at the center of an end-effector mounting face)(*2)		mm	±0.02	-
Maximum allowable inertia moment (Inertia)	J4,J5	kgm²	0.04(*5)	0.03
Maximum allowable inertia moment (Inertia)	J6	kgm²	0.01	0.007
User air piping		-	4 systems(φ4×4)
User signal line		-	9(for proximity sensor signals, etc.)
Air source	Operating pressure	MPa	0.10 - 0.39
Air source	Maximum allowable pressure	MPa	0.49
Airborne noise(A-weighted equivalent continuous sound pressure level)		db	80 or less
Weight		kg	Approx. 13	Approx. 15

*1.Time required for a robot to move a 1 kg payload between two points 300 mm apart at a height of 25 mm.
*2.Position repeatability is the precision at constant ambient temperature.
*3.If wrist downward movement exceeds ±45°, the maximum payload is 2.5 kg.
*4.If wrist downward movement exceeds ±45°, the maximum payload is 2 kg.
*5.VP-5243 has no J4.

VP Series

	Standard type
VP-5243	Download
VP-6242	Download

RC8

Group	Item	Q'ty
Robot & Accessories	Robot unit	1
	Motor & encoder cable (option)	1
	Sheet of direction indicator labels	1
	Connector set for hand control signals (for CN20 and CN21)	1set
	Dowel pins (internally threaded positioning pin and diamond-shaped pin)	1set
Controller & Accessories	Robot controller	1
	Power cable (5 m)	1
	Pendantless connector (Dummy connector)	1
	Cable clamp	1
Software etc	WINCAPS III trial version installer disc	1
	Manuals ("Manual Pack disc" and "Safety Precautions")	1set
	Warning label	1

Type	Item
I/O cables	Standard I/O cable set	Consisting of 8-m I/O cables for "Mini I/O" and "HAND I/O."
	Standard I/O cable set	Consisting of 15-m I/O cables for "Mini I/O" and "HAND I/O."
	I/O cable for "Mini I/O" (68 pins)	8 m
	I/O cable for "Mini I/O" (68 pins)	15 m
	I/O cable for "HAND I/O" (20 pins)	8 m
	I/O cable for "HAND I/O" (20 pins)	15 m
	I/O cable for "Parallel I/O board" (96 pins)	8 m
	I/O cable for "Parallel I/O board" (96 pins)	15m
Operation devices	Teaching pendant	With 4 m cable
		With 8 m cable
		With 12 m cable
	Mini-pendant kit (Incl. WINCAPS III Light version)	With 4 m cable	Japanese language version
		With 4 m cable	English language version
		With 8 m cable	Japanese language version
		With 8 m cable	English language version
		With 12 m cable	Japanese language version
		With 12 m cable	English language version
	Pendant extension cable	4 m	For TP / MP
	Pendant extension cable	8 m	For TP / MP
For VS	External battery unit	With 4 m cable
		With 8 m cable
		With 12 m cable
	Brake release unit	With 4 m cable
		With 8 m cable
		With 12 m cable
	Air purge unit	Only for protected type robots
	Second arm cover R (with tapped holes) for VS-050 / 060	Only for standard type robots(IP40)
	Second arm cover R (with tapped holes) for VS-068 / 087	Only for standard type robots(IP40)
	Stopper bolt M8 for J2 mechanical ends for VS-050 / 060	For the 2nd axis
	Stopper bolt M5 for J3 mechanical ends for VS-050 / 060	For the 3rd axis
	Stopper bolt M10 for J2 / J3 mechanical ends for VS-068 / 087	For the 2nd and 3rd axes
For HM	Flange kit	For 20 kg payload
For HM	Flange kit	For 10 kg payload
For HS	Flange kit	For 5 kg payload
For XR	Valve assembly 4-station manifold valve	Single shipment (supply part)
	Valve assembly 4-station manifold valve	Robot mounting shipping
	Hand control cabling kit	-
	Hand control cable	2m

Item / Specifications
VM/VP/HM/HS/XR Series Standard cable (for standard type)	Straight	2 m
		4 m
		6 m
		12 m
		20 m
	Angle	2 m
		4 m
		6 m
		12 m
		20 m
VM/VP/HM/HS/XR Series Splash-proof cable (for dust- & splash-proof type and cleanroom type)	Straight	2 m
		4 m
		6 m
		12 m
		20 m
	Angle	2 m
		4 m
		6 m
		12 m
		20 m
For VS-050/VS-060/ VS-068/VS-087	Straight	2 m
		4 m
		6 m
		12 m
		20 m
	Angle	2 m
		4 m
		6 m
		12 m
		20 m

Type	Item
Optional boards for the robot controller RC8 series	Parallel I/O board (PCI board)	NPN type I/O	Shipped after mounted on the controller (With license)
			Shipped separately as a spare part (With license)
			Shipped separately as a spare part (Without license)
			License certificate only
		PNP type I/O	Shipped after mounted on the controller (With license)
			Shipped separately as a spare part (With license)
			Shipped separately as a spare part (Without license)
			License certificate only
	DeviceNet slave board (PCI Express board)	Mobile unit	Shipped after mounted on the controller (With license)
			Shipped separately as a spare part (With license)
			Shipped separately as a spare part (Without license)
			License certificate only
	CC-Link remote device board (PCI Express board)	Shipped after mounted on the controller(With license)
		Shipped separately as a spare part(With license)
		Shipped separately as a spare part(Without license)
		License certificate only
	PROFIBUS slave board (PCI Express board)	Shipped after mounted on the controller(With license)
		Shipped separately as a spare part(With license)
		Shipped separately as a spare part(Without license)
		License certificate only
	EtherNet/IP Adapter board (PCI Express board)	Shipped after mounted on the controller(With license)
		Shipped separately as a spare part(With license)
		Shipped separately as a spare part(Without license)
		License certificate only
	Electric Gripper Control board (PCI board)	Shipped after mounted on the controller(With license)
		Shipped separately as a spare part(With license)
		Shipped separately as a spare part(Without license)
		License certificate only
VGA option for RC 8	VGA junction cable set*1	VGA junction cable VGA connector is mounted on the controller before shipping.
Options for Installation	Stay set for wall-mount	Wall-mount / Floor-mount

*1.Choose this option when ordering the controller, if needed.

Item / Specifications
For HS·HM·VM·VP·XR Series VS-6556·VS-6577 Standard cable (for standard type)	Straight	2 m
		4 m
		6 m
		12 m
		20 m
	Angle	2 m
		4 m
		6 m
		12 m
		20 m
For HS·HM·VM·VP·XR Series VS-6556·VS-6577 Splash-proof cable (for dust- & splash-proof type and cleanroom type)	Straight	2 m
		4 m
		6 m
		12 m
		20 m
	Angle	2 m
		4 m
		6 m
		12 m
		20 m
XYC Series Standard cable	Straight	4 m
XYC Series Standard cable	Straight	6 m
For VS-050/VS-060/ VS-068/VS-087	Straight	2 m
		4 m
		6 m
		12 m
		20 m
	Angle	2 m
		4 m
		6 m
		12 m
		20 m
