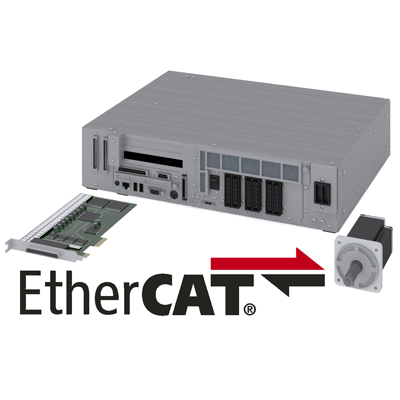

External axis control

By adding an extended joint board (EtherCAT), servomotors of various capacities can be controlled.

Supported servomotors
Sanyo Denki: SANMOTION R ADVANCED MODEL EtherCAT
(compatible with H-type only)
DELTA ELECTRONICS: ASDA-A2-E
Panasonic: MINAS A5B・A6B

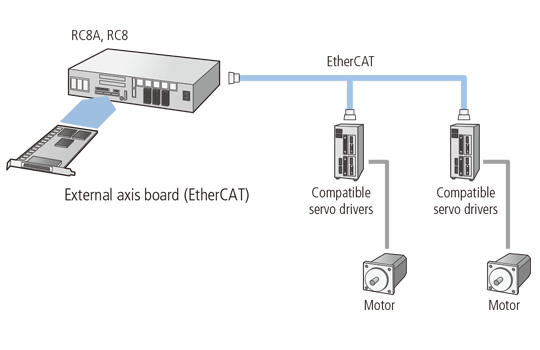

  • Features/System Configuration

The extended joint board enables external devices (amplifiers, motors) compatible with the EtherCAT Slave to be used as additional axes.
An RC8 Series controller generates paths also for additional axes to send them to external devices, which are slaves, through EtherCAT communication. The external devices operate according to the position command as additional axes.

  • Features/System Configuration
