[ LIQUID BLENDING ]

Liquid blending system

Capable of dispensing at a precision of 200 μl ±1%

This system automates a series of liquid mixing processes, such as precisely dispensing multiple types of liquids and stirring them using a magnetic stirrer. COBOTTA provides control linked with a variety of analysis devices, allowing for advanced automation even in limited spaces.

Operation overview

01

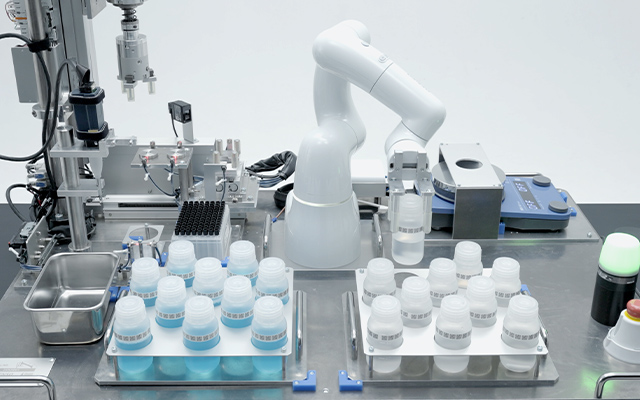

Container removal and cap opening

Up to 10 containers can be placed on the supply and discharge trays, allowing for up to 10 types of samples to be blended.
02

Sample container removal and cap opening.

Container QR codes are scanned to acquire traceability information. Caps are opened only when required, preventing sample volatilization and contamination.
03

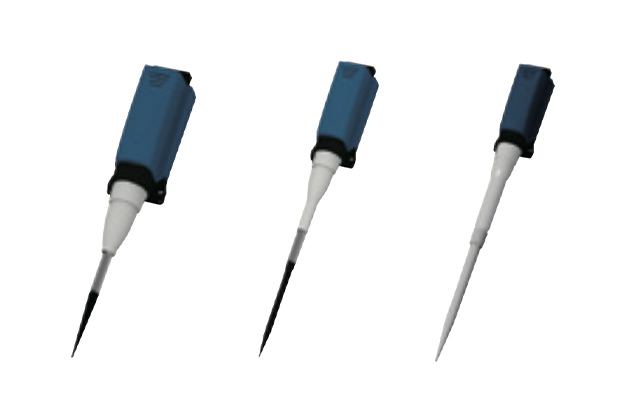

Pipette removal and tip attachment

Everything from tip attachment to disposal is performed automatically. Confirmation sensors are used to ensure reliable work.
04

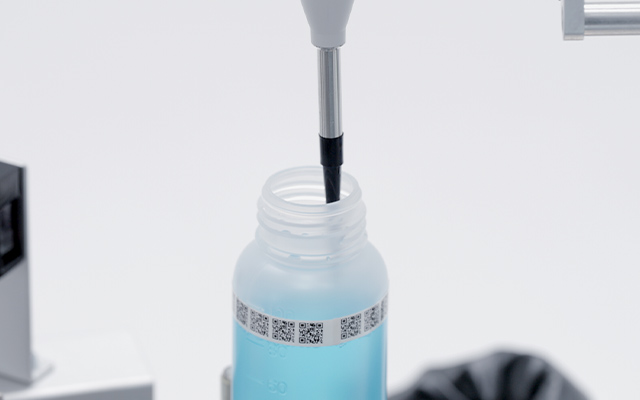

Sample suction/dispensing

The liquid surface is detected, allowing for highly precise suction. It is capable of precise dispensing from 5 μl.
05

Same operation with different samples

The system repeats the same operation with different samples, and blends the set amount.
06

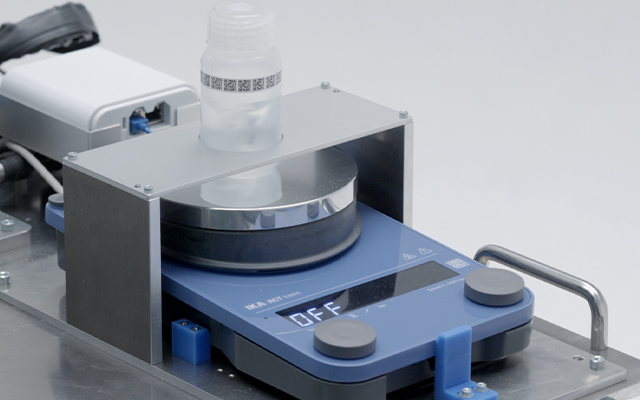

Stirring with stirrer

COBOTTA controls the stirring speed, temperature setting, and when the operation is started/stopped. The magnetic stirrer with heater can be used to heat while stirring.

System specifications

Dispensing volume	5 to 200 μl, 40 to 1,000 μl, 100 to 5,000 μl
Dispensing precision	200 μl ±1 %, 1,000 μl ±0.45 %, 5,000 μl ±0.5 %
Accuracy	200 μl ±0.3 %, 1,000 μl ±0.15 %, 5,000 μl ±0.15 %
System dimensions	Approx. 1,000 mm (W) × 650 mm (D) × 550 mm (H)
Weight	Approx. 40 kg
Power supply	Single-phase 100 VAC 15 A
