A New Ultra-Compact Scanner for Tiny Spaces

Inquiries by email
Demonstration machines
Downloads

Feature
Specifications
Software
Option

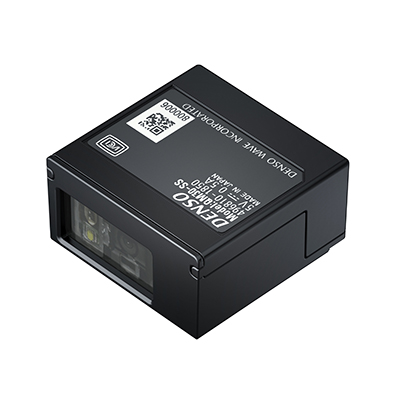

DENSO WAVE’s Smallest and Lightest Scanner Ever

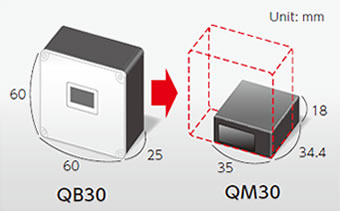

The QM30 series is equipped with the newest module developed in-house by DENSO WAVE. The new module makes it possible to reduce the scanning lens surface area and shrinks the unit’s volume to about 1/4* that of the previous product.
*Compared to QB30.

Compact Dimensions Ideal for Incorporation into Various Devices

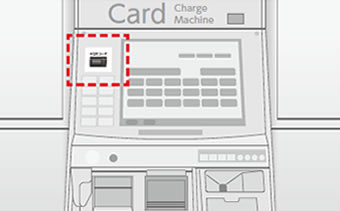

At just 3.5 cm wide, the unit is ideal for incorporating into devices that couldn’t otherwise accommodate a scanner. The QM30 helps design smaller scanner modules for space-saving installations.

Supports NewHigh-security QR Code

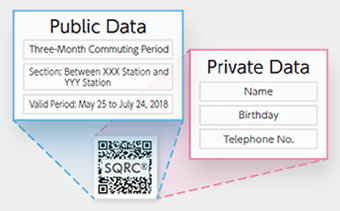

The QM30 supports SQRC with its enhanced security features and can be used for authenticity verification of high-security member ID cards and similar applications. The Q M 30 al so scans QR co des displ ayed on smartphones for payment purposes.

＊Sales availability varies by country and region. Please contact us for more information.

Model			QM30-SS	QM30-SU
Scanner section	Readable codes	2D code	QR Code, Micro QR Code, SQRC, rMQR Code, DataMatrix, PDF417, Micro PDF417, Aztec, GS1 Composite
	Readable codes	Barcode	EAN-13/8, UPC-A/E, UPC/EAN (Add-on embedded), Interleaved 2 of 5, Codabar(NW-7), CODE39, CODE93, CODE128 (EAN-128), GS1 DataBar (RSS)
	Minimum resolution	2D code	0.167mm
	Minimum resolution	Barcode	0.125mm
	Image sensor		480,000-pixel CMOS image sensor
	Lighting		Red LED
	Marker		Red LED
	Field of view		Horizontal: 40°, vertical: 30°
	LCD code		Supported
	PCS value		0.30 or higher
	Skew angle		360°
	Elevation angle, inclination angle		±50°
Communication interface	Method		Serial (TTL level)	USB 2.0 compliant (COM, HID)
Communication interface	Connector		8-pin board to wire connector	USB connector, micro USB
Power, current consumption			5 VDC ±5 %, 500 mA (scanning), 180 mA (standby)
Environmental performance	Operating humidity		10 to 90 % RH (no condensation or freezing)
	Operating temperature		-10～50℃
	Protection rating		-
	Drop resistance		-
External dimensions			35.0(W)×34.4(L)×18.0(H)[mm]
Weight			Approx. 18 g
Color			Black

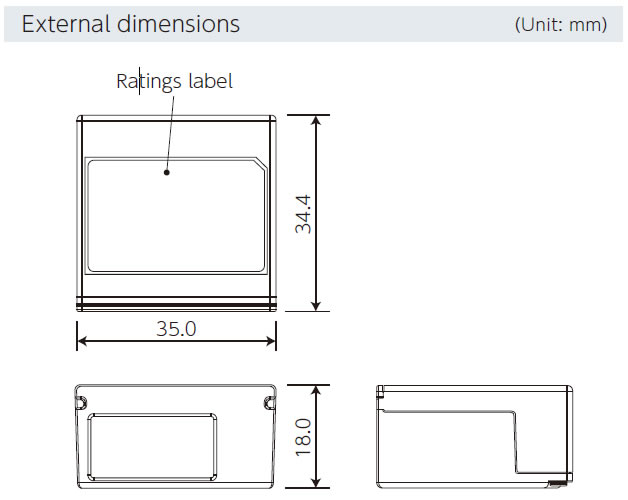

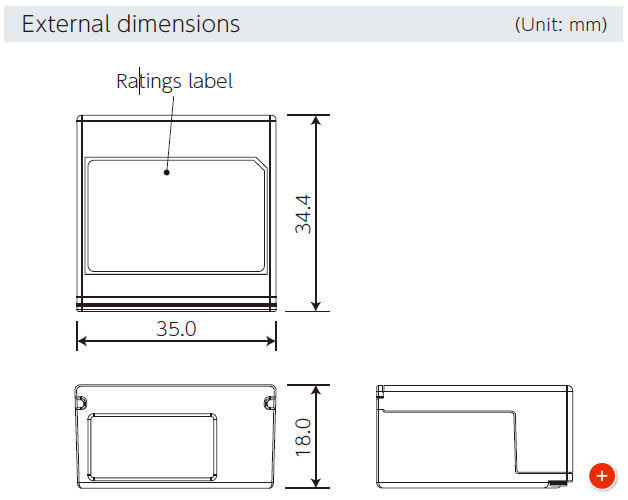

External dimensions

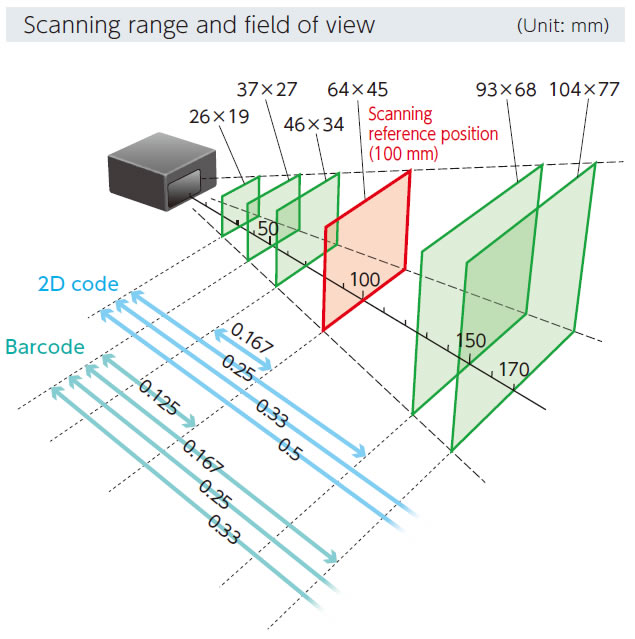

Scanning range and field of view

1.Scanner specifications are values obtained under an ambient light intensity of 500 lx or lower.
2.Depending on light source position, angle to the label surface, and other factors, specular reflections may prevent scanning in certain cases.
3.Close-distance scanning may be restricted in certain cases, depending on scanning field of view.
