Scanning Performance

High-speed shutter and readability from any direction (360 degree)

You can improve your work efficiency by the high-speed shutter that enables operation not affected by camera shake, and readability from any direction.

Wide-angle scanning, improved readability

The number of horizontal pixels is increased and reading algorithms improved. Readability for wide barcodes used for public utility bills, medical bills, etc. is improved.

Improved resolution useful for various businesses

The newly developed reading engine enabled 0.125 mm resolution for 1D barcodes and 0.167 mm for 2D barcodes. The scanner can be used for a wide range of businesses such as operations of plants, hospitals and shops.

Multi-row barcodes can be read at one time.

The scanner can read two-row barcodes of books and up to three-row other barcodes. Decrease in the reading frequency can lead to drastic reduction in working hours.

Useful Functions

Possible to read barcodes on mobile phone LCD screen

The newly developed unique LED illumination control function is incorporated in the scanner to suppress specular reflection. The device can quickly read barcodes on mobile phone LCD screens.

Eye-friendly LED marker

In addition to the laser guide marker-type model, which is already on the market, the LED marker-type model that indicates the scanning area has been released. The scanner considers the safety of eyes, ideal for the use in service industries such as supermarkets.

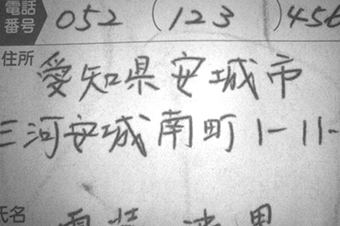

Easy-to-use image capture function

The scanner can read not only barcodes but also take pictures. The device enables you to easily read even small characters. This function is useful particularly for logistics and transportation industries dealing with bills.(2)

Incorporated with many user-friendly and unique functions of DENSO

Antibacterial

By using antibacterial and weather-resistant materials for the main unit, propagation of unwanted bacteria and discoloration are prevented. This product can be used with peace of mind in the fields of medicine and food.

  1. 1. With one reading pass over a 5s period.
  2. 2. One JPEG image can be transferred within one second in the case of USB connection.
  3. 3. According to our survey in May 2012
LED marker type LED marker type
AT20Q-SM(White) AT21Q-SM(Black) AT21Q-HM(Black)
RS-232C model USB model RS-232C model USB model RS-232C model USB model
Type AT20Q-SM(R) AT20Q-SM(U) AT21Q-SM(R) AT21Q-SM(U) AT21Q-HM(R) AT21Q-HM(U)
Scanner Method Area sensor
Readable
codes
2D Code QR Code, Micro QR Code, SQRC, iQR, DataMatrix(ECC200), PDF417, MicroPDF417, Maxi code, Aztec, GS1 DataBar Composite(EAN.UCC Composite)
Barcode EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on), Interleaved 2of5(ITF), Standard 2of5(STF),CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), GS1 DataBar(RSS)
Minimum
resolution
2D code 0.167mm 0.125mm
Barcode 0.125mm 0.10mm
Marker LED marker
Angle ±50°
Skew angle 360°
Image capture BMP, JPEG, thumbnail view
Scanning
confirmation
Confirmation LED(Blue, Green, Red), Buzzer(with 3-level volume control and 3-level tone control)
Communication
interface
Method RS-232C USB(COM、HID)(1) RS-232C USB(COM、HID)(1) RS-232C USB(COM、HID)(1)
Connector Dsub-9S USB Connector(A type) Dsub-9S USB Connector(A type) Dsub-9S USB Connector(A type)
Cable 2m straight cable
Power Exclusive AC adapter Supplied from the connection target Exclusive AC adapter Supplied from the connection target Exclusive AC adapter Supplied from the connection target
Supplied from the connection target Supplied from the connection target Supplied from the connection target
Environment
requirements
Dust-proof,
Drip-proof
IP42
Drop impact
resistance(2)
2.0m/0.2m x 100,000 times
Operating
humidity
10~90% RH(without dews)
Operating
temperature
-5~50℃
Operating
illumination
0 to 10,000 lx (Fluorescent lamp in daytime)
Weight (excl. cable) Approx. 110 g
Area guide marker type Area guide marker type
AT25Q-SM(White) AT26Q-SM(Black) AT27Q-SB
RS-232C model USB model RS-232C model USB model Bluetooth model
Type AT25Q-SM(R) AT25Q-SM(U) AT26Q-SM(R) AT26Q-SM(U) AT27Q-SB(3)
Scanner Method Area sensor
Readable
codes
2D Code QR Code, Micro QR Code, SQRC, iQR, DataMatrix(ECC200), PDF417, MicroPDF417, Maxi code, Aztec, GS1 DataBar Composite(EAN.UCC Composite)
Barcode EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on), Interleaved 2of5(ITF), Standard 2of5(STF),CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), GS1 DataBar(RSS)
Minimum
resolution
2D code 0.167mm
Barcode 0.125mm
Marker Area guide marker
Angle ±50°
Skew angle 360°
Image capture BMP, JPEG, thumbnail view
Scanning
confirmation
Confirmation LED(Blue, Green, Red), Buzzer(with 3-level volume control and 3-level tone control) Confirmation LED(Blue,Green,
Red, Orange), Buzzer (with
3-level volume control and
3-level tone control)
Communication
interface
Method RS-232C USB(COM、HID)(1) RS-232C USB(COM、HID)(1) Bluetooth Ver.2.1+EDR based class2
Connector Dsub-9S USB Connector(A type) Dsub-9S USB Connector(A type) -
Cable 2m straight cable -
Power Exclusive AC adapter Supplied from the connection target Exclusive AC adapter Supplied from the connection target Exclusive battery
(SB-10L)
Supplied from the connection target Supplied from the connection target
Environment
requirements
Dust-proof,
Drip-proof
IP42 IP54
Drop impact
resistance(2)
2.0m/0.2m x 100,000 times 1.8 m hight over a concrete
floor with each of 6 sides of
the enclosure facing down
Operating
humidity
10~90% RH(without dews)
Operating
temperature
-5~50℃
Operating
illumination
0 to 10,000 lx (Fluorescent lamp in daytime)
Weight (excl. cable) Approx. 110 g Approx. 200 g
  1. 1. Two methods are supported: a USB keyboard interface and a USB-COM interface. The factory default is a USB-COM interface.
  2. 2. These are test values, but not guaranteed values.
  3. 3. External case of the Bluetooth model is a different with the wired model.
  Barcode model
Model AT20B-SM(White) AT21B-SM(Black)
RS-232C Model USB Model RS-232C Model USB Model
Type AT20B-SM(R) AT20B-SM(U) AT21B-SM(R) AT21B-SM(U)
Scanner Scanning system Advanced Scan Plus(CCD)
Readable codes EAN-13/8(JAN-13/8), UPC-A/E, UPC/EAN(With add-on codes), Interleaved 2of5(ITF), Standard 2of5(STF), CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), RSS(GS1 DataBar)
Resolution 0.125mm
Marker LED
PCS value not less than 0.3
Angle ±50°
Scanning confirmation 3-color LED (Blue,Green and Red), buzzer (with 3-step volume and tone control)
Communication I/F I/F RS-232C USB(COM, HID)(1) RS-232C USB(COM, HID)(1)
Connector form Dsub-9Pin USB TypeA Dsub-9Pin USB TypeA
Cable 2m straight cable
Power Power supply original AC adapter Supplied from the connection target original AC adapter Supplied from the connection target
Supplied from the connection target Supplied from the connection target
Environment Requirements Drip -proof IP42
Drop resistance(2) 2.0m/0.2m × 100,000 times
Temperature -5 to 50°C
Humidity 10 to 90% RH (without dews)
Illumination 20 to 10000l×(Fluorescent lamp)
Weight (excl. cable) Approx. 105g
  1. 1. Two methods are supported: a USB keyboard interface and a USB-COM interface.
  2. 2. These are test values, but they are not guaranteed values.

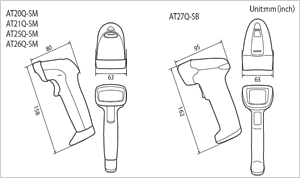

Dimensions

click to enlarge

Holder

  Model Compatible models Dimentions
S-AT10 S-AT10 AT22B-SB/AT27Q-SB
S-AT20(ホワイト) S-AT20(White) AT20B/AT21B/AT20Q/AT21Q/AT25Q/AT26Q
S-AT21 S-AT21(Black) AT20B/AT21B/AT20Q/AT21Q/AT25Q/AT26Q

Hands-free stand

  Model Compatible models Dimensions Price
H-AT20 H-AT20(White) AT20B/AT21B/AT20Q/AT21Q/AT25Q/AT26Q H-AT20 Open
H-AT21 H-AT21(Black) AT20B/AT21B/AT20Q/AT21Q/AT25Q/AT26Q H-AT20 Open
H-AT20-2 H-AT20-2 AT20B/AT21B/AT20Q/AT21Q/AT25Q/AT26Q - Open
H-AT20-2 H-AT20-3 AT20 - Open

Bluetooth model stand

  Type Model Compatible models Dimensions Price
S-AT10 Bluetooth model stand S-AT10 AT22B-SB/AT27Q-SB Open

Bluetooth model Hands-free stand

  Type Model Compatible models Dimensions Price
H-AT10 Bluetooth model Hands-free stand H-AT10 AT22B-SB/AT27Q-SB H-AT10 Open

Communication unit

  Type Model Dimensions Price
Bluetooth Communication unit BA20-RU - Open
Bluetooth Communication unit BA11-RKU - Open

2D code model accessories

  • ・Interface cable
  • ・AC adapter (Only for RS-232C model with AC adapter)
  • ・Operation Guide

Bluetooth model accessories

  • ・Recharger (CH-AT10L)
  • ・AC adapter
  • ・Hang Strap
  • ・Operation Guide
  • Instruction manual
*Bluetooth communication unit (BA11-RKU) is separately sold.

Cable

AT20Q Cable line-up

Model Cable Type Interface Form Length
AT20/25Q-SM(RS-232C)
AT21/26Q-SM(RS-232C)
AT20/21/25/26Q RS-232C cable / Power from AC adpter CBA2-RS2000/9 RS-232C Straight 2m
AT20/21/25/26Q RS-232C cable/ Power from host unit/ male CBA2-RS2000/9-1
AT20/25Q-SM(USB)
AT21/26Q-SM(USB)
AT20/21Q USB cable CBA2-US2000/4-1 USB1.1 Straight 2m

Setting Software

Type Feature
Scanner Setting(Free) Software for various parameter settings of AT20Q
BA Setting 2D(Free) Software for various parameter settings of AT20Q

Keyboard Interface Software

Type Feature
QRkbif(Free) Software which converts the data from a scanner like input from a keyboard

Driver

  • Feature
  • Specifications
  • Options
  • Software
