Operability supporting operators

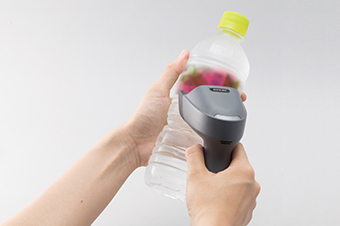

Touch scanning of both 1 and 2D codes while checking codes

The AT30Q supports not only distant scanning but also touch scanning, which enables every user to scan codes accurately. The innovative new design allows users to see the codes as they scan them.

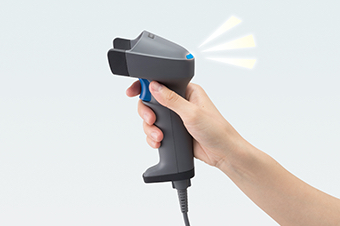

Supporting operators

Weighing just 125 g, the light and compact body reduces operator strain. Furthermore, a loud buzzer and highly visible check LED ensure readings are confirmed.

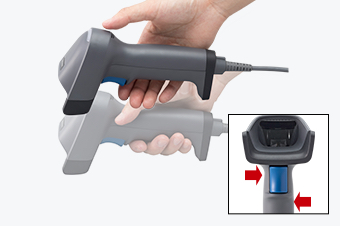

Ergonomic design

The AT30Q is designed so the user can quickly pick up the scanner when lying down. Further,the grip’s bulge ensures a gentle fit in the user’s hand, reducing strain on operators who work for long periods. The trigger is designed so the user’s finger naturally rests right on it and functions with a noticeable click feeling.

Overwhelming reading performance plus excellent durability, providing users with long-term peace of mind

Highly capable for reading poorly printed labels

The AT30Q has such a high performance scan engine that it can read dirty, dammaged and poorly printed codes.

Best-in-class durability

The AT30Q is designed to withstand a 2-meter drop impact and other multiple impacts during daily operations, it can resists 100,000 falls from a height of 20 cm, giving operators peace of mind for a long time about the product’s integrity. Further, the AT30Q has an IP42 rating, providing protection against water and dust.

Type USB Model
AT30Q-SM(U)(1)
RS-232C Model
AT30Q-SM(R)
Scanner Method Area Sensor
Readable
codes
2D Codes QR code, SQRC, iQRcode, Micro QR code, Data Matrix (ECC200),
PDF417, Micro PDF417, Maxi code, Aztec, GS1 Composite
1D Codes EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF),
Standard 2 of 5 (STF), CODABAR (NW-7), CODE39, CODE93, CODE128,
GS1-128 (EAN-128), GS1 Databar (RSS)
Minimum
resolution
2D Codes 0.167mm
1D Codes 0.125mm
PCS value 0.30 min
Angle ±50°
Skew angle 360°
Image capture BMP, JPEG output, thumbnail view
Scanning confirmation Confi rmation LED (Blue, Green, Red), Buzzer
Marker LED point marker
Communication
interface
Method USB(1) RS-232C
Connector USB connector (A type) Dsub-9S
Cable 2 m 2 m, 5 m
Power Supply from the connection(2) Supply from the connection, directed AC adapter
Environment
requirements
Protection rating IP42
Drop resistance(3) 0.2 mx100,000 times/2.0 m (on the concrete fl oor)
Operating temperature -5~50℃
Operating humidity 10 to 90% RH (without dews)
Weight (Except cable) Approx. 125 g
  1. 1. Two methods are supported: a USB keyboard interface and a USB-COM interface. The factory default is USB-COM interface.
  2. 2. Please check the connection beforehand because this type of connection may not be possible depending on the model of the PC or USB hub.
  3. 3. Result obtained in a test under regular temperature is shown and not meant as a guarantee.

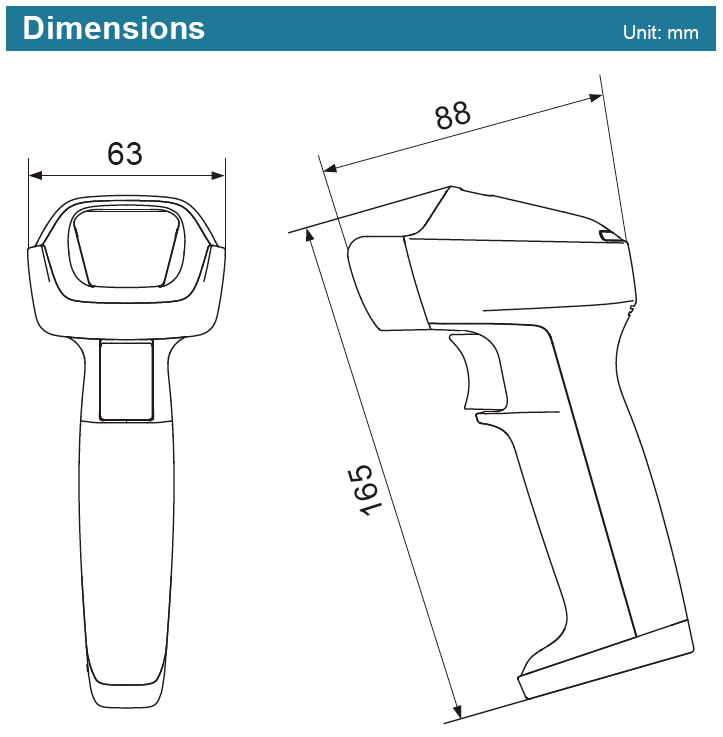

Dimensions

Dimensions

Stand

Model Price
S-AT30 -

Accessories

  • ・Interface cable
  • ・AC adaptor (Only for the RS-232C model using an AC power adapter)
  • ・Operation Guide
  • ・Instruction manual(Download from QBdirect)

Setting software

Software for various parameter settings of AT30Q

Model Feature
Scanner Setting 2D(Free) Software for various parameter settings of AT30Q

Keyboard emulation software

Software which converts the data from a scanner like input from a keyboard

Model Feature
QR_kbif(Free) Software which receives the information read by a scanner and converts the data as if it was input from a keyboard

USB driver

SQRC® Setting software

Model Feature
SQRC® Setting Software which set cryptography key necessary for SQRC reading
