SH1

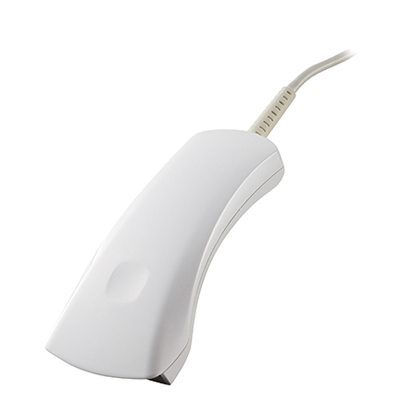

Compact scanner that can be sterilized with alcohol and used cleanly

  • Feature
  • Specifications
  • Options
  • Softwares

Flat shape with minimal unevenness for clean use.

The flat shape is achieved by eliminating the trigger switch and adopting a touch switch. Alcohol sterilization is possible, and the body is easy to wipe with a small amount of unevenness to keep it always clean.

Compact design of small and thin model. Ideal for space-optimized use.

Its small size and thinness make it ideal for long hours of work and space-saving operation. They are also portable and can be used anywhere.

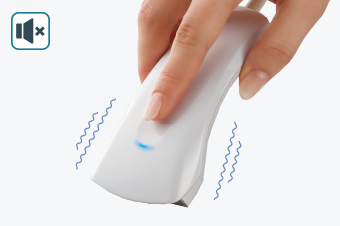

Vibration and indicator LEDs for easy scanning confirmation.

The scanning can be confirmed by vibration and an indicator LED without sound. The system can be used safely for operation in quiet hospital rooms.

  • Sales conditions vary by country and region. Please contact us for details.
Models Barcode model 2D code model
SH1-BU SH1-QU
Scanner Method Advanced scan(CCD) Area sensor
Scannable
codes
2D codes QR Code、SQRC、Micro QR Code、
DataMatrix(ECC200)、PDF417、Micro PDF417、
MaxiCode、Aztec、GS1 Composite
Barcodes EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on)、Interleaved 2 of 5、Standard 2 of 5、Codabar(NW-7)、
CODE39、CODE93、CODE128、GS1-128(EAN-128)、GS1 DataBar(RSS)
Minimum
resolution
2D codes 0.167mm
Barcodes 0.125mm
PCS value Over 0.3
Angle ±50°
Scanning confirmation LED (blue), buzzer, vibrator
Communication
interface
Method USB 1.1(1)
Connector USB connector(A type)
Cable 1.5m straight cable
Power Power supply Supply from the connection(2)
Environment
requirements
Drop impact resistance(3) 1.5m(on the concrete fl oor)×30 times
Operating temperature -5 ~ 50℃
Operating humidity 10 ~ 90% RH(without dews and freezing)
Operating illumination 0 to 10,000 lx (Fluorescent lamp in daytime)
Weight (excl. cable) Approx.55g
  1. 1. Two methods are supported: a USB keyboard interface and a USB-COM interface.
  2. 2.Some models of PCs and USB-HUBs may not be able to be connected, so please check in advance.
  3. 3. These are test values, but not guaranteed values.

Dimensions

寸法図

Components of a Set

  • ・Scanner
  • ・Operation manual
  • ・User's manual(The Operation Guide is not included. It can be downloaded from WEB.)

Setting software



Type Feature
Scanner Setting(Free) Software for various parameter settings
Scanner Setting 2D(Free)

Keyboard Interface Software



Type Feature
QRkbif(Free) Software which converts the data from a scanner like input from a keyboard

Drivers

Type Feature
Active USB-COM Port Driver Driver
