Data entry to smart devices is now easier, quicker and more accurate!

Feature 1 Long operation

This product can be operated for a long time,reducing operating costs. Even if suddenly out of battery power, there’s no need to
worry; this product is battery-powered.

Feature 2 Supports LCD scanning

Scanning codes displayed on a smartphone or other device is also supported.

Antibacterial and weather-resistant

The main unit is antibacterial and weather-resistant, which can be cleanly used for a long time.

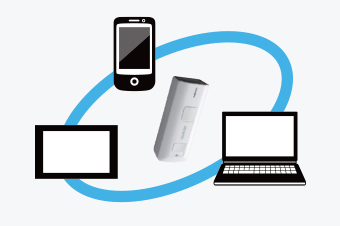

Feature 3 Connects to all detected Bluetooth devices

No complicated settings required. Do settings by just scanning the connection code.

  2D code model Barcode model
Type SE1-QB SE1-BB
Scanner Area sensor Advanced scan plus (CCD)
Mode Readable
Codes
2D code QR code,micro QR code,iQR,SQRC,PDF417,micro PDF417,DataMatrix(ECC200),
Aztec,GS1 DataBar Composite(EAN.UCC Composite),Maxi Code
-
Barcode EAN-13/8(JAN-13/8),UPC-A/E,UPC/EAN(with add-on),Interleaved 2 of 5(ITF),CODABAR
(NW-7),Standard 2 of 5(STF),CODE39、CODE93,CODE128,GS1-128(EAN-128),GS1 DataBar (RSS)
Minimum
resolution
2D code 0.167mm -
Barcode 0.125mm
PCS value 0.3 min.
Angle ±50°
Scanning confirmation Confirmation LED (blue, red), Buzzer
Communication
interface
Method Bluetooth ver. 2.1 + EDR-based class 2
Profile SPP,HID
Power Power Alkaline AA battery x 2 or AA Eneloop® battery x 2
Operating time(1) 50 hours 100 hours
Environment
requirements
Security level IPX2
Drop impact resistance(2) 1.2m hight over a concrete floor with each of 6 sides of the enclosure facing down
Operating temperature -5~50℃
Weight Approx. 60 g (not including batteries)
  1. 1. With one reading pass over a 5 s period.
  2. 2. These are test values,but not guraranteed values.

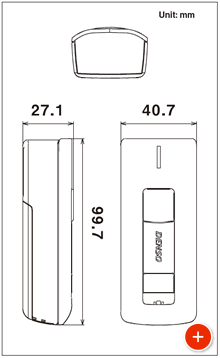

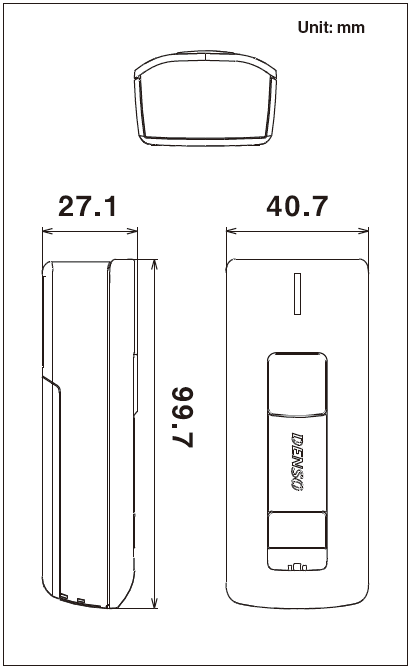

Dimensions

Dimensions

Strap

  Name Type Dimensions Price
Neck strap NSBHT-1300 - Open
Hand strap HSSE1 - Open

Silicone cover

  名称 Type Dimensions Price
Silicone cover Silicone cover common to SE1-BB and -QB (Clear) - Open
Silicone cover Silicone cover common to SE1-BB and -QB (Black) - Open

Accessories

  • ・Operation Guide
  • (with code menu for settings)

※Batteries are not included.

Setting software

Name Type Feature
Setting software Scan Tune App Software application to prepare parameter setting codes for SE1 series on PC.

* Downloadable via QBdirect.
