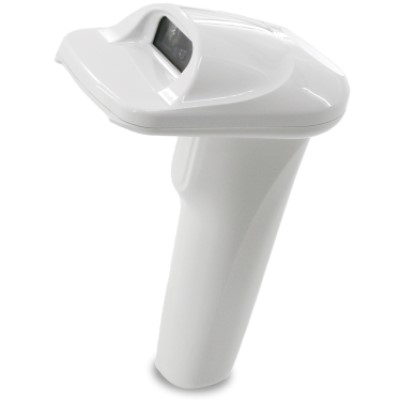

Optimal design for 24/7 use in healthcare settings

  • Feature
  • Specifications

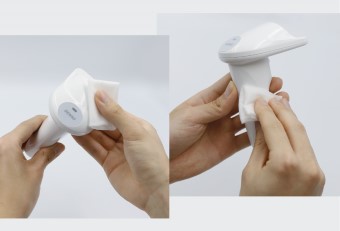

Always Clean

Design is ideal for settings that require frequent disinfection. Stays clean even when in constant operation.

Antibacterial and Chemical Resistant

Compliant with the JIS Z 2801 standard. Product surface is made with a resin containing an antimicrobial agent.
Tested with 18 chemicals including alcohol, hydrogen peroxide, sodium hypochlorite, and more.*

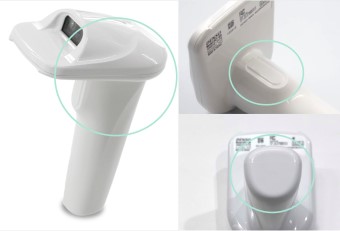

Seamless Design

The trigger switch is a unique smooth design with no moving parts and no charging terminal, making it easy to wipe clean during disinfection to keep bacteria and viruses away disinfection.

*Test method: Wipe once a day, no effect on appearance, function, or performance.

Easy to Operate

The lightweight and easy to operate design reduces the burden of scanning in busy settings where errors are not tolerated

Wireless Connectivity

Wireless connection using Bluetooth means that there are no cables on the main unit. This allows a wristband code to be scanned at the bedside without moving a patient when giving them medication. This also enables scanning away from PCs and carts for easy handling and reduced workload.

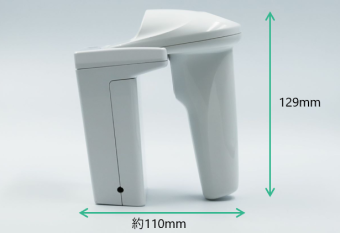

Lightweight and Compact

The main unit weighs only 130 g, the lightest in class*, reducing the work burden. The space-saving, compact design makes it easy to install on a packed medical cart, so that limited space is not wasted.

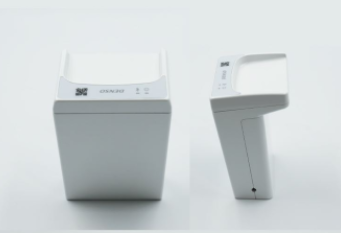

Contactless Charging

Contactless charging (using magnets) is done by simply placing the main unit on the charger. The scanner can be fully charged in less than 3 minutes, and so you do not have to stop working if you forget to recharge it.

Comfortable Scanning

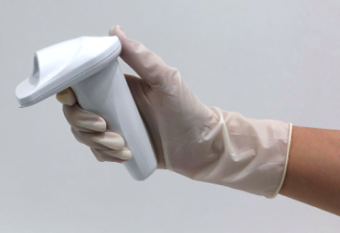

・The capacitive trigger switch allows for comfortable operation even when wearing gloves.
・The scan distance of 40 to 330 mm enables intuitive scanning of patient wristbands*.

*as of August 2022, surveyed by the company

*For module width of 0.33 mm, the scan distance of 40 to 330 mm is supported.

Supports Long-term Use

Optimal product design and after-sales support ensure reliable use after purchase.

No Battery Replacement

The main unit equipped with an internal capacitor and does not require battery replacement. There is no risk of batteries going bad; the scanner can be used for the long term without burdensome consumable costs. The charger uses the readily available and inexpensive eneloop®.

Robust Design

Lightweight, yet also IP65 dustproof and waterproof. In addition, it is drop resistant (0.5 m, 2,000 times) to withstand daily shocks. Wireless design frees users from cable worries.

Long-term Warranty for Peace of Mind

The product comes with a free 1-year warranty after purchase for peace of mind. In addition, 1-year, 3-year, and 5-year maintenance plans (optional) can be selected to provide support in case of emergencies.

  • Sales availability varies by country and region. Please contact us for more information.

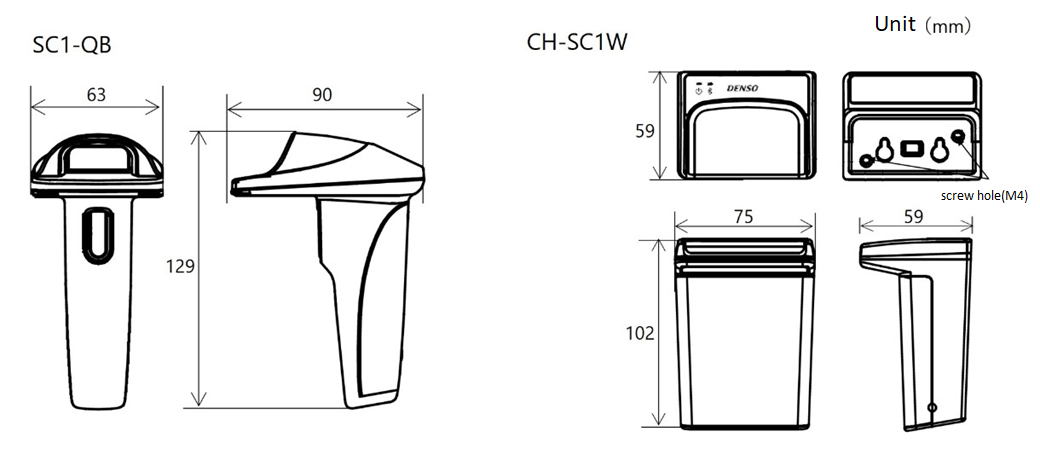

Model SC1-QB
Scanner Method Area Sensor
Readable codes 2D Codes QR code, SQRC, iQRcode, Micro QR code, Data Matrix (ECC200),
PDF417, Micro PDF417, Maxi code, Aztec, GS1 Composite
1D Codes EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF),
Standard 2 of 5 (STF), CODABAR (NW-7), CODE39, CODE93, CODE128,
GS1-128 (EAN-128), GS1 Databar (RSS)
Minimum resolution 2D Codes 0.127mm
1D Codes 0.076mm
PCS value 0.3 or more
Angle ±50°


LED (blue, green, red), buzzer, vibrator

Communication interface Method(1) Bluetooth® 5.0 Low Energy based class 2



Charging time Approx.3 min.
Operating time(2) Approx.30 min.
Operating temperature -20℃~50℃
Operating humidity 10~90% RH(non-condensing)
Protective clas IP65
Drop resistance 2,000 times or more from 2.0m above concrete floor, 0.5m

Ambient light intensity

100,000 lux or less

Weight Approx.130g
  1. 1. Cannot be connected since the communication method is different from the BA-20 series.
  2. 2. When the scanner is paired with a charger, trigger is set to the auto-off mode, a QR code is scanned once every 5 seconds and the scanner is constantly communicated with the charger


Model CH-SC1W
charger Charge Confirmation LED (blue, green, red)
Communication Method USB2.0 (Full Speed), USB-HID keyboard input/USB-COM connection
power supply Power USB charging (5V DC)
Battery AA eneloop® × 2
Environmental Performance Operating temperature 0℃~40℃
Operating humidity 20~90% RH(non-condensing)
Protective clas IP22
Weight 約125g(Excluding battery)
  1. *eneloop® is a registered trademark of the Panasonic Group.
  2. *Alkaline batteries cannot be used. Please use eneloop®.


Components of a Set

  • ・Scanner
  • ・Charger
  • ・USB Cable
  • ・Operation manual
  • ・User's manual(The Operation Guide is not included. It can be downloaded from WEB.)
