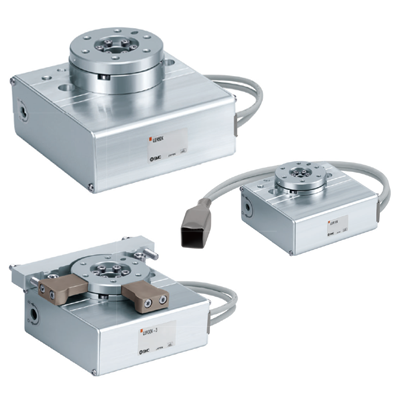

Electric Rotary Table
LER Series Step Motor

  • Overview
Possible to set the speed, acceleration/deceleration, and position, Max.64


Features

Shock-less/High speed actuation
Max speed: 420° /sec (7.33rad/sec)
Max acceleration/deceleration: 3,000° /sec² (52.36rad/sec²)

Possible to set the speed, acceleration/deceler­ation, and position, Max. 64
Repeatability at the end:士0.01° (Pushing con­trol/With external stopper)


Rotation angle
360°, 320° (310°), 180°, 90° The value indicated in brackets shows the value for the LER10

Energy-saving product
Automatic 40% power reduction after the table has stopped.


Positioning repeatability:士0.03°
(High precision type)
Repeatability at the end:士0.01°
(Pushing control/With external stopper)
