Self-Locking (Safety) Function (Maintains clamping at zero air
pressure)
The self-locking spring will keep the clamp locked even if the air pressure drops to zero due to a power outage, etc., ensuring safety. (See Holding Force at O MPa for details) 'Minimum operating air pressure or greater is required for positioning.
Repeated Positioning with High Precision
Positioning repeatability: 3 µm

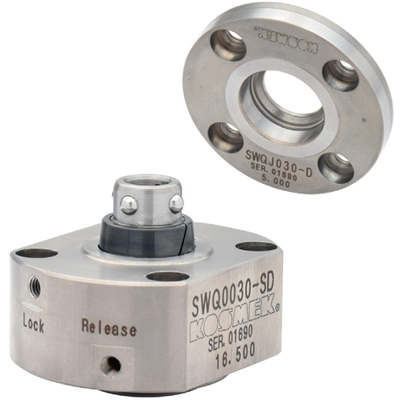

Use clamp and block in combination. Mount the block on the object for positioning
Air Blow and Seating CheckContaminants can be removed using air blow. The seating surface includes an air blow hole, and proper seating can be confirmed using the gap sensor.
Clamping Function
Clamping force ranges from 0.25 to 1.1 kN Clamp operates by air pressure and self-locking spring. Select the appropriate clamping force for your needs.
