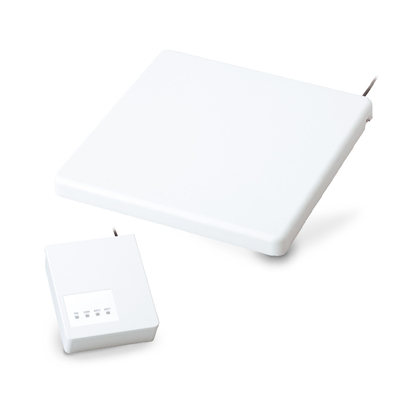

UR20 series

Stationary scanner with RFID

Inquiries by email
Demonstration machines
Downloads

Feature
Specifications
Option
Software

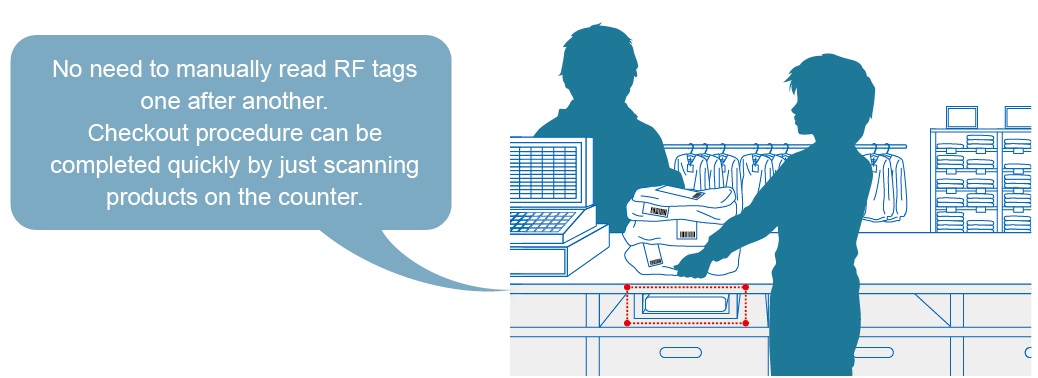

To eliminate checkout queues

Can be additionally installed on an existing register

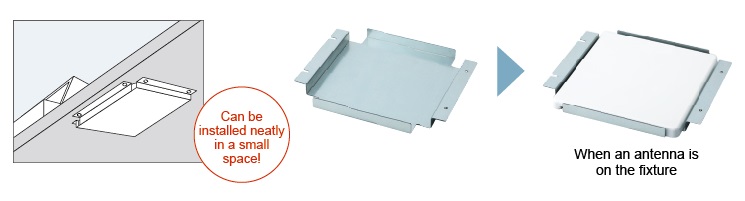

The combination of a small controller and a thin antenna eliminates problems in fi nding an installation location. A dedicated antenna fi xture, which is useful in installing the antenna, is also offered.

No need to worry about reading products on adjacent checkout counters

The communication range is approximately 80 cm, which is ideal for the environment for POS registers. To prevent reading RF tags of products on adjacent checkout counters, the communication range can be adjusted arbitrarily according to the use environment.

And more...

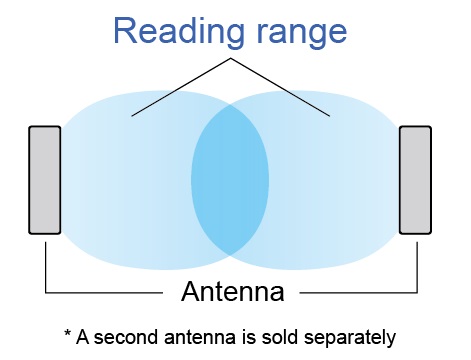

By using two antennas, the reading area can be expanded

Two antennas can be connected to one controller, covering a wider range and expanding customer use range.

To eliminate the time for reading at the time of storage and retrieval

Ideal for installation at a storage/retrieval gate

The communication range is approximately 2.5 meters. With this long-distance reading capability, even when the scanner is installed at the upper part of a gate, it can smoothly read even RF tags that are attached to cargo at workers’feet. Furthermore, a circular polarized antenna enables 360-degree reading of RF tags, so users do not have to care about directions of RF tags. The communication range can be changed freely, enabling adjustment of the range according to the use environment.

Several devices can be controlled by a single PC

By using an Ethernet interface, several devices can be controlled by a single PC. Furthermore, an Ethernet interface can connect a PC and devices even if they are distanced from each other.

Can be retrofitted anywhere

The combination of a small controller and a thin antenna eliminates problems in finding an installation location. VESA-compliant screw holes and supplied screws for securing the antenna make it easy to install this product on a VESA-compliant fixed stand.

＊Sales availability varies by country and region. Please contact us for more information.

Model		(RS-232C/USB model) UR21-MR-01 (1)	(Ethernet/USB model) UR22-MR-01(1)
RFID	Readable and writable RF tag	ISO/IEC18000-63 TypeC (EPCglobal Class1 Gen2) -supported Tag
	Frequency	865.7–867.5 MHz
	Channel width/number of channels	600 kHz/4 ch
	Transmission output	500 mW ERP
	Modulation method	PR-ASK
	Transmission rate	40 kbps
	Scanning distance(2)	0–800 mm (Avery Dennison AD-229r6)	0–2500 mm (Avery Dennison AD-229r6)
	Output adjustment	5–23 dBm
LED indication function		PW: power supply (green), COM (red), ANT1 (orange), ANT2 (orange) 4 total
Interface		RS-232C (D-SUB 9P), USB (mini USB B Type)	LAN (RJ45), USB (mini USB B Type)
Power	Power supply	AC adapter (100 V)
Power	Current consumption	1300 mA MAX (excluding inrush current)
Operating temperature		0–40℃	-5–50℃
Structure	Dimensions	Controller: 90 × 108.5 × 31 mm Antenna: 200 × 200 × 17.5 mm
Structure	Weight	Controller: Approx.130 g Antenna: Approx.360 g	Controller: Approx.130 g Antenna: Approx.400 g
Components	Controller	1 (including a rear cover and screws for securing the rear cover)
	Antenna	1 (with VESA-compliant screw holes)
	Antenna cable	Double-end RF connector (GT27) cable (2000 mm long)
	Antenna securing screws	4

1. Do not connect an antenna, a controller or a cable that is not specifi ed by Denso Wave.
2. Network range may vary according to target tag. Network range is a reference value and this may vary accordingly, depending on the actual environmental conditions.

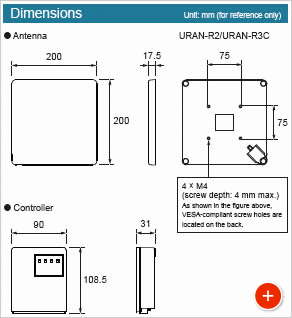

Dimensions

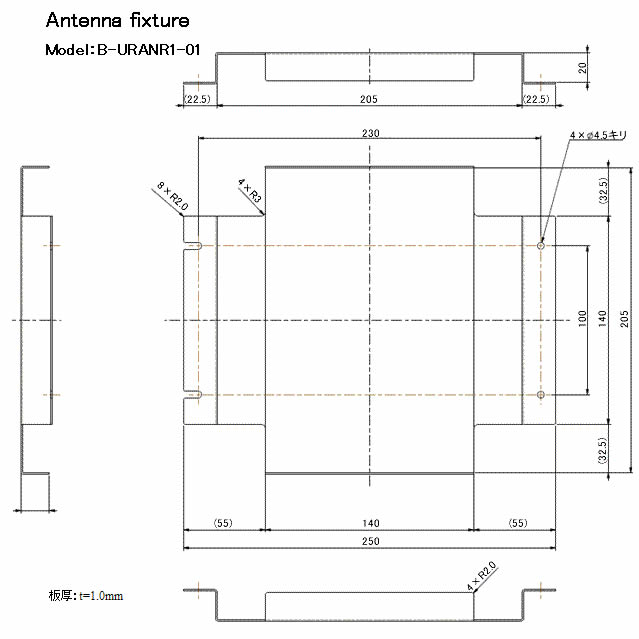

*For dimensions of the antenna fixture (B-URANR1-01), please visit here.

Antenna fixture

	Model	Dimentions
	B-URANR1-01
	Antenna（URAN-R2）(1)	-
	Antenna（URAN-R3C）(2)	-
	Antenna cable（CBAN-CGT272000/GT27-01）	-

1.Only for UR21
2.Only for UR22

Accessory

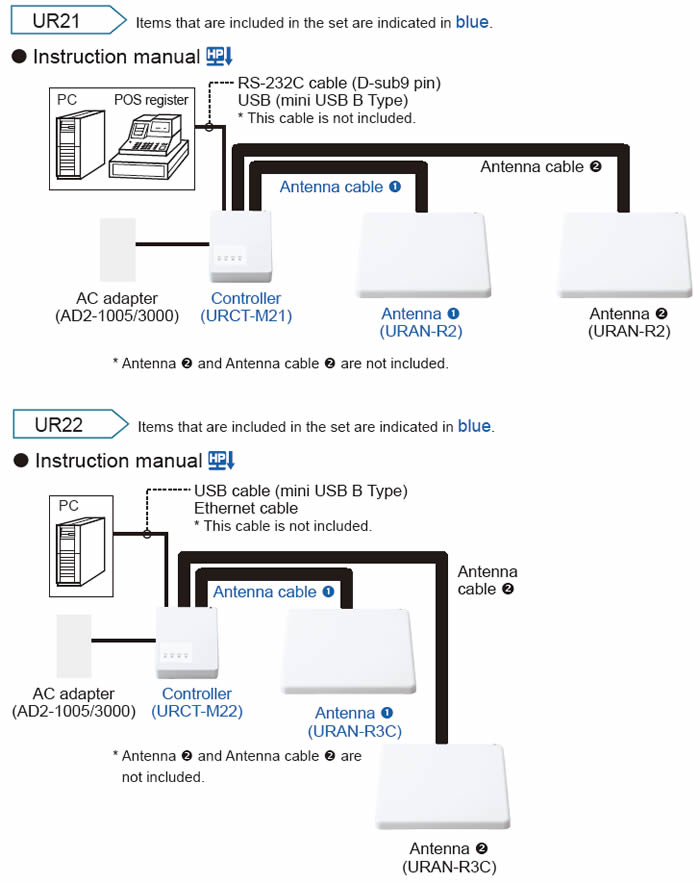

UR21-MR-01

Product	Model
UR21-MR-01	Controller (URCT-M21)
	Antenna (URAN-R2)
	Antenna cable (between antenna and controller)
	Rear cover (lock nuts included in package)
	Safety Precautions
	Screws for securing the antenna

UR22-MR-01

Product	Model
UR22-MR-01	Controller (URCT-M22)
	Antenna (URAN-R3C)
	Antenna cable (between antenna and controller)
	Rear cover (lock nuts included in package)
	Safety Precautions
	Screws for securing the antenna
