Improved scanning performance. Reduce stocktaking time by 50%*.

We developed technology(AutoLinkProfile) that can quickly and completely scan more tags than before. It can reduce stocktaking time by 50% compared to previous method. Improved operational efficiency is mostly noticed by customers that scan many items (over 1,000).

*comparing the scanning time for 5,300 tags between the previous SP1 and the next-generation. The results are based on our own test and not guaranteed.

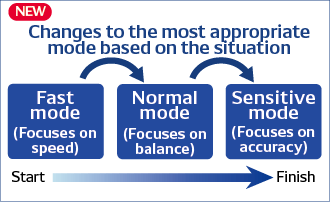

With the new scanning method(AutoLinkProfile), the most appropriate mode is set automatically based on the situation. Total scanning time is reduced by scanning high sensitive tags first and then scanning difficult tags after.

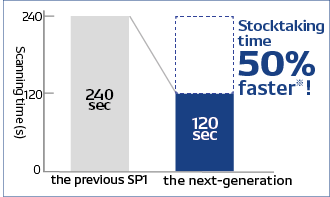

Comparing the scanning time between the previous SP1 and the next-generation.

Reducing the total scanning time by scanning quickly and completely.
The improved scanning performance can make stocktaking and inspection at shipping/receiving more efficient!

*The results will be different depending on the environment.

DENSO WAVE is "The Gold Partner" of IMPINJ

Impinj is a leading provider of RAIN RFID solutions.
DENSO WAVE is authorized as "The Gold Partner" of IMPINJ for our high-value-added RFID solutions and world wide sales network.

Scanning Speed 700scans/second(1)

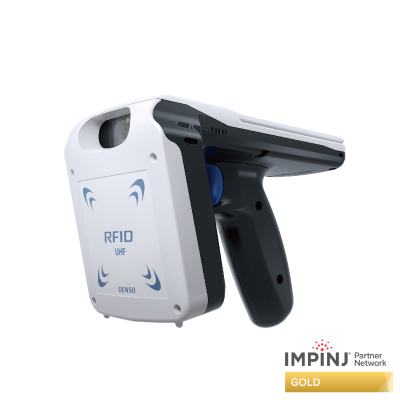

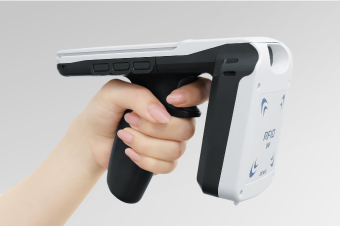

Features our proprietary antenna that switches automatically between horizontal and vertical polarization. Achieves outstanding scanning speeds of 700 scans per second and scanning distance of up to approximately 8 m. Scans tags even when not all facing in the same direction. Dramatically improves working efficiency, enabling inventory jobs to be completed rapidly.

Simple setup for easy transition between tasks

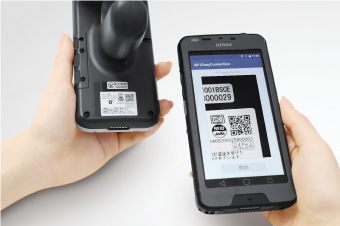

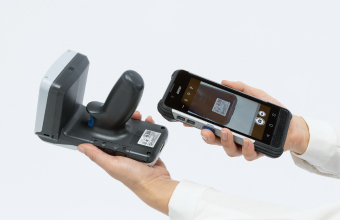

Easily connected by scanning QR code® on SP1 unit with the device connected. Devices can be quickly paired using Bluetooth®, for easy transition between tasks. Even if the pairing is disconnected during work, the scanner includes automatic re-connection function and backup memory. The scanned data temporarily saved will be transmitted when the scanner is re-connected.

RFID using any smart device

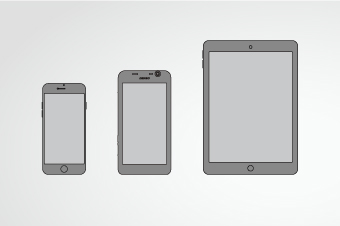

Supports both Android™ and iOS. All you need is a smartphone or tablet for RFID.

・Global support available in over 40 countries and regions worldwide.

・High-quality product made in Japan.

1.Scanning speed is a reference value and varies depending on the actual operating environment.Scanning distance is a reference value and varies depending on the actual operating environment. Communication distance varies depending on the actual tags. Evaluations are based on the Avery Dennison AD-229r6.
＊Sales availability varies by country and region. Please contact us for more information.

Model				SP1-QUBi
Scanning unit	RFID	Supported RF tag		ISO/IEC18000-63 TypeC（EPCglobal Class1 Gen2）-compatible Tags
		Frequency		See the following table.
		Scanning speed(1)		700scans/second
		Scanning distance(1)		Approx.8m
		Output adjustment		10dBm to 30dBm
	Scanner	Type		Area sensor
		Readable codes	2D Codes	QR code, Micro QR Code, SQRC,rMQR Code, PDF417, Micro PDF417, MaxiCode, DataMatrix（ECC200）, GS1 Composite
		Readable codes	1D Codes	EAN-13/-8（JAN-13/-8）, UPC-A/-E、UPC/EAN（With add-on）, Interleaved 2 of 5, CODABAR（NW-7）, CODE39、CODE93、CODE128, GS1-128（EAN-128）, GS1 DataBar（RSS）
		Minimum resolution	2D Codes	0.167mm
		Minimum resolution	1D Codes	0.125mm
		PCS value		0.3 or greafter
		Elevation/tilt angle		±50°
		Scan confirmation		Blue/red 2-color LED, buzzer
Transmitter unit		Bluetooth^®		Bluetooth Ver2.1+EDR Standard Class2
		Profile		SPP、SPP(iOS)
		cradle		USB
	Power supply	Main battery		Lithium-ion battery
		Operating time(2)	Standard battery	Approx. 4 hours
		Operating time(2)	High-capacity battery	Approx. 8 hours
Internal memory				80,000 RFID tags
	Environmental performance	Operating temperature(3)		-20 °C to +40 °C
		Protection class		IP54
		Drop-resistant strength(4)		30 drops from 1.2 m onto concrete (5 times on each of 6 faces), 1.5 m
	EMC Standard			VCCI Class A
	Weight			Approx. 400 g (with standard battery);approx. 450 g (with high-capacity battery)

1.Function settings may be subject to restrictions in some countries. Scanning speeds and read distances are reference values. Actual scanning speeds and read distances will depend on the environment. The maximum read range depends on the tag to be scanned. Evaluation condition = Avery Dennison AD-229r6.
2.These operating times are reference values measured under room temperature and other conditions set by our company. Actual operating times depend on working conditions. Conditions set by our company: Power Save Mode 2, RF Tag Continuous Read Mode 1, LOW buzzer level.
3.The temperature rises from 0 to 40°C during charging. When the product is used at ambient temperatures of -10°C or below, turn on the product and operate briefly at normal room temperature before taking the product to the worksite; do not turn off. Due to battery characteristics, operations may be subject to certain limitations, such as significantly decreased operating time, under low temperature conditions (0°C or lower). If ambient temperatures are very low, check for normal function before using the product.
4.This is a test value obtained under room temperature conditions. It is not a guaranteed value.

Frequency of each country

Country	Frequency(MHz)
Japan	916.8～920.8
America/Canada	902.75～927.25
Australia	920.25～925.75
Indonesia	923.25～924.75
Israel	915.50～916.30
China	920.625～924.375
Taiwan	922.25～927.75
Thailand/Singapore	920.25～924.75
Philippines	918.25～919.75
Malaysia	919.25～922.75
Vietnam	918.75～922.75
Europe	865.7～867.5
India	865.7～866.9

Dimentions

Communication unit

Type	Model	Communication unit	Charging unit		Power supply	Dimensions
			Charging time
			Main unit charging	Battery cartridge
Communication unit	CU-SP1A	USB2.1 Full Speed compatible	Standard battery: 3.5 hours High-capacity battery: 7 hours	Standard battery: 4 hours High-capacity battery: 8 hours	AC adaptor	158(D)×110(W)×85(H)
SP1 direct cable	CBSP-US2000/4	USB2.1 Full Speed compatible	-	-	Supply from connected device	2m

Charging　unit

Type	Model	Charging time	Power supply	Dimentions
4-unit main unit charger(1)	CH-SP1L4	Standard battery: 3.5 hours High-capacity battery: 7 hours	AC adapter	141(W)×464(D)×90(H)mm
4-unit battery charger	CH-1804	Approx. 4 hours	AC adaptor	135(W)×110(D)×65(H)mm
4-unit battery charger	CH-SP104A(2)	Approx. 8 hours	AC adaptor	135(W)×110(D)×65(H)mm
BHT-M80 charging cable	CB00-US1500/4A-4C	Depends on the connected supply current.	Supply from connected device	1,5m

1.This option lacks the smart device charging function.
2.BT-SP1LA-C cannot be charged by CH-SP104A.

Battery

Type	Model
Standard lithium-ion battery + battery cover	BT-SP1LA-C
High-capacity lithium-ion battery + battery cover	BT-SP1L-C

Attachments

Type	Model
For BHT-M80	EA-SP1-AM80
Universal attachment（Quad Lock® is available)	EA-SP1-AS

Others

名称	型式
Shoulder strap(4)	SBSP1

4.The attachment cannot be mounted or dismounted when the shoulder strap is attached to the SP1.

Components of a Set

・Main Unit
・Hand Strap
・Operation Guide
・User's manual *The Operation Guide is not included. It can be downloaded from WEB.

Development / kitting /operating tools

Model	Features
Google Android^TMStudio	-
Microsoft^® Visual Studio 2017	-
Android^TMOS application development support kit（SDK)	Can be downloaded free from Denso Wave website (Qbdirect).
iOS application development support kit(SDK)(1)	Can be downloaded free from Denso Wave website (Qbdirect).
Windows10^TMapplication development support kit（SDK)	Can be downloaded free from Denso Wave website (Qbdirect).

1. Prepare the following development tools for iOS.

・Xcode 9.2 or later
・macOS X
・iOS 10.0 or later

This device transmit radio frequency energy and may affect the human body depending on the intended use or location.
In order to reduce this effect, this device must be operated in the hand with a minimum separation distance of 23cm or more from person’s body (when the output setting is 30 dBm).

Please check the guidelines of each country for details.
