The Evolution of making inventory

Scanning speed Working hours reduced by 90% or more (compared to use of bar codes)

BHT-1281QULWB-CE is a high-powered Hand-held terminal with an overwhelmingly high scanning speed. It can scan more than one tag simultaneously, and accordingly, the work can be completed in a short time. Furth ermore, the ci rcular p olarized antenna en ables 360˚ scanning and scanning of tags facing in different directions

Scanning distance Class top level approx. 5m(1)

BHT-1281QULWB-CE achieves class top level long-distance scanning of approx. 5 m. With its broad-range scanning capability, it can easily scan tags of goods placed even in high places, contributing to a significant improvement in operational efficiency.

Overwhelming scanning performance and usability —Outstanding operational and user-friendly product—

Easy to grip

BHT-1281QULWB-CE has an easy-to-grip, gun grip-like handle that enables users to easily aim at tags in high places. Furthermore, its light body doesn't tire users during long periods of use

Superior power-saving

The unique power-saving design enables class top level long-time operation of approximately 60 hours(2) when the wireless function is enabled as needed, and approximately 8 hours(3) even when RF tags are scanned continuously.

Drop resistance

Even though BHT-1281QULWBCE has a gun grip-like handle, it achieves a drop resistance of 1.2 m x 30 times (above a concrete floor). If you drop it, you won’t have to worry.

Large screen

BHT-1281QULWB-CE has a 3.5-inch HVGA color liquid crystal display, enabling the clear display of a great deal of information simultaneously on the large screen.

Fully-equipped basic functions

BHT-1281QULWB-CE can scan not only RF tags, but also QR codes and bar codes. Furthermore, it is equipped with everything necessary for smooth operations, including a touch panel, and wireless LAN and Bluetooth functions.

  1. 1.Evaluation condition = Avery Dennison AD-237r6. The scan distance shown is a reference value and it may vary accordingly, depending on the actual environmental conditions.
  2. 2.RF tag scanning : wireless communication : screen update : standby = 1:1:1:20. The back light is at Low level, the vibrator and buzzer are disabled and the power save mode is ON (FastPSP), and the wireless function is enabled only when the terminal is connected to the wireless network; the wireless function is disabled otherwise.
  3. 3.When 50 RF tags are scanned simultaneously with the back light at Low level, the vibrator is disabled and the speaker enabled.
  UHF band RF tag Hand-held terminal
1W high-power type
Type BHT-1281QULWB-CE
OS Windows® Embedded CE 6.0 R3
CPU ARM Cortex-A8 800MHz
Memory RAM Mobile DDR 512MB
Flash ROM 2.0GB
Display Number of Dots(1) 3.5 inch HVGA (320 x 480 dots)
Display device Liquid crystal dot matrix display (color)
Back light White LED
RFID Readable and recordable RF tag ISO/IEC18000-63 TypeC (EPCglobal Class1 Gen2)-supported tag
Frequency USA/CANADA 902~928MHz
Taiwan 922~928MHz
Thailand 920~925MHz
Channel width/
number of
channels
USA/CANADA 500kHz/50ch
Taiwan 500kHz/12ch
Thailand 500kHz/10ch
Transmission
output
USA/CANADA 1W or less
Taiwan 1W or less (0.4W)(2)
Thailand 1W or less
Modulation method PR-ASK
Transmission rate 40kbps
Scanning distance(3) Approx. 5m
Output adjustment 20 levels
Scanner Mode Area sensor
Decode 2D code QR code, micro QR code, SQRC, iQR code, PDF417, micro PDF417, Maxi code, DataMatrix (ECC200), GS1 Composite
Bar code EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (Add-on embedded), Interleaved 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Minimum
resolution
2D code 0.167mm
Bar code 0.125mm
Maker Area guide maker
Scan Confirmation LED in two colors: Blue/red, speaker, vibration
Key input
section
Number of keys 31 keys (including the power key) + 4 trigger keys
Network Wireless LAN Suitable standard Comply with IEEE802.11b/g/n
Frequency IEEE802.11b/g/n: (2.4GHz)
Network range(4) IEEE802.11b/g/n (indoor: about 150m, outdoor: about 300m)
Transmission speed(4) IEEE802.11b:11/5.5/2/1Mbps, IEEE802.11g:54/48/36/24/18/12/9/6Mbps, IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
Security WEP40,128, WPA-PSK (TKIP, AES), WPA2-PSK (TKIP, AES), WPA-1x (TKIP, AES/EAP-TLS, PEAP, LEAP.EAP-FAST), WPA2-1x (TKIP, AES/EAP-TLS, PEAP, LEAP.EAP-FAST), 802.1x (EAP-TLS, PEAP, LEAP.EAP-FAST)
Bluetooth Bluetooth Ver2.0 + EDR based class 2
Card slot microSDHC×1
Power Main battery 2 lithium ion batteries
Operating
time(5)
RF tag continuous scanning(6) Approx. 8 hrs
Wireless LAN communication(7) Approx. 60 hrs
Additional functionality Clock, speaker, vibration, battery voltage indicator, key back light, G-sensor
Environmental
performance
Operating temperature(8) -20~40°C
Protection rating IP54
Drop resistance(9) Dropped from 1.2 m above concrete floor, on all 6 faces, 5 times each (total 30 times)
Weight (including stylus pen and battery) Approx. 570g
  1. 1.The liquid panel is made with high-precision technology. Though the number of pixels available is 99.99%, please understand that there is 0.01% chance of the display being scrambled and turned off.
  2. 2.The value of measurement by certification authority.
  3. 3.Evaluation condition = Avery Dennison AD-237r6. The scan distance shown is a reference value, and it may vary accordingly, depending on the actual environmental conditions.
  4. 4.Network range and transmission speed are logical variables, and these may vary accordingly, depending on the actual environmental conditions.
  5. 5.Operating times shown are reference values at room temperature, and these may vary depending on working conditions.
  6. 6.When 50 RF tags are scanned simultaneously with the back light at Low level, the vibrator will be disabled and the speaker enabled.
  7. 7.RF tag scanning : wireless communication : screen update : standby = 1:1:1:20. The back light is at Low level, the vibrator and buzzer are disabled and the power save mode is ON (FastPSP), and the wireless function is enabled only when the terminal is connected to the wireless network; the wireless function is disabled otherwise.
  8. 8.The temperature rises from 0 to 40°C while charging.
  9. 9.This is a test value, not a guaranteed value.

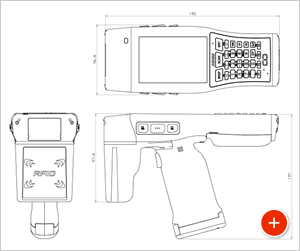

Dimensions Unit: mm (for reference only)

Dimensions

Communication

Communication Holder and cables which performs data communication with BHT communication unit and the up-level device.

  Model Description Transmission method Charging time(main unit) Pre-charge Power supply Size
- CU-1233 RS-232C/USB communication +recharging+spare battery charging RS-232C/USB2.0 Full Speed compliant(2) Backup battery: Approx. 3hours, large capacity battery: approx.4.5 hours Backup battery: Approx. 3hours, large capacity battery: approx.4.5 hours AC adapter(AD3-1012/3000-02)(3) 133(D)×97(W)×101(H)mm
- CU-1211 Ethernet communication +recharging+spare battery charging Ethernet(100BASE-TX)(2)
- CBBHT-US1800/C12-4A(1) USB communication USB 2.0 Full Speed compliant(2) - - - 1.8m
  1. 1.The BHT-1200 can be charged by connecting to a USB charger or other power adapter. When charging the BHT-1200, use a poweradapter that satisfies the following output and USB charging specifications.
    Output specifications: (voltage) DC5±0.25 V/(current) 1.2 A or higher USB charging specification: Battery Charging Specification Rev. 1.2
  2. 2.Cables are optional.
  3. 3.The AC adapter is optional.

Charger

A lineup of various BHT main unit charging type and backup cartridge charging type devices.

  Type Model Feature Charging time Power supply Size(mm)
CH-1254 Four slot Hand-held terminal charger CH-1254 Up to 4 BHT-1200 unit can be charged. Standard battery:Approx.3H
Large capacity battery:Approx.4.5H
AC adapter
(1)
117.5(W)×368(D)×89(H)
CH-1104 Multiple battery charger CH-1104 Up to 4 BT-20LB (or BT-110LA or BT-110L) unit can be charged. Approx.3H(BT-110LA,BT-20LB)
Approx.6H(BT-110L)
AC adapter
(1)
205.5(D)×190(W)×29.0(H)
  1. 1.The AC adapter is optional.

Battery

Batteries for BHT-1200

  Model Type Feature
Lithium-ion battery(Standard type) BT-110LA battery only
BT-120LA-C battery + battery cover
Lithium-ion battery(large capacity type) BT-110L battery only
BT-120L-C battery + battery cover

Cable

Name Model Interface
Interface cable (RS-232C)(1) I/F cable D9S-D9S cross 1.5m RS-232C
Interface calbe(USB)(1) CB00-US1500/4A-4B-01 USB
  1. 1.Cables are optional.

Case and others

  Type Model Feature
SCBHT-1200 Soft case SCBHT-1200 BHT-1200 Series common
*Except BHT-1281QUWB-CE
SCBHT-1200-3G SCBHT-1200-3G for BHT-1261QWBG-CE
WHBHT-1100/1200 Waist-pack case WHBHT-1100/1200 BHT-1200 Series common
*Except BHT-1281QUWB-CE
WHBHT-1281QULWB-CE WHBHT-1281QULWB-CE For BHT-1281QULWB
SBBHT-700 Shoulder-belt SBBHT-700 BHT-1200 Series common
*Except BHT-1281QUWB-CE

Accessories

  • ・Stylus pen
  • ・Guidelines for operation

*Instruction manual can be download from our technical support site QBdirect.
