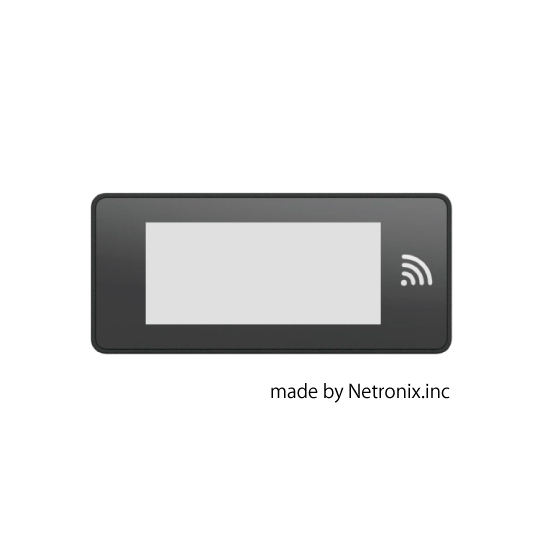

UHF band batteryless   E-paper tag

Creating values beyond "paperless"

  • Features
  • Specifications

Visualizing stock quantity in supply chain with loT

Optimizing / Automating Reducing use of papers for slips

Reducing use of papers for slips




Combining the RFID's feature which automates read/write with visibility of paper label.

The E-paper tag solution combines the "visibility of
information" of paper slips used in the manufacturing process and supply chain with the convenience of RFID, which can read information quickly and automatically.

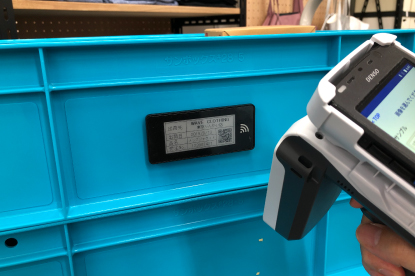

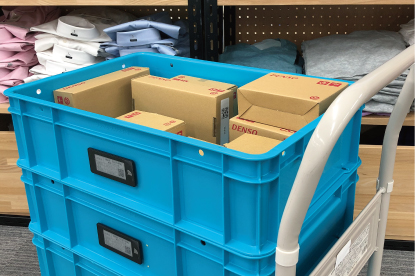

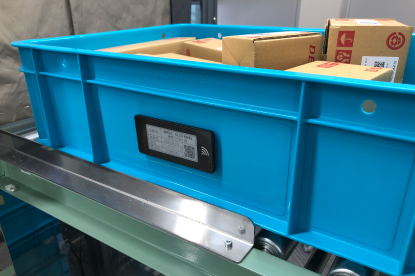

By replacing the paper slips attached to the pallet or return box with an E-paper tag and reading and writing the data in the tag with RFID scanner, you can realize paperless and work efficiency.

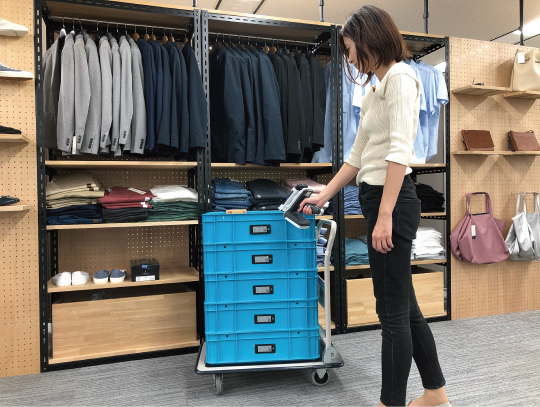

Furthermore, this solution is effective to visualize how many products are in the manufacturing and distribution process.

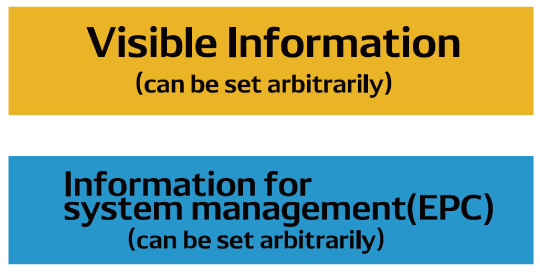

Structure of E-paper tag

【Visible Information】
The layer of information displayed on E-paper.
You can display the same content as the system management information, or you can display your own information such as the management QR code and work procedure.

【Information for System Management(EPC)】
The layer used to recognize the product.
When operating, it is necessary to set each tag to be recognized as a unique ID.

Band UHF
Frequency It varies by country.
Display 2.9 inch(296 x 128dot)
Display colors Black and White
Communication
distance
Inventory Approx. 160cm
※This is a test values and distance varies by the manufacturer of RFID scanners.
※This is a test value obtained under room temperature conditions. It is not a guaranteed value.
Update Image Approx. 60cm
※This is a test values and distance varies by the manufacturer of RFID scanners.
※This is a test value obtained under room temperature conditions. It is not a guaranteed value.
Panel's life 1,000,000 times
Memory EPC(UII)︓480bit(60byte)
User area︓61440bit(7680byte)
※User can use 32768bit(4096byte) while image updating.
Protective class IP54
Dimensions 103(W)× 46(H)×6.6(D) mm
Wight Approx. 35g
