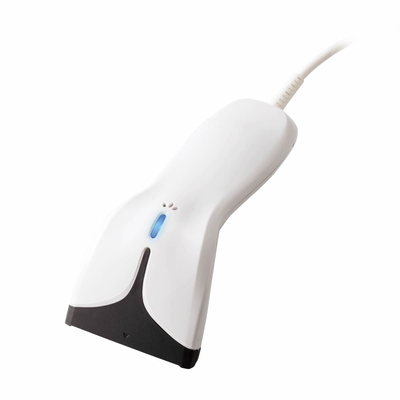

Touch Scanning Adopted

The touch scanning method, which does not require getting used to and enables any user to scan the targeted code without fail, has been adopted.

Large scanning port with a length of 67 mm

Wide reading window for scanning bar codes for standard charge proxy collection at ease

Compact design

Grip of 22 mm in thickness, and compact & lightweight design (85 g in weight)

Antibacterial and weather-resistant

The main unit is JIS Z 2801-compliant antibacterial and weather-resistant, which can be cleanly used for a long time.

Further feature

A high-intensity blue LED has been adopted for the reading check indicator, securing excellent viewability. This product has a tough body that can resist 30 falls from a height of 1.5 m, the highest in its class.

Type HC56II TU(1)
Scanner Trigger switch Loaded
Readable codes EAN-13/-8, UPC-A/-E, UPC/EAN with add-on codes, Interleaved 2 of 5, Standard 2 of 5, CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GSI DataBar (RSS)
Reading Width 65mm (Incl. right and left margin)
PCS value not less than 0.45
Resolution 0.125mm
Light source LED (red)
Reading system Advanced Scan Plus (CCD)
Scanning confirmation Blue LED, buzzer
Communication I/F I/F USB1.1(2)
Connector USB connector (type A)
Cable 2m straight cable
Power Power supply Supplied from the connection target(3)
Environment
Requirements
Shock Resistance(4) 1.5m (concrete surface) × 30 times
Temperature 0 to 40℃
Humidity 10 to 90% RH (without dews)
Illumination 10000lx or less (Fluorescent lamp in daytime)
Weight (excl. cable) Approx. 85g
  1. 1. Those who are expected to use an interface (RS-232C, or PS/2) other than USB should consider HC56.
  2. 2. Supports 2 systems: USB keyboard interface and USB-COM interface.
  3. 3. Connection may not be possible due to the type of PC or USB-HUB being used. Prior confirmation of connection compatibility is required.
  4. 4. This is not a guaranteed value but a test value.

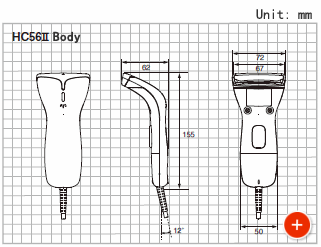

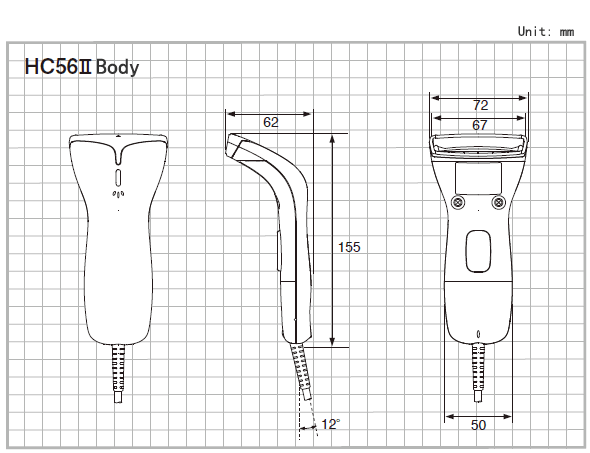

Dimensional drawing

Dimensions

Holder

  Name Type Dimensions Price
Holder S-30 - open

Accessories

  • ・Operation Guide
  • ・Instruction Manual

Keyboard Interface Software

Software which converts the data from a scanner like input from a keyboard

Nmae Type Feature
Keyboard Interface Software QRkbif(Free) Software which converts the data from a scanner like input from a keyboard
