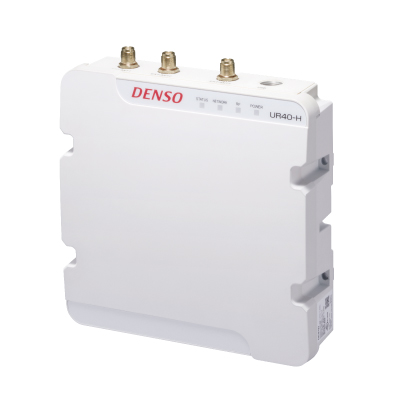

UR40

A fixed type scanner of UHF RF tags ideal for factory automation and logistics (1 W / long-distance type)

  • Features
  • Specification

Reads RF reliably to enable visualization of on-site status

The scanner’s reading capability meets the highest industry standard, and its robustness
enables continuous operation even in harsh environments.
These characteristics enable visualization of the on-site status, helping the customer to implement traceability.


Reading ranges configured to match applications

The UR40 implements long-distance reading of 8 m*1 and the UR50, another product in our lineup,
implements ultra-close reading of 5 mm – 50 cm*2. The reading range can be selected for each application.
Combined with the polarization switching feature implemented using our original antenna technology,
the optimal environment for customer operation can be assembled.
*1:Linear polarization *2:When using an external antenna.


High-speed reading for accurate and quick execution of tasks

The UR40 achieves a high-speed reading rate of 600 tags/second.
It reads tags reliably even on fast-moving conveyor belt assembly lines.※3
*3:There are setting limits depending on the country or the function. This is a reference value and may vary depending on the operating environment.

Antenna-integrated structure allows easy installation

The antenna-integrated structure enables easy installation in compact spaces.
In addition, up to 3 external antennas can be added to secure a stable communication zone.


Safe, robust, environmentally resistant settings for uninterrupted execution of tasks

The UR40 can be used even in factories or logistics warehouses due to its resistance to the environment.
Its overwhelming robustness enables continuous stable operation 24 hours a day, 365 days a year.

・Safety standard: UL61010 acquired
・ Vibrations and impacts: IEC60068 compliant
・ Protection rating: IP65 supported
・Original heat dissipation design

Links flexibly with external devices

The UR40 can link with entry/exit detection sensors and beacons using its external I/O pins.
In addition, it supports a variety of communication interfaces so that the optimal environment can be built for the required purpose.


Easier introduction
・Visually easy-to-understand configuration tool
・Control SDK provided to support development
・Easy installation with the VESA standard compliant specification

Application for a wireless channel on the premises

Item Specification

RF interface

Output frequency(for Europe) 865.7 MHz, 866.3 MHz, 866.9 MHz, 867.5 MHz(4 channels in total)

Output frequency
(for Australia, New Zealand)

920.25 MHz, 925.75 MHz, (at 500kHz intervals)
(12 channels in total)

Output frequency
(for United States of America, Canada)

915.25 MHz to 927.5 MHz, (at 250kHz intervals)
(50 channels in total)

Application standard

ISO/IEC 18000-63 (GS1 EPC Gen2) compliant

Transsmission output 1 W max.
Number of Antennas Connectable

Maximum of 3 (URAN-40H1 supported)

Internal/External antenna Gain(for Europe) Internal/External +5 dBi max. (linearly, circularly polarized) /
+5 dBi max. (circularly polarized)
Gain(for Australia, New Zealand, United States of America, Canada)Internal/External +6 dBi max. (linearly, circularly polarized) /
+6 dBi max. (circularly polarized)
Reading Distance*1  Internal/External

8 m (linearly polarized),6 m (circularly polarized) /
6 m (circularly polarized)

Display part Display LED 4 LEDs(STATUS LED、NETWORK LED、RF LED、POWER LED)

External Input/Output

Input

4 pins (trigger, reset, forced halt)

Output

4 pins(OK、NG、BUSY、WARNING、ERROR)

Interface

RS-232C

115.2 Kbps maximum

USB

USB-COM interface

Standard

USB 1.1 compliant (12 Mbps)

Connector

Micro-USB Type-B

Ethernet Standard IEEE802.3 100BASE-T compliant

Supported Protocols

TCP, UDP, EtherNet/IP
ORiN

Supported

Input Power Supply (2)

Operating Power Supply Voltage

24V DC + 10% -15%

Electric Current Consumption

1A Max

Environmental Conditions

Indoor or Outdoor Operation

Indoor use

Protection Rating

IP65(3)

Compatible Standard Safety/
Vibrations and Impacts

UL61010/IEC60068

Operating Temperature Range

-20℃~50℃

Operating Humidity Range

10%-95% RH (no condensation or freezing)

External Dimensions (main body / external antenna)

(W)×(D)×(H)(4)
210×210×54.5mm/210×210×37mm
Weight (main body / external antenna) (5)

Approx. 1780 g / Approx. 700 g

  1. *Please refer to the instruction manual for details.

    1. This is a reference value and may vary depending on the operating environment.

    2. Class 2 power supply is recommended

    3. With all cables and caps connected

    4. Shipped state
