BHT-1800

Android™ 7.1.2
Smartphone-type model equipped with a 5.0-inch large screen along with a front camera.

  • Feature
  • Specifications
  • Options
  • Software

Creation of new value in addition to Higher Operational Efficiency

The combination of AndroidTM(1) 4G LTE, and Google Mobile Service(2)integrated with a range of application software creates unlimited new value in addition to increase in existing operations efficiency.

Robust Enough to Keep Operations on Track

Withstands Drops from Height of 2.5m

The terminals are built to be robust, smart terminals with lightweight stylish design. The pursuit of a robust yet lightweight design has resulted in terminals that do not need unnecessary components.

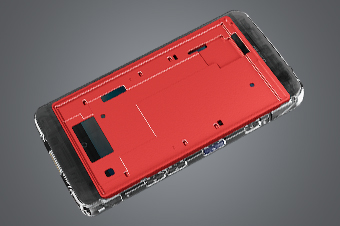

Strong Yet Lightweight Materials

The frame is made from a highly rigid, yet light magnesium alloy while the corners of the main unit, which are most likely to be subject to damage, have a more optimal design. The exterior jacket with few seems is made from durable polycarbonate and protects the terminal from dust and water droplets.

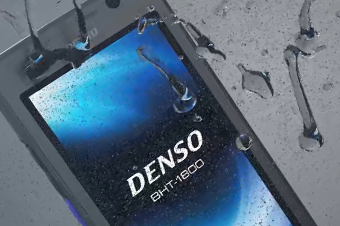

Protection Level as High as IP67 Achieved by Advanced Sealing Technology

For higher protection against dust and water droplets, high-performance sealing materials developed by DENSO for manufacturing of automotive components are adopted for the numeric keypad, side key, battery cover and other components to ensure the correct functioning of the terminal even under unfavorable conditions.

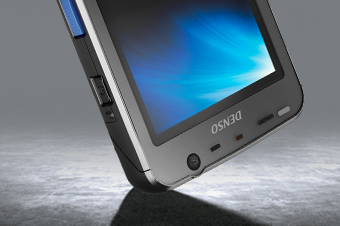

Tempered Glass Provides Strength and Visibility

For the display , chemically strengthed Dragontrail® (3)PRO glass panel is adopted to protect the screen from external pressure and drop-related shocks. The display is also very hard and highly resistant to scratches, ensuring the terminal's usability even in punishing environments.

Superior Reading Performance Realizes High Efficiency

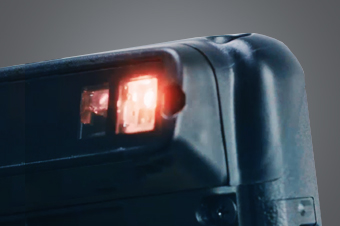

New, More Powerful Reading Module

A new module which can read codes at a distance of 35mm. The module will not read codes by mistake and can read even stained, blurred or distorted codes instantly, eliminating the need for repeated scaning.

Exclusive CPU for Stable Scanning Performance

In addition to the quad-core CPU for running application software, an exclusive CPU is mounted to the terminal for reading and decoding. This allows multiple high-load applications to be run on the terminal while the scanner is reading codes smoothly and promptly.



Easy to Use for On-site Workers

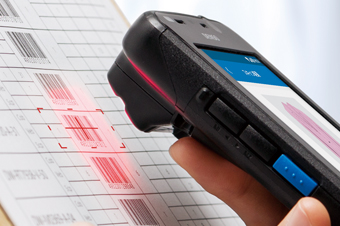

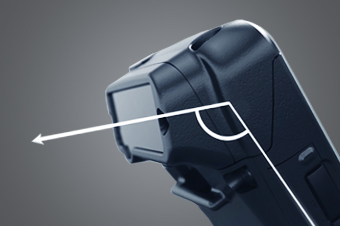

Check the Terminal's Screen While Scanning

Based on our experience at a wide-range of worksites, DENSO WAVE developed the uniquely angled scan head for the reading module.

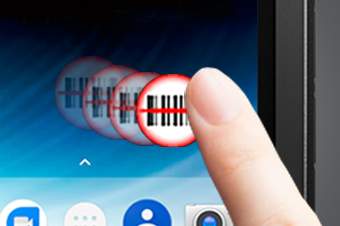

Customizable for Better Use

In addition to the trigger key, multiple magic keys are arranged on the side of the terminal for flexible key assignment of frequently-used functions. "Touch Trigger" can also be placed in an easy-to-tap position on the screen.

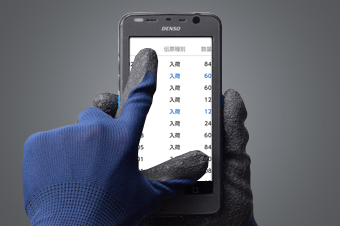

Touch Panel Operable with Gloves on

The capacitance multi-touch panel is intended for smooth operation. The user can readily operate the touch panel even while wearing gloves, thanks to the technology adopted to give the screen high sensitivity.

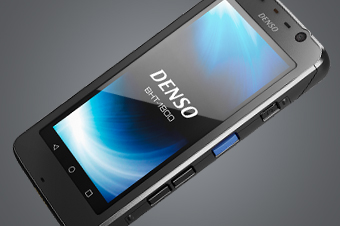

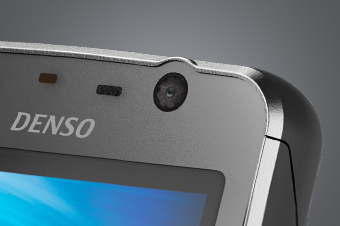

5.0-inch large screen along with a front camera

High visibility 5.0-inch large screen with front camera expands the applications of hand-held terminal.

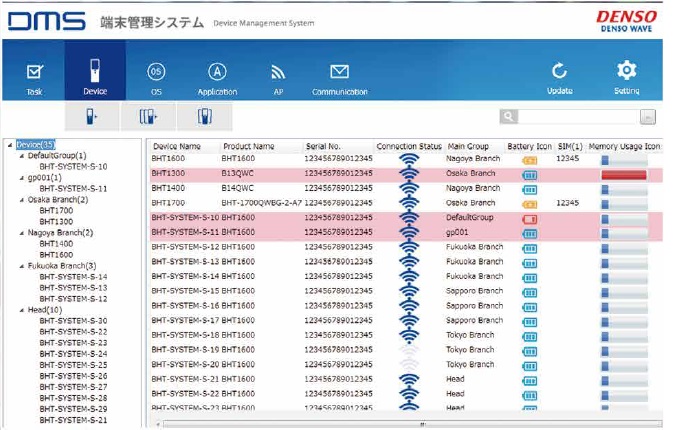

Central Management of BHT Devices Across the World with Software(4)

The BHT DMS(Device Management System) is composed of a client application designed to run on terminal and a management application on a PC. The DMS is used to manage the terminal, update the application software and OS, transmit master files and others, and collect result files. Central management based on a network will reduce the burden imposed on the system administrator.

  1. 1. Android is a trademark of Google LLC.
  2. 2. Google Mobile Service is a software package contains application and services from Google.
  3. 3. 「Dragontrail®」is a registered trademark of Asahi Glass CO.,Ltd
  4. 4. The software is available for a fee
Model Wireless LAN Wireless LAN+ Wirelss WAN
BHT-1800QWB-1-A7 BHT-1800QWB-2-A7 BHT-1800QWB-3-A7 BHT-1800QWBG-1-A7 BHT-1800QWBG-2-A7 BHT-1800QWBG-3-A7
OS AndroidTM7.1.2
CPU 1.3GHz Quad-core
Memory RAM 2 GB
Flash Memory 16 GB
Display Number of dots(1) 5.0inch HD(720×1280 dots)
Display system Liquid crystal dot matrix display(Color)
Backlight White LED
Scanner Reading system Area sensor
Readable codes 2D codes QR code®、Micro QR code、SQRC®、iQR code、PDF417、Micro PDF417、MaxiCode、DataMatrix(ECC200)、GS1 Composite
Barcodes
EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with add-on)、Interleaved 2 of 5(ITF)、Standard 2 of 5(STF)、
Codabar(NW-7)、CODE39、CODE93、CODE128、GS1-128(EAN-128)、GS1 DataBar(RSS)
Minimum resolution 2D codes 0.167 mm
Barcodes 0.125 mm
Marker Area guide marker
Scan confirmation Blue LED、Speaker、Vibelator
Keypad Keys 5 keys(Including the power key)+2 trigger key
Touch screen Dragontrail® PRO
Network Wireless LAN(2) Compatible standards IEEE802.11a/b/g/n compliant
Frequency band IEEE802.11a/n:5.2GHz、5.3GHz、5.6GHz、IEEE802.11b/g/n:2.4GHz
Transmission distance(3) IEEE802.11a:Indoors= approx.50 m、IEEE802.11b/g/n:Indoors= approx.75 m、Outdoors= approx.200 m
Security Encryption:WEP(40/128)/TKIP/AES WPA authentication:WPA/WPA2 User authentication:PSK/EAP-TLS/PEAP
Wireless WAN compatible standards ̶ 4G LTE/3G/GSM、VoLTE
GPS ̶ A-GPS/GLONASS
Bluetooth® Bluetooth®Ver4.1+EDR/LE(対応Profile:GAP/SDAP/HSP/SPP/GOEP/OPP/HFP(AG1.5)/PAN/A2DP/AVRCP/GAVDP/HID/PBAP/HOGP/MAP/GATT)
Card slot Micro SDHC/SDXC(~128GB)
Power supply Main battery Lithium-ion battery
Wireless charging ̶ Yes(10) ̶ Yes(10)
Operating time(4) 24 hours(5) 24 hours(5)
NFC(9) ̶ Yes ̶ Yes
Camera Rear 8MP auto focus
Front ̶ 5MP ̶ 5MP
Environmental requirements Operating temperature(7) -20~50℃
Protection rating IP67
Drop resistance(8) 1.5 m×60 times or more 、2.5 m
Weight(incl. battery) approx.275 g
  1. 1. Although the effective number of picture elements is more than 99.99% thanks to high-precision technologies used to manufacture LCDs, allow thepossibility of some elements, less than 0.01%, that are missing or permanetly turned on
  2. 2. IEEE802.11a:5.2GHz(W52)、5.3GHz(W53)are for indoor use only
  3. 3. The communication distance shown is a reference value, adn it may vary accordingly, depending on the actual environmental conditions. The transmission speed shown is a logical variable only, not the guaranteed value.
  4. 4. The described operating time is are ference figure under regular temperatures and may very depending on usage conditions.
  5. 5. Scanning to wireless communication to screen update to standby = 1:5:1:60. The Vibrator and buzzer are disabled.The wireless function is always enabled, and all other functions are disabled.
  6. 6. Scanning to scan update to standby = 1:30:270. Data is transmitted via a wireless WAN while the screen is displayed.
  7. 7. Zero to 40 degrees Celsius when batteries are being recharged.
  8. 8. Results obtained in a test done by DENSO WAVE at room temperature. They are not meant to be guaranteed values.
  9. 9. The NFC function needs to be well tested for readability by using the card that you will actually use.
  10. 10. Available by software update

Dimentions

クリックで拡大

Communication・Charger

Type Model Description
Communication Unit CU-BU1-18(USB) -
CU-BL1-18(Ethernet) -
4-slot battery charger CH-1804 -
4-slot unit charger CH-B4-18 -

Case and others

Type Model Description
Waist case WHBHT-1600 -
Hand belt HBBHT-1800 -
Stylus Pen PNBHT-1700 -
USB Direct Cable CBBHT-US2000/C18-4A -

Components of a Set

  • ・Main Unit
  • ・Battery(BT-180LA)
  • ・Hand Strap
  • ・Operation Guide

Development Tool

Model Fetures
BHT-1800 Series Software Development Kit for Android(SDK) Only users of BHT-1700 can download from WEB site

Peripheral Software

Model
BHT DMS(Device Management System)(1)
Transmission Utility for Android(1)

Pre-installed Software



Model Fetures
Touch Trigger Scan Button that can be repositioned on the screen
Scan Settings Code setting/ Reading software(with keyboard interface)
OCR Reader(1) Character reading software
Code Reader"Q" SQRC and Frame QR reading software
BHT-Browser for Android Operational browser for BHT devices
Application Launcher Software to manage the permission/prohibition of the startup of various applications
BHT-DMS Client(1) BHT management and operation support tool
Wlan Manager Wireless LAN setting software with which site surveys are possible
  1. 1. Software available with the payment of a fee is separately charged
