Effectively supporting the introduction of AndroidTM handy terminals!

BHTLink is an application and library for transmitting and receiving master files and transaction data files between an Android BHT and a PC.

Expected effect

BHTLink provides both an application and a library to reduce labor hours for developing communication programs.

Main features

・Downloading and uploading data between a BHT and a PC

 The transmission of master and other files from a PC to a BHT and transaction data files from a BHT to a PC can be achieved with simple button operation.


・Wireless communication (LTE and WiFi)

 Files can be transferred wirelessly via LTE and WiFi, helping to reduce labor hours for developing communication programs.



・Wired communication (USB and LAN)

 Files can also be transferred via USB and LAN Cradle as well.



・Communication logs available

 Communication logs can be obtained and utilized for analyzing communication problems.



・Application and library package

 A ready-to-use application and a library that can be embedded into programs are packaged together.



・LTE/LAN version and USB version available

System architecture

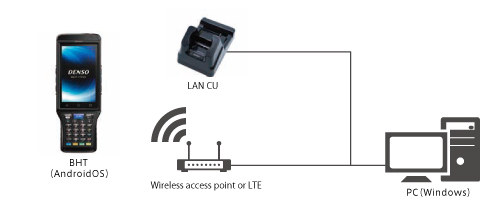

LTE/LAN

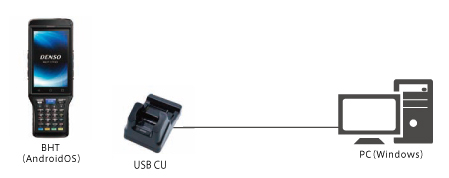

USB



Operating Environment

OS

Windows® 7(32bit/64bit) Windows® 10 (32bit /64bit)(1)

.Net Framework 4.0 higher

CPU Intel®Architecture CPU(2)
Memory Memory required for normal operation of the above OS
HDD At least 2 MB free disk space

Supported BHT models

Model

BHT-1600、BHT-1700、BHT-1800series

  1. 1.Windows® is a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.
  2. 2.Intel® is a registered trademark or a trademark of Intel Corporation in the United States and other countries.
