BHT-1336QWB｜Hand-held terminal｜products｜automatic data capture

BHT-1336QWB

Equipped with BHT-OS

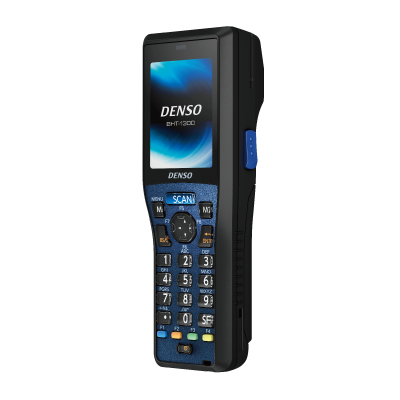

Inherits the usability of the BHT-1300 series.

3-year warranty
Inquiries by email
Demonstration machines
Downloads

Features
Specification
Options
Software

Features

BHT-OS model with long-term support

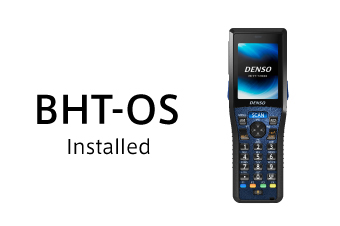

BHT-OS, our proprietary OS, features stable operation with a lean system structure and high compatibility with conventional models. As the developer, we will continuously supply OS update patches.

Peripheral devices and software of the previous model can continue to be used

The software and peripheral devices such as batteries and communication units used with the “BHT-1300 series” can be used without modification.

*IrDA-equipped devices and some peripheral devices may not be compatible with the BHT-1300 series.

Slim, compact, yet easy-to-use body

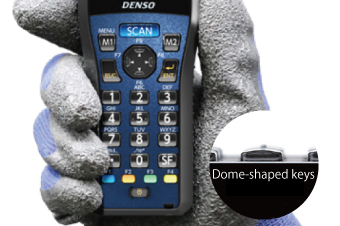

Even with the slimmer body, the domed keys make it easy to type, even with military hands.

Robustness for peace of mind

In addition to 2.0m drop endurance, it can operate in environments from -20°C to 50°C. It can also be used in tough environments.

1.BHT, QR Code,SQRC and rMQR are registered trademarks of DENSO WAVE INCORPORATED.
2.Appearance and specifications are subject to change without notice for improvement.
＊Sales status may vary by country or region. Please contact us for details.

Model			BHT-1336QWB
OS			BHT-OS
CPU			32-bit RISC microprocessor
Memory	Flash memory		64 MB(with a user area of approx.37 MB)
Display	Number of dots(1)		2.4 inch QVGA(240×320 dots)
	Display device		Dot matrix liquid crystal display (color)
	Number of displayed characters(2)	Small font	10 chrs.×13 lines（full-width）、20 chrs.×13 lines（half-width）
	Number of displayed characters(2)	Standard font	8 chrs.×10 lines（full-width）、16 chrs.×10 lines（half-width）
	Backlight		White LED
Scanner	Reading system		Area sensing
	Readable codes	2D code	QR code^®, Micro QR code, SQRC^®, rMQR code^®, PDF417, Micro PDF417, Maxi code, Data Matrix (ECC200), and GS1 Composite
	Readable codes	Barcode	EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(with-add on)、Interleaved 2 of 5(ITF)、Standard 2 of 5(STF)、CODABAR(NW-7)、CODE39、CODE93、CODE128、GS1-128(EAN-128)、GS1 Databar(RSS)
	Minimum resolution	2D code	0.167 mm
	Minimum resolution	Barcode	0.125 mm
	Marker		Area guide maker
	Scan confirmation		3 color (blue, red, and green) LEDs, speaker, and vibrator
Key Entry	Number of keys		21 keys (including the power key), cursor keys, and 3 trigger keys
Communication	Wireless LAN connection(3)	Applicable standard	Compliant with IEEE.802.11b/g/n
		Frequency	North America : 2.4GHz band(1~11ch) The other areas : 2.4GHz band(1~13ch)
		Access method	Infrastructure mode and ad-hoc mode
		Security	Encryption:WEP(40/128)/TKIP/AES WPA authentication:WPA/WPA2 User authentication:PSK/EAP-TLS/PEAP
	Bluetooth^®		Bluetooth^® Ver.5.0+EDR/LE （Supported　Profile:GAP/SPP/HID/DUN/GATT）
	Cable I/F		USB Ver.2.0(USB Type-C^®)
Power Supply	Main battery		Lithium-ion battery
Power Supply	Operating time(5)	Standard battery	55 hours^※6/21 hours^※7
Card Slot			FAT32-compliant microSD or microSDHC(～32GB)×1
Additional Functions			Clock, speaker, vibrator, battery voltage indicator, keyboard backlight, and remote wakeup
Environmental Performance	Operating temperature(4)		－20℃ to 50℃
	Operating humidity		5 to 95%RH (non-condensing and non-icing)
	Protective class		IP54
	Drop resistance		Above concrete floor, 2.0 m, 60 times from 1.2 m
Weight (including the battery)			Approx. 200g（including standard battery)

1. The LCD display is manufactured with precise technology. The rate of non-defective pixels is 99.99% or more, which means that 0.01% or less pixels could be stuck or dead.
2. The small font is 24-dot size and the standard 30-dot size. There are also 16-dot and 40-dot fonts.
3. According to the Radio Law.
4. 0 to 40 during charging.
5. The operating time is a reference value at a room temperature and may differ depending on the operating conditions.
6. One scan every 5 seconds. Backlight ON only when reading.
7. Assuming a ratio among reading, wireless communication, screen update, and wait of 1:1:1:20, with the LCD backlight lit only during reading, wireless communication, and screen update.
Bluetooth is a trademark of Bluetooth SIG, Inc.
USB Type-C^® is a registered trademark of the USB Implementers Forum.

Dimensions(mm)

Battery

	Type	Model	Features

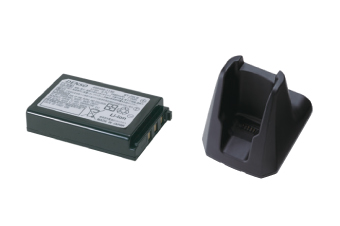

	Lithium-ion battery	BT-20LB	Battery only
	Lithium-ion battery	BT-130L-C	Battery + Battery Cover

Communication Unit

	Type	Model
	RS232C type communication unit(1)	CU-1301A(2)
	LAN type Communication unit(1)	CU-1311A(2)
	USB type Communication Unit(1)	CU-1321

1. AC adapter + communication cable sold separately.
2. CU-1301/CU-1311 used in the BHT-1306 series communicates between the BHT and the communication unit via IrDA, so the BHT-1336QWB, which is not equipped with IrDA, can use only the charging function.
3. Please contact us for the areas covered.

Charger

Various types of BHT main body rechargeable type and spare cartridge rechargeable type are lined up.

Type	Model	Features	Charging time	Power source
Single-unit battery charger	CH-201B	Capable of charging one BT-20LB	Approx. 3 hours	AC adoptor(1)
4-unit main unit charger	CH-1354	Capable of charging up to 4 BHT-1300 series main units	Approx. 3 hours	AC adoptor(1)
4-unit battery charger	CH-1104	Capable of charging up to 4 BT-20LB	Approx. 3 hours	AC adppter(1)

1. AC adapter sold separately.
2. Please contact us for the areas covered.

Case and others

	Type	Model
	Soft case	SCBHT-1300
	Waist case (Belt is not included in the waist case)	WHBHT-1300
	Neck strap	NSBHT-1300

Cable

Use	Type	Model	Length
Cable for main body	USB Type-C® to Type-A Conversion Cable(1)	CB00-US1500/4A-4C	1.5m
Cable for communication unit	I/F cable D9S-D9S cross(1)	CB00-RSI500/9-9-01	1.5m
Cable for communication unit	USB cable 4PA type - 4PB type(1)	CB00-US1400/4A-4B-01	1.4m

1. Cables sold separately.

Components of a Set

・Terminal
・Hand strap
・Operation manual　
・Standard battery（BT-20LB）
・Battery cover
・User's manual*The Operation Guide is not included. It can be downloaded from WEB

Preinstalled Software

Software installed in the BHT itself in advance

Model
Easy Pack Ad for BHT-1300

Development Tool

Model	Download
BHT-BASIC4.0 Development Pack	download from here
BHT-BASIC4.0 Specification Checker	download from here
BHT-BASIC4.0 Transfer Utility	download from here
BHT-BASIC4.0 Transfer Utility DLL Pack	download from here
BHT-BASIC Definition File (BHTDEF.INC)	download from here
BHT-BASIC4.0 Program Converter	download from here
BHT Term Emulator	download from here
