A godsend for field operations!

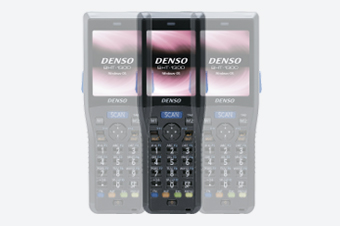

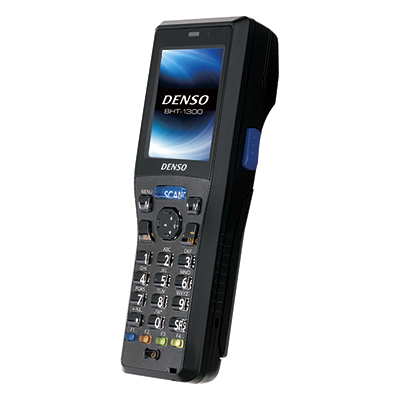

Compact, but easy to use

· Each model’s body is more than 15% thinner, lighter and smaller(1)
· Design was sought for functional beauty that also allows comfortable operation despite size constraints.

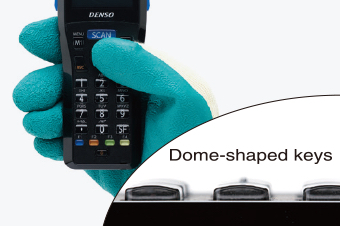

· Dome-shaped keys are used, which can be operated
easily by workers wearing work gloves.

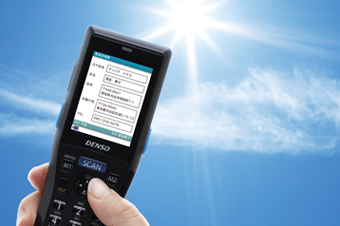

Distinctive displays even in bright sunlight

· A high-visibility LCD, High-Bright Display, is used.
· A wide viewing angle, and therefore, enhanced visibility from oblique angles is realized.

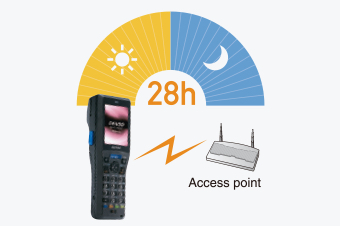

Long operation possible even when the unit is kept online

· Proprietary power-saving design allowing a 27-hour(2) consecutive operation, the longest in its class.

Intuitive operation with touch panel

· A convenient touch panel allows intuitive operation.

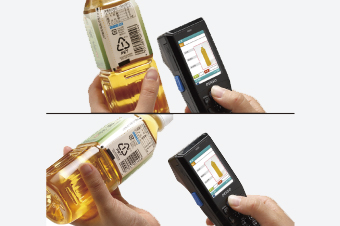

Capability to read codes from any angle of 360° makes for quick reading.

· Smooth 360° reading is realized using the latest algorithms.
· Compared to barcode models, working time with the model can be reduced up to 30%.

Equipment that can be managed with peace of mind!

Solid and robust to protect both hardware and data

· Built-in toughness that endures droppings from 2 m height and operates in minus 20° to 50°C temperature range.
· For Windows-OS model, data on terminals can be backed up with BHT Backup.

Comprehensive support system available anywhere in the world.

· The model can be used in more than 40 countries worldwide.
· Supports multi-language display.
For Windows-OS, fonts for more than 40 countries are supported.

3-year warranty allows customer’s long use with peace of mind.

· Customers who register on Denso Wave’s website are
offered a 3-year warranty.(3)

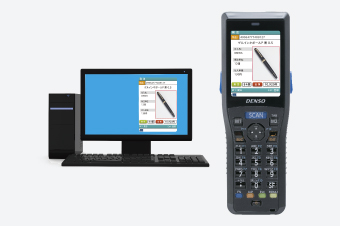

Remote desktop/web browser reduces development man-hours.

· Newly incorporated “remote desktop plug-in” and
“web browser plug-in” enable thin client implementation with lower development costs.

Quick wireless cloning(4)

· Copies of another terminal can be made quickly.
· Each terminal can be set up wirelessly without using a PC.


  1. 1.Compared to Denso Wave’s BHT-800Q when a thin battery is mounted in respective 2D code models.
  2. 2.When ratios of reading, wireless communication, rewriting of screen, and holding durations are 1:1:1:20 in continuous wireless operation; when a standard battery is mounted in 2Dcode models.
  3. 3.1-year warranty for consumables as defined by DENSO WAVE.
  4. 4.Bluetooth + wireless LAN model only.
  2D code model Barcode model
Type BHT-1361Q-CE BHT-1361QWB-CE BHT-1361B-CE BHT-1361BWB-CE
OS Windows Embedded Compact 7
CPU ARM Cortex-A8 800MHz
Memory Flash ROM(1) 2.0GB(1.2 GB for user area)
Display Number of Dots(2) QVGA (240×320 dots)
Display device Liquid crystal dot matrix display (color)
Back light White LED
Scanner Mode Area sensor Advanced scan plus (CCD)
Decode 2D code QR code, micro QR code, SQRC iQR, PDF417, micro PDF417, Maxi code, DataMatrix (ECC200),
GS1 DataBar Composite (EAN.UCC Composite)
-
Barcode EAN-13/-8 (JAN-13/-8), UPC-A/-E, UPC/EAN (Add-on embedded), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF),
CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar(RSS)
Minimum
resolution
2D code 0.167 mm -
Barcode 0.125 mm
Reading reference position 100 mm 50 mm
Maker Area guide maker -
Scan Confirmation LED in three colors: Blue/red/green, speaker, vibration
Key input
section
Number of keys 21 keys (including power key) + Cross-hair cursor key + 3 trigger keys
Communication Wireless
LAN
Suitable standard - IEEE.802.11b/g/n compliant - IEEE.802.11b/g/n compliant
Frequency - 2.4 GHz band - 2.4 GHz band
Communication
distance(3)
- Approx. 75 m indoors,
approx. 200 m outdoors
- Approx. 75 m indoors,
approx. 200 m outdoors
Transmission
speed(3)
- IEEE802.11b:11/5.5/2/1Mbps,
IEEE802.11 g:54/48/36/24/18/12/9/6Mbps,
IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
- IEEE802.11b:11/5.5/2/1Mbps,
IEEE802.11 g:54/48/36/24/18/12/9/6Mbps,
IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
Access method - Infrastructure mode - Infrastructure mode
Security - WEP40/128, WPA-PSK(TKIP,AES),
WPA2-PSK(TKIP,AES),
WPA-1x(TKIP,AES/EAP-TLS,PEAP,LEAP,EAP-FAST),
WPA2-1x(TKIP,AES/EAP-TLS,PEAP,LEAP,EAP-FAST),
802.1x(EAP-TLS,PEAP,LEAP,EAP-FAST)
- WEP40/128, WPA-PSK(TKIP,AES),
WPA2-PSK(TKIP,AES),
WPA-1x(TKIP,AES/EAP-TLS,PEAP,LEAP,EAP-FAST),
WPA2-1x(TKIP,AES/EAP-TLS,PEAP,LEAP,EAP-FAST),
802.1x(EAP-TLS,PEAP,LEAP,EAP-FAST)
Bluetooth - Bluetooth Ver. 2.1 + EDR based class 2 - Bluetooth Ver. 2.1 + EDR based class 2
Card slot MicroSD or MicroSDHC (up to 32 GB)×1(FAT32 compliant)
Additional functionality Clock, speaker, vibrator, battery, and
voltage indicators, keypad backlight
Environmental
performance
Operating temperature -20 to 50°C(4)
Security level IP54
Drop resistance(5) 2.0m drop on concrete floor /1.2 m height over a concrete floor with each of 6 sides of the enclosure facing down (60 times total)
Mass Approx. 193 g (with thin battery mouted), approx. 211 g (with standard battery mounted)

Power supply specifications

Type BHT-1361Q-CE BHT-1361QWB-CE BHT-1361B-CE BHT-1361BWB-CE
Power Main battery Lithium-ion battery
Operating
time(6)
Standard battery 29 hours(7) 29 hours(7)/27 hours(8) 30 hours(7) 30 hours(7)/28 hours(8)
Thin battery 16 hours(7) 16 hours(7)/14 hours(8) 17 hours(7) 17 hours(7)/15 hours(8)
  1. 1.Memory (about 400 KB) for font file area included in the user area;
  2. 2.Although the effective number of picture elements is more than 99.99% thanks to high-precision technologies used to manufacture LCDs, allow the possibility of some elements, less than 0.01%, that are missing or permanently turned on;
  3. 3.The listed figures for communication distance and speed are theoretically possible figures and may very depending on the work environment where the unit is used;
  4. 4.Zero to 40°C when batteries are being recharged;
  5. 5.Result obtained in a test under regular temperature is shown and not meant as a guarantee.
  6. 6.The described operating time is a reference figure under regular temperatures and may very depending on usage conditions;
  7. 7.With one reading pass over a 5s period and backlight level 1;
  8. 8.When ratios of reading, wireless communication, rewriting of screen and holding durations are 1:1:1:20 under continued wireless operation and backlight level 1.

Dimentions

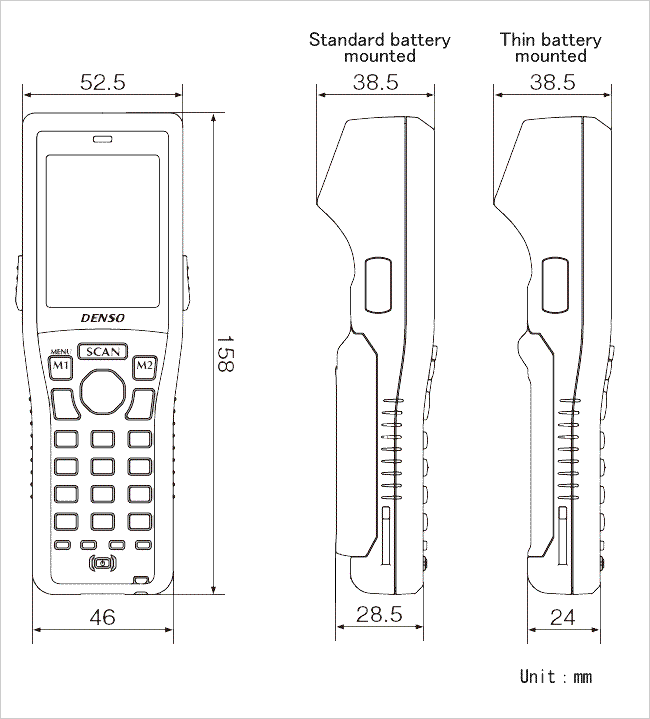

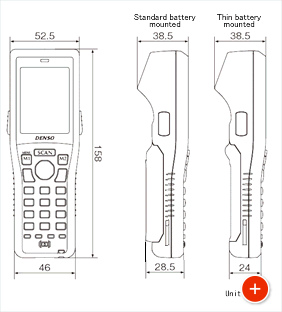

Dimensions

Communication

Holder, which performs data communication with BHT communication unit and the up-level device.

  Model Communication mode Charging time Size(mm) Power supply
CU-1301A 1311A 1321 CU-1301A RS-232C(1) Standard battery:Approx.3.5 hours
Thin battery:Approx.2.5 hours
109(D)×95(W)×111(H) AC adapter(3)
CU-1311A Ethernet(10BASE-TX)(1)
CU-1321 USB2.1 Full Speed compliant(1) Standard battery:Approx.10 hours
Thin battery:Approx.6 hours(2)
Supplied from USB port/
AC adapter(3)
  1. 1.Cables are optional.
  2. 2.Changes depending on the power supplying capacity of connected device: approx. 3.5 hrs for standard battery and approx. 2.5 hrs for thin battery when AC adapter is connected.
  3. 3.The AC adapter is optional.

Charger

A lineup of various BHT main unit charging type and backup cartridge charging type devices.

  Model Type Charging time Power supply Size(mm)
CH-201B Lithium-ion battery charger Standard battery:approx.3H
Thin battery:approx.2H
AC100V 80(D)×68(W)×17.5(H)
CH-1354 Main unit charger 1 unit, charging time: approx. 3H AC adapter(1) 134(D)×110(W)×72.2(H)
CH-1104 Four slot battery charger Approx. 3H 205.5(D)×190(W)×29.0(H)
  1. 1.The AC adapter is optional.

Battery

Backup batteries for BHTs

  Type Model Feature
- Lithium-ion battery(Standard type) BT-130LA battery only
- BT-130LA-C battery+battery cover
- Lithium-ion battery(Thin type) BT-20LB battery only
- BT-130L-C battery+battery cover
- Adapter for dry cell B-130D -

Case and others

  Type Model Price Note
Soft case SCBHT-1300 Open BHT-1300 series common
Waist case WHBHT-1300(1) Open BHT-1300 series common
Touch scan
attachment(2)
EA-13B(2) Open BHT-1300B only
- Head protector HPBHT-1300B Open BHT-1300B only
- Head protector HPBHT-1300Q Open BHT-1300Q only
  1. 1.Waist case does not include belt.
  2. 2.Touch scan attachment for barcode models.

Accessories

  • ・Hand strap
  • ・Guidelines for operation
  • ・Instruction manual can be download from our technical support site QBdirect.
  • ※Battery and battery cover are not supplied with the product.

Development tools

Name
Windows Embedded Compact 7-based Software Development Kit for BHT(SDK)(1)
  1. 1.This application software can be downloaded from our dedicated customer site only by customers who purchased Windows-based BHT.

Preinstalled software

Name Model Feature
Keyboard interface kbifCE(Free) This software is preinstalled.
Wireless setting tool Wlan Manager -
Launcher Application Launcher -
Back-up tool BHT Backup -
