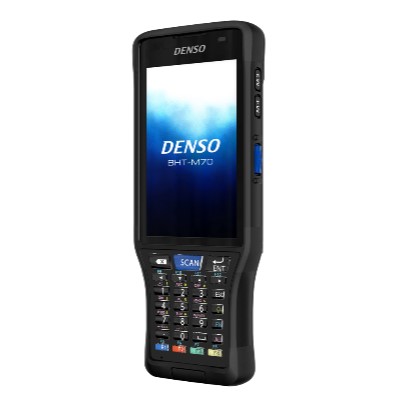

Feature of BHT-M70

Equipped with Android™ 10/ Android™ 13(2 lineups are available)

Provides extensibility for multiple operations with a single terminal, with GPS and communication apps also usable.

High-speed 4G

4G LTE-compatible BHT allowing voice calls and high-speed data communication while working outdoors.

Large screen for easy use

High operability and scalability to meet on-site and operational needs.

Supports rMQR code scanning

The new QR code 'rMQR Code', which enables printing in long, narrow spaces, can also be read. This expands the range of applications. (To read rMQR, update the firmware to the latest version.)

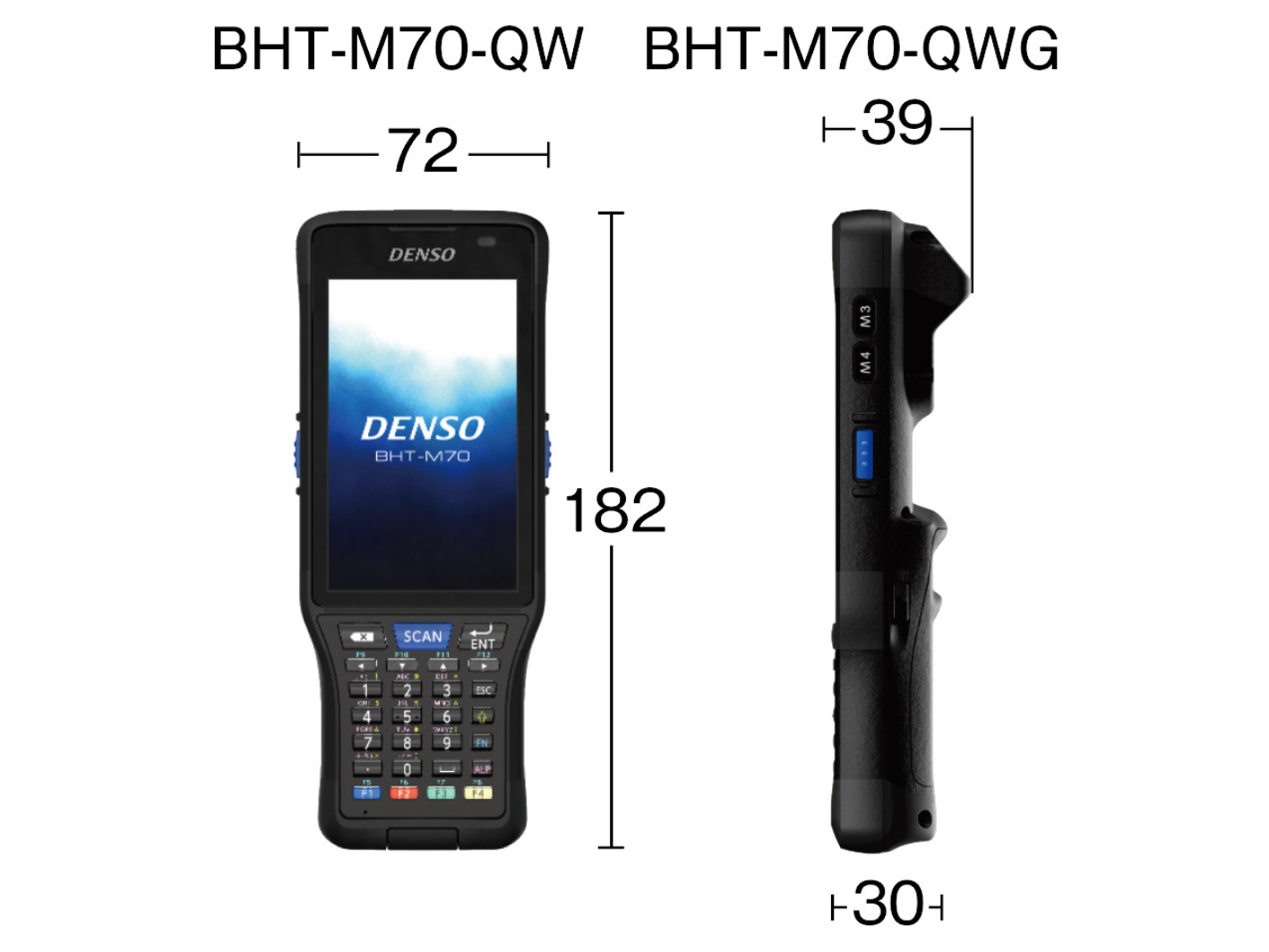

unit:㎜(All reference values)


Outstanding robustness.

Greatest robustness in its product class*

Highest-level resistance against 2.5 meter drops in its product class.
Drop resistance of over 1.5 m × 60 times, strong enough for daily operations.
(* For smartphone-type barcode terminals for business use, as of October 2020, surveyed by the company )

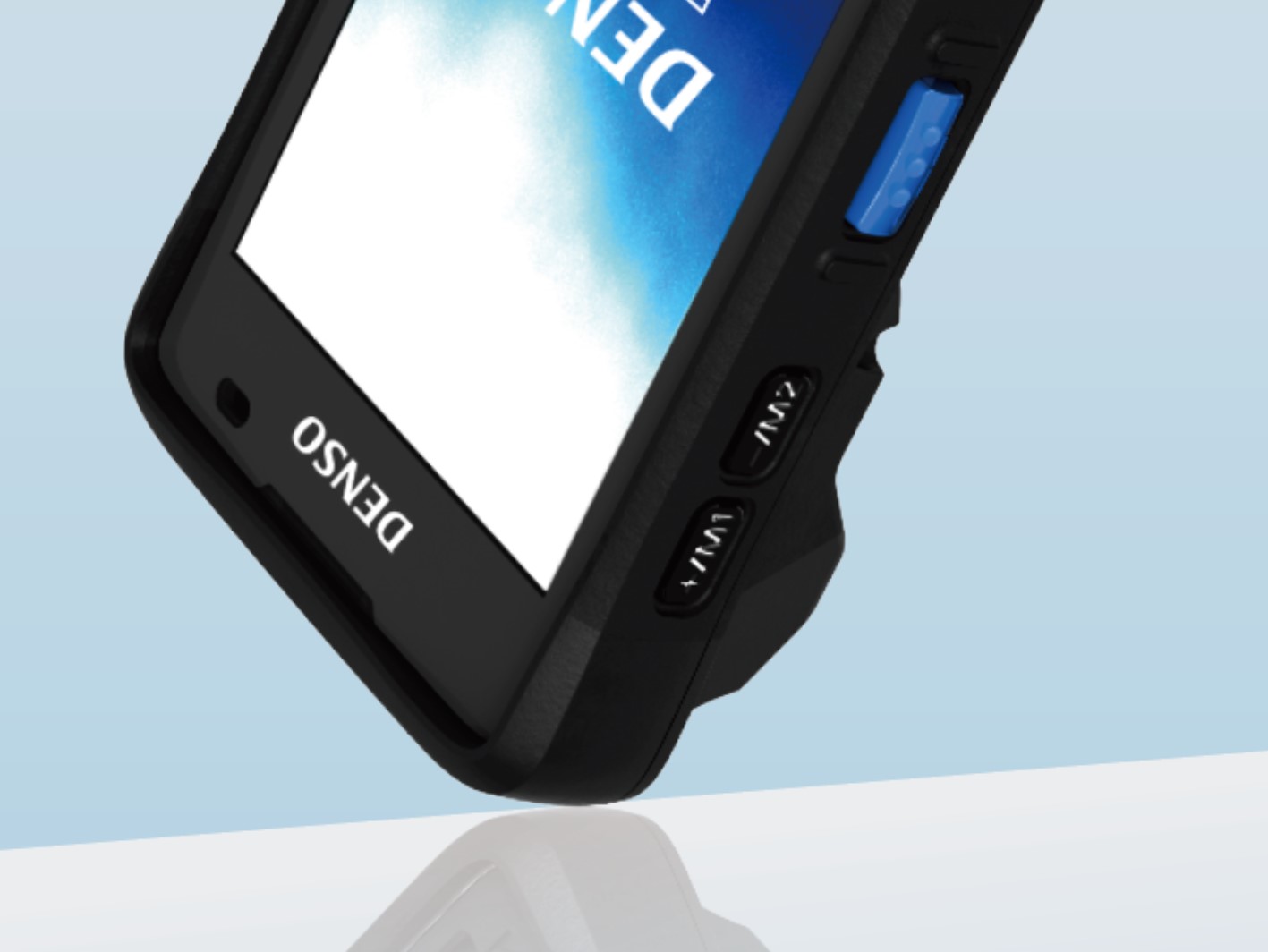

Structured to provide high resistance against shocks

Structured to provide high resistance against drops on concrete floors by the adoption of a highly rigid and light magnesium frame and an elastomer bumper that reduces shocks omnidirectionally.

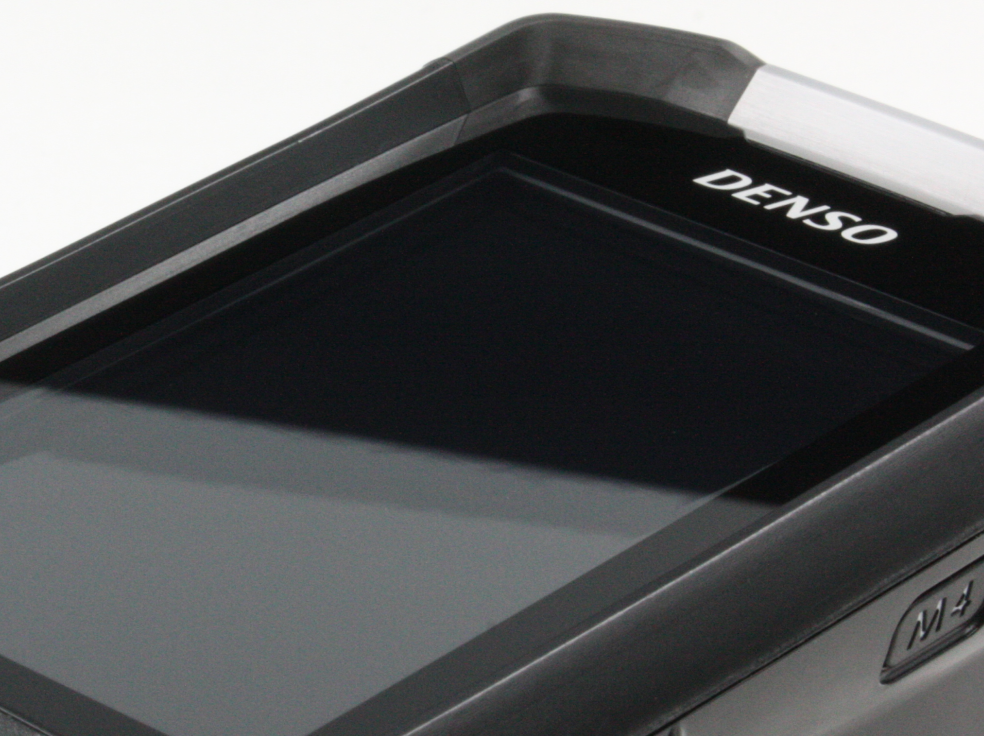

Provides clear visibility by the adoption of tempered glass

For the display, AGC’s Dragontrail® Pro is adopted for resistance against scratching and to provide high visibility on a long-term basis.

Able to withstand harsh environments

With IP67-compliant resistance against water and dust, the terminal can be used outdoors in rainy weather and in dust-filled factories alike with peace of mind.


Read faster, works harder.

Equipped with a new decode engine and high-density sensor,BHT-M70 provides outstanding reading performance.
The Qualcomm® SDM660, which is an industry top-level CPU (2.2GHz, Octa-Core CPU),enables high-speed processing.
Comfort in reading helps increase the efficiency of your daily operations.

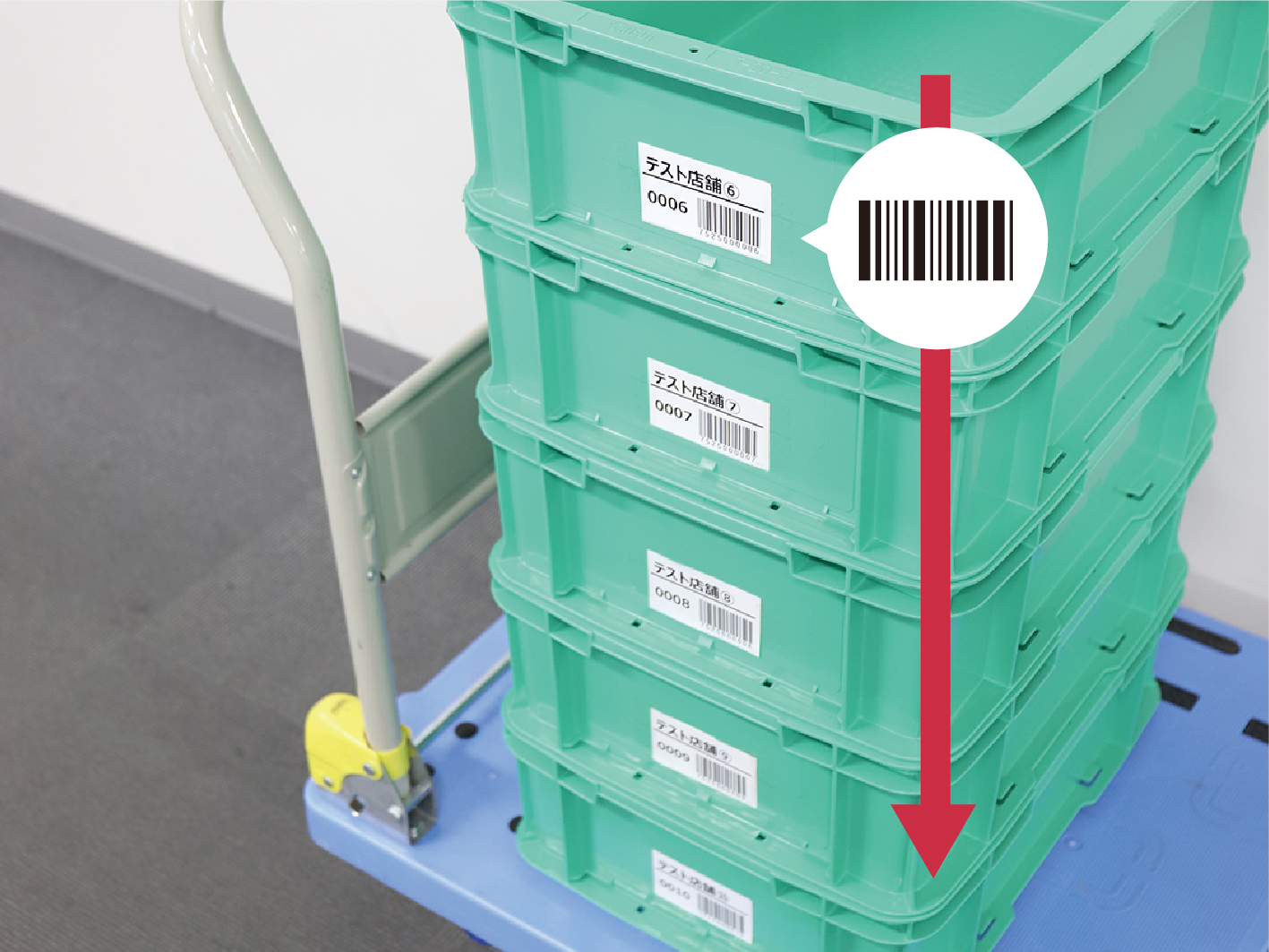

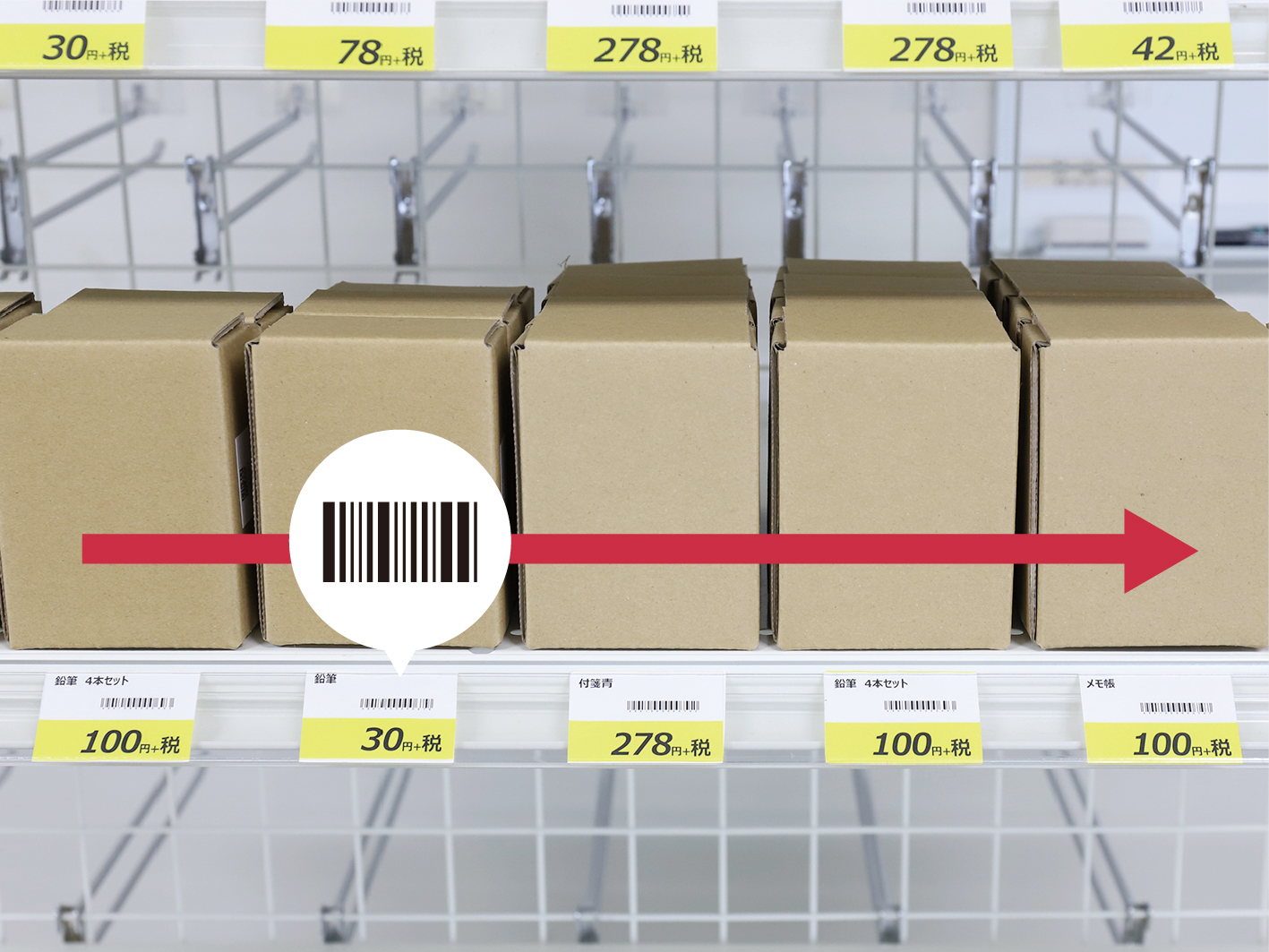

Just “trace” for serial reading

By adopting the industry’s top-level CPU, we have tripled the reading speed compared with that of conventional products to about 30 labels per second.

With the terminal, you do not need to read the labels one by one. Instead, just trace the labels of items on the shelves and those of stacked items for serial reading.

You can also perform a day’s worth of inventory work in half a day, thereby saving time.

Just “hold over” for easy reading

Can easily read the label (code) from a distance of 1m

We have adopted a high-density sensor so that codes can be read without fail even from a distance. Read codes easily while holding the terminal in a comfortable position without the need to stand up or crouch down repeatedly. Codes can be read easily even through glass.

Needs no skills for reading

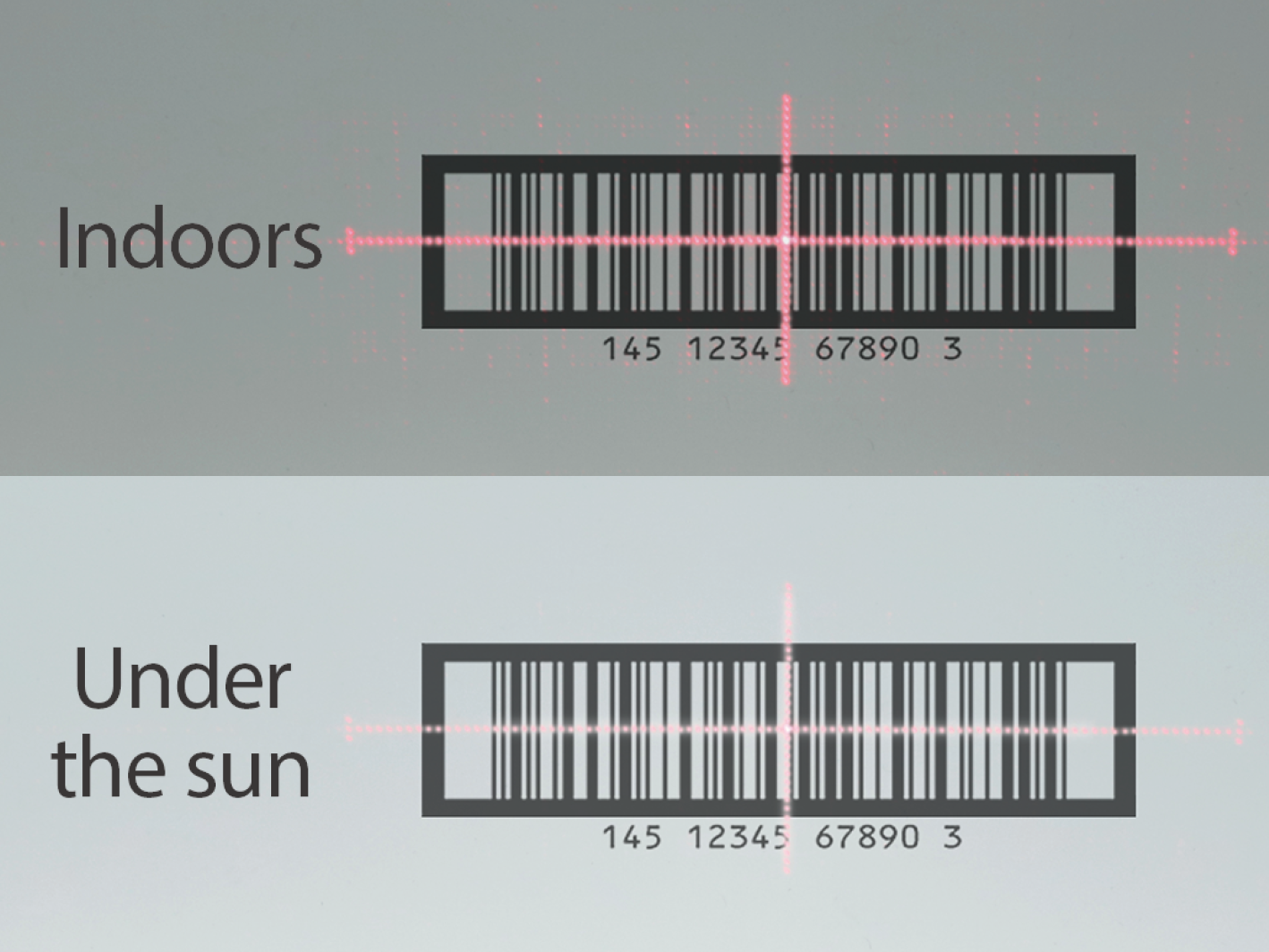

The laser marker, which provides high visibility even under the sun, eliminates the need to acquire skills to read labels covered with wrapping film and enables reading labels outdoors.

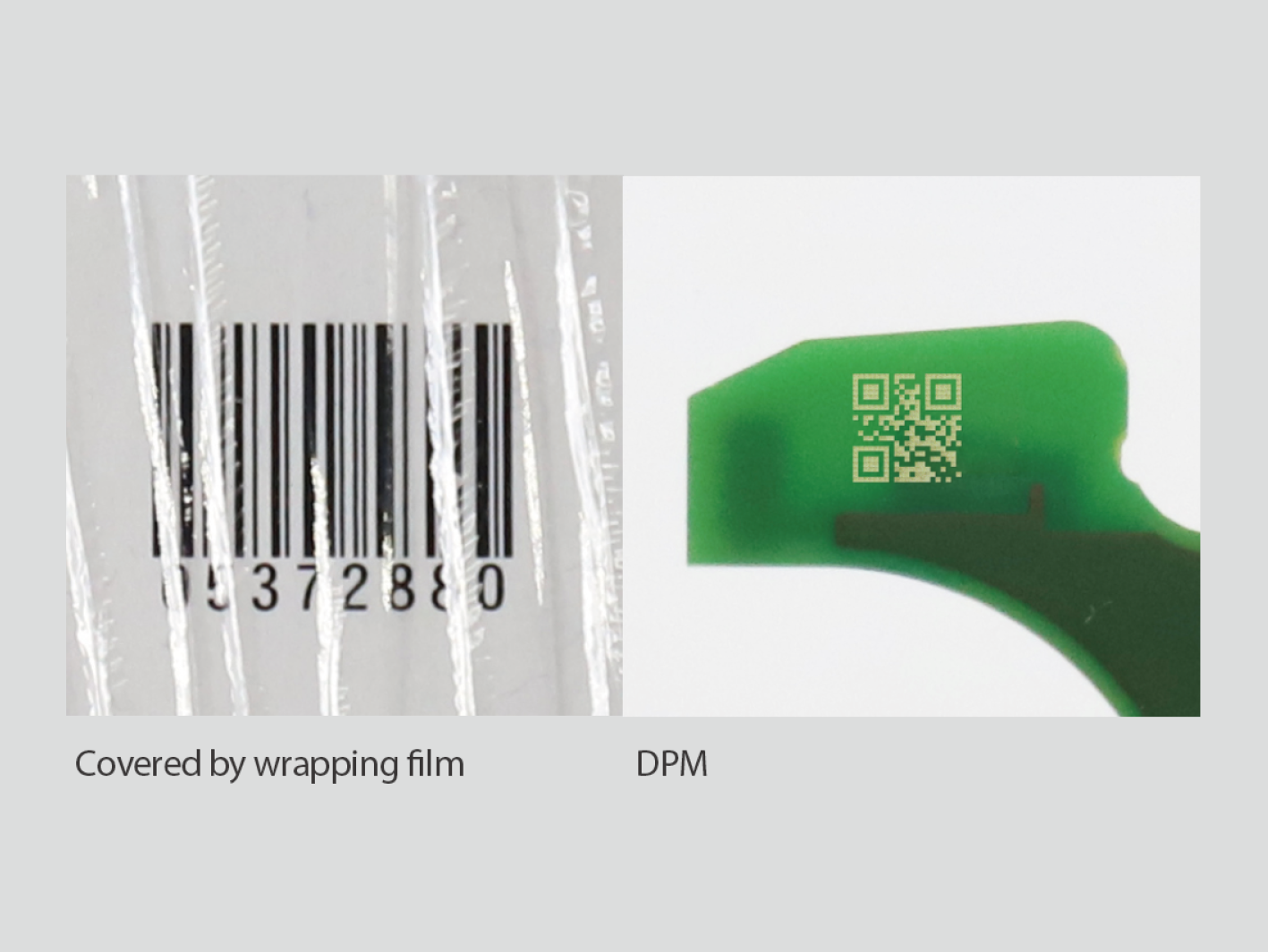

Can read even difficult-to-read labels

We have adopted a new decode engine and high-density sensor and designed the optimal angle for operability in a comfortable position with no specular reflection effect. As a result, even labels covered by wrapping film, blurred/stained/deformed labels, and DPM codes can be read by the terminal.

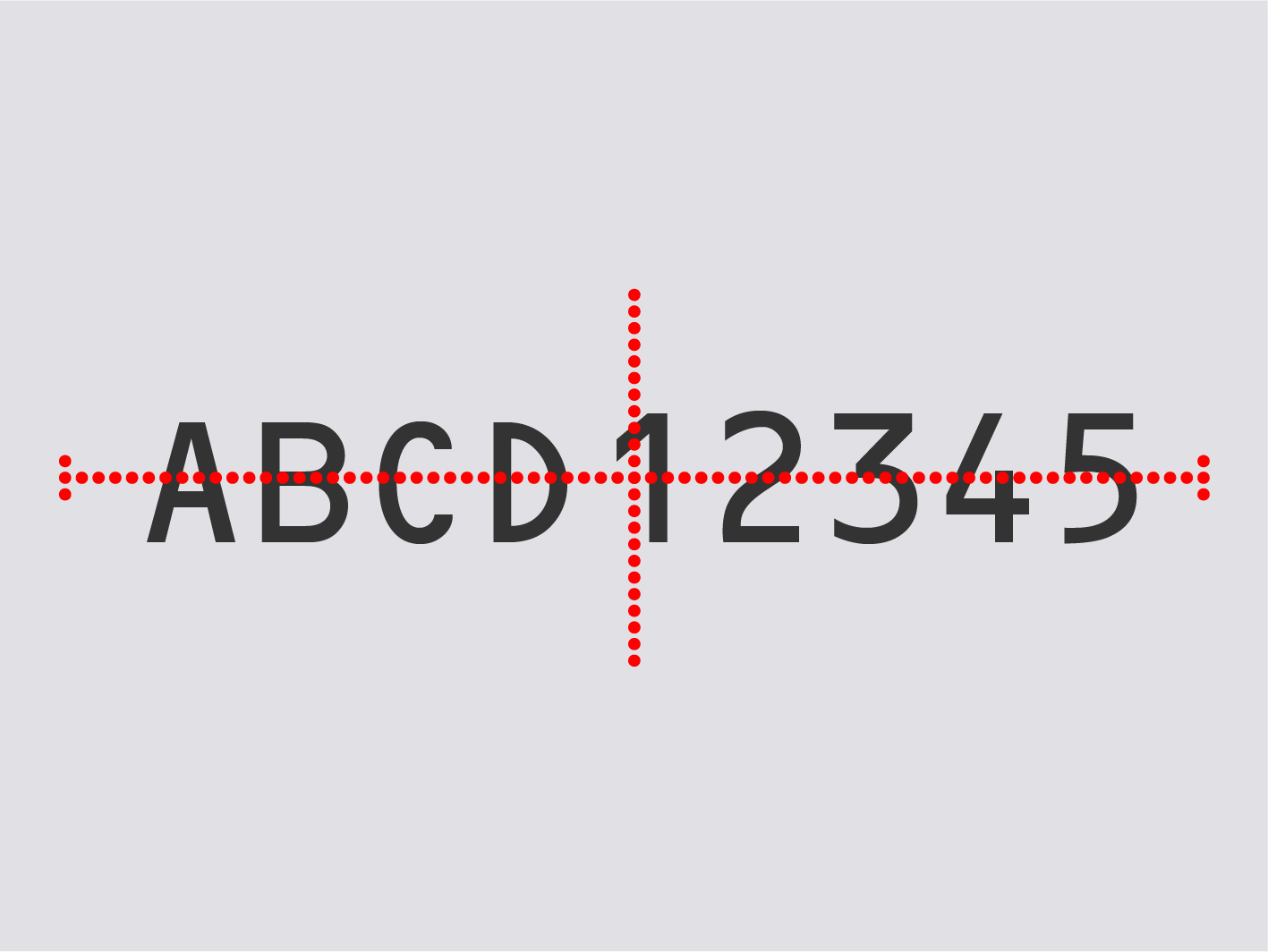

Advanced OCR

Due to the newly adopted OCR engine, even blurred and stained labels and labels with different character heights can be read correctly.

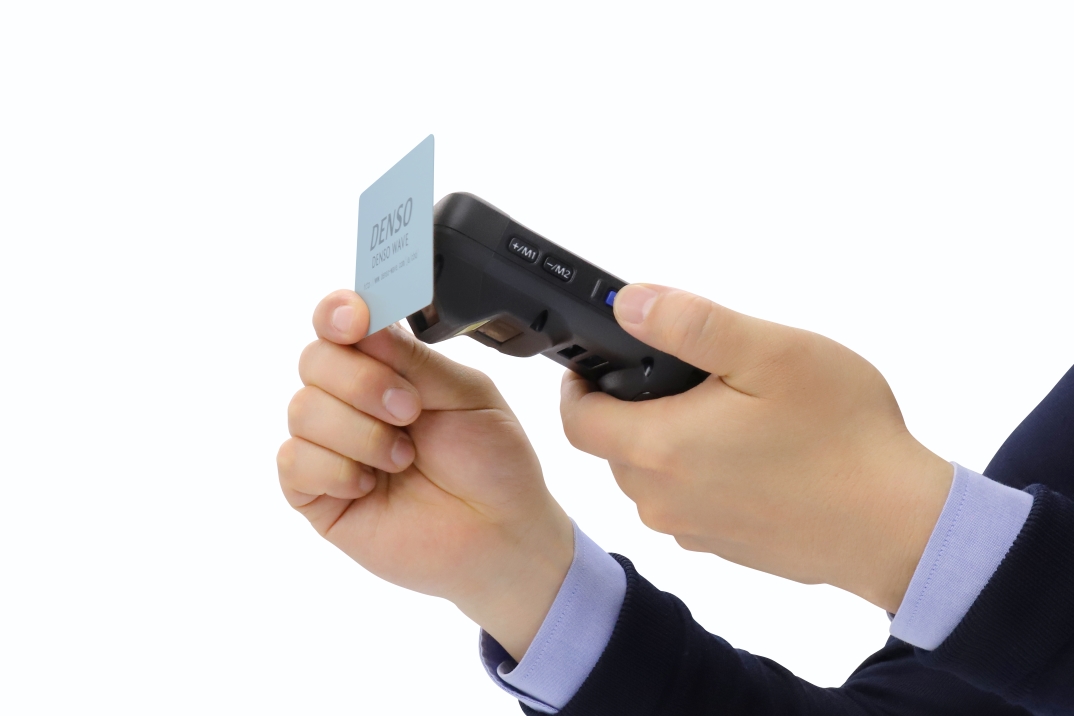

NFC supported

The reader is equipped with an NFC antenna to read ID data.


Stress-free and comfortable operation

Providing more work method options by offering an alternative charging method

Direct charging supported

Widely used Type-C cable supported, allowing recharging with mobile batteries. You can recharge and forward files from PC at once.Qualcomm® Quick Charge™ 3.0 adaptor is also supported for quick charging.

Easy-to-replace battery

The large releace lever is intended to allow for easy battery replacement. Replace the battery easily, even if it runs out while you are using the terminal.

Detection of battery deterioration to prevent related incidents

The terminal detects battery deterioration and warns you when to replace.

Substancial communication features

Higher communication speed for higher operational efficiency

As the terminal is usable in an IEEE802.11 ac high-speed communication environment, you can comfortably conduct operations even with a heavy data load, including using a browser, uploading data to the server, and downloading software applications.

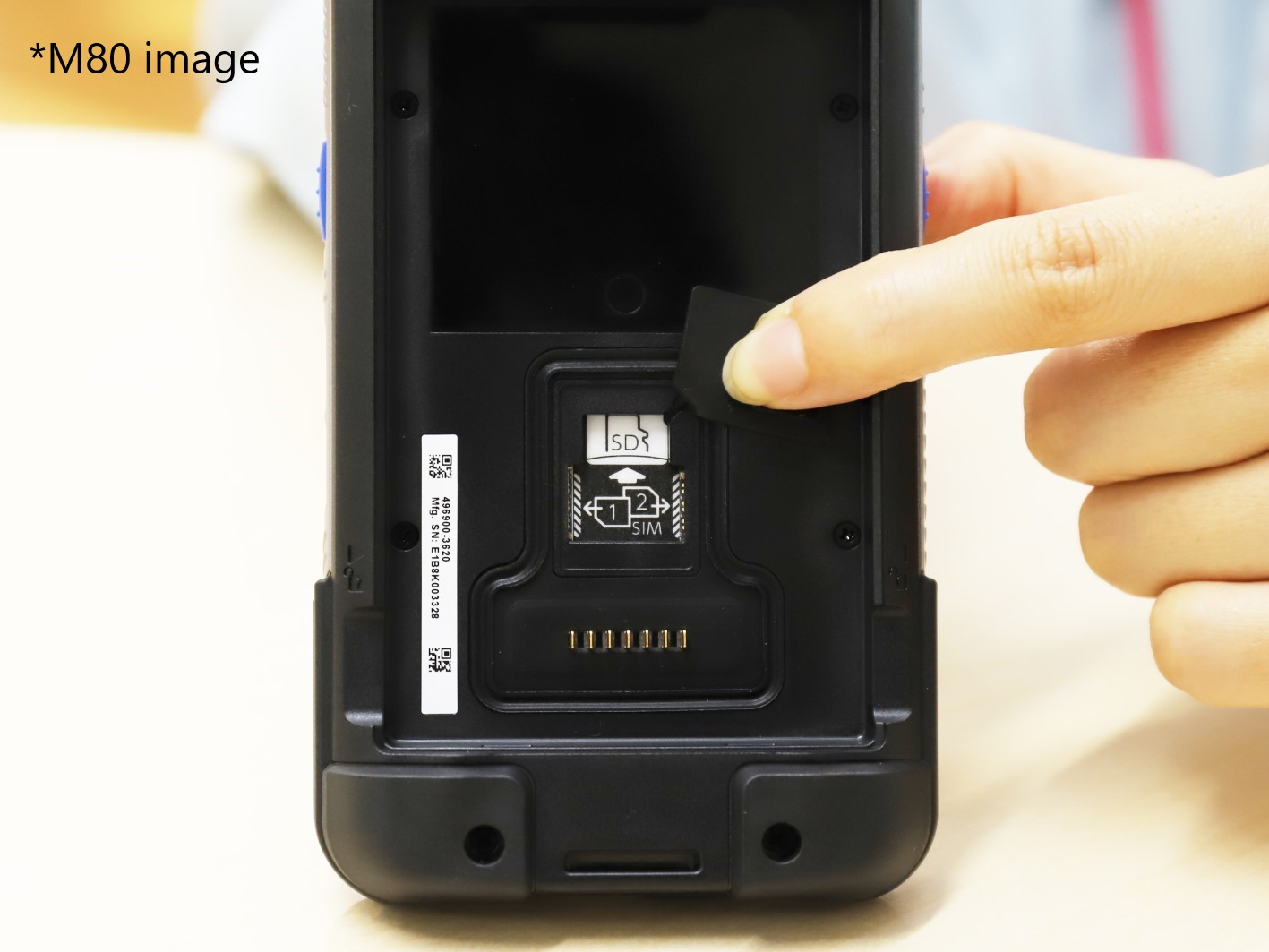

Precise communication with Dual SIM

BHT-M80 supports use of two SIM cards depending on the situation. It enables you to use networks that are available for specific area like mountain regions. You can also separate networks between voice calls and high-speed data communication.

Acquirable the highly precise location

GPS + satellite navigation system supported, allowing getting the highly precise location. Status of works can be managed precisely in real time. (Supported: A-GPS/GLONASS/QZSS/BeiDou/Galileo)

User-friendly screen for greater work efficiency

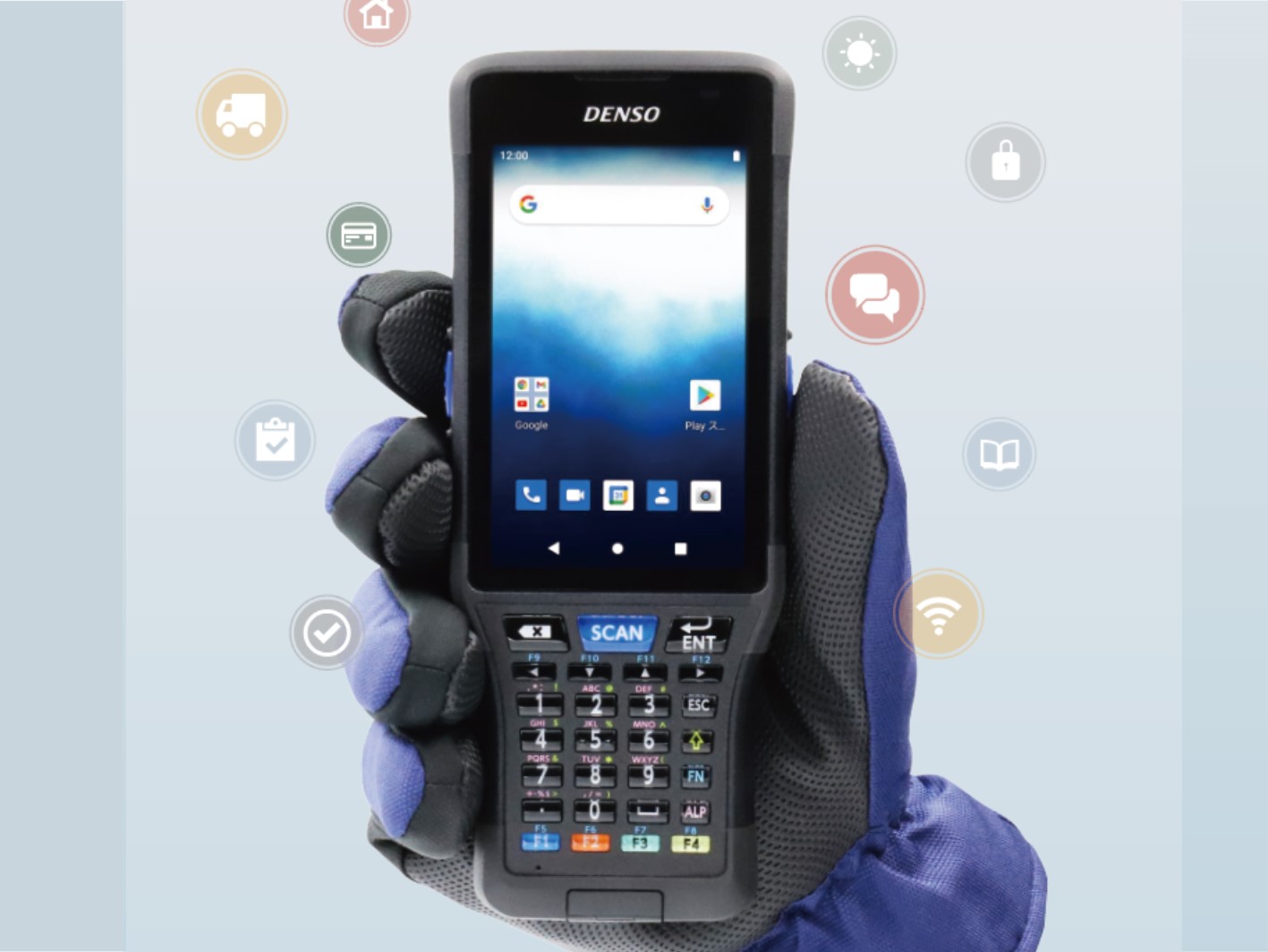

Operable with gloves on

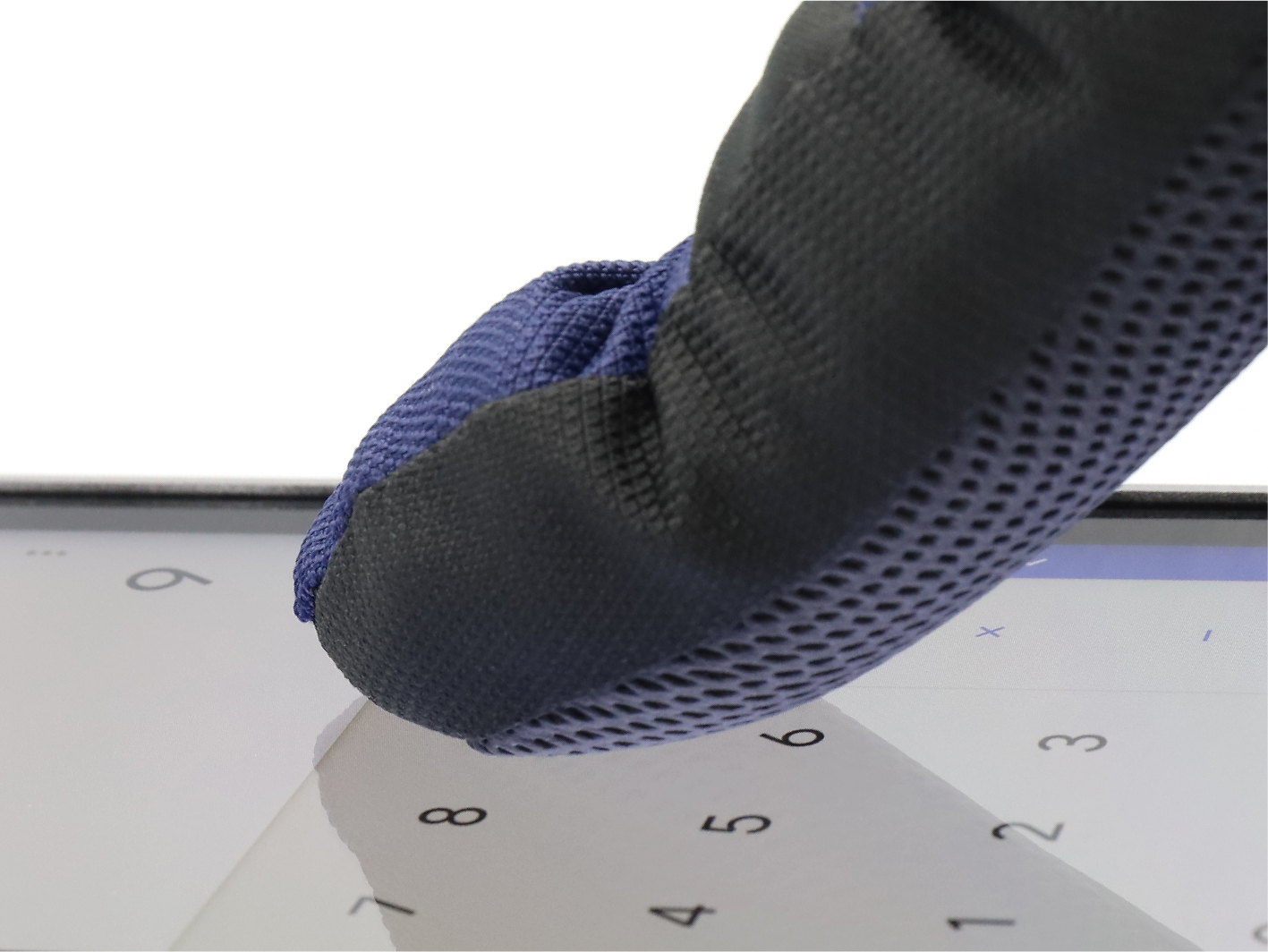

The capacitive touch panel can be operated comfortably even while wearing gloves. Moreover, the sensitivity is automatically adjusted according to the thickness of the gloves, thereby substantially reducing the time required for setting.

Reducing stress imposed on the user due to the performance of screen-based tasks

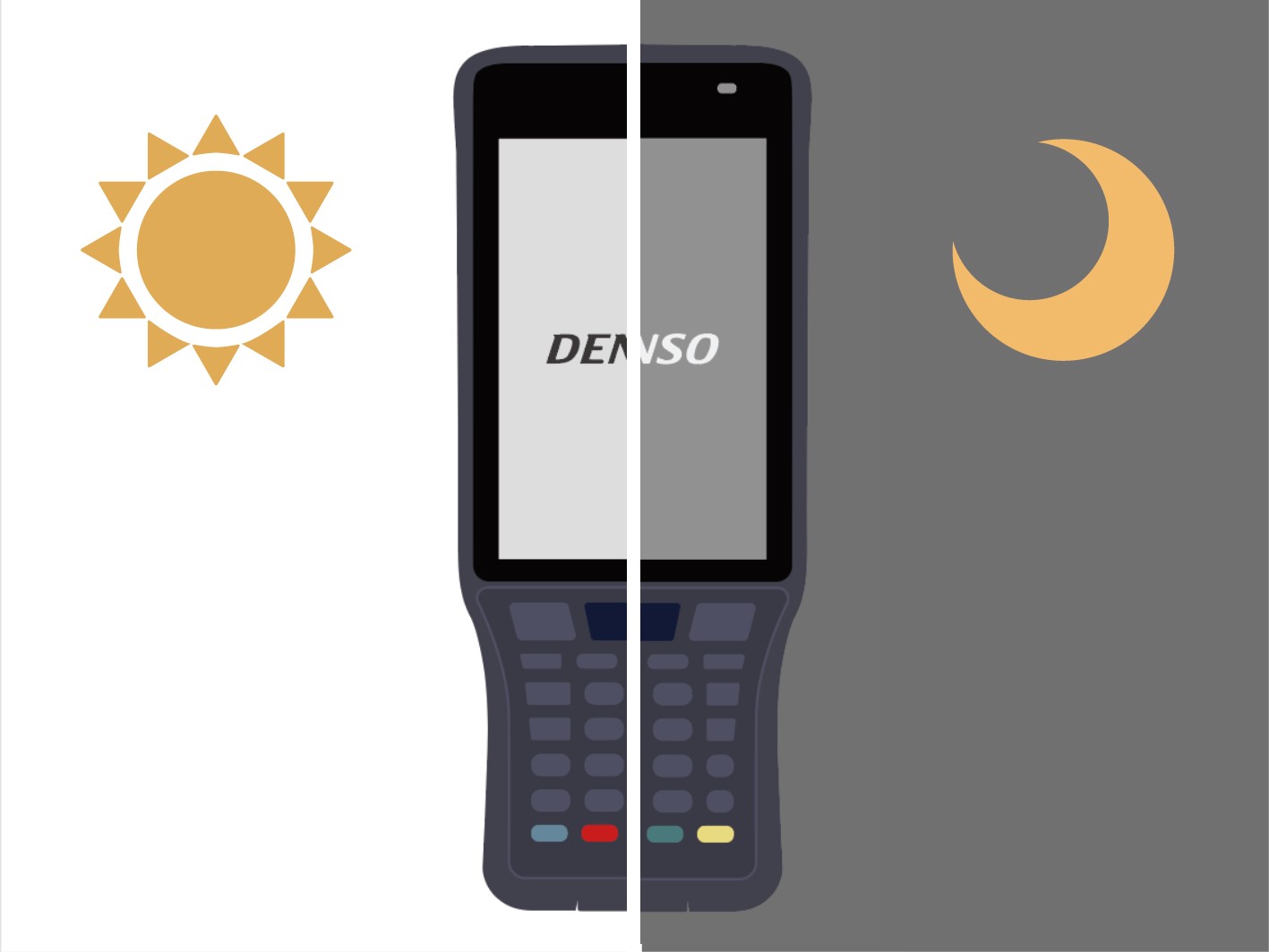

Equipped with a new function to automatically adjust the screen brightness according to the environment, thereby reducing the user’s stress and helping increase their operational efficiency.

  1. 1.BHT, QR code and SQRC are registered trademarks of DENSO WAVE INCORPORATED.
  2. 2.Sales model varies by region.
  3. 3.The outer appearance and specifications of the products may change for improvement purposes without prior notice.
  4. 4.Android is a trademark of Google LLC.
  5. 5.Dragontrail is a registered trademark of AGC Inc.
  6. 6.Qualcomm&Quick Charge is a registered trademark of Qualcomm Incorporated.
  7. Sales availability varies by country and region. Please contact us for more information.
  2D Code Model
Model Wireless LAN connection Wireless LAN+Wireless WAN
Operating System Android™ 10 / Android™ 13(2 lineups are available)
CPU Qualcomm® SDM660 64 bit 2.20 GHz(Octa-Core)
Memory RAM 4 GB
Flash ROM 64 GB
Display Screen size and resolution(1) 4.0-inch WVGA (480×800 dots)
Display device Dot matrix liquid crystal display (color)
Backlight White LED
Reader Reading method Area sensor
Supported code 2D code QR code®, Micro QR code, SQRC®,rMQR Code, PDF417, Micro PDF417, Maxi code,
 Data Matrix (ECC200), and GS1 Composite
EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), and Interleaved 2 of 5 (ITF)、
Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), and Standard 2 of 5 (STF), GS1 DataBar (RSS)
OCR(2) Supported
Minimum resolution 2D code 0.127 mm
Barcode 0.076 mm
Marker Cross guide marker
Confirmation of reading Blue LED, speaker, and vibrator
Key Entry Number of keys 27 keys (including the power key) , cursol keys, and 3 trigger keys
Touch screen Dragontrail® Pro(3)
 Capacitive multi-touch screen with glove touch support and water droplet false touch prevention
Communication Wireless LAN Applicable standard Compliant with IEEE802.11a/b/g/n/ac and MU-MIMO 2x2
Frequency(4) 5 GHz-band (W52, W53, W56 and W58)
2.4 GHz-band (1 to 13 channels)
*USA, Canada,Taiwan(1 to 11 channels)
Security Encryption:OPEN, Enhanced Open, WEP(40/128), TKIP and AES
WPA authentication: WPA and WPA2 and WPA3
User authentication: PSK, EAP-TLS, and PEAP
Wireless WAN applicable standard(4) ̶ Supported: GSM/W-CDMA/LTE,VoLTE
     FDD-LTE (4G) - Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28
TDD-LITE(4G)‐Bands 39,40,41
     W-CDMA/UMTS/HSPA/HSPA+ (3G) - Bands 1, 2, 5, 6, 8, 19
     GSM/GPRS/EDGE (2G) - Bands 850, 900, 1800, 1900MHz
Wired connection USB Ver.2.0(USB Type-C)
NFC(5) ISO/IEC14443A&B, FeliCa, ISO/IEC15693(RFID)
Camera Rear 13-megapixel auto-focusing with a LED light
Card Slot Memory microSD (SDHC and SDXC (up to128 GB))SDHC Speed class 4 support
SIM - Nano SIM×2、DSDV(4G×4G)
Microphone receiver Attached (6)
Speaker 90dB or more at 10 cm away (at 2.8kHz)
Sensor G-sensor, gyro sensor, proximity sensor, light intensity sensor, and geomagnetic sensor
Power Supply Main battery Lithium-ion battery
USB charging Compliant with Qualcomm® Quick Charge™ 3.0
Operating time(9)
BT3(3050 mAh)
Approx. 20 hours (9)
Environmental Performance Operating temperature(7) -20°C to 50°C
Operating humidity 5 to 95%RH (non-condensing and non-icing)
Protective class(8) IP65 and IP67
Drop resistance(8) 60 times or more from 1.5 m above concrete floor, 2.5 m
Weight (including the battery) Approx. 330 g(including BT3)
  1. 1. The LCD display is manufactured with precise technology.The rate of non-defective pixels is 99.99% or more, which means that 0.01% or less pixels could be stuck or dead.
  2. 2. Chargeable license is required.
  3. 3. Dragontrail® Pro is a registered trademark of AGC Inc.
  4. 4. Actual operating channels/frequencies and bandwidths may vary depending on local regulations and approval agencies.
  5. 5. Before using the NFC function, perform test reading sufficiently using the target NFC card.
  6. 6. A headset or headphone can be connected through the USB Type-C cable. A USB Type-C-to-audio jack (3.5 mm) conversion cable is optional.
  7. 7. 0°C to 40°C during charging.
  8. 8. These are the values tested at a room temperature, and not guaranteed values.
  9. 9. The operating time is a reference value at a room temperature and may differ depending on the operating conditions.
  10. 10. This is a result of measurement based on the JEITA HT Standard Operation Mode G, and may change depending on the operating environment and system settings.


※Peripheral equipment and options will be released sequentially.


  Type Model
BT3 3050 mAh battery BT3

Communication Unit

  Type Model
cu USB type: With a spare battery charger(1) CU-M70U
LAN type: With a spare battery charger(1) CU-M70L
CU-AR1-14 CU-AL1-14 CU-AU1-14 USB type: Without a spare battery charger(1) CU-M70UQ(Quick Charge™3.0 supported)
  1. 1.AC adaptor sold separately.


  Type Model
CU-AR1-14 CU-AL1-14 CU-AU1-14 4-slot main unit charger(1) CH-M70-4
CU-AR1-14 CU-AL1-14 CU-AU1-14 4-slot battery charger(1) CH-BT1-4
CU-AR1-14 CU-AL1-14 CU-AU1-14 AC adaptor(Quick Charge™3.0 supported) AD8
  1. 1.AC adaptor sold separately.

Case and others

  Type Model
CU-AR1-14 CU-AL1-14 CU-AU1-14 Hand belt  HBBHT-M70
CU-AR1-14 CU-AL1-14 CU-AU1-14 Stylus pen  PNBHT-1700


  Type Model
CU-AR1-14 CU-AL1-14 CU-AU1-14 USB Type-C - Type-A conversioin cable(1.5m)  CB00-US1500/4A-4C
CU-AR1-14 CU-AL1-14 CU-AU1-14 USB Type-C - Audio Jack conversion cable(3.5mm)(2)  CB00-US100/3-4C
  1. 2.You also need the conversion cable to equip the BHT terminal with earphones and other devices.
  2. *The outer appearance and specifcations of the products might be changed for improvement without prior notice.

Components of a Set

  • ・Terminal
  • ・Hand belt
  • ・Operation manual
  • ・User's manual *The Operation Guide is not included. It can be downloaded from WEB.

System Configuration Examples

Development Tool

Model Features
SDK (1) Software Development Kit for Android BHT M series
BHTLink(2) Software for transmitting and receiving files between an Android BHT and a PC
BHT Booster Low-Code application development tool for Android

Management Software

Model Features
BHT DMS(Device Management System)(2) Terminal management system for connecting with WAVE products
BHT Remote(2) Software to remote-control an Android™ BHT on a PC

Security Software

Model Features
BHT Securty Package​(2) App for visualizing device control, firewall and security incidents ​

Work Support Software


Model Features
ApplicationLauncher App for controlling functions and access from workers
Battery Monitor App for browsing battery deterioration and notification control
BHT Browser

Browser for instant Web app editing specially BHT control  ​

Asset with necessary functions for operation like URL white list

Touchtrigger Scan Button that can be repositioned on the screen
  1. 1.Only users of BHT-M series can download from WEB site
  2. 2.Software available with the payment of a fee is separately charged

Low-code application development freeware for Android™

Easily create and customize operational apps

「BHT Booster」is Low-code application development freeware for Android™ BHT. You can instantly use the apps for 6 routine work and can also customize them to create a unique operational app. This software help customers introduce new devices and apps with limited budget.

>For software details


1.Out-of-the-box ready to get to work
Allow you to create and perform 6 types(Data collection, 1:1 verification, 1:n verification, picking, Master verification, Inventory) of works immediately with the built-in BHT Booster.

2.Empower everyone to make apps
Enable you to create apps and test them right away in your workplace without development PC and coding experience. You can easily set up by distributing XML file to other BHT.

3.Enhance productivity by using other apps
By using other DENSO WAVE's apps, customers can easily transfer master data and operation result file over a network.

Support for introduction provided by the BHT team

Our special BHT team helps customers introduce the products by capitalizing on its long-accumulated experience,
know-how and expertise in BHT products. DENSO WAVE team will make proposals, including options for software,
to meet the customers’ requests, such as “But we don’t want to make any changes to our current operations,”
and “We want to increase our operational effciency.”

【Examples of support provided by the BHT team】
 ■ Support for selection of devices  ■ Support for change of OS
 ■ Developing apps and making proposals to help customers solve their respective problems
 ■ Communication environment optimization service (addition cost)
 We can conduct a survey to select the most appropriate locations for access points and optimize channel
 design to propose the optimal wireless environment for customers.
