Equipped with Android™ 10
Operational efficiency fosterd by one-handed operation.
Creating new work methods together.
“CREATE YOUR NEW WORKSTYLE / NEW BHT”
Provides extensibility for multiple operations with a single terminal, with GPS and communication apps also usable.
4G LTE-compatible BHT allowing voice calls and high-speed data communication while working outdoors.

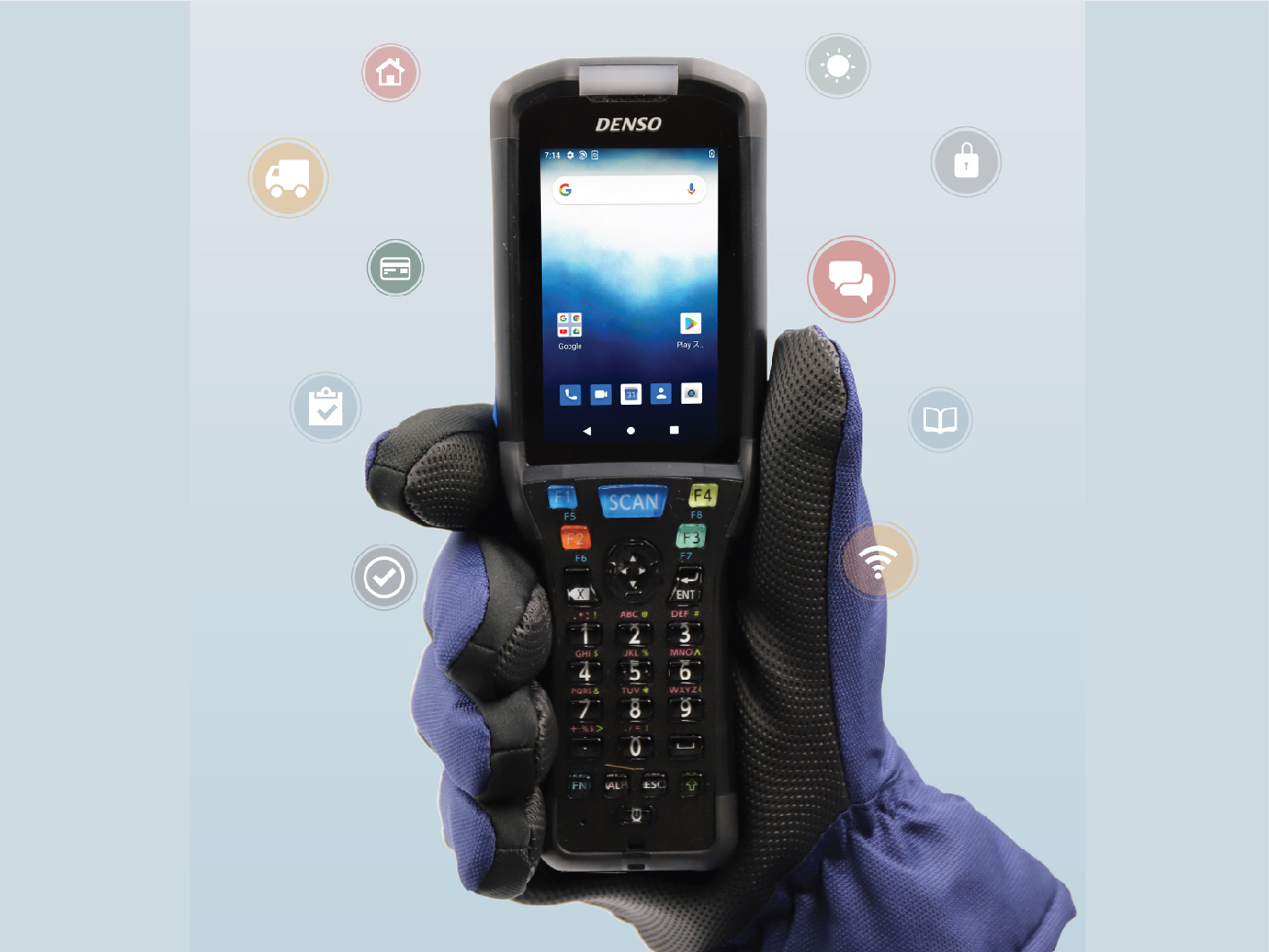

Make operational changes with one hand.
The new QR code 'rMQR Code', which enables printing in long, narrow spaces, can also be read. This expands the range of applications.
unit：㎜（All reference values）
Greatest robustness in its product class*Highest-level resistance against 3.0-meter drops in its product class.
Structured to provide high resistance against drops on concrete floors by the adoption with a frame containing light and rigid metal and an elastomer bumper that reduces shocks omnidirectionally.

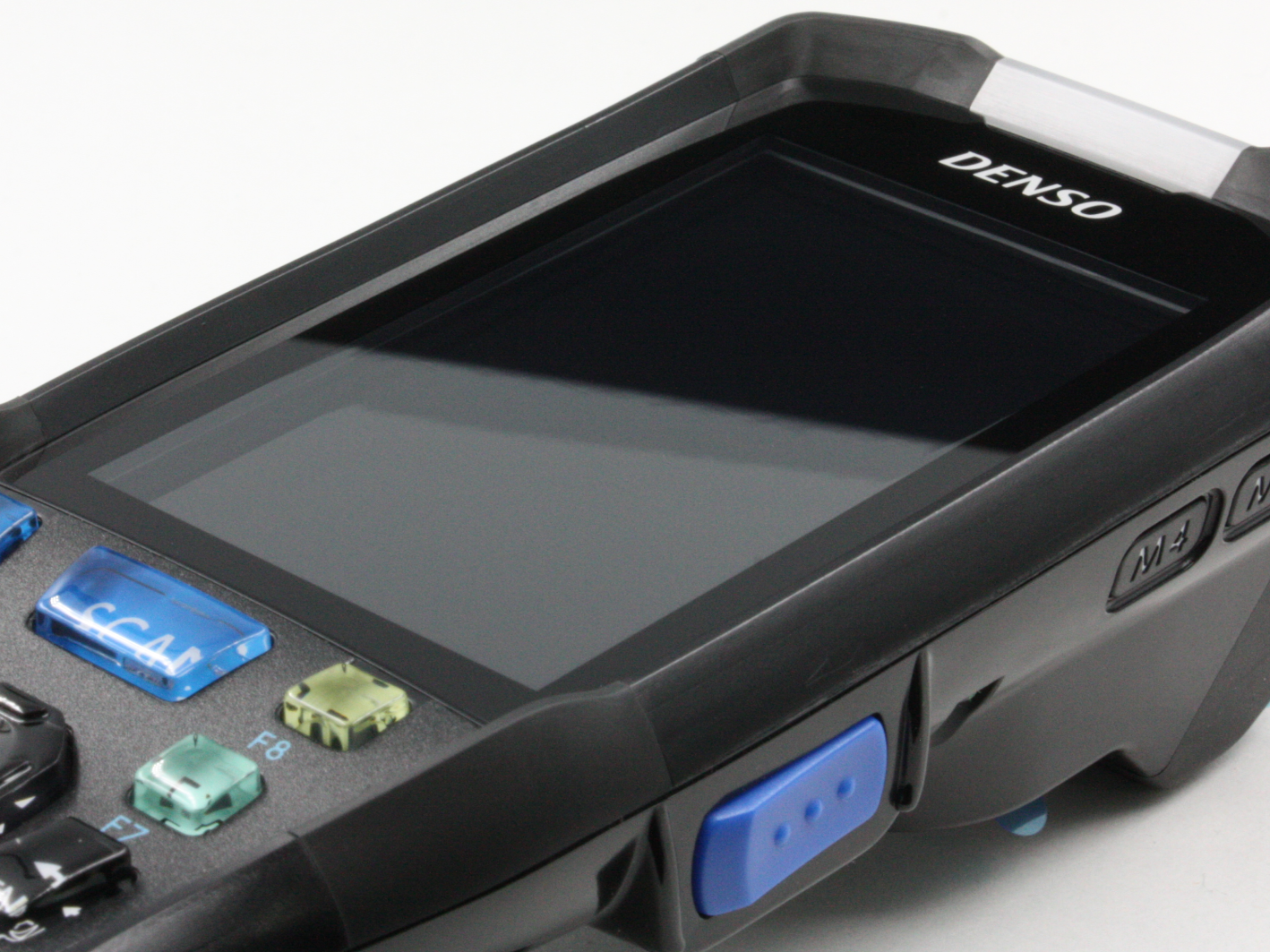

For the display, AGC’s Dragontrail® Pro is adopted for resistance against scratching and to provide high visibility on a long-term basis.
With IP67-compliant resistance against water and dust, the terminal can be used outdoors in rainy weather and in dust-filled factories alike with peace of mind.

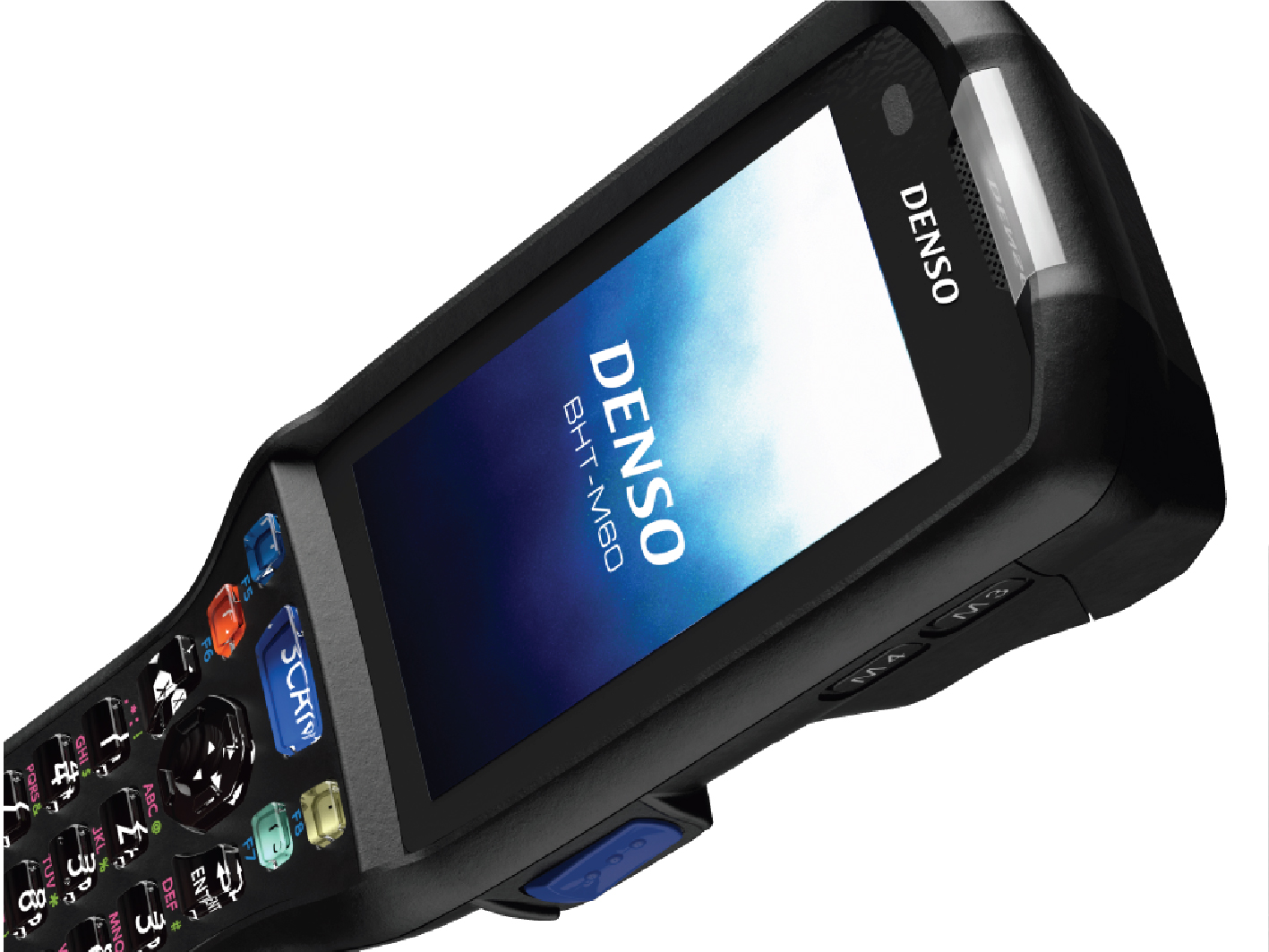

Equipped with a new decode engine and high-density sensor,BHT-M80 provides outstanding reading performance.
The Qualcomm® SDM660, which is an industry top-level CPU (2.2GHz, Octa-Core CPU),enables high-speed processing.
Comfort in reading helps increase the efficiency of your daily operations.
By adopting the industry’s top-level CPU, we have tripled the reading speed compared with that of conventional products to about 30 labels per second.

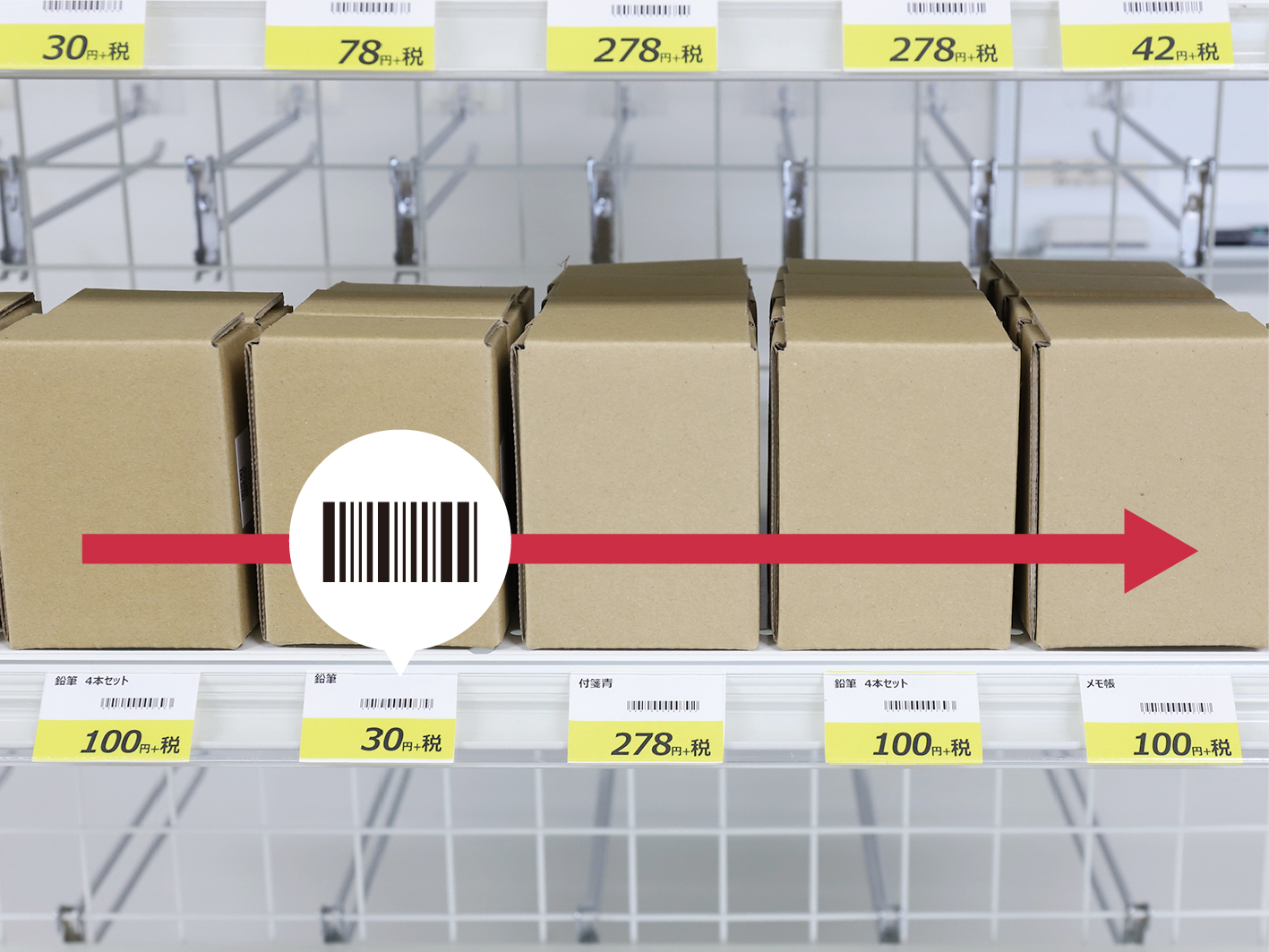

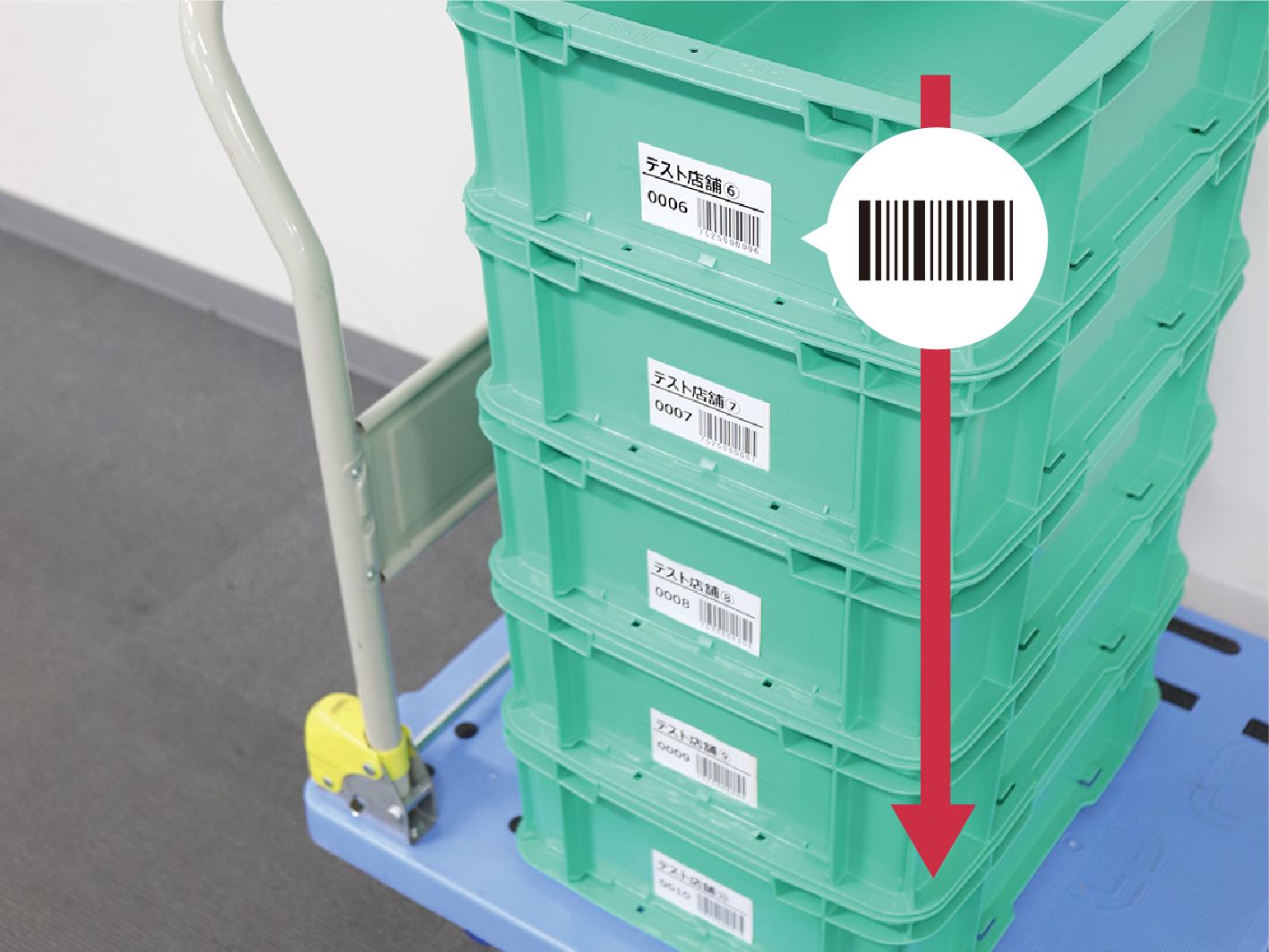

With the terminal, you do not need to read the labels one by one. Instead, just trace the labels of items on the shelves and those of stacked items for serial reading.
You can also perform a day’s worth of inventory work in half a day, thereby saving time.

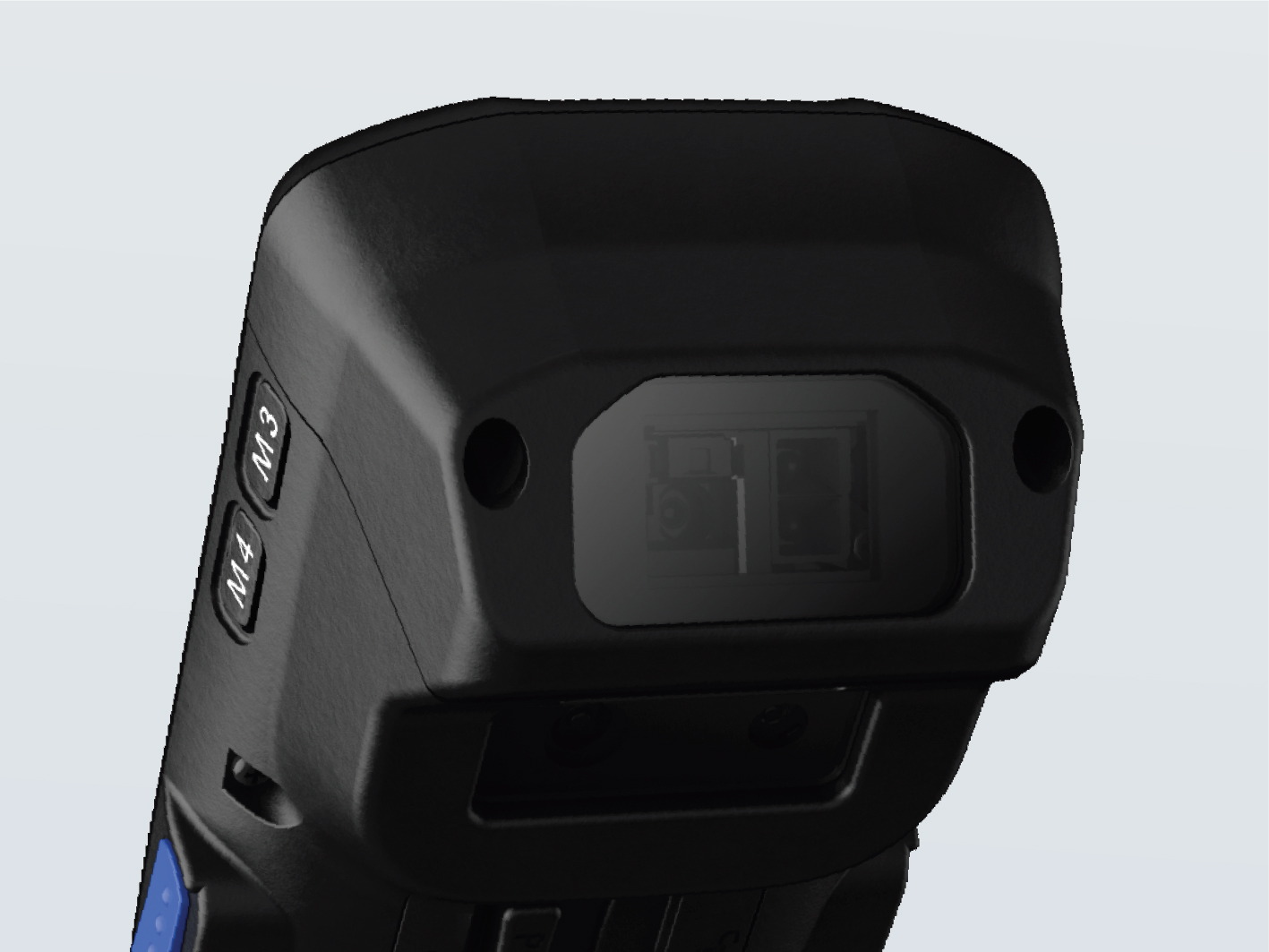

We have adopted a high-density sensor so that codes can be read without fail even from a distance. Read codes easily while holding the terminal in a comfortable position without the need to stand up or crouch down repeatedly. Codes can be read easily even through glass.

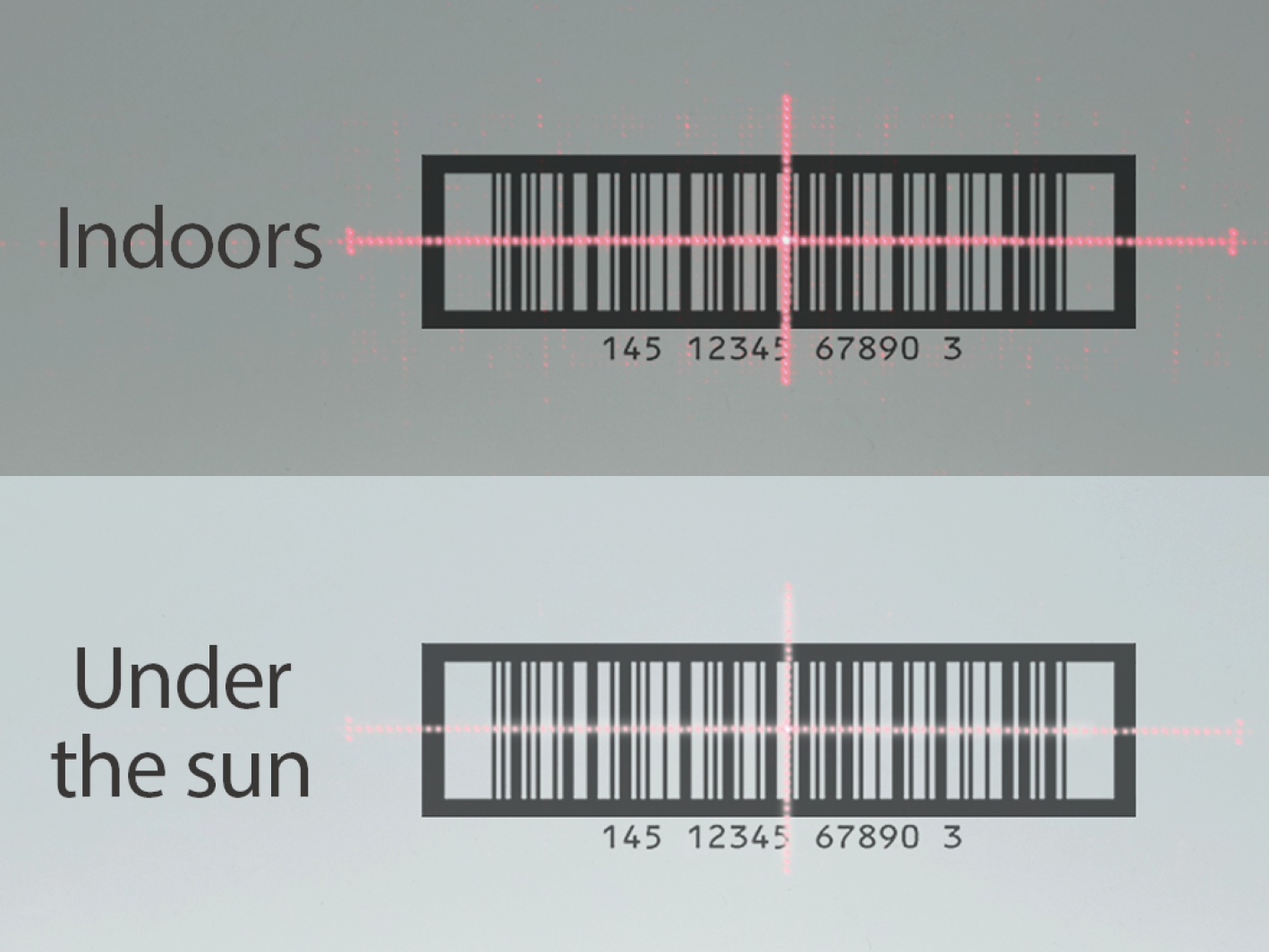

The laser marker, which provides high visibility even under the sun, eliminates the need to acquire skills to read labels covered with wrapping film and enables reading labels outdoors.

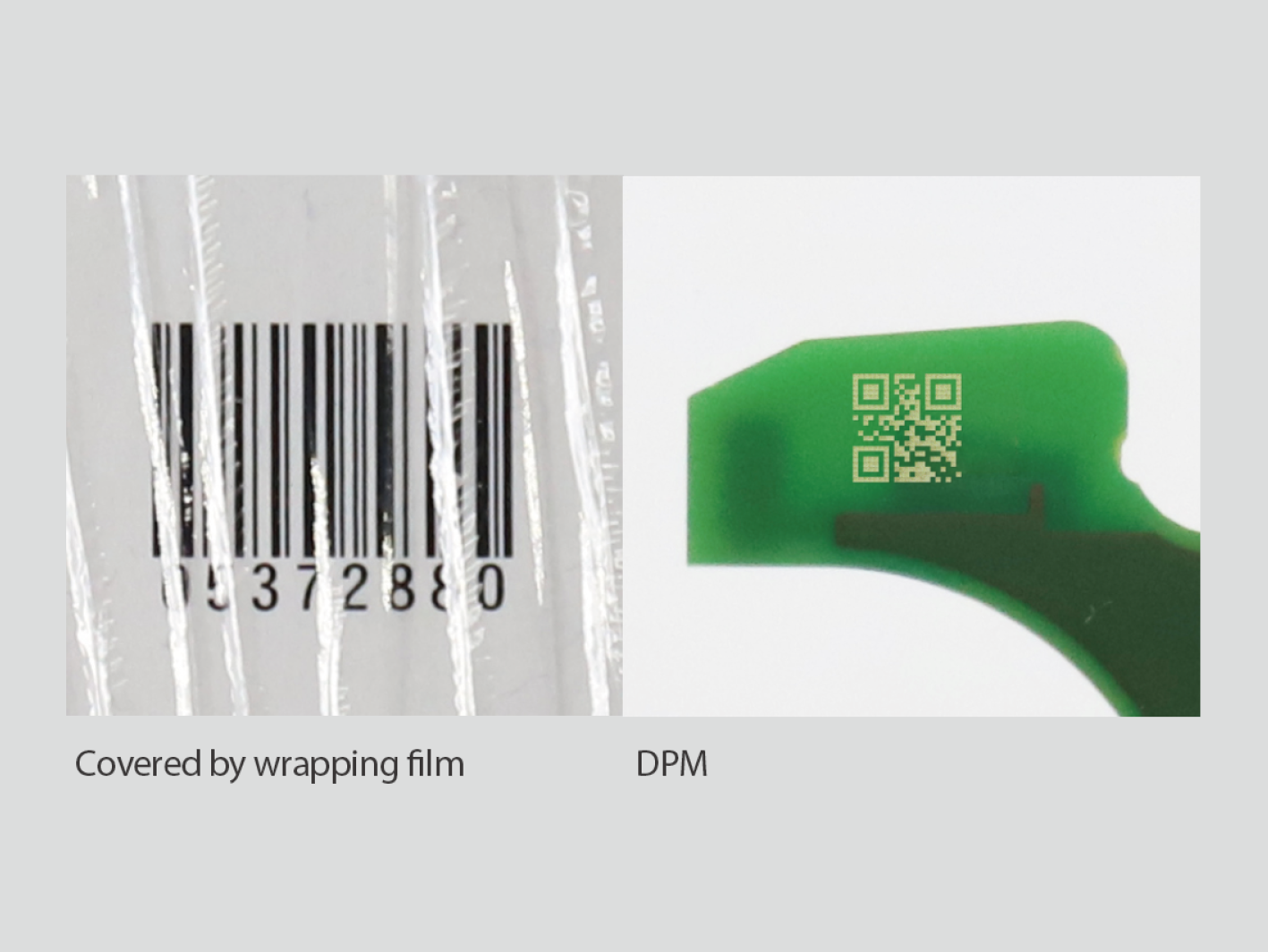

We have adopted a new decode engine and high-density sensor and designed the optimal angle for operability in a comfortable position with no specular reflection effect. As a result, even labels covered by wrapping film, blurred/stained/deformed labels, and DPM codes can be read by the terminal.
Due to the newly adopted OCR engine, even blurred and stained labels and labels with different character heights can be read correctly.

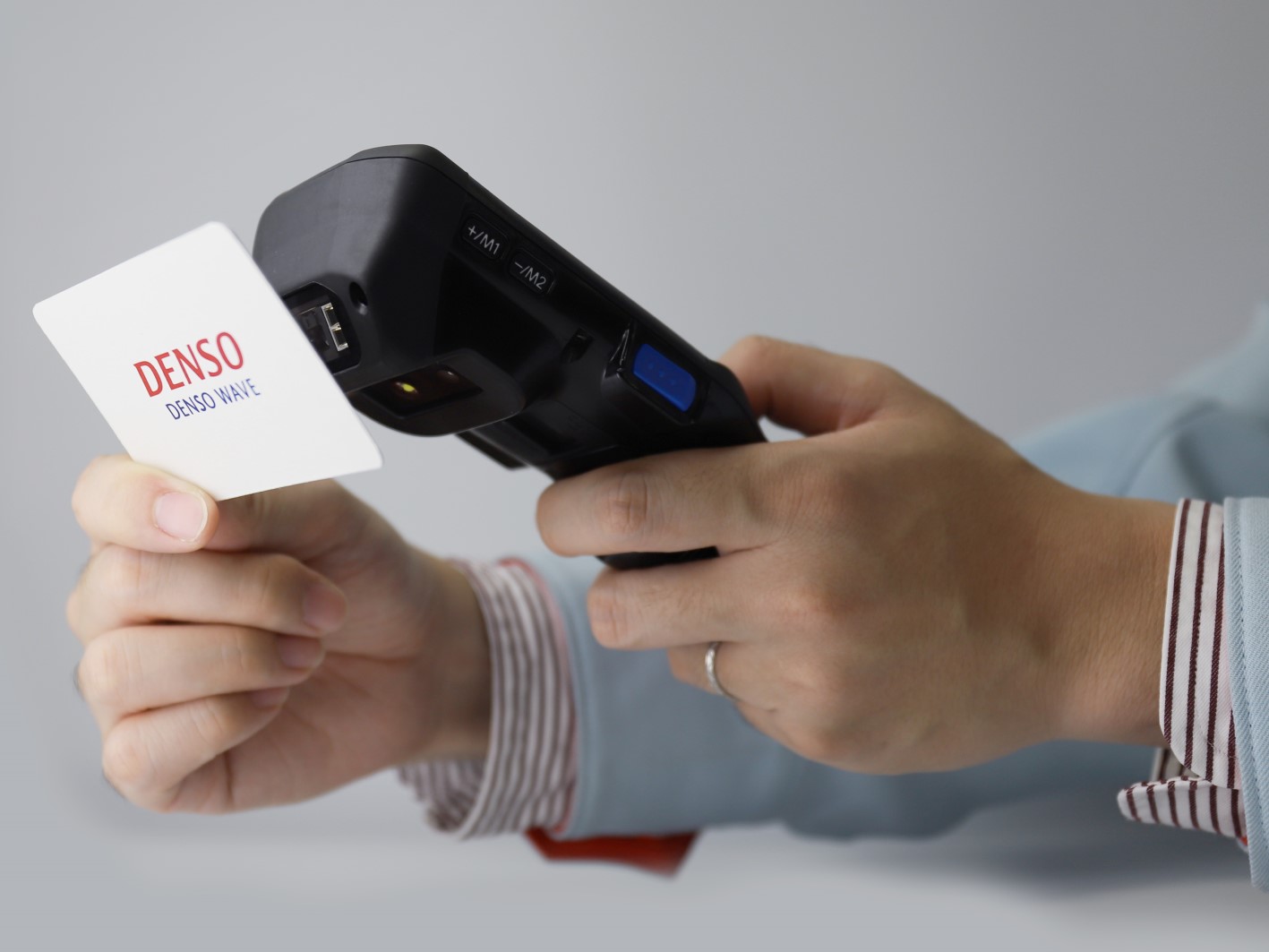

The reader is equipped with an NFC antenna to read ID data.
Widely used Type-C cable supported, allowing recharging with mobile batteries. Qualcomm® Quick Charge™ 3.0 adaptor is also supported for quick charging. You can recharge and forward files from PC at once.

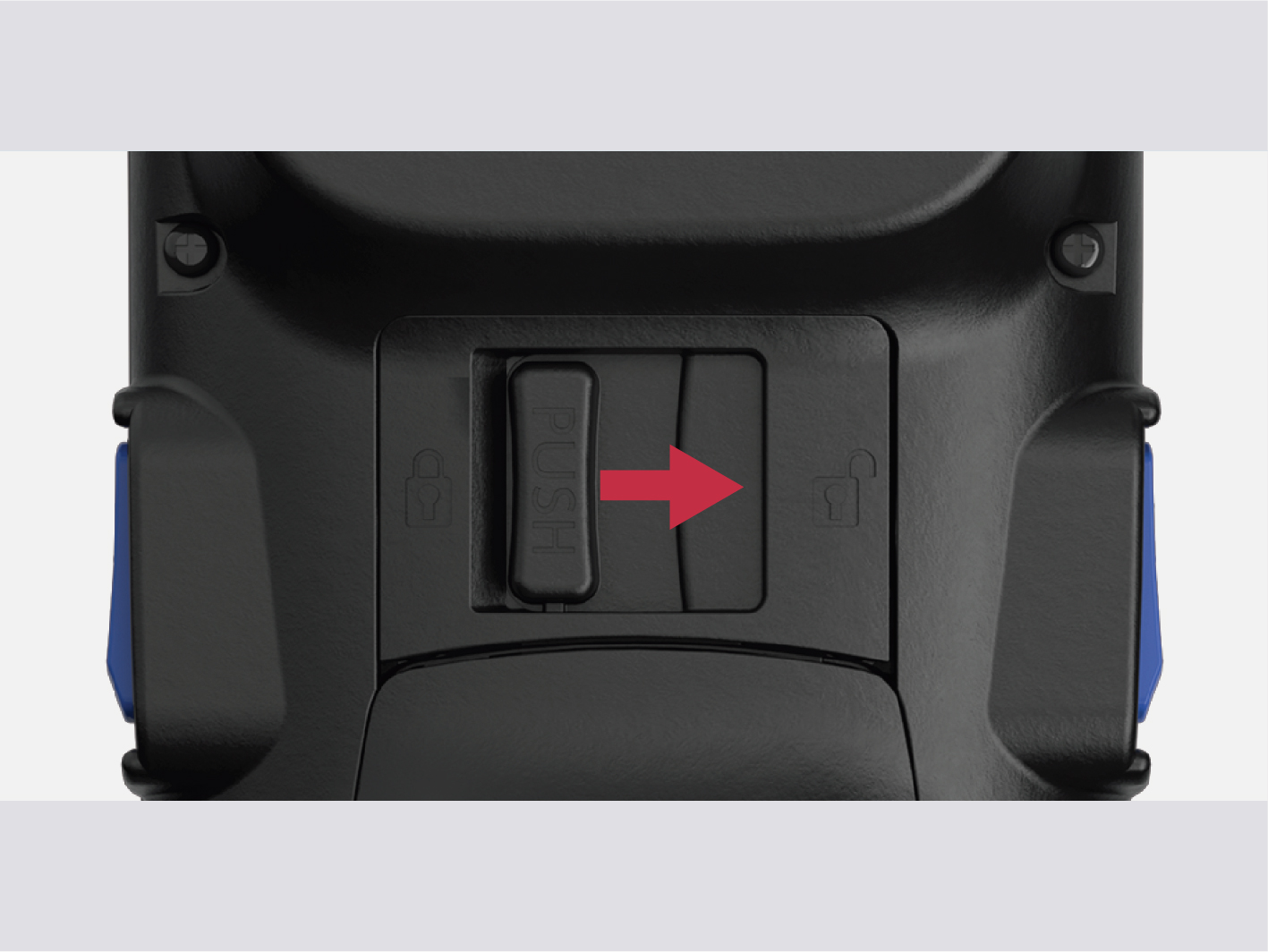

The large release lever is intended to allow for easy battery replacement. Replace the battery easily, even if it runs out while you are using the terminal. We offer two types of batteries that can be used according to the usage.
The terminal detects battery deterioration and warns you when to replace.
As the terminal is usable in an IEEE802.11 ac high-speed communication environment, you can comfortably conduct operations even with a heavy data load, including using a browser, uploading data to the server, and downloading software applications.
GPS + satellite navigation system supported, allowing getting the highly precise location. Status of works can be managed precisely in real time. (Supported: A-GPS/GLONASS/QZSS/BeiDou/Galileo)
Easy to grip thanks to the contoured body and non-slip texture. Designed for easy grasping with the fingers, which also helps increase keystroke accuracy.

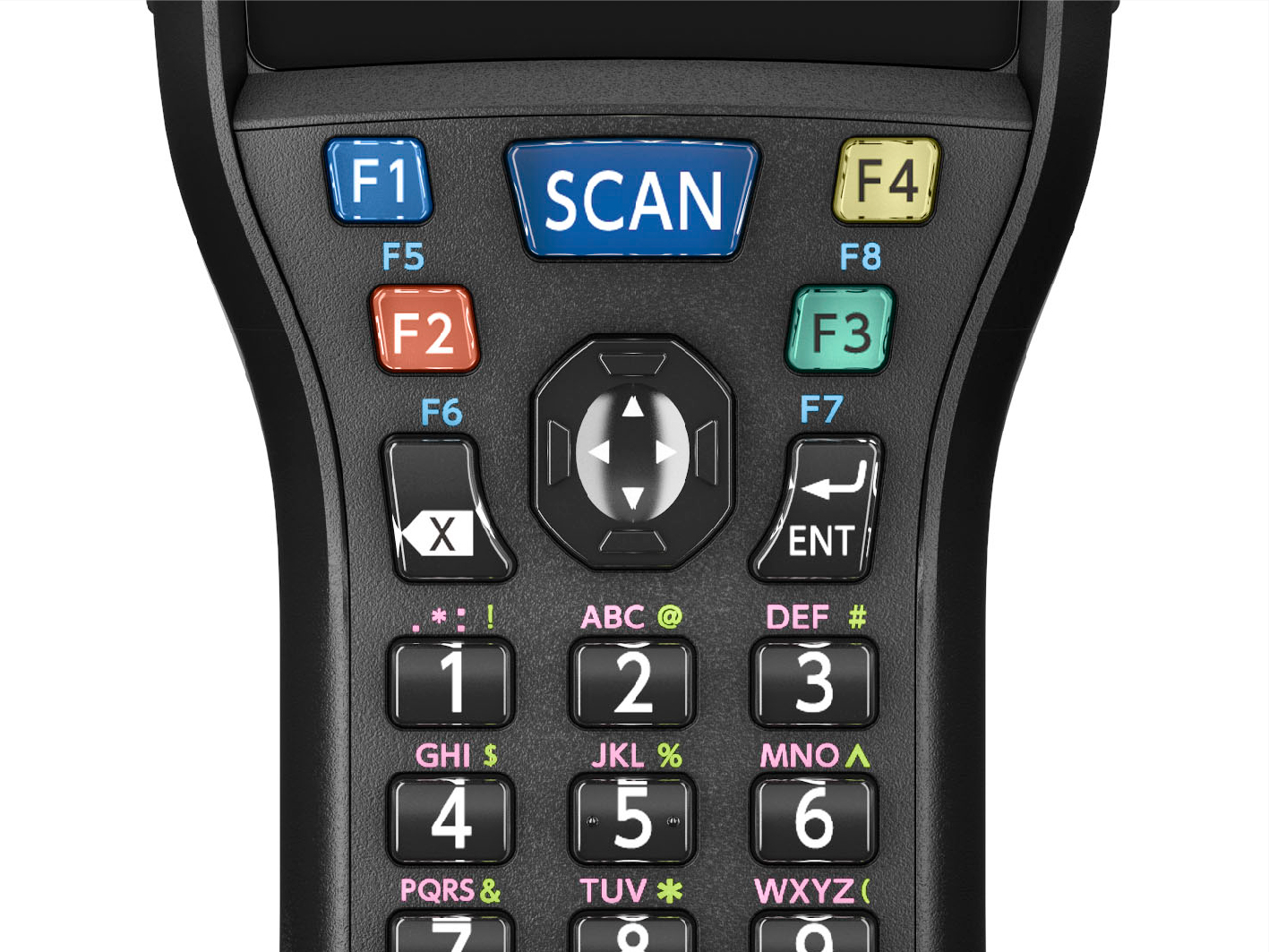

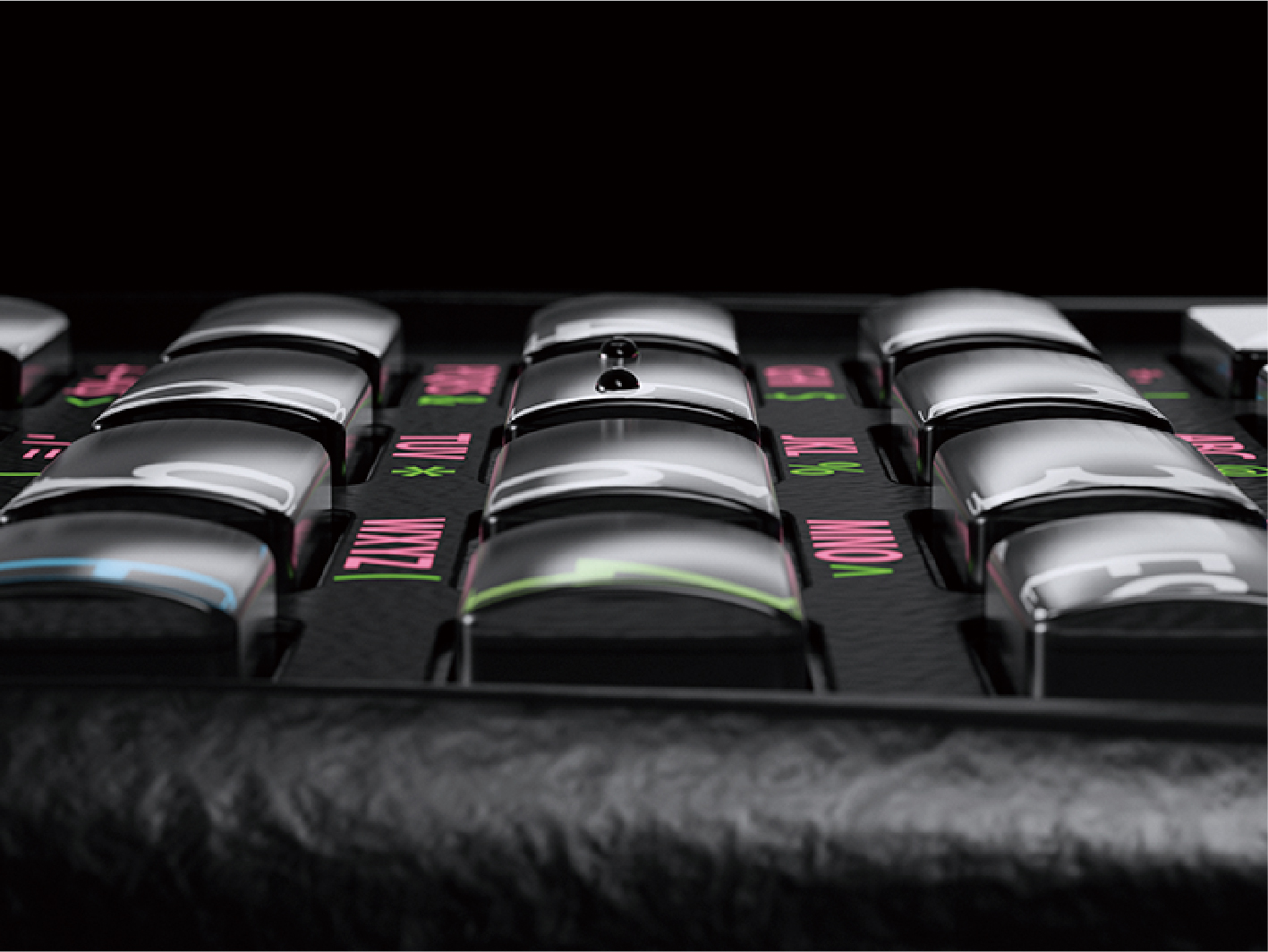

The dome-shaped keys are laid out in a manner that enables smooth data entry with any finger.

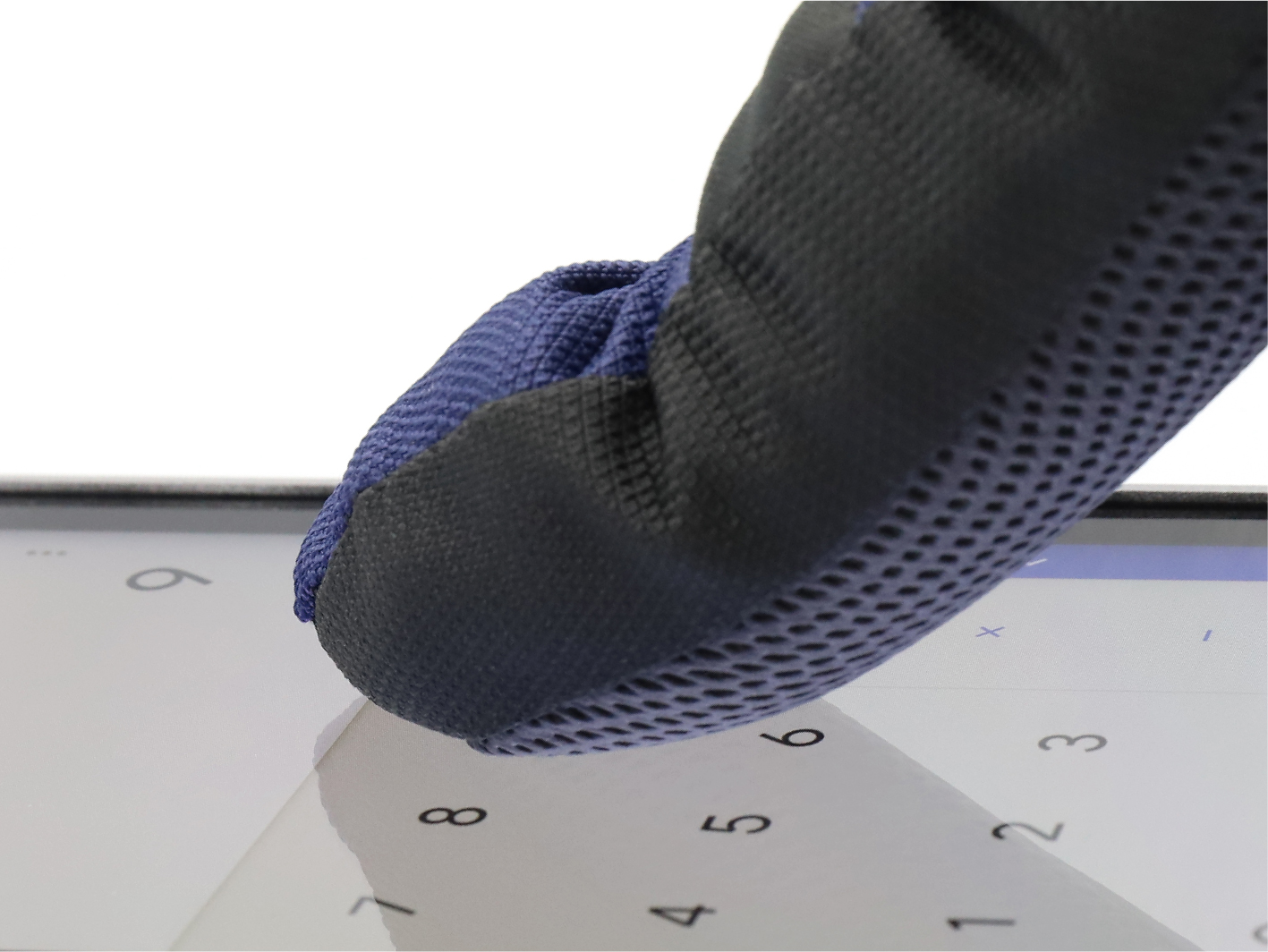

The capacitive touch panel can be operated comfortably even while wearing gloves. Moreover, the sensitivity is automatically adjusted according to the thickness of the gloves, thereby substantially reducing the time required for setting.

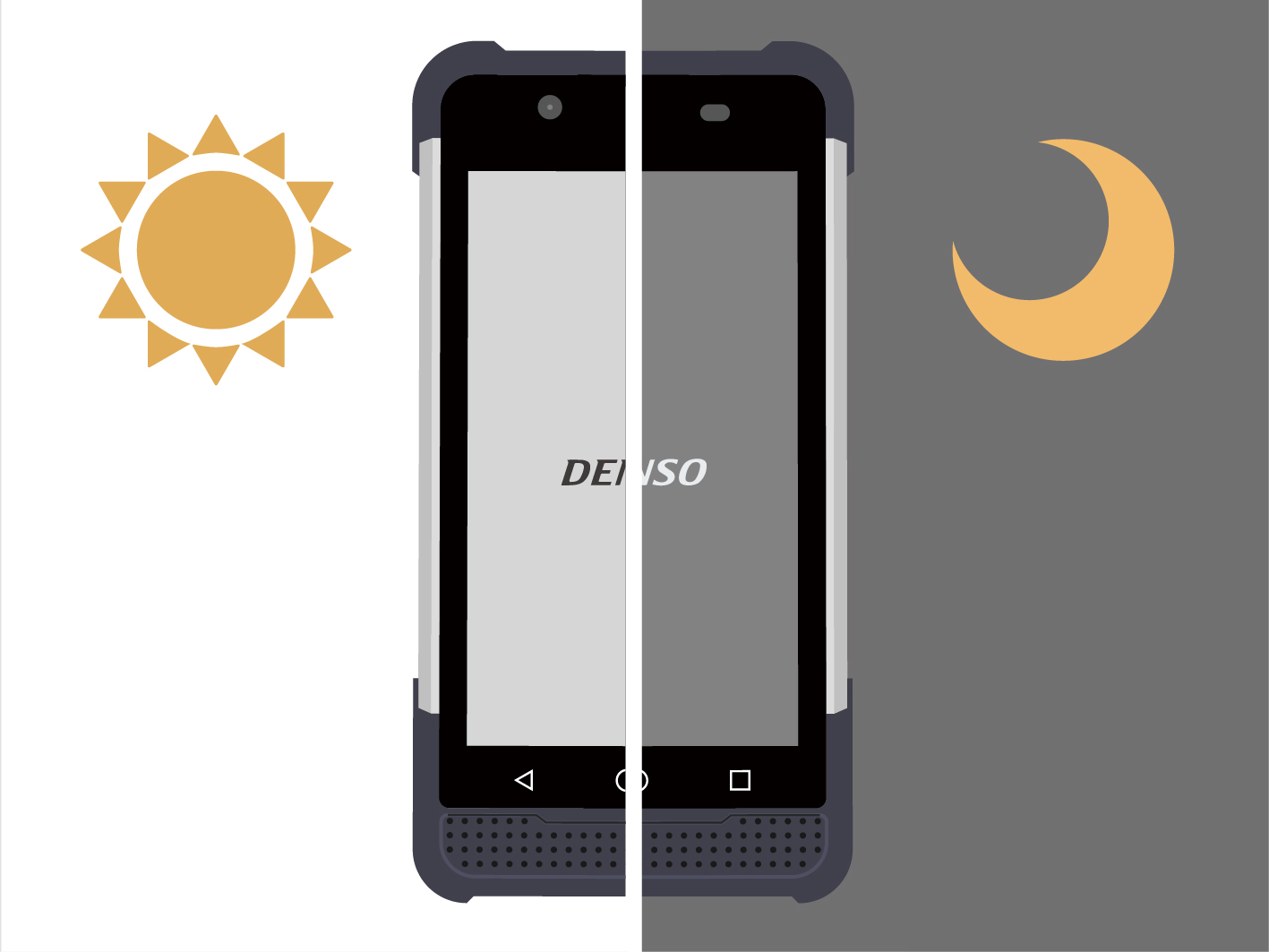

Equipped with a new function to automatically adjust the screen brightness according to the environment, thereby reducing the user’s stress and helping increase their operational efficiency.
Universal colors and fonts are adopted in consideration of differences in color perception, thereby making it a hand-held terminal that is easy for many people to use.
|2D Code Model|
|Model||Wireless LAN connection||Wireless LAN+Wireless WAN|
|CPU||Qualcomm® SDM660 64 bit 2.20 GHz(Octa-Core)|
|Flash ROM||64 GB|
|Display||Screen size and resolution(1)||3.2-inch WVGA (480×800 dots)|
|Display device||Dot matrix liquid crystal display (color)|
|Reader||Reading method||Area sensor|
|Supported code||2D code||QR code®, Micro QR code, SQRC®, rMQR Code, PDF417, Micro PDF417, Maxi code,
Data Matrix (ECC200), and GS1 Composite
EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), and Interleaved 2 of 5 (ITF)､
Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), and Standard 2 of 5 (STF), GS1 DataBar (RSS）
|Minimum resolution||2D code||0.127 mm|
|Marker||Cross guide marker|
|Confirmation of reading||Blue LED, speaker, and vibrator|
|Key Entry||Number of keys||27 keys (including the power key), cursor keys, and 3 trigger keys|
|Touch screen||Dragontrail® Pro(3)
Capacitive multi-touch screen with glove touch support and water droplet false touch prevention
|Communication||Wireless LAN||Applicable standard||Compliant with IEEE802.11a/b/g/n/ac and MU-MIMO 2x2|
|Frequency||5 GHz-band (W52, W53, W56 and W58)
2.4 GHz-band (1 to 13 channels)
*USA, Canada,Taiwan(1 to 11 channels)
|Security||Encryption:OPEN, Enhanced Open, WEP(40/128), TKIP and AES
WPA authentication: WPA and WPA2 and WPA3
User authentication: PSK, EAP-TLS, and PEAP
|Wireless WAN applicable standard||̶||Supported: GSM/W-CDMA/LTE,VoLTE
FDD-LTE (4G) - Bands 1, 3, 5, 7, 8, 19, 20, 26, 28
TDD-LTE (4G) - Bands 39, 40, 41
W-CDMA/UMTS/HSPA/HSPA+ (3G) - Bands 1, 5, 6, 8, 19
|Bluetooth® connection||Bluetooth® Ver5.1+EDR/LE
(Supported Profile: RFCOMM/A2DP/AVCTP/ACDTP/GVDP/AVRCP/DUN/DI/HFP/HID/HSP/IOP/MAP/OPP/BNEP/PAN/PBAP/SAP/SPP/HOGP/SCPP)
|Wired connection||USB Ver.2.0(USB Type-C)|
|NFC(4)||ISO/IEC14443A&B, FeliCa, ISO/IEC15693(RFID)|
|Camera||Rear||13-megapixel auto-focusing with a LED light|
|Card Slot||Memory||microSD (SDHC and SDXC (up to128 GB))SDHC Speed class 4 support|
|Microphone receiver||Attached (5)|
|Speaker||90dB or more at 10 cm away (at 2.8kHz)|
|Sensor||G-sensor, gyro sensor, proximity sensor, light intensity sensor, and geomagnetic sensor|
|Power Supply||Main battery||Lithium-ion battery|
|Wireless charging||Not Supported|
|USB charging||Compliant with Qualcomm® Quick Charge™ 3.0|
|Operating time(8)||BT2S(1900 mAh)||Approx. 14 hours (９)|
|BT2(3200 mAh)||Approx. 24 hours (９)|
|Environmental Performance||Operating temperature(6)||-20°C to 50°C|
|Operating humidity||5 to 95%RH (non-condensing and non-icing)|
|Protective class(7)||IP65 and IP67|
|Drop resistance(7)||Above concrete floor, 3.0 m, 60 times or more from 1.5 m|
|Weight (including the battery)||Approx. 305 g (including BT2S), approx. 320 g (including BT2)|
|1900 mAh battery||BT2S|
|3200 ｍAh battery||BT2|
|USB type: With a spare battery charger(1)||CU-M60U|
|LAN type: With a spare battery charger(1)||CU-M60L|
|USB type: Without a spare battery charger(1)||CU-M60UQ(Quick Charge™3.0 supported)|
|4-slot main unit charger(1)||CH-M60-4|
|Single-slot battery charger(1)||CH-BT2|
|4-slot battery charger(1)||CH-BT2-4|
|AC adaptor(Quick Charge™3.0 supported)||AD8|
|USB Type-C - Type-A conversioin cable(1.5m)||CB00-US1500/4A-4C|
|USB Type-C - Audio Jack conversion cable(3.5mm)(2)||CB00-US100/3-4C|
|BHT Securty Package(2)||App for visualizing device control, firewall and security incidents |
|ApplicationLauncher||App for controlling functions and access from workers|
|Battery Monitor||App for browsing battery deterioration and notification control|
Browser for instant Web app editing specially BHT control
Asset with necessary functions for operation like URL white list
|Touchtrigger||Scan Button that can be repositioned on the screen|
