Feature
Specifications
Option
Software

A godsend for field operations!

Compact, but easy to use

· Each model’s body is more than 15% thinner, lighter and smaller(1)
· Design was sought for functional beauty that also allows comfortable operation despite size constraints.
· Dome-shaped keys are used, which can be operated easily by workers wearing work gloves.

Distinctive displays even in bright sunlight

· A high-visibility LCD, High-Bright Display, is used.
· A wide viewing angle, and therefore, enhanced visibility from oblique angles is realized.

Unique power-saving design enables extended operation time.

· Operation time longer than Windows-OS model.

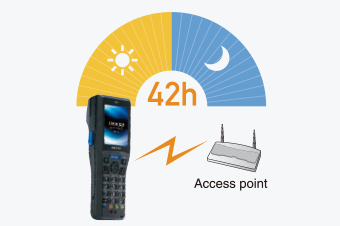

· Unique power-saving design enables best-in-class long-time operation of 40 hours(2) even when continuously connected by wireless.

Capability to read codes from any angle of 360° makes for quick reading.

· Smooth 360° reading is realized using the latest algorithms.
· Compared to barcode models, working time with the model can be reduced up to 30%.

Ready for use with simple business application software.

· A simple business application software (Easy Pack Ad) allowing collection of actual records for inventory and inspection plus 1:1/1:n collation is included as standard equipment.
· No other devices are required for data transmission.

Easy-to-use battery-powered terminal(3)

· Even in the case of sudden loss of battery power, commercially-available dry-cell batteries can be used.

Equipment that can be managed with peace of mind!

Solid and robust to protect both hardware and data

· Built-in toughness that endures droppings from 2 m height and operates in minus 20° to 50°C temperature range.
· For BHT-OS model, its transaction function automatically restores the immediately previous conditions in the case where the battery is disconnected and a file error occurs.

Comprehensive support system available anywhere in the world.

· The model can be used in more than 40 countries worldwide.
· Supports multi-language display. For BHT-OS model, Japanese, English, Chinese, Korean and Thai fonts are supported.

3-year warranty allows customer’s long use with peace of mind.

· Customers who register on Denso Wave’s website are offered a 3-year warranty.(4)

Equipped with BHT-BASIC.

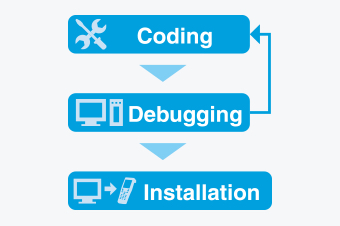

· Equipped with a development tool to help develop all kinds of applications. Coding, debugging and installation can be efficiently controlled.

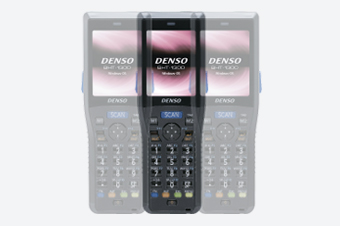

· Highly compatible, unique OS enables effective use of application assets.

Easy cloning with IrDA.

· Copies of another terminal can be made easily.
· BHT-OS model is as user-friendly as previous models, yet enables cloning with IrDA.

Compatibility

As for the compatibility, please check FAQ pages.
https://www.denso-wave.com/en/adcd/support/faq/bht-os/compatibility/

FAQ contents are available only for QBdirect members. Click here to login.

1.Compared to Denso Wave’s BHT-800Q when a thin battery is mounted in respective 2D code models.
2.Ratio of scanning: wireless communication: screen update: standby = 1:1:1:20 under continuous wireless WAN connection. For 2Dcode model with a standard battery.
3.A dry-cell adapter is separately required.
4.1-year warranty for consumables as defined by DENSO WAVE.
＊Sales availability varies by country and region. Please contact us for more information.

			2D code model		Barcode model
Type			BHT-1306Q	BHT-1306QWB	BHT-1306B	BHT-1306BWB
OS			BHT-OS
CPU			32bit RISC microprocessor
Memory	Flash ROM(1)		64MB(45MB for user area)
Display	Number of Dots(2)		QVGA(240×320 dots)
	Display device		Liquid crystal dot matrix display (color)
	Displayable characters(3)	16-dot font	15(2-byte characters)×20 rows, 30(1-byte characters)×20 rows
	Displayable characters(3)	24-dot font	10(2-byte characters)×13 rows, 20(1-byte characters)×13 rows
	Back light		White LED
Scanner	Mode		Area sensor		Advanced scan plus (CCD)
	Decode	2D code	QR code, micro QR code, SQRC iQR, PDF417, micro PDF417, Maxi code, DataMatrix(ECC200), GS1 Composite		-
	Decode	Barcode	EAN-13/8(JAN-13/8), UPC-A/E、UPC/EAN(Add-on embedded), Interleaved 2 of 5, Codabar(NW-7), CODE39, CODE93, CODE128, GS1-128(EAN-128), Standard 2 of 5(STF), GS1 Databar(RSS)
	Minimum resolution	2D code	0.167 mm		-
	Minimum resolution	Barcode	0.125 mm
	Reading reference position		100 mm		50 mm
	Maker		Area guide maker		-
	Scan Confirmation		LED in three colors: Blue/red/green, speaker, vibration
Key input section	Number of keys		21 keys (including power key) + Cross-hair cursor key + 3 trigger keys
Communication	Optical I/F	Communication mode	Infrared ray (IrDA Ver.1.2[low power]physical signaling layer-compliant)
		Transmission speed	Up to 115.2kbps, 460.8kbps
		Communication distance	Approximately 0.15ｍ MAX.
	Wireless LAN	Suitable standard	-	IEEE.802.11b/g/n compliant	-	IEEE.802.11b/g/n compliant
		Frequency	-	2.4GHz band	-	2.4GHz band
		Communication distance(4)	-	Approx.75m indoors, approx.200m outdoors	-	Approx.75m indoors, approx.200m outdoors
		Transmission speed(4)	-	IEEE.802.11b：11/5.5/2/1Mbps, IEEE.802.11g：54/48/36/24/18/12/9/6Mbps, IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps	-	IEEE.802.11b：11/5.5/2/1Mbps, IEEE.802.11g：54/48/36/24/18/12/9/6Mbps, IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
		Access method	-	Infrastructure mode, ad-hoc mode	-	Infrastructure mode, ad-hoc mode
		Security	-	WEP40,128, WPA-PSK(TKIP), WPA2-PSK(AES), WPA-1x(TKIP/EAP-TLS,PEAP),WPA2-1x(AES/EAP-TLS,PEAP), 802.1x(EAP-TLS,PEAP)	-	WEP40,128, WPA-PSK(TKIP), WPA2-PSK(AES), WPA-1x(TKIP/EAP-TLS,PEAP),WPA2-1x(AES/EAP-TLS,PEAP), 802.1x(EAP-TLS,PEAP)
	Bluetooth		-	Bluetooth　Ver.2.1 + EDR based class 2	-	Bluetooth　Ver.2.1 + EDR based class 2
	Cable I/F		USB Ver.2.0(USB microB)
Card slot			MicroSD or MicroSDHC(～32GB)×1(FAT32 compliant)
Additional functionality			Clock, speaker,vibrator, battery, and voltage indicators, keypad backlight, remot wakeup
Environmental performance	Operating tenperature		-20 to 50℃(5)
	Security level		IP54
	Drop resistance(6)		2.0m drop on concrete floor /1.2mheight over a concrete floor with each of 6 sides of the enclosure facing down (60 times total)
Mass			Approx. 188g (With thin battery mouted), approx.206g (with standard battery mounted)

Power

Type			BHT-1306Q	BHT-1306QWB	BHT-1306B	BHT-1306BWB
Power	Main battery		Litium ion battery, AAA alkaline batteries x 3(separately sold battery adapter required)
	Operating time(7)	Standard battery	95 hours(8)	95 hours(8)/40 hours(9)	98 hours(8)	98 hours(8)/42 hours(9)
		Thin battery	55 hours(8)	55 hours(8)/21 hours(9)	57 hours(8)	57 hours(8)/23 hours(9)
		AAA alkaline batteries	45 hours(8)	45 hours(8)/17 hours(9)	55 hours(8)	55 hours(8)/20 hours(9)

1. Memory (about 400 KB) for font file area included in the user area.
2. Although the effective number of picture elements is more than 99.99% thanks to high-precision technologies used to manufacture LCDs，allow the possibility of some elements，less than 0.01%，that are missing or permanently turned on.
3. For BHT-OS model, the standard font, the small font, the 30-dot font and the 40-dot font can be set in addition to the 16-dot font and the 24-dot font;
4. The listed figures for communication distance and speed are theoretically possible figures and may very depending on the work environment where the unit is used;
5. Zero to 40°C when batteries are being recharged;
6. Result obtained in a test under regular temperature is shown and not meant as a guarantee.
7. The described operating time is a reference figure under regular temperatures and may very depending on usage conditions;
8. With one reading pass over a 5s period and backlight level 1;
9. When ratios of reading, wireless communication, rewriting of screen and holding durations are 1:1:1:20 under continued wireless operation and backlight level 1.

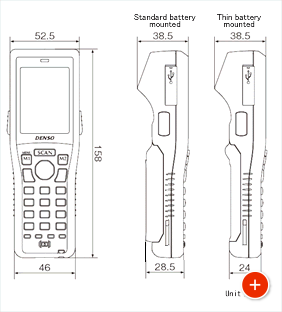

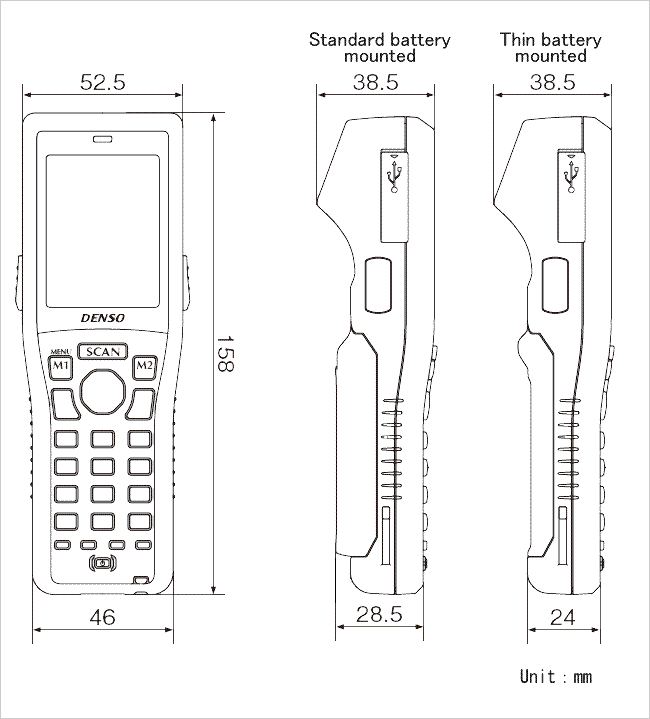

Dimentions

Communication

Holder, which performs data communication with BHT communication unit and the up-level device.

	Model	BHT Communication system	Charging time		Size	Power supply
	Model	BHT Communication system	AC adapter	USB charger	Size	Power supply
-	CU-1301	RS-232C(3)	Standard battery: Approx.3hours Thin battery: Approx.2 hours	-	109(D)×95(W)×111(H) mm	AC adapter(AD2-1005/3000)(6)
-	CU-1311	Ethernet(10BASE-TX)(3)		-		AC adapter(AD2-1005/3000)(6)
-	CU-1321(1)(2)	USB2.1 Full Speed compliant(3)		Standard battery: Apporox.7 hours Thin battery: Apporox.4 hours		Connection target/AC adapter(AD2-1005/3000)(6)
-	CBBHT-US2000/C13-4A	USB2.0 Full Speed compliant(3)	Standard battery: Approx.7hours (4)(5) Thin battery: Approx.4hours (4)(5)	-	2.0m	Supply from the connection

1. Connection may not be possible depending on the type of PC or USB-HUB being used. Prior confirmation of compatibility is required. The AC/DC adapter (sold separately) is required when attempting to recharge the battery while the connected device is turned off or in suspend mode, or when power supply from the connected device is not possible.
2. Charge time may vary according to the power supply capability of the connected device. Charge time is 3 hours when using the AC/DC adapter.
3. Cables are optional.
4. When BHT-1300 is connected to PC.
5. The BHT-1300 can be charged by connecting to a USB charger or other power adapter. When charging the BHT-1300, use a power adapter that satisfies the following output and USB charging specifications.
6. The AC adapter is optional.
Output Specification
CBBHT-US2000/C13-4A(BHT-OS)・・・DC5±0.25V,Over1.0A

Charger

A lineup of various BHT main unit charging type and backup cartridge charging type devices.

Model	Type	Charging time	Power supply	Size(mm)
CH-201B	Lithium-ion battery charger	Standard battery：approx.3H Thin battery：approx.2H	AC100V	80(D)×68(W)×17.5(H)
CH-1354	Main unit charger	1 unit, charging time: approx. 3H	AC adapter(1)	134(D)×110(W)×72.2(H)
CH-1104	Four slot battery charger	Approx. 3H	AC adapter(1)	205.5(D)×190(W)×29.0(H)

1. The AC adapter is optional.

Battery

Backup batteries for BHTs

	Type	Model	Feature
-	Lithium-ion battery(Thin type)	BT-130LA	battery only
-	Lithium-ion battery(Thin type)	BT-130LA-C	battery+battery cover
-	Lithium-ion battery(Standard type)	BT-20LB	battery only
-	Lithium-ion battery(Standard type)	BT-130L-C	battery+battery cover
-	Adapter for dry cell	B-130D	-

Cable

Name	Model	Interface	Shape	Length	Price
USBcable 4PAtype-4PBtype(1)(2)	CB00US1400/4A-4B-01	USB	PC(4PAtype)-CU(4PBtype)	1.4m	open
I/Fcable D9s-D9s cross(2)	CB00-RS1500/9-9-01	RS-232C	PC(Dsub9s)-CU(Dsub9s)	1.5m	open
micro USB connection cable 01(2)	-	USB	USB Ver.2.0	-	open

1. Using this cable, communications and recharging between a PC and a BHT unit are possible. However, use the above communication unit for daily communications and recharging.
2. Cables are optional.

Case and others

	Type	Model	Price	Note
	Soft case	SCBHT-1300	Open	BHT-1300 series common
	Waist case	WHBHT-1300(1)	Open	BHT-1300 series common
	Touch scan attachment(2)	EA-13B(2)	Open	BHT-1300B only
-	Head protector	HPBHT-1300B	Open	BHT-1300B only
-	Head protector	HPBHT-1300Q	Open	BHT-1300Q only

1. Waist case does not include belt.
2. Touch scan attachment for barcode models.

Accessories

・Hand strap
・Guidelines for operation
・Instruction manual can be download from our technical support site QBdirect.
※Battery and battery cover are not supplied with the product.

Preinstalled software

Name
Easy Pack Ad for BHT-1300

Development tools

Name	Feature
BHT-BASIC4.0 Development Pack	Basic tool for BHT application development.
BHT-C software development kit(Free)	The software package required for BHT application development.

BHT Software

Application software for BHTs.

Name	Feature
BHT Term Emulator	Software enabling the use of a wireless BHT as a terminal in online business systems such as those operated on AS/400 systems.
BHT Browser	Browser software enabling the use of a wireless BHT as a web client in web-based business systems.
