You can normally set up the GT10Q-SB and the BA10 in the following steps.

-What you need

Hardware

• ・PC
• ・GT10Q or GT10B
• ・BA10-RKU
• ・RS-232C cable attached to the BA10-RKU

Software

• ・Keyboard Interface software (QR_kbif)
• ・Configuration software for GT10Q series (Scanner Setting 2D)
  　or GT10B series (Scanner Setting)
• ・Configuration software for BA (BA Setting)

Manuals

• ・User's Manual for GT10Q(for EU,Asia,others / for US,Canada) or GT10B
• ・BA10-RKU User's Manual

-Connection procedure

Connecting BA10 to PC via RS-232C interface

Switch the interface of the BA10 to the RS-232C in the following procedure, because its default is USB keyboard.

1. 　1.Download the BA Setting and install it on your PC.

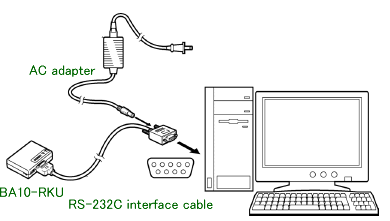

2. 　2.Connect the BA10 to the PC's COM port with the attached RS-232C cable.

3. 　3.Switch the BA10 to the setting mode by pressing the SETUP button provided on the bottom for at least 0.5 second.

   The Interface/power supply LED blinks in orange when the setting mode is enabled.
4. 　4.Start the BA Setting on the PC.

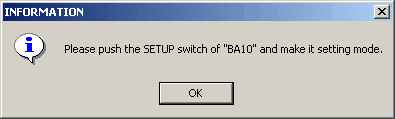

   When the following window appears, click OK.

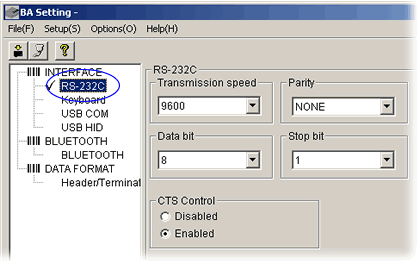

5. 　5.Select the RS-232C interface and the intended communications parameters on the BA Setting as shown below.

6. 　6.Select Update set data from the File menu in the BA Setting.
   The "Update completed" dialog is displayed and the BA10 restart automatically.
   The RS-232C interface is established in the BA10.

Connecting GT10 to BA10 via Bluetooth

Connect the GT10 to the BA10.

1. 　1.Read the bar code printed on the back of the BA10 with the GT10 to connect the GT10 to the BA10 via the Bluetooth wireless link.

   　After the GT10 read the bar code on the BA10, the GT10 (master unit) begins to connect to the BA10.
   　On completion of the connection, the GT10 beeps twice and the LED green lights up for 0.5 sec. At this time, the LED blue lights up in the BA10.

Preparation for processing the data read by GT10

Convert the data received from the RS-232C interface port to keyboard input data for processing the data read by GT10.

1. 　1.Download the QR_kbif and install it on your PC.
2. 　2.Start the QR_kbif.

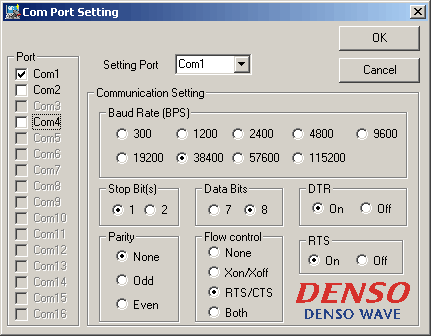

   When the Com Port Setting window appears, select the COM port number to which the BA10 is connected and other communication settings.

3. 　3.Open some application, for example, the Windows' Memo and then read any bar code with the GT10. The read data is displayed on the application program's screen.

As an alternative, you can create application programs that receive serial communications data without the QR_kbif.


-Parameter setting procedure

Setting with QR Code Menu or Bar Code Menu

Use the QR code menu or bar code menu to designate the basic parameters such as available bar code types. Refer to the GT10 User's Manual for the available parameters and the menu.

Setting with Scanner Setting 2D or Scanner Setting

Use the configuration software to designate the detailed parameters such as scanner's reading mode.

Scanner Setting 2D (for GT10Q series)
Scanner Setting (for GT10B series)

Follow these steps to use the configuration software.

1. 　1.Install the Scanner Setting 2D or Scanner Setting on your PC.
2. 　2.Connect the GT10 to the BA10 via the Bluetooth wireless link. Then, connect the BA10 to your PC via the RS-232C interface.
3. 　3.If the BA Setting or QR_kbif software is runnning, turn it off.
4. 　4.Start the Scanner Setting 2D or Scanner Setting.

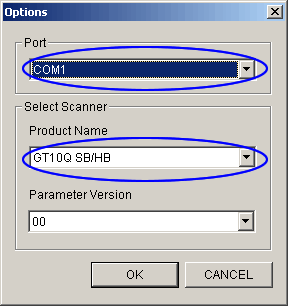

5. 　5.When the following option setting window appears, select the the COM port number to which the BA10 is connected and the product name of your scanner.
6. 　Click OK.

7. 　6.Set each of the required parameters by following the menu.
8. 　7.Select Update set data from the File menu.
   On completion of the parameter setting, the GT10 beeps three times and the LED blue blinks three times.
