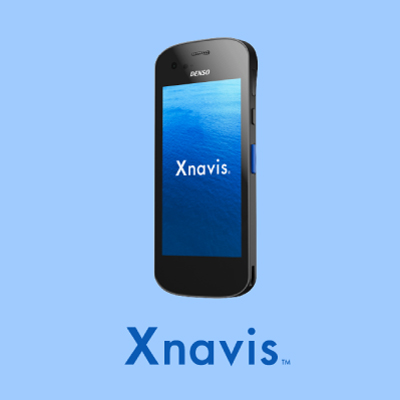

A lightweight DX support personal device weighing approx. 180g, designed for ease of use in the field.
【Lineup】
X-N10 （Wifi model） X-N15 (4G model)
As a device for professional use, we guarantee long-term supply.
There is no need to worry about additional costs, such as redeveloping business applications due to model changes by terminal manufacturers.

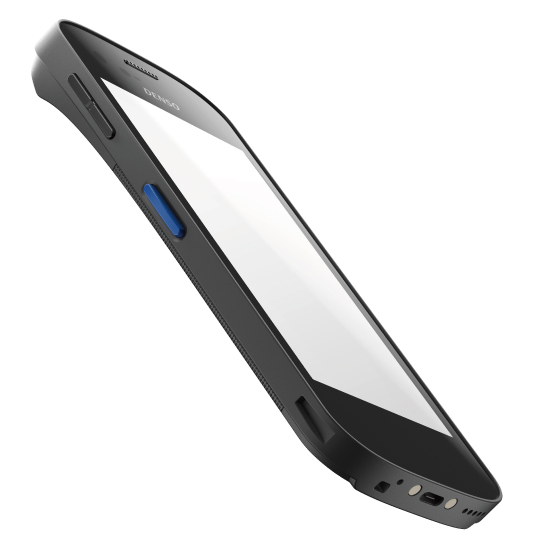

Achieving a lightweight and slim body weighing approximately 180g, comparable to smartphones.
It supports tasks while viewing the screen and reduces strain on the hands.

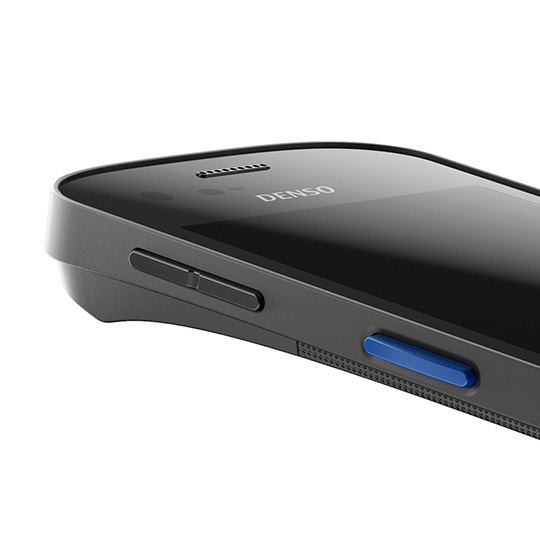

Achieves a slim profile that's easy to handle, regardless of hand size.
We focused on portability to ensure it fits snugly even in tight pockets.

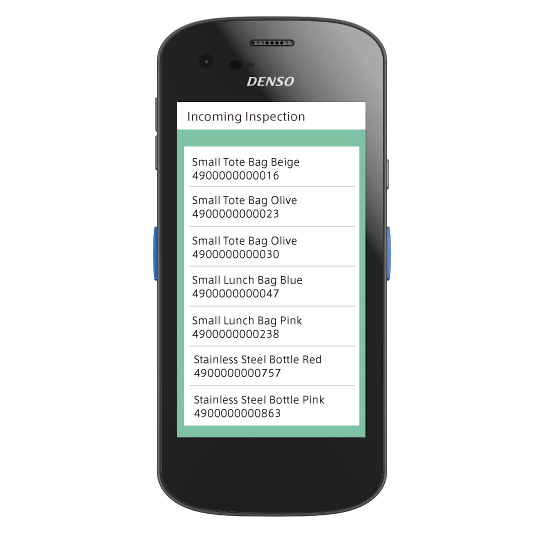

Features a user-friendly display for tasks involving reference tables.
Combines excellent operability with portability.
Adopt a platform suited for business operations.
It supports a wide range of applications, including business apps, communication tools, manuals, and more.
Denso Wave's unique scanning engine optimized for business use, combined with an easy-to-aim scanning angle for markers on codes.
We deliver “professional scanning” honed in the field.

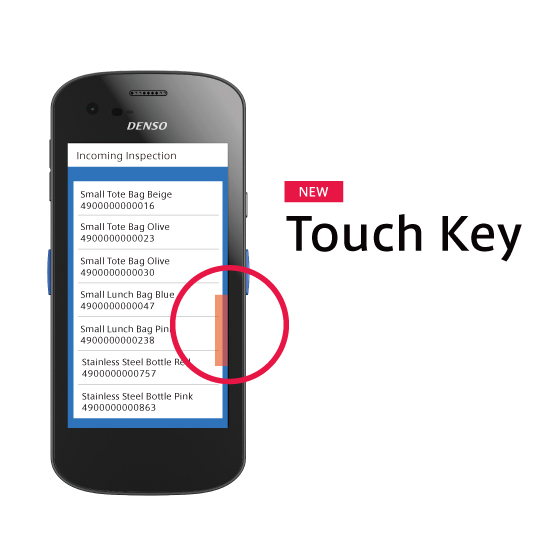

Features a new touch key function that allows the scan button to be positioned on the screen according to each operator's hand size.
Provides personalized operability for each individual.
Equipped with a high-resolution camera capable of capturing both photos and videos.
It contributes to creating detailed reports for troubleshooting and sharing information between locations.
| Model | Wireless LAN connection | Wireless LAN+Wireless WAN | ||
|---|---|---|---|---|
| XN-10 | XN-15 | |||
| Operating System | Android™ 13 | |||
| CPU | Qualcomm ARM® Octa core | |||
| Memory | RAM | 8 GB | ||
| Flash ROM | 128 GB | |||
| Display | Screen size and resolution(1) | 5.0-inch high-definition (720×1,280 dots) | ||
| Scanner | Scanning method | Rear camera scanning with red LED aimer, Angle scanning | ||
| Key Entry | Number of keys | 3 keys (including the power key) and 2 trigger keys | ||
| Communication | Wireless LAN | Applicable standard | Compliant with IEEE802.11a/b/g/n/ac | |
| Wireless WAN | ̶ |
4G LTE |
||
| SIM | ̶ | Nano SIM, eSIM | ||
| GNSS | ̶ | GPS/GLONASS/QZSS/BeiDou/Galileo/A-GPS | ||
| Bluetooth® connection | Bluetooth® Ver5.1/LE | |||
| NFC(2) | ISO/IEC14443A&B, FeliCa, ISO/IEC15693(RFID) | |||
| Wired connection | USB 3.1(Type-C) | |||
| Sensor | G-sensor, gyro sensor, geomagnetic sensor, light intensity sensor, and proximity sensor. | |||
| Environmental Performance | Drop resistance(3) |
1.2 m MIL-STD-810H equivalent※, 1.8 m MIL-STD-810H equivalent※ (when using protective case) |
||
| Battery | 2,900mAh, replaceable battery at end of life | |||
| Size |
167 x 76 x 9.7 mm |
|||
| Weight (including the battery) | Approx. 180 g | |||
| 名称 | 型式 | |
|---|---|---|
 |
Main unit charger(Comming Soon）(1) | CH-XN1 |
 |
USB Power Adapter(Quick Charge™3.0 supported)(2) | AD8 |
 |
USB Type-C - Type-A Adapter Cable(1.5m) | CB00-US1500/4A-4C |
| 名称 | 型式 | |
|---|---|---|
 |
Protective case | SC-XN1-N-B |
 |
Shoulder strap | NS-S01 |
 |
Stylus pen | PNBHT-1700 |
 |
Screen & Camera Protective Film (10-sheet set) | FL-XN1-SET10 |
| 名称 | 型式 | |
|---|---|---|
 |
USB Type-C - Audio Jack conversion cable(3.5mm)(3) | CB00-US100/3-4C |
| 名称 | 内容 |
|---|---|
| Software Development Kit for Android（SDK) for Xnavis™ (1) | Development Support Kit for Application Development on Xnavis™(Java,.NET) |
| BHTLink(2) | Software for transmitting and receiving files between an Xnavis™ and a PC |
| BHT Booster（3） | Low-Code application development tool. |
| Category | Model | Features |
|---|---|---|
| Setup and Kitting | BHTKitting | A field-use kitting tool that enables copying files and settings between devices. |
| WlanManager | An app for configuring Wi-Fi from Xnavis™. It also allows you to check the communication status, contributing to the creation of an optimal wireless environment. |
|
| Work Support | BHT Browser | This browser is optimized for business use on Xnavis™. By utilizing the uniquely added JavaScript API, you can synchronize browser responses with vibrators or buzzers to notify workers. |
| Security | ApplicationLauncher | Restricts apps that can be launched on Xnavis™. Prevents the use and download of non-essential apps, enhancing security. |
