Technical Information

Update the BHT-1200-CE/BHT-1100-CE system (OS) using microSD Card

Read this first

  • All the data and the registries stored in the RAM are initialized when the system (OS) is updated. You should back up the critical data before you start updating. For more details on the data backup, refer to the User’s Manual or visit here.
  • To prevent the battery from running out of power in the middle of the update, make sure that the battery is sufficiently charged. Or, place the BHT on the CU when updating the system.
  • The power cannot be cut off even with the power key during the update process (while the system software is being written onto the flash memory). To use the BHT, you should wait until the update is completed.

What You Need

  • BHT-1200-CE or BHT-1100-CE
  • microSD card
  • System program files

    You are required to download and then decompress the system program files supported by the BHT.

    BHT-1200-CE BHT-1100-CE
    >Download >Download

System Update Procedure

  1. Save the following files into the route folder of the microSD card.
    BHT-1200-CE BHT-1100-CE

    B12BCE60.SY3
    B12BIPL0.BIN
    B12BBL00.BIN

    OSUpdate.exe

    B11BCE61.SY3
    B11BIPL1.BIN
    B11BBL01.BIN
    OSUpdate.exe

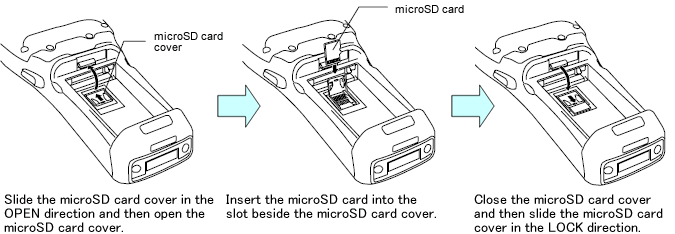

  2. Remove the battery from the BHT and insert the microSD card.
    For how to insert the microSD card, refer to the User’s Manual.


  3. Load the fully-charged battery to the BHT.
  4. Press the power key to turn on the BHT.

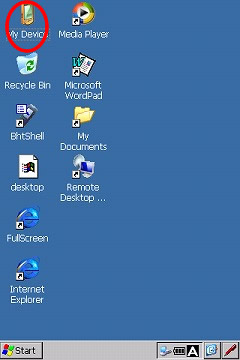

  5. Double-click [My Device] on the desk top.

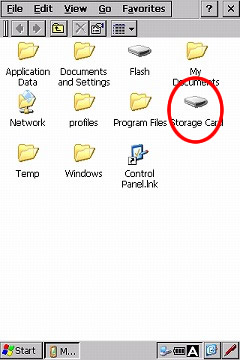

  6. Double-click [Storage Card].

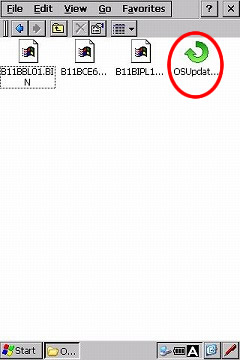

  7. Double-click [OSUpdate].

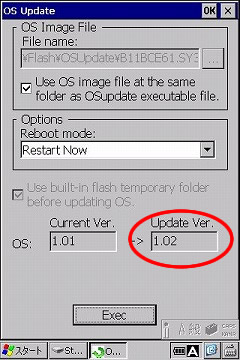

  8. Check that the version of the system program you want to update is indicated.

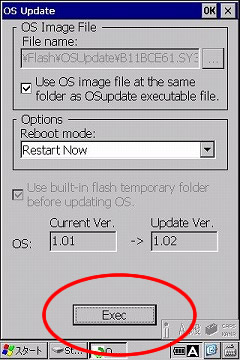

  9. Tap [Exec].

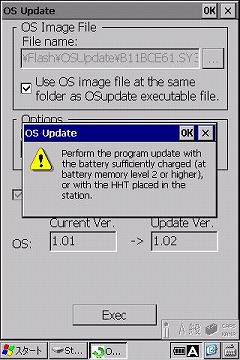

  10. Tap [OK].


    The message [Updating OS] appears and the system update begins
    Once the system is successfully updated, the BHT is automatically full-reset (cold booted).
    You will see [Working] on the screen. Wait until the BHT is initiated.

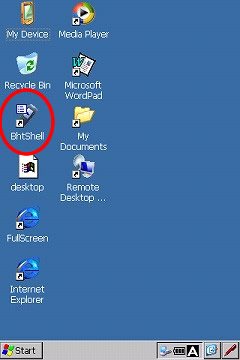

  11. Double-click [BhtShell].

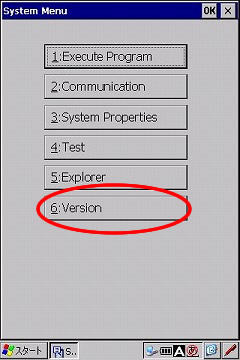

  12. Tap [6:Version].

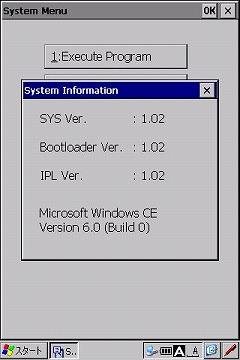

  13. Check that the version is correctly updated.
