Device Management System

Perform operational support of BHTs

  • Feature
  • Functions list
  • Operation Environment

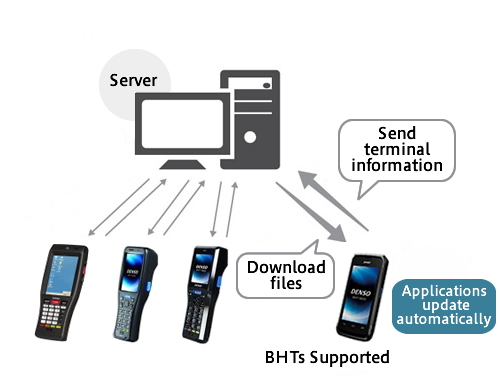

Device Management System (DMS) is comprised of client application to install in a terminal and management application to install in a PC. It has a function to manage the terminal,to update applications and OS and to execute master file and the results file transmission.


  • ・Centralized management via a network reduces the workload of system administrators.
  • ・System administrators can manage all terminal by terminal information acquired in real time.

Main function

  • ・A function to manage the terminal information.
  • ・A function to supports several kinds of terminals.
  • ・A function to update applications and OS.
  • ・A function to execute master file and the results file transmission.

*Sales availability varies by country and region. Please contact us for more information.


Title Feature OS
Lite Standard
Registering devices information Show the information of registered devices.
*Serial number,IP address,battery voltage,
The connection situation An icon displays a wireless LAN connection state of the device.
Setting update Change terminal setting.
*wi-fi Settings
Registration Registers the devices collectively from a CSV file.
Application, OS Ver management Update OS and application.
Group management Setting every group. -
Communication Message transmission and reception. -
Remote access Cooperate RDP(1) application.
Security Password lock. -
Password lock using the GPS.(2) -
Device initialization. -
Alert Device search function. -
Device Search Alarm operation at the time of the terminal loss. -
Application cooperation View  information of other application on the host computer application. -
  1. 1.Abbreviation of the Remote Desktop Protocol.
  2. 2.Workable without network connection.(Only Android model is targeted.)

BHTs Supported

Name Model OS
BHT-1800 BHT-1800QWB-1-A7, BHT-1800QWB-2-A7, BHT-1800QWB-3-A7, BHT-1800QWBG-1-A7,
BHT-1700 BHT-1700QWB-1-A7, BHT-1700QWB-2-A7, BHT-1700QWBG-1-A7, BHT-170QWBG-2-A7,
BHT-1600 BHT-1600BWB-A6-S, BHT-1600QWB-A6-RS, BHT-1600BWBG-A6-S, BHT-1600QWBG-A6-RS Android™6.0
BHT-1400 BHT1461BWB-CE, BHT1461QWB-CE, BHT1461QWB-CE-O Windows Embedded Compact 7
BHT-1300 BHT-1361BWB-CE, BHT-1361QWB-CE Windows Embedded Compact 7
BHT-1200 BHT-1261BWB-CE, BHT-1261QWB-CE Windows Embedded Compact 7
BHT-1261BWB-CE, BHT-1261QWB-CE, BHT-1281QULWB-CE Windows Embedded CE6.0 R3


Title Specification
OS Windows® 7 (32 bits/64 bits (WOW64)), Windows® 10 (32 bits/64 bits (WOW64))
CPU Minimum Core i5 3.0GHz
Memory Memory required for normal operation of the above OS
HDD 100 GB of free space or more.
