FC1-QOPU

Quick and secure passport scanning !

  • Feature
  • Specifications
  • Software

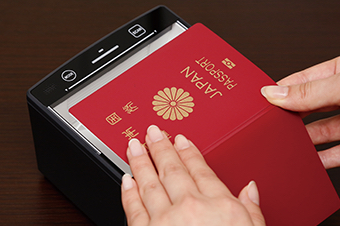

  • Convenient passport scanning Display reads both text and images all at once, making passport scanning quick and easy. This simplifies set-up and operation for beginners and is ideal for hotel check-in.

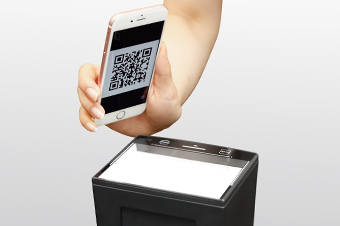

  • Versatile scanning performance FC1-QOPU offers a wide range of scanning capability, reading both
    printed barcodes and QR Codes as well as on digital displays.

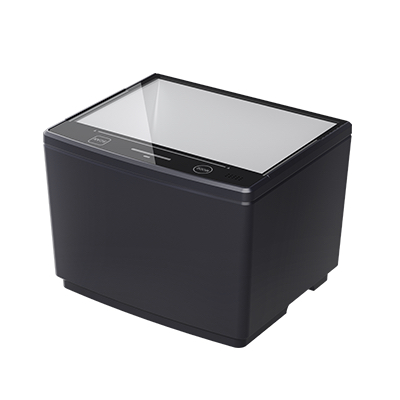

  • Smallest size in industry Scanning display is nearly equal to an opened passport page and also uses a USB connection for charging, making for effective installation on self-check-in kiosk terminals and countertops.
  • Ready for easy set-up tool "Scanner Setting OCR" allows users to adjust volume settings and select QR code types. Users can also set up multiple FC1 scanners quickly by creating and scanning a "setting QR code" with each unit.
Model FC1-QOPU
Scanner Scanner functions Readable code OCR Machine-readable passports (MRP) conforming to ICAO recommendation Doc 9303 Part 1 Volume 1 (passport OCR 44 characters × 2 lines), Machine-readable visa format A(MRV-A) conforming to ICAO recommendation Doc 9303 Part 2 (full-size visa OCR 44 characters × 2 lines)
2D codes QR codes, micro QR codes, SQRC, PDF417, micro PDF, Aztec, GS1 Composite
Barcodes EAN-13/-8 (JAN-13/-8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), CODABAR (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Minimum resolution 2D codes 0.25mm
Barcodes 0.18mm
Scanning field of view 85mm×55mm
Scanning distance 0~5mm(1)
Scan confirmation Blue LED + speaker
Communication
interface
Method USB 2.0 compliant
USB-COM、HID(2)
Connector type USB Mini-B connector
Cable Available accessory
Power supply Power supply Power supplied from connected device(3)
Environmental
performance
Security level IPX2
Operating temperature 0~50°C
Operating humidity 10 to 90 %RH (no condensation or freezing)
Dimensions 135(W)×112(D)×99(H)mm
Weight 315 g (not including cable)
  1. 1.Height above dust protection plate when scanning OCR-B font text, barcodes, and 2D codes.
  2. 2.Supports USB keyboard interface and USB-COM interface. The USB driver must be downloaded (free of charge) from the Denso Wave website before use in USB-COM interface mode.
  3. 3.Connections may not be possible with some PCs or USB hubs. Check the connection before commencing use.

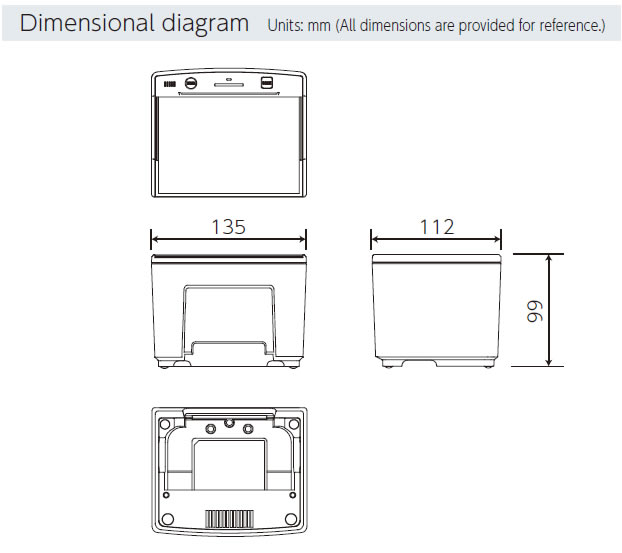

Dimensional diagram

Dimention

USB driver

Setup software

Model
Scanner Setting OCR(Free)

SQRC scanning setup software

Model
SQRC Setting

Keyboard emulation software

Model
QRkbif(Free)

Application

Model
Passport image storage app (Passport Image Scan App)
Passport image storage library (Passport Image Scan Lib)

Set contents

  • ・Scanner
  • ・User guide
  • ・Instruction manual
    ※USB cable is excluded
