Enhanced Performance

GT15Q supports reading DPM (Direct Part Marking)

2D code marked directly can be read in the plastic and the Base easily and consistently.

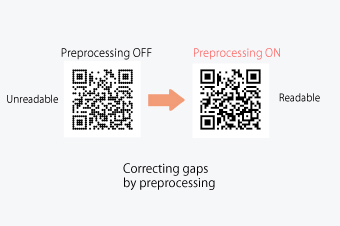

Reading inferior codes with preprocessing (filter) function

The reading performance of an inferior code to print is improved by installing preprocessing (filter) function.

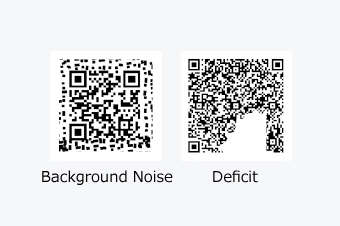

Reading poor quality codes with the latest algorithms

Equipped with the latest algorithms to read a poor quality code.

Equipped with a wide range of scanning functions

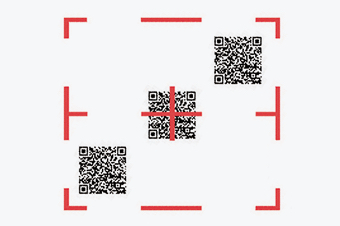

Target Pointer Mode

Enables pinpoint aiming and scanning, even with multiple codes in the scanning area.

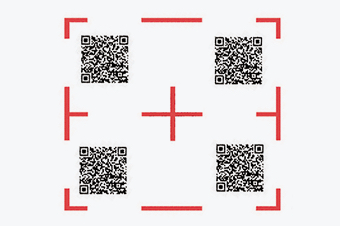

Single Scanning Mode

Able to scan, recombine, and decode QR Codes that are broken down into multiple codes.

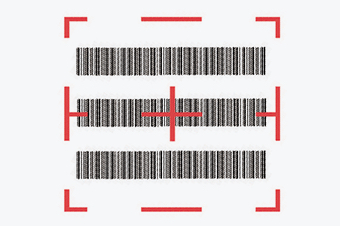

Multiple Bar Code Scanning Mode

Instantly scas multiple car codes at once.

High Durability

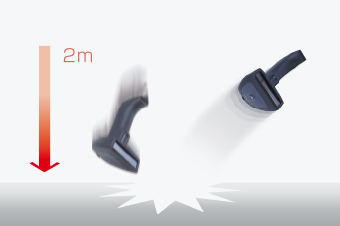

High standard of impact resistance

High standard of impact resistance due to a new stronger body and a design which incorporates impact rubber for added protection.

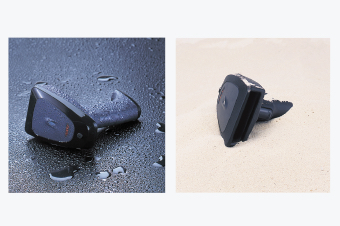

High level of resistance to environments

Passes IEC International Standards Protection Class IP54(equivalent to JIS splash resistance). High level of protection for use in rugged environments. Splash and Dust Proof to Meet IP54 Standards.

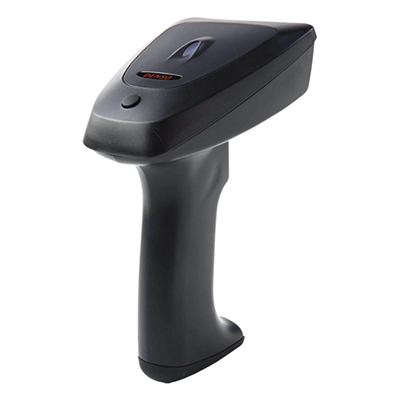

Model GT15Q-HU
Scanner Readable codes 2D Code QR code, MicroQR code, PDF417, MicroPDF417,Maxi code, DataMatrix(ECC200), GS1 DataBar Composite
Bar Code EAN-13/8(JAN-13/8), UPC/EAN(with add-on), Interleaved 2 of 5, CODABAR(NW-7), CODE 39, CODE 93, CODE128, GS1-128, GS1 DataBar
Resolution 2D Code 0.167mm
Bar Code 0.125mm
Marker Area guide maker
PCS Value Not less than 0.45
Skew Angle 360°
Angle ±35°
Reading confirmation 3-color LED (red, blue and green) buzzer (with volume control), vibrator
Communications Communication system USB1.1compliant
Interface
Connector I/F
USB Type A(2)(3)
Power
Power supply Supplied from the connection target
Environment Requirements
Drip-proof
IP54
Shock Resistance(1) Dropped from 2m above concrete floor, on all 6 faces,5 times each(total 30 times)
Temperature 0 to 50°C
Humidity 10 to 90%RH(without dews)
Illumination 20-10,000lx(Fluorescent lamp in daytime)
Weight(ex.cable) Approx. 210g
  1. 1.Tested value, not guaranted.
  2. 2.For Windows® 98,98SE,2000, XP, Vista, 7.
  3. 3.Connection may not be possible due to the type of PC or USB-HUB being used. Prior confirmation of connection compatibility is required.

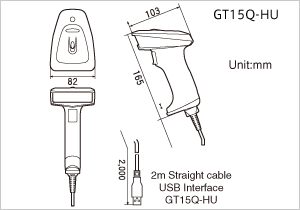

Dimensions

Dimensions

Stand

  Model Type Dimensions Notes
Stand S-GT10 Desktop stand/wall stand

Hands free Stand

  Model Type Dimensions Notes
Hands free Stand H-GT10 Secures GT15Q in place while bar code is held up and scanned

Hang strap from ceiling

  Model Type Dimensions Notes
Hang strap from ceiling T-GT10 - -

Interface cable

  Model Type Dimensions Notes
- Interface cable CBG1-US2000/4 - 2m Straight

Scanner setting software

Name Type Feature
Scanner setting software Scanner Setting 2D(Free) Software which sets up each parameter of GT15Q from PC

Keyboard interface software

Name Type Feature
Keyboard Interface Software QRkbif(Free) Software which converts the data from a scanner like input from a keyboard

USB Driver
