Wearable SF1

Tough. Clean. Fast.

Inquiries by email
Demonstration machines
Downloads

Features
Specifications
Option
Software

Ideal for order picking and repeat scanning

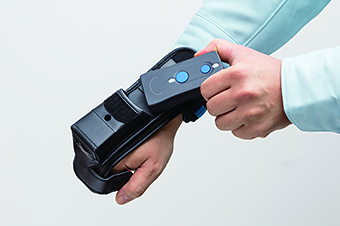

Newly developed switching technology enables the contactless connection between a scanner and an external trigger. The wireless structure avoids the risk of disconnection and breakage. If a scanner is removed from the attachment, it can operate as a mobile　scanner.

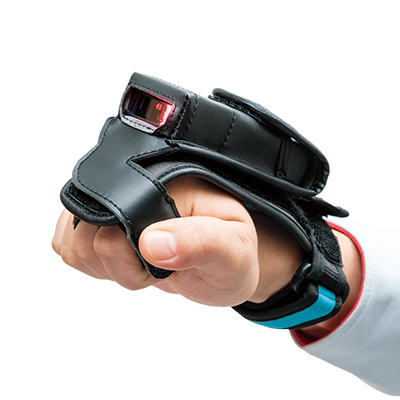

Wearable attachment with unique material ensures comfortable operation anytime

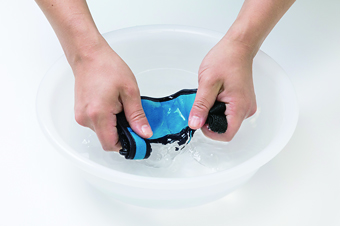

Attachment base is made of highly moisture-absorbing material that reduces friction on skin and is easily washable for a clean and comfortable fit.
※The scanner holder is not washable. Please read the enclosed operator’s guide.

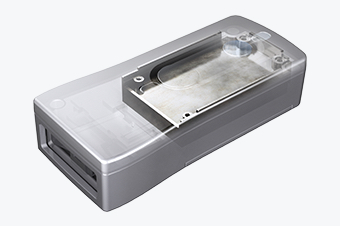

Lightweight magnesium frame provides top-notch drop impact resistance

The durable magnesium frame is perfect for tough workplaces and withstands a height drop test of up to 2.5 m, all while remaining lightweight and comfortable.

＊Sales availability varies by country and region. Please contact us for more information.

Type			2D code model
Type			SF1-QBi-T
Case color			Dark gray
Scanning mode	Mode		Area sensor
	Readable codes	2D codes	QR Code, SQRC, Micro QR code, DataMatrix(ECC200), PDF417, MicroPDF417, Maxicode, Aztec, GS1 Composite
	Readable codes	1D codes	EAN-13/8, UPC-A/E, UPC/EAN（with add-on）, Interleaved 2 of 5, Standard 2 of 5, Codabar（NW-7）, CODE39, CODE93, CODE128, GS1-128（EAN-128）, GS1 DataBar（RSS）
	Readable codes	2D codes	0.167 mm
	Readable codes	1D codes	0.125 mm
	PCS value		0.3 min
	Angle		±50°
	Scanning confirmation		Confirmation LEDs (blue, green, red), Beeper, Vibrator
Communication interface	Method		Bluetooth　Ver.2.1＋EDR-based class 2
Communication interface	Profile		SPP、HID、SPP（for iOS）
Power	Source		Lithium ion battery
	Charging time		2.5 hours
	Operating time(1)		24 hours
Environment requirements	Operating temperature(2)		-20℃ to 50℃
	Operating humidity		10 to 90％ RH(No dew condensation and freezing)
	Degree of protection		IP54
	Drop impact resistance(3)		2.5m, １.5ｍ×100 times, Tumbling test：0.5m×3,000 times
	Operating illuminance		10,000 lux max.(Under daylight fluorescent light)
Weight			Approx. 80g
Trigger switch			Button type or touch type
iOS supporting models			Made for iPhone X , iPhone 8 , iPhone 8 Plus , iPad Pro 12.9-inch (2nd generation) , iPad Pro 10.5-inch , iPad (5th generation) , iPod touch (6th generation)

1. When one reading pass over a 5-second period.
2. It becomes 0℃ to 40℃ when charging.
3. These are test values, but not guaranteed values.

Charger

	Type	Model
	Main unit charger	CH-SF11
	4 serial unit rechargers	CH-SF14

Bluetooth® communication unit

	Type	Model
	Bluetooth® communication unit	BA20-RU

Attachment

	Type	Model
	(A)Wearable attachment 【(B) + (C)】	Right hand：AW2-001-R Left hand：AW2-001-L
	(B)Scanner holder	Right hand：AW4-001-R Left hand：AW4-001-L
	(C)Base	Right hand：AW3-001-R Left hand：AW3-001-L

＊The photo is for right hand.

Components of a Set

・Scanner：SF1-QBi-T
・Operation manual
・Wearable attachment：AW2-001-R(Right hand) or AW2-001-L(Left hand)
・User's manual *The Operation Guide is not included. It can be downloaded from WEB.
