IoT Data Server

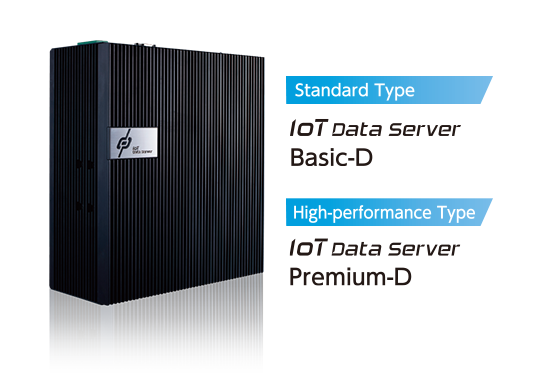

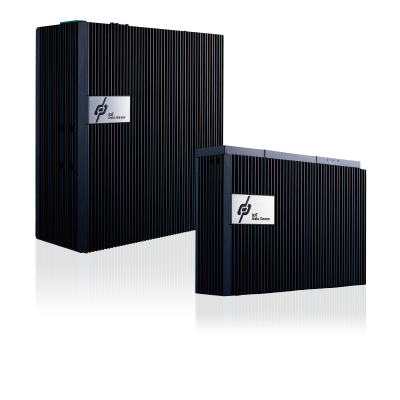

Premium-D / Basic-D / Entry-D (Discontinued)

  • Specifications
Product name IoT Data Server
Premium-D Basic-D Entry-D
High-performance Type Standard Type Low-cost Type
System CPU Intel® Core i7-6820EQ Intel® Core i5-6440EQ Intel® Atom E3845
OS Windows 10 IoT Enterprise Windows 10 IoT Enterprise
Memory 8 [GB] 4 [GB]
Storage SSD 64 [GB] + 128 [GB] SSD 64 [GB]
Mechanical Size 246 (W) × 270 (D) × 107.2 (H) [mm] (*1) 236.5 (W) × 160.8 (D) × 60 (H) [mm] (*1)
Weight 5.8 [kg] 2.8 [kg]
Mounting Horizontal-mount, Wall-mount Horizontal-mount, Wall-mount
Interface Power supply DC 12〜26 [V]
Recommended power supply 180 [W]
DC 12〜26 [V]
Recommended power supply 180 [W]
Video HDMI, VGA, DisplayPort (*2) (*3) (*4) VGA, DisplayPort (*2) (*3)
Audio Line-in × 1, Line-out × 1, Mic-in × 1 Line-in × 1, Line-out × 1, Mic-in × 1
Network 10/100/1000 [Mbps] × 2 10/100/1000 [Mbps] × 2
I/O RS-232C × 3, RS-485 × 1, GPIO × 1
(Input 8ch, Output 8ch)
RS-232C × 2, GPIO × 1
(Input 6ch, Output 6ch)
USB USB 3.0 × 4, USB 2.0 × 4 USB 3.0 × 1, USB 2.0 × 4
Expansion slots PCI × 1, PCIe (x16) × 1
Environmental Temperature 0 〜 50 [℃] (Operating) 0 〜 50 [℃] (Operating)
Humidity 10 〜 90 [%] (Non-condensing) 10 〜 90 [%] (Non-condensing)
Altitude −15.2 〜 5000 [m] −15.2 〜 5000 [m]
EMC CE, FCC Class A CE, FCC Class A
Ingress protection rating IP30 IP30
  1. *1. Except for projection part
  2. *2. Either one
  3. *3. XGA (1024 × 768) recommended
  4. *4. DisplayPort 2 is unusable
Supported languages: Japanese, English, Simplified Chinese
