IoT Data Server

Data integration controller
consisting with reliable industrial computer
and non-programming data integration software

Microsoft Azure Certified DeviceAWS Qualified Device

  • Features
  • Specifications
  • Main functions
  • Function list
  • Provider list
  • Option

Overview

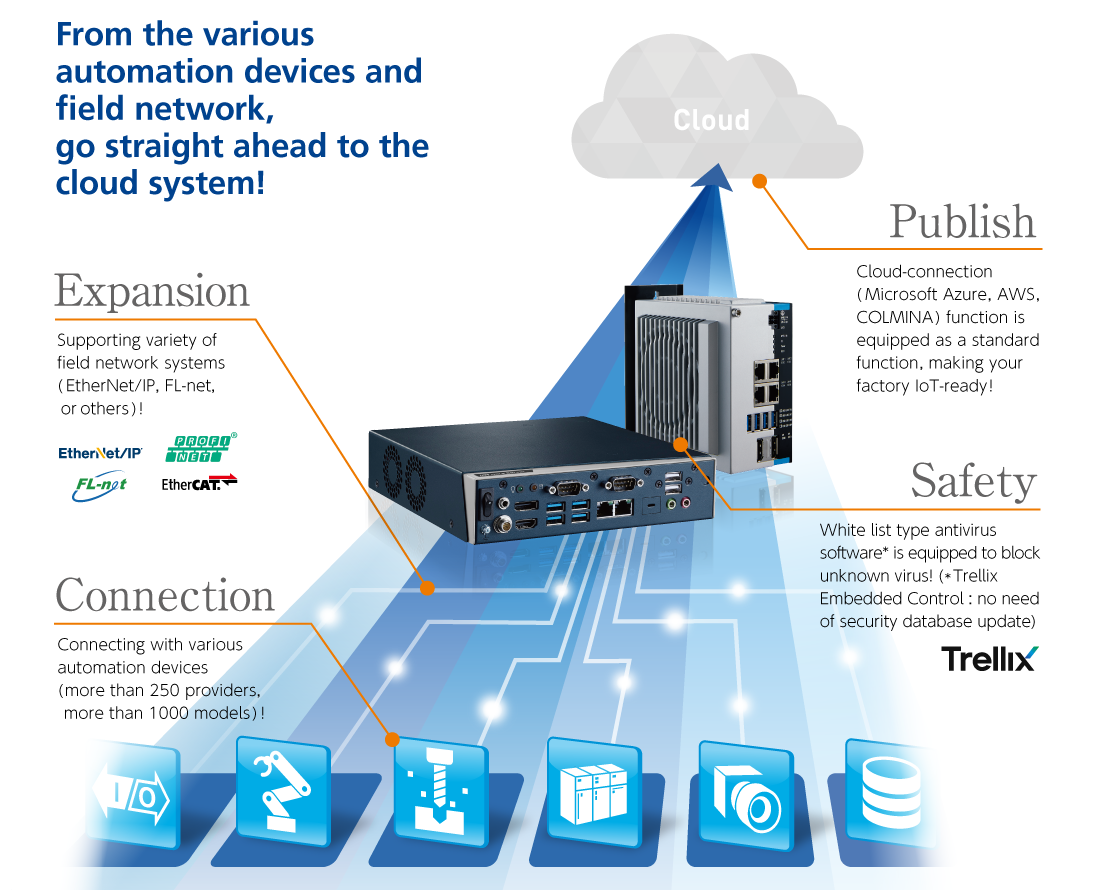

IoT Data Server is a "Data Integration Controller" consisting of high reliable industrial computer and non-programming data integration software.
It equips standard data management functions developed especially for data collection, process, saving, notice and publishing. These functions will help the data management in various scenes from the production cell system to production line, factory, cloud system.

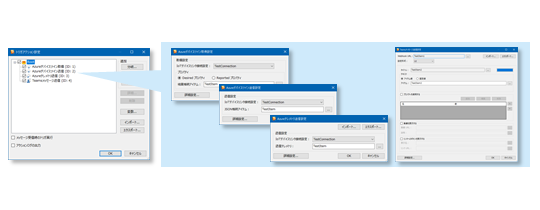

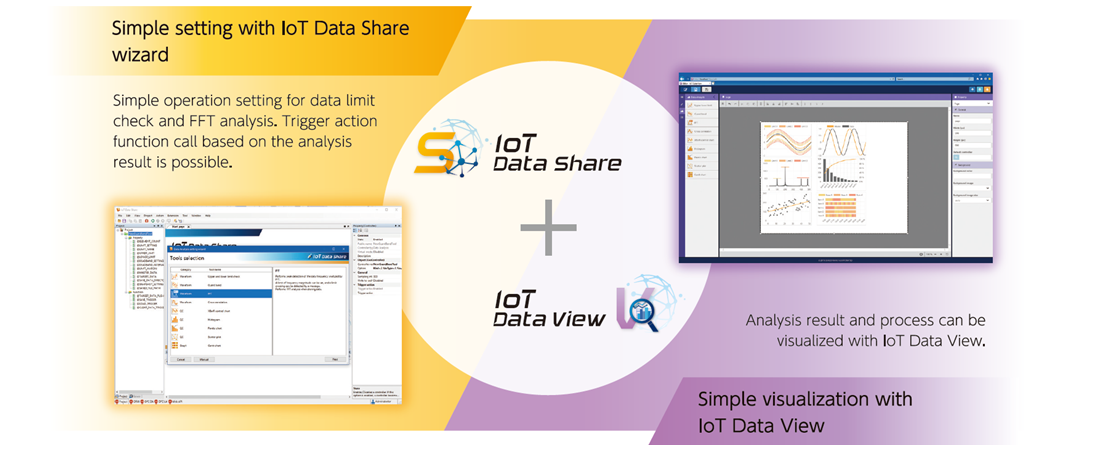

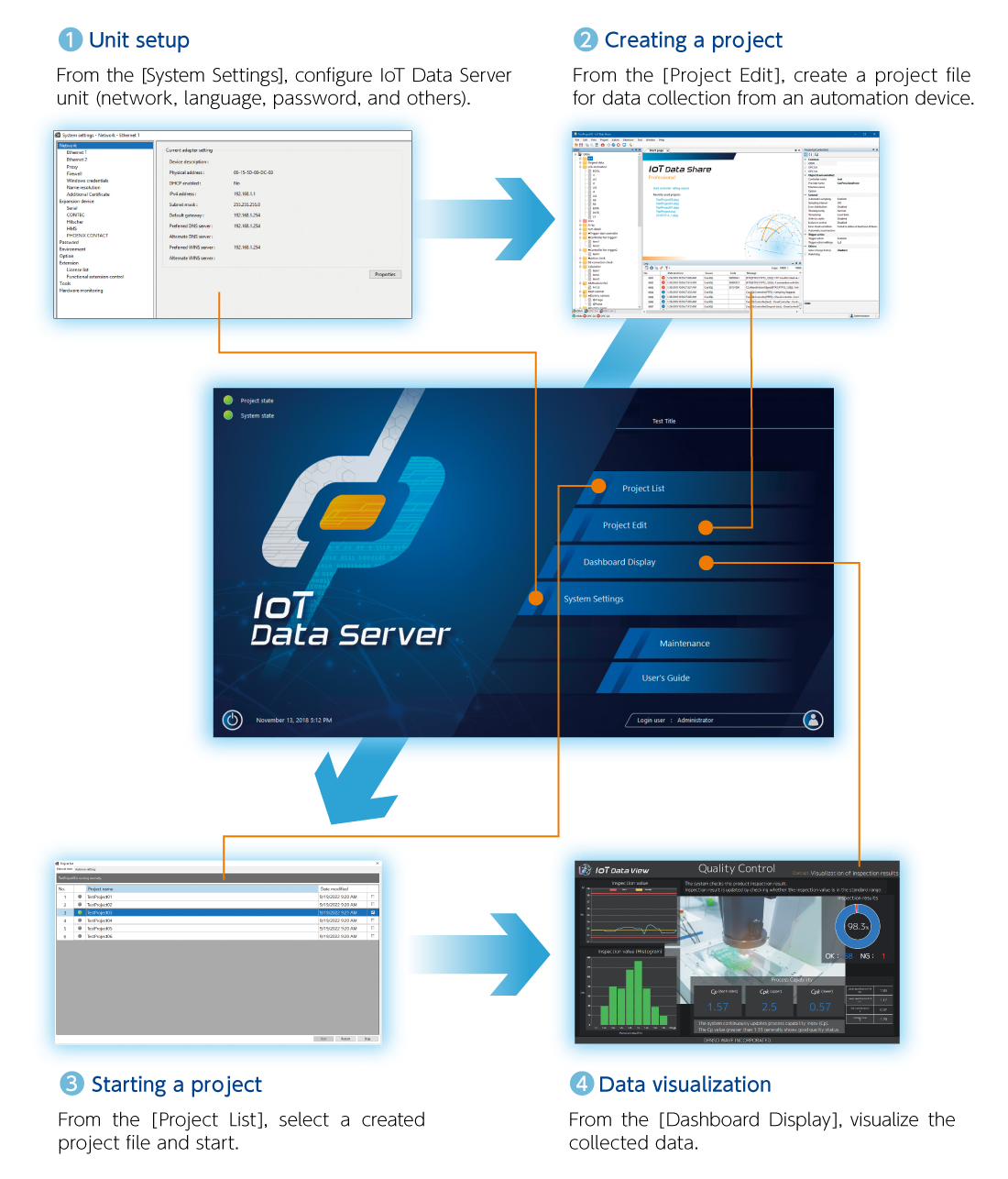

Realizing everything from the data collection to visualization

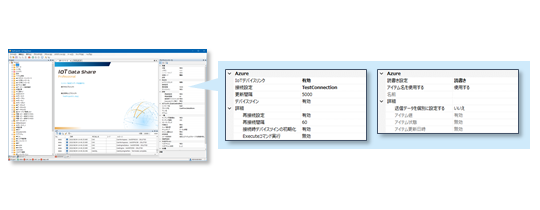

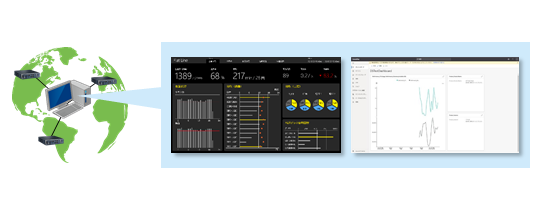

Built-in dashboard function

Total security by three methods

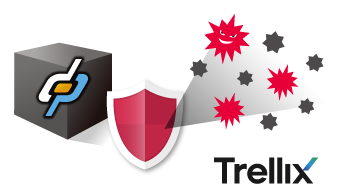

Antivirus

Antivirus software Trellix Embedded Control is equipped to block unknown virus. No need of security database update.

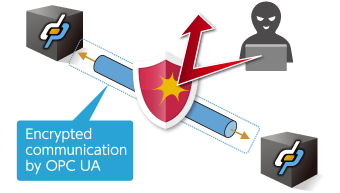

Secure communication

To prevent unauthorized access, communication between IoT Data Servers is encrypted.

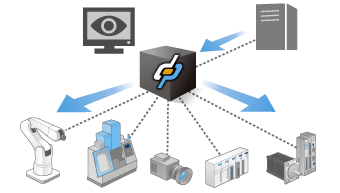

Network monitoring

Devices connected to IoT Data Server can be monitored (with Zabbix, etc.)

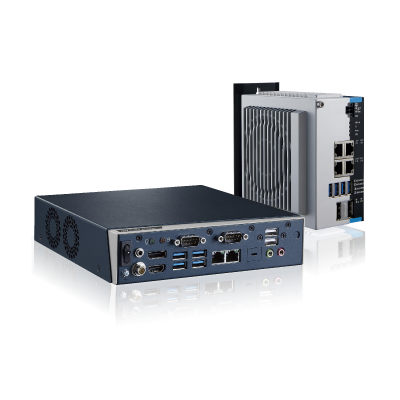

2 types of products. Realizes the optimal configuration for your environment.

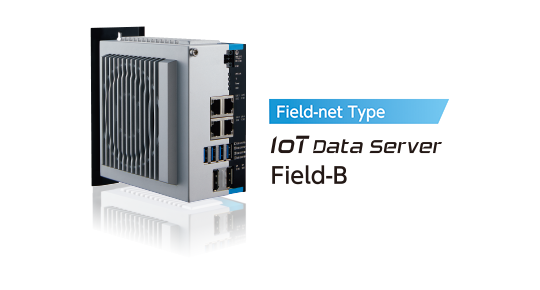

  • For realtime data processing and field network connection

    Support realtime communication by TwinCAT technology. Wide range of field networks support provides connectivity to any factory network.

  • For starting IoT activities on both small and large scale systems

    Integrate many devices. Overwhelming functions and expandability provides support from small start IoT trial to future-oriented expanded IoT system.

Specifications IoT Data Server
Field-B Edge-AT
Field-net Type Standard Type
System CPU Intel® Core i5-7500 Intel® Core i5-9500TE
OS Windows 10 IoT Enterprise Windows 10 IoT Enterprise
Memory 8 [GB] 8 [GB]
Storage SSD 160 [GB] SSD 256 [GB]
Mechanical Size 145 (W) × 78.6 (D) × 150 (H) [mm] (*1) 188 (W) × 188 (D) × 44.2 (H) [mm] (*2)
Weight 1.7 [kg] (*1) 2.1 [kg] (*3)
Mounting Wall-mount Horizontal-mount, Wall-mount
Interface Power supply DC 22〜30 [V]
Maximum power consumption 90 [W]		 Recommended power supply 120 [W]
Video DisplayPort × 2 (*4) (*5) HDMI, DisplayPort (*4) (*5)
Audio — Line-out × 1, Mic-in × 1
Network 10/100/1000 [Mbps] × 4 10/100/1000 [Mbps] × 2
I/O — RS-232C × 2
USB USB 3.0 × 4 USB 3.0 × 4, USB 2.0 × 2
Environmental Temperature 0 〜 55 [℃] (Operating) 0 〜 50 [℃] (Operating)
Humidity 95 [%] or less (Non-condensing) 10 〜 95 [%] (Non-condensing)
EMC CE, FCC Class A CE, FCC Class B
Ingress protection rating IP20 IP20
  1. *1. Including mounting plate
  2. *2. Except for projection part
  3. *3. Including AC adapter
  4. *4. Either one
  5. *5. XGA (1024 × 768) recommended
Supported languages: Japanese, English, Simplified Chinese

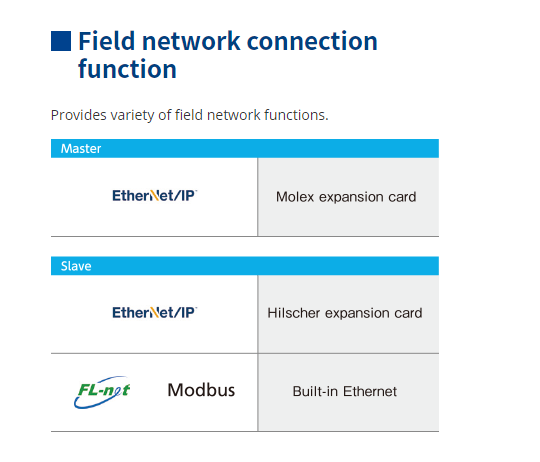

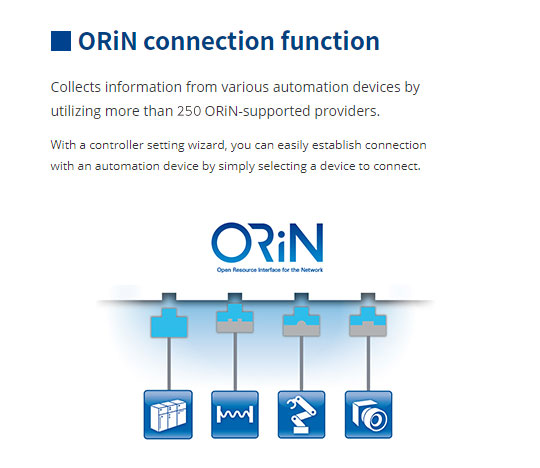

Collect (ORiN connection, Field network connection)

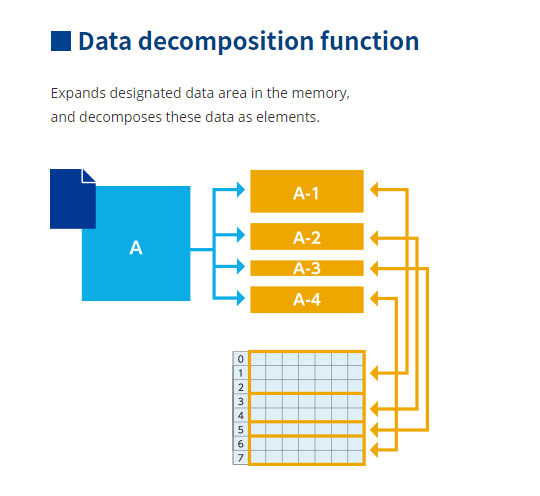

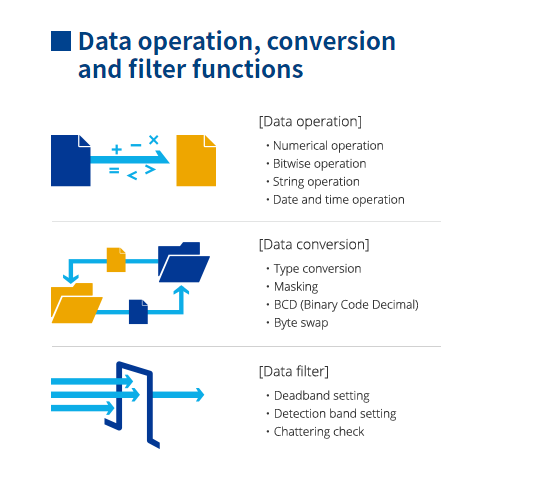

Process (Data operation, conversion and filters, Data decomposition)

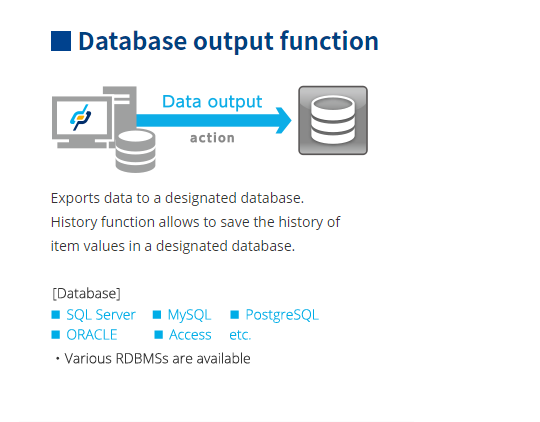

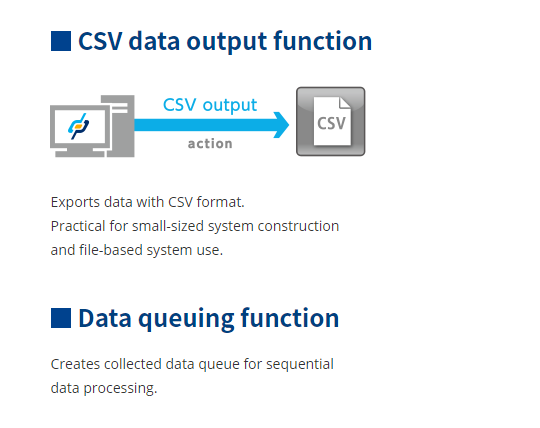

Save (Database output, CSV data output, Data queuing)

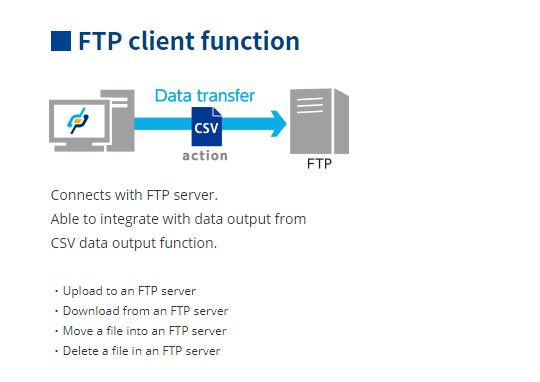

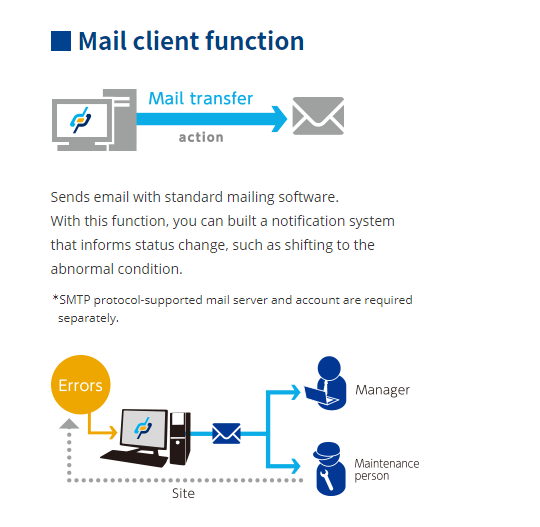

Notify (FTP client, Mail client)

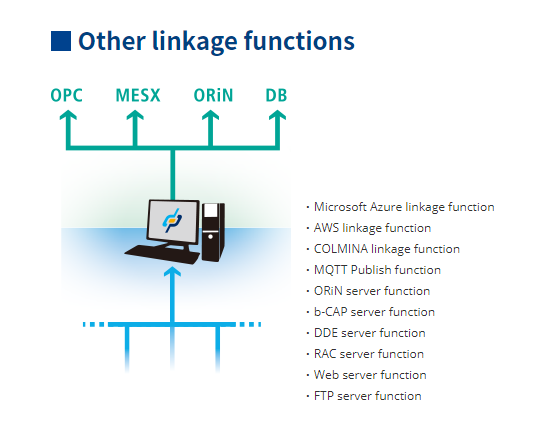

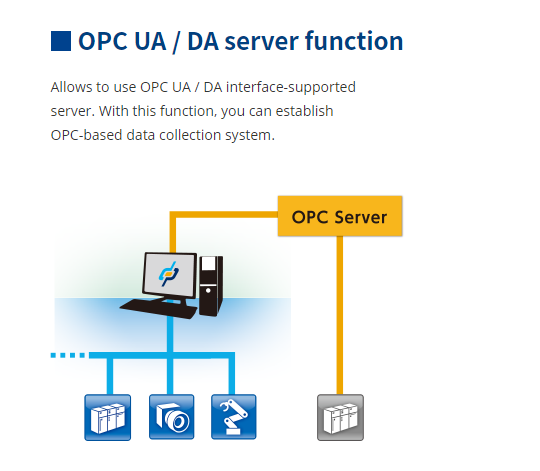

Publish (OPC UA/DA server, Other linkages)

CollectCollect

Function Description IoT Data Server Version
(*)
Field-B Edge-AT
ORiN Client Communicates with automation devices via ORiN provider ✓ ✓ 1.0.0.0
OPC UA Client DA Client Communicates with OPC UA server using DA specification ✓ ✓ 1.0.0.0
A&E Client Communicates with OPC UA server using A&E specification ✓ ✓ 1.0.0.0
OPC Client (OPC Classic Client) DA Client Communicates with OPC (OPC Classic) server using DA specification ✓ ✓ 1.0.0.0
A&E Client Communicates with OPC (OPC Classic) server using A&E specification ✓ ✓ 1.0.0.0
MTConnect Client Communicates with MTConnect server ✓ ✓ 1.0.0.0
Modbus Client RTU Client Communicates with Modbus server using RTU specification ✓ ✓ 1.0.0.0
ASCII Client Communicates with Modbus server using ASCII specification ✓ ✓ 1.0.0.0
TCP Client Communicates with Modbus server using TCP specification ✓ ✓ 1.0.0.0
UDP Client Communicates with Modbus server using UDP specification ✓ ✓ 1.9.0.0
RAC Client Communicates with RAC (Robot Action Command) server ✓ ✓ 1.0.0.0
DeviceNet Slave Communicates with DeviceNet master ✓   1.7.0.0
Master Communicates with DeviceNet slave ✓   1.7.0.0
PROFIBUS Slave Communicates with PROFIBUS master ✓   1.7.0.0
Master Communicates with PROFIBUS slave ✓   1.7.0.0
EtherNet/IP Adapter Communicates with EtherNet/IP scanner ✓   1.7.0.0
Scanner Communicates with EtherNet/IP adapter ✓   1.7.0.0
PROFINET IO-Device Communicates with PROFINET IO-Controller ✓   1.7.0.0
IO-Controller Communicates with PROFINET IO-Device ✓   1.7.0.0
EtherCAT Slave Communicates with EtherCAT master ✓   1.7.0.0
Master Communicates with EtherCAT slave ✓   1.7.0.0
FL-net Communicates as a FL-net specification-supported device ✓ ✓ 1.0.0.0
Image data acquisition IP camera Acquires image data from an IP camera ✓ ✓ 1.0.0.0
IoT Data Server Client (IoTDS-Link) Data integration and load balancing between IoT Data Servers ✓ ✓ 1.0.0.0
TwinCAT3 system integration Integrates with TwinCAT3 ✓   1.0.0.0
IO-Link Integrates with IO-Link master ✓ ✓ 1.8.0.0
MQTT Subscriber Receives MQTT protocol-based data ✓ ✓ 1.0.0.0
CSV import Reads CSV format files ✓ ✓ 1.0.0.0
File import Reads text / binary data from files and writes the data to items ✓ ✓ 1.8.1.0
FTP Client Communicates with FTP server ✓ ✓ 1.0.0.0
Slow polling Dynamically prolongs the communication interval to the predetermined interval in case of communication error occurrence, such as, timeout error or open error ✓ ✓ 1.4.0.0

TOP

Process & OrderProcess & Order

Function Description IoT Data Server Version
(*)
Field-B Edge-AT
Numerical operation Calculates data as numerical values (such as, addition, subtraction, multiplication and division) ✓ ✓ 1.0.0.0
Logical operation Calculates and judges data as bit data (equality judgment, bitwise operation) ✓ ✓ 1.0.0.0
String operation Processes data as character string (string extraction, string concatenation) ✓ ✓ 1.0.0.0
Data type conversion Converts data type (numerical value to character string, BCD conversion, byte order conversion) ✓ ✓ 1.0.0.0
Array operation Generate / merge / split / sort / extract array data ✓ ✓ 1.0.0.0
Sub-item Accesses data block as structured type data ✓ ✓ 1.0.0.0
Data filter Specifies the range of data change detection area (deadband setting, detection band setting) ✓ ✓ 1.0.0.0
Item link Links devices to exchange data ✓ ✓ 1.0.0.0
Script Executes a created script ✓ ✓ 1.0.0.0
Data sharing Shares data among applications ✓ ✓ 1.0.0.0
Timestamp Records item's acquisition time (system time, local time) ✓ ✓ 1.0.0.0
Date and time operation Calculates date and time data type and timestamp ✓ ✓ 1.0.0.0
Input (Output) JSON Extract value (or create string) from JSON format string, and write to the specified item ✓ ✓ 1.0.0.0
(1.9.0.0)

TOP

SaveSave

Function Description IoT Data Server Version
(*)
Field-B Edge-AT
Database integration Integrates with commercial database (SQL server, ORACLE, and others) ✓ ✓ 1.0.0.0
Built-in database Safes data to the IoT Data Server built-in database (SQL Server Express) ✓ ✓ 1.0.0.0
Automatic switch to the secondary database Switches database to the secondary database in emergency to save data ✓ ✓ 1.0.0.0
Retransmission to database Retransmit data that failed to be transmitted in case of an error to database ✓ ✓ 1.0.0.0
ISO-compliance ISO 22400-compliance Creates MES KPI information file expressed by ISO 22400 MESA KPI-ML format ✓ ✓ 1.7.0.0
ISO 20242-compliance Creates device capability information (such as value range) file expressed by ISO 20242-4 format ✓ ✓ 1.7.0.0
ISO 16100-compliance Creates application capability information file expressed by ISO 16100 format ✓ ✓ 1.7.0.0
Image data saving Saves image data as file format ✓ ✓ 1.1.0.0
CSV export Saves data into a file with CSV format ✓ ✓ 1.0.0.0
File export Outputs item data to text / binary format file ✓ ✓ 1.1.0.0
Data queuing Creates collected data queue for sequential data processing ✓ ✓ 1.0.0.0
Collective data send and receive Collectively sends and receives item information and text file/database information ✓ ✓ 1.1.0.0
File operation Copies, deletes, and moves files or folders ✓ ✓ 1.0.0.0

TOP

Notify & PublishNotify & Publish

Function Description IoT Data Server Version
(*)
Field-B Edge-AT
Trigger action Execute various types of motions (action) once the predetermined condition (trigger) is satisfied ✓ ✓ 1.0.0.0
ORiN CAP b-CAP Server Communicates with devices using TCP/UDP protocol ✓ ✓ 1.0.0.0
RAC Server Sends and receives data using RAC communication ✓ ✓ 1.0.0.0
OPC UA Server DA Server Communicates with OPC UA client using DA specification ✓ ✓ 1.0.0.0
A&E Server Communicates with OPC UA client using A&E specification ✓ ✓ 1.0.0.0
Modbus Server RTU Server Communicates with Modbus client using RTU specification ✓ ✓ 1.0.0.0
ASCII Server Communicates with Modbus client using ASCII specification ✓ ✓ 1.0.0.0
TCP Server Communicates with Modbus client using TCP specification ✓ ✓ 1.0.0.0
CoAP Server Communicates with devices using CoAP protocol ✓ ✓ 1.7.0.0
Microsoft Excel integration Reads and writes data to and from Excel files ✓ ✓ 1.15.0.0
Program IF COM Integrates with IoT Data Server using COM from a different computer ✓ ✓ 1.0.0.0
Java Integrates with IoT Data Server using Java from a different computer ✓ (*3) ✓ (*3) 1.0.0.0
.NET Integrates with IoT Data Server using .NET from a different computer ✓ ✓ 1.0.0.0
FTP Server Communicates with devices using FTP protocol ✓ ✓ 1.0.0.0
Dashboard creation Creates dashboards for data check with easy operation ✓ ✓ 1.0.0.0
Web Server Publishes created dashboards as web server ✓ ✓ 1.0.0.0

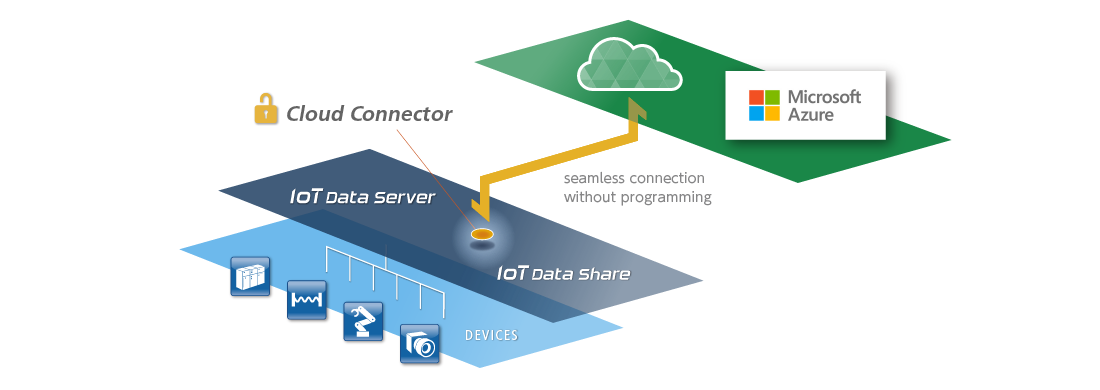

Microsoft Azure integration Communicates with cloud service platform provided by Microsoft ✓ ✓ 1.0.0.0
AWS (Amazon Web Service) integration Communicates with cloud service platform provided by Amazon ✓ ✓ 1.0.0.0
COLMINA integration Communicates with cloud service platform provided by FUJITSU ✓ ✓ 1.1.0.0
IBM Cloud integration Communicates with cloud service platform provided by IBM ✓ ✓ 1.5.0.0
SAP Cloud integration Communicates with cloud service platform provided by SAP ✓ ✓ 1.7.0.0
Alibaba Cloud integration Communicates with cloud service platform provided by Alibaba ✓ ✓ 1.7.0.0
Google Cloud integration Communicates with cloud service platform provided by Google ✓ ✓ 1.8.0.0
Edgecross integration Communicates with software platform provided by Edgecross Consortium ✓ ✓ 1.1.0.0
FIELD system integration Communicates with open platform provided by FANUC ✓ ✓ 1.9.0.0
MindSphere integration Communicates with cloud service platform provided by Siemens ✓ ✓ 1.4.0.0
MQTT Publisher Sends MQTT protocol-based data ✓ ✓ 1.0.0.0
ROS-supported Inputs or outputs data from or to ROS application running on Linux ✓ ✓ 1.1.0.0
Trac integration Integrates with the project management assistant tool "Trac" ✓ ✓ 1.11.0.0
Redmine integration Integrates with the project management assistant tool "Redmine" ✓ ✓ 1.11.0.0
Email integration (SMTP) Once data change has detected, email is sent via standard mailing software ✓ ✓ 1.0.0.0
IA-Cloud integration Connects with cloud service using Industrial Automation-defined protocol ✓ ✓ 1.0.0.0
IoT Data Server status notification Hardware-related information Acquires and notifies the status of IoT Data Server ✓ ✓ 1.0.0.0
IoT Data Share-related information Acquires and notifies the status of IoT Data Share which is installed in IoT Data Server ✓ ✓ 1.0.0.0
Syslog-supported Saves data into Syslog server ✓ ✓ 1.5.0.0
HTTP request Connects to external web server, and sends / receives command with HTTP ✓ ✓ 1.0.0.0
Web API Server Communicates with HTTP / HTTPS client ✓ ✓ 1.5.0.0

TOP

System managementSystem management

Function Description IoT Data Server Version
(*)
Field-B Edge-AT
Web confirmation window Confirms system setting of IoT Data Server using standard web browser ✓ ✓ 1.8.0.0
Remote access Remote access function that controls IoT Data Server through network ✓ ✓ 1.0.2.0
UPS Shutdown the system safely on sudden power-off ✓ ✓ 1.0.0.0
Watchdog Monitors whether the predetermined sampling interval is maintained ✓ ✓ 1.0.0.0
Device auto-reconnection Retries connection automatically once the communication with external device or equipment has disconnected ✓ ✓ 1.0.0.0
Security Trellix Embedded Control Antivirus function using Trellix Embedded Control ✓ ✓ 1.0.0.0
External access restriction Restricts access from unregistered external devices ✓ ✓ 1.4.0.0
Controller access control Limits access only to the permitted controller objects ✓ ✓ 1.5.0.0
Access log Saves the access log (R/W) to objects ✓ ✓ 1.4.0.0
Secure communication (b-CAP Secure) Improves safety level by encrypting the communication between IoT Data Server ✓ ✓ 1.0.0.0
Closing timing arrangement At the timing of system close, executes external notification, closes each process normally, and then shuts the system off ✓ ✓ 1.0.0.0
Login management Manages data access and function execution according to the login level ✓ ✓ 1.0.0.0
Making backup / Restoration Makes a backup (restoration) of system information, setting data, and user data ✓ ✓ 1.0.0.0
Controller / Item list Lists the controllers and items being set ✓ ✓ 1.0.0.0
Online buffering At the database shut-off, saves the data to the local buffer ✓ ✓ 1.0.0.0
Communication duplication Changes the communication line automatically to continue communication at the communication error occurrence (*4) (*4)
Date and time synchronization Synchronizes the time of IoT Data Server with NTP server ✓ ✓ 1.0.0.0
Trend graph Based on data within the target database, plots the trend graph ✓ ✓ 1.2.0.0
Hot configuration Allows to change the controller setting and item setting while external devices / equipment are connected ✓ ✓ 1.0.0.0
Performance measurement Measures the motion timing and CPU usage rate of the entire system ✓ ✓ 1.0.0.0
Network path check Issues a ping command to check LAN environment connection ✓ ✓ 1.0.0.0
SNMP-supported Standard SNMP Monitors the status of IoT Data Server with SNMP ✓ ✓ 1.4.0.0
Expansion SNMP Monitors the status of the devices connected to IoT Data Server with SNMP ✓ ✓ 1.5.0.0
Remote monitoring Monitors the status of IoT Data Server with Zabbix ✓ ✓ 1.8.0.0
System monitoring Monitors the incorrect process based on the whitelist ✓ ✓ 1.0.0.0
System setting Configures IoT Data Server IP address, date, sound volume, etc. ✓ ✓ 1.0.0.0
System protection Prevents system failure on sudden power-off ✓ ✓ 1.0.0.0
Stand-by Using two IoT Data Servers (primary / secondary), the secondary server takes over data processing when the primary server stops ✓ ✓ 1.11.0.0
Device connection establish / disestablish order setting Designates the order of device connection establish / disestablish ✓ ✓ 1.7.1.0

TOP

OthersOthers

Function Description IoT Data Server Version
(*)
Field-B Edge-AT
Controller setting wizard Enables to select external device or equipment to be connected easily from the window ✓ ✓ 1.0.0.0
Setting diagnostics Checks the inconsistency of project setting ✓ ✓ 1.0.0.0
Setting search Searches the project settings ✓ ✓ 1.8.0.0
Item monitoring Monitors the collecting data value and status ✓ ✓ 1.8.0.0
Data analysis Analyzes the collected data ✓ ✓ 1.5.0.0

TOP

  1. * Indicated by the version when the function was added
  1. *1. Customize according to the operation environment is required (function restriction or module addition)
  2. *2. Supports Windows XP environment only
  3. *3. Client can run on 32-bit environment only
  4. *4. Planned to be released before April, 2024
  5. *5. "IoT Data View" is required to display graphs

GatewayGateway

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
Alibaba Alibaba Cloud IoT Platform Provider Alibaba Cloud ✓ ✓ 1.7.0.0
Amazon AWS IoT Provider Amazon Web Service IoT ✓ ✓ 1.0.0.0
Amazon AWS S3 Provider AWS S3 ✓ ✓ 1.9.0.0
Balluff Balluff IO-Link Provider IO-Link device (IO-Link communications) ✓ ✓ 1.0.0.0
Beckhoff Automation TwinCAT3 ADS Provider TwinCAT3 ADS interface ✓ ✓ 1.0.0.0
DENSO IoTDS Provider IoT Data Server, IoT Data Share ✓ ✓ 1.0.0.0
FANUC FIELD system Provider FIELD system BOX ✓ ✓ 1.9.0.0
Fujitsu COLMINA Provider COLMINA Platform ✓ ✓ 1.1.0.0
Google Cloud IoT Core Provider Cloud IoT Core ✓ ✓ 1.8.0.0
Google Cloud Pub/Sub Provider Cloud Pub/Sub ✓ ✓ 1.15.0.0
Google Cloud Storage Provider Cloud Storage ✓ ✓ 1.12.0.0
IBM Watson IoT Platform Provider IBM Cloud Internet of Things Platform ✓ ✓ 1.5.0.0
ifm efector ifm efector IO-Link Provider AL1342 ✓ ✓ 1.8.0.0
Microsoft Azure IoT Provider Microsoft Azure IoT Hub ✓ ✓ 1.0.0.0
Microsoft Azure Storage Provider Azure Storage ✓ ✓ 1.9.0.0
SAP SAP Cloud IoT Platform Provider SAP Cloud ✓ ✓ 1.7.0.0
Siemens MindConnect Provider MindSphere ✓ ✓ 1.4.0.0
― b-CAP Provider b-CAP device (b-CAP communications) ✓ ✓ 1.0.0.0
― CAP Provider CAP device (CAP communications) ✓ ✓ 1.0.0.0
― CoAP Provider CoAP device (CoAP communications) ✓ ✓ 1.0.0.0
― Database Provider OLE database access ✓ ✓ 1.0.0.0
― DataImport Provider CSV file read ✓ ✓ 1.0.0.0
― DDE Provider DDE connection ✓ ✓ 1.0.0.0
― ECHONET Lite Provider ECHONET Lite-ready equipment (Gateways for ECHONET Lite) ✓ ✓ 1.14.0.0
― e-CAP Provider e-CAP device (e-CAP communications) ✓ ✓ 1.0.0.0
― FL-net Provider FL-net device (Gateway for FL-net) ✓ ✓ 1.0.0.0
― FTP Provider FTP server (FTP communications) ✓ ✓ 1.0.0.0
― FTPS Provider FTPS server (FTPS communications) ✓ ✓ 1.4.0.0
― LocalFile Provider General purpose file access ✓ ✓ 1.0.0.0
― MESX Provider Gateway for MESX ✓ ✓ 1.0.0.0
― Modbus Provider Modbus RTU / ASCII / TCP device (Modbus communications) ✓ ✓ 1.0.0.0
― MQTT PUBLISHER Provider MQTT Broker ✓ ✓ 1.0.0.0
― MQTT SUBSCRIBER Provider MQTT Broker ✓ ✓ 1.0.0.0
― OPC Provider OPC server device (Gateway for OPC) ✓ ✓ 1.0.0.0
― OPC UA Provider OPC UA server device (Gateway for OPC UA) ✓ ✓ 1.0.0.0
― OPC UA Multiple Provider OPC UA server supported devices (Multiple) ✓ ✓ 1.14.0.0
― POP3 Provider POP3 mail server ✓ ✓ 1.0.0.0
― RAC Provider RAC device (RAC communication) ✓ ✓ 1.0.0.0
― Redmine Provider Redmine ✓ ✓ 1.5.0.0
― SMTP Provider SMTP mail server ✓ ✓ 1.0.0.0
― Stream Provider TCP, UDP, RS-232C (General purpose communication) ✓ ✓ 1.0.0.0
― Trac Provider Trac ✓ ✓ 1.5.0.0

TOP

UtilityUtility

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
Fujitsu VPS Provider VPS (Virtual Product Simulator) ✓ ✓ 1.0.0.0
― Blackboard Provider Blackboard model form data sharing ✓ ✓ 1.0.0.0
― CRD Provider CRD file access ✓ ✓ 1.0.0.0
― DataQueue Provider General purpose data queuing ✓ ✓ 1.0.0.0
― DataStore Provider General purpose data sharing ✓ ✓ 1.0.0.0
― Dummy Provider Dummy for application development ✓ ✓ 1.0.0.0
― Dummy Camera Provider Dummy camera for application development ✓ ✓ 1.0.0.0
― Dummy CNC Provider Dummy CNC for application development ✓ ✓ 1.1.0.0
― Dummy Panel Provider Dummy panel for application development ✓ ✓ 1.0.0.0
― Dummy PLC Provider Dummy PLC for application development ✓ ✓ 1.0.0.0
― Dummy Robot Provider Dummy robot for application development ✓ ✓ 1.0.0.0
― HeartBeat Provider ON-OFF signal generation ✓ ✓ 1.0.0.0
― ICMP Provider Ping command (ICMP) ✓ ✓ 1.0.0.0
― ISO16100 Provider ISO16100-compliant XML file ✓ ✓ 1.0.0.0
― ISO20242 Provider ISO20242 ANNEX C-compliant XML file ✓ ✓ 1.0.0.0
― JSON Provider JSON ✓ ✓ 1.0.0.0
― Ping Provider Ping command (Raw socket) ✓ ✓ 1.0.0.0
― Timer Provider Timer control services ✓ ✓ 1.0.0.0

TOP

I/OI/O

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
CONTEC AIO Provider AIO board ✓ ✓ 1.0.0.0
CONTEC CNT Provider CNT board ✓ ✓ 1.0.0.0
CONTEC DIO Provider DIO board (WDM) ✓ ✓ 1.0.0.0
LANTRONIX XPort Provider XPort (Small network adapter) ✓ ✓ 1.0.0.0
LANTRONIX XPort6 Provider XPort6 (Small network adapter) ✓ ✓ 1.0.0.0
PATLITE PHC Provider PHC-D08 (Interface converter) ✓ ✓ 1.0.0.0
PATLITE PHN Provider PHN (Interface converter) ✓ ✓ 1.0.0.0

TOP

RobotRobot

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
DENSO NetwoRC Provider RC7, RC5 ✓ ✓ 1.0.0.0
DENSO RC8 Provider RC8, COBOTTA, VRC ✓ ✓ 1.0.0.0
DENSO RC9 Provider RC9 ✓ ✓ 1.9.0.0
FUTABA RSC-U485 Provider RSC-U485 ✓ ✓ 1.0.0.0
IAI E-Con Provider E-Con series ✓ ✓ 1.0.0.0
IAI PCON Provider Positioner type controller ✓ ✓ 1.0.0.0
IAI SEL Provider Program type controller ✓ ✓ 1.0.0.0
KAWADA ROBOTICS NEXTAGE OPEN Provider NEXTAGE OPEN ✓ ✓ 1.13.0.0
Kawasaki Heavy Industries KRCC Provider F series controller, E series controller ✓ ✓ 1.14.0.0
Kondo Kagaku RCB-1 Provider RCB-1 ✓ ✓ 1.0.0.0
Kondo Kagaku RCB-3 Provider RCB-3 ✓ ✓ 1.0.0.0
Yamaha Motor RCX Provider RCX series ✓ ✓ 1.0.0.0
Yamaha Motor RCX3 Provider RCX3 series ✓ ✓ 1.13.0.0
Yamaha Motor SR1 Provider SR1 / DRCX series ✓ ✓ 1.0.0.0

TOP

HandHand

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
Koganei EWHA Provider EWHA (Controller for electric gripper) ✓ ✓ 1.0.0.0
TAIYO ESC11 Provider ESC11 (Controller for electric gripper) ✓ ✓ 1.0.0.0

TOP

PLCPLC

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
JTEKT CMP-LINK Provider TOYOPUC PC10G series ✓ ✓ 1.1.0.0
KEYENCE KV Provider KV series ✓ ✓ 1.0.0.0
Mitsubishi Electric MELSEC AnA Provider MELSEC A series ✓ ✓ 1.0.0.0
Mitsubishi Electric MELSEC QnA3C Provider MELSEC Q series (Serial communication) ✓ ✓ 1.0.0.0
Mitsubishi Electric MELSEC QnA3E Provider MELSEC Q series (Ethernet communication) ✓ ✓ 1.0.0.0
Mitsubishi Electric PCLink Provider FX sequencer ✓ ✓ 1.0.0.0
OMRON CJ Provider CJ series ✓ ✓ 1.0.0.0
OMRON CJHostLink Provider CJ series ✓ ✓ 1.8.0.0
OMRON CJ TAG Provider CJ series (Tag access) ✓ ✓ 1.0.0.0
OMRON NJ Provider NJ series, NX series, NX1P series, NY5**-1 series (Ver1.14 or later) ✓ ✓ 1.0.0.0
Panasonic MEWTOCOL-COM Provider PLC (MEWTOCOL communication) ✓ ✓ 1.2.0.0
Rockwell Automation Logix5000 Provider ControlLogix, CompactLogix series ✓ ✓ 1.0.0.0
SHIBAURA MACHINE TCmini Provider TCminiα TC3-02 ✓ ✓ 1.0.0.0
Siemens S7NetPlus Provider S7 series ✓ ✓ 1.5.0.0
YASKAWA Electric ExMEMOBUS Provider MP900 series, MP2000 series, MP3000 series ✓ ✓ 1.9.0.0
Yokogawa Electric PCLink ASCII Provider PLC (Higher-level link service) ✓ ✓ 1.1.0.0
Yokogawa Electric PCLink Binary Provider PLC (Higher-level link service) ✓ ✓ 1.1.0.0
― SLMP Provider SLMP compatible device ✓ ✓ 1.1.0.0

TOP

NC & MCNC & MC

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
BROTHER INDUSTRIES Protocol2 Provider SPEEDIO series ✓ ✓ 1.0.0.0
BROTHER INDUSTRIES TC Protocol2 Provider Tapping center ✓ ✓ 1.1.0.0
Mitsubishi Electric MELSERVO Provider MR-J2S-CP ✓ ✓ 1.0.0.0
SHIBAURA MACHINE NCBOY Provider NCBOY series ✓ ✓ 1.12.0.0
― MTConnect Provider MTConnect device ✓ ✓ 1.10.0.0

TOP

VisionVision

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
Asyril EYE+ Provider EYE+ Controller ✓ ✓ 1.14.0.0
Baumer VeriSens Provider VeriSens series (Smart camera) ✓ ✓ 1.0.0.0
Canon N10-W02 Provider N10-W02 (Camera for COBOTTA) ✓ ✓ 1.0.0.0
Canon RV Provider RV series ✓ ✓ 1.0.0.0
Canon WebView Livescope Provider WebView Livescope series ✓ ✓ 1.0.0.0
Cognex In-Sight Provider In-Sight series ✓ ✓ 1.0.0.0
Inaba Denki Sangyo CHOCO TEI WATCHER mini Provider IB-MCT001 ✓ ✓ 1.10.0.0
KEYENCE CV Provider CV series ✓ ✓ 1.0.0.0
KEYENCE CVX Provider CV-X100 series ✓ ✓ 1.0.0.0
KEYENCE XGX Provider XG-X2000 series ✓ ✓ 1.0.0.0
Matrox RobCom Provider Matrox Design Assistant ✓ ✓ 1.0.0.0
OMRON F160 Provider F160 ✓ ✓ 1.0.0.0
OMRON FZ Provider FZ3, FZ4, FZ5, FH, FZM1, FQ-M, FQ2 ✓ ✓ 1.0.0.0
Panasonic A110 Provider A110 (Micro image checker) ✓ ✓ 1.0.0.0
Panasonic PV Provider PV series ✓ ✓ 1.0.0.0
Sharp IV Provider IV series ✓ ✓ 1.0.0.0
― DirectShow Provider DirectShow-supported camera ✓ ✓ 1.0.0.0
― USB Camera Provider DirectShow-supported camera (USB camera) ✓ ✓ 1.0.0.0

TOP

Sensor (Displacement meter)Sensor (Displacement meter)

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
KEYENCE GT Provider GT & DL-RS1A ✓ ✓ 1.0.0.0
KEYENCE GT2DLEP1 Provider GT2 & DL-EP1 ✓ ✓ 1.0.0.0
KEYENCE ILDLEP1 Provider IL series & DL-EP1 ✓ ✓ 1.2.0.0
KEYENCE LJ-V7000 Provider Two-dimensional laser displacement meter ✓ ✓ 1.1.0.0
KEYENCE LJ-X8000 Provider LJ-X8000 ✓ ✓ 1.10.0.0
KEYENCE LJ-X8000A Provider LJ-X8000A ✓ ✓ 1.10.0.0
KEYENCE LK-G3000 Provider LK-G3000, LK-G3000P, LK-G3000V, LK-G3000PV ✓ ✓ 1.9.0.0
KEYENCE LK-G5000 Provider LK-G5000 ✓ ✓ 1.5.0.0
OMRON ZG2 Provider ZG2 ✓ ✓ 1.0.0.0
OMRON ZS Provider ZS ✓ ✓ 1.0.0.0
OMRON ZX Provider ZX ✓ ✓ 1.0.0.0
Panasonic Industrial Devices SUNX HL-C2 Provider HL-C2 ✓ ✓ 1.0.0.0
Panasonic Industrial Devices SUNX HL-D3 Provider HL-D3 ✓ ✓ 1.0.0.0
Panasonic Industrial Devices SUNX HL-G1 Provider HL-G1 ✓ ✓ 1.0.0.0
Panasonic Industrial Devices SUNX TRC11 Provider TR-C1 (*4) ✓ ✓ 1.0.0.0

TOP

Sensor (Other)Sensor (Other)

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
AMADA MIYACHI MM370 Provider MM370 (Weld checker) ✓ ✓ 1.0.0.0
AMADA MIYACHI MM400 Provider MM400 (Weld checker) ✓ ✓ 1.4.0.0
Atlas Copco Open Protocol Provider Torque controller ✓ ✓ 1.1.0.0
DAI-ICHI SEIKO ESTORQ Provider ESTORQ, ES-Gripper ✓ ✓ 1.7.0.0
DENSO AN Provider AN series ✓ ✓ 1.5.0.0
DENSO FD Provider FD2 series ✓ ✓ 1.8.0.0
DENSO IC Card Provider PR-450, PR-550, QK12-IC ✓ ✓ 1.0.0.0
DENSO Q-Platform Provider Q-Platform ✓ ✓ 1.0.0.0
DENSO Scanner Provider AT series, GT series, QK series and other scanners ✓ ✓ 1.0.0.0
DENSO SE1-HU-P Provider SE1-HU-P ✓ ✓ 1.9.0.0
DENSO UR20 Provider UR20 series ✓ ✓ 1.2.0.0
DENSO UR30 Provider UR30 series ✓ ✓ 1.5.0.0
DENSO UR40 Provider UR40/UR50 series ✓ ✓ 1.7.0.0
HOKUYO AUTOMATIC URG-04LX Provider URG-04LX ✓ ✓ 1.0.0.0
Ishida DACS-G Provider DACS-G series ✓ ✓ 1.10.0.0
KEYENCE FSN40NUEP1 Provider FS-N40 ✓ ✓ 1.1.0.0
Mettler Toledo WMF204C Provider WMF204C ✓ ✓ 1.0.0.0
Murata Manufacturing Wireless sensing solution gateway Provider Gateway for wireless sensing solutions ✓ ✓ 1.14.0.0
NITTA IFS Provider 6-axis force sensor ✓ ✓ 1.0.0.0
OJIYA SEIKI ad-L8 Provider ad-L8 (Digital type air micrometer) ✓ ✓ 1.0.0.0
OMRON V600 Provider V600 (Compact ID controller) ✓ ✓ 1.0.0.0
OMRON ZN-CTX21 Provider ZN-CTX21 ✓ ✓ 1.14.0.0
OMRON ZN-PD-S Provider ZN-PD03-S, ZN-PD50-S ✓ ✓ 1.9.0.0
Parker WirelessMSCL Provider WSDA-200-USB ✓ ✓ 1.13.0.0
Sugisaki Meter Torque Provider Torque tester ✓ ✓ 1.0.0.0
Takasu Giken RLW Provider Compact torque sensor ✓ ✓ 1.0.0.0
Unipulse TMF Provider Torque meter, Force measurement ✓ ✓ 1.0.0.0
WACOH DynPick Provider DynPick series (Force sensor) ✓ ✓ 1.0.0.0
WACOH WDF-6A Provider 6-axis force sensor ✓ ✓ 1.0.0.0

TOP

HIDHID

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
― 3D mouse Provider 3D mouse ✓ ✓ 1.0.0.0
― DirectInput Provider DirectInput-supported device ✓ ✓ 1.0.0.0
― Joystick Provider Windows-supported joystick ✓ ✓ 1.0.0.0

TOP

OtherOther

Manufacturer Provider Name Target IoT Data Server Version
(*)
Field-B Edge-AT
CCS PD3 Provider PD3 series (Digital dimmer power source for LED light) ✓ ✓ 1.0.0.0
CCS PDS Provider PDS-10, PDS-30 (Digital dimmer power source for LED light) ✓ ✓ 1.0.0.0
EPSON ESCPOS Provider ESC/POS command-supported printer ✓ ✓ 1.0.0.0
ESPEC TempHumi Provider Temperature chamber ✓ ✓ 1.7.0.0
ESPEC ThermalShock Provider Environmental test chamber ✓ ✓ 1.7.0.0
ETAC Engineering NEOCOM Provider NEO series ✓ ✓ 1.5.0.0
flexfactory anyfeed Provider anyfeed ✓ ✓ 1.0.0.0
FUJI MES Interface (Host Interface) Provider Fujitrax ✓ ✓ 1.10.0.0
HIOKI E. E. LR8400 Provider LR8400 series ✓ ✓ 1.7.0.0
Hitachi Appliances HeatShock Provider Thermal shock chamber ✓ ✓ 1.1.0.0
Hitachi Appliances ThermoStat Provider Thermostat ✓ ✓ 1.1.0.0
JRCS SMS-55 Provider SMS-55 ✓ ✓ 1.13.0.0
KEBA ACF Provider Active Contact Flange ✓ ✓ 1.0.0.0
KEYENCE LaserMarker Provider Laser marker ✓ ✓ 1.5.0.0
Leimac IPPA Provider IPPA series (LED lighting pulse controller) ✓ ✓ 1.0.0.0
MEIKYO ELECTRIC WATCHBOOT Provider WATCHBOOT L-zero ✓ ✓ 1.0.0.0
OPTEX FA OPPD Provider OPPD ✓ ✓ 1.0.0.0
Panasonic ANB Provider ANB86001 / 3 (Digital dimmer power source for light) ✓ ✓ 1.0.0.0
PATLITE PNS Provider NH series (Network monitoring signal tower) ✓ ✓ 1.0.0.0
PATLITE WDR Provider WDR series ✓ ✓ 1.4.0.0
PATLITE WDR-PRO Provider WDR-L(E)-Z2, WDR-L(E)-Z2-PRO, WDR-L(E)-Z2-PRO-L ✓ ✓ 1.9.0.0
SATO SBPL Provider CLNX-J series ✓ ✓ 1.8.0.0
Schneider Electric Japan Holdings Memorylink Provider Pro-face series ✓ ✓ 1.5.0.0
SHIBAURA MACHINE S50V50 Provider S50, V50, V70 ✓ ✓ 1.7.0.0
Strawberry Linux USBRH Provider USBRH-FG ✓ ✓ 1.0.0.0
Sumitomo Heavy Industries InjectionMolding Provider Injection molding ✓ ✓ 1.1.0.0
THE JAPAN STEEL WORKS J-ADS Provider J-ADS series ✓ ✓ 1.7.0.0
THE JAPAN STEEL WORKS J-EL3AD Provider J-AD series, J-EL3 series ✓ ✓ 1.5.0.0
Toshiba Tec TPCL Provider B-EX series ✓ ✓ 1.13.0.0
Toyo Machinery & Metal PLCS12 Provider Injection molding ✓ ✓ 1.1.0.0

TOP

  1. * Indicated by the version when the provider was added
  1. *1. Need to purchase additional license from the manufacturer
  2. *2. Need to purchase additional license from DENSO WAVE
  3. *3. Compatible with only Windows XP
  4. *4. Discontinued products
  5. *5. If you would like to use this provider, please contact us here

Data AnalysisData Analysis

Data Analysis is a function to analyze the collected data without complicated programming, and to visualize the analysis result and process on dashboard.

* Data Analysis is a license product to activate related IoT Data Server function.


TOP

Cloud Connector for Microsoft AzureCloud Connector for Microsoft Azure

Cloud Connection for Microsoft Azure is a function of IoT Data Server to publish the collected data to Microsoft Azure just by simple settings, without programming.

①IoT device link function

Adds dedicated items and tools for Microsoft Azure on the configuration screen.
By configuring connection with dedicated tools and controller property settings, you can easily establish integration with Microsoft Azure, and this reduces configuration time to 1/5 of conventional time.

②Dedicated action function

Adds four dedicated functions for Microsoft Azure as trigger action functions.
Flexible configuration of device twin receive/send, telemetry send, and Teams message send for each item is possible.

③System monitoring function

You can link IoT Data Server with IoT devices defined in Azure IoT Hub.
Microsoft Azure can get IoT Data Server information like project status and version information, enabling status monitoring.

* Cloud Connector for Microsoft Azure is a license product to activate related IoT Data Server function.

Microsoft, Windows, Azure and Dynamics are trademarks or registered trademarks of Microsoft Corporation in the U.S. and / or other countries.


TOP

Related Products

Sample Implementation

Contact us

DENSO IoT MEMBER

  • ID
  • PW

If you have forgotten your password, click here.

If you have not registered

The services on this member site are available only for registered customers.

New member reg.

Contact us
