ORiN2 SDK

PC integration middleware to realize communication
with automation devices in various equipment

  • Features
  • Specifications
  • Provider list

Overview

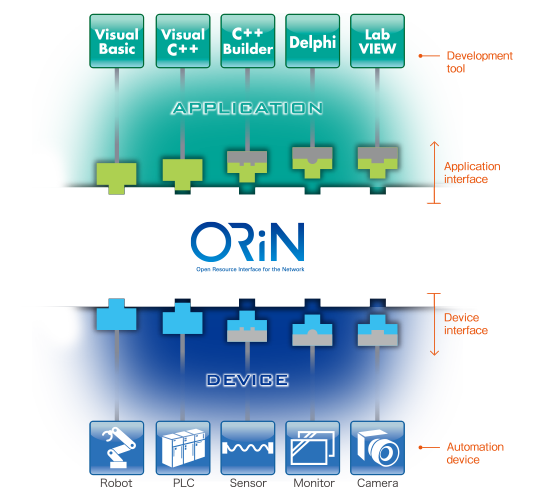

ORiN2 SDK is "PC Integration Middleware" for software development based on the standard middleware specification "ORiN" for factory information system.

With this middleware, users easily control various automation devices and develop equipment information collection systems by using computer general programming languages.
Also, this middleware has development assistance functions to realize connection with various automation devices and integration with other communication standards.

Providing standard interfaces

To make the system development of distributed object technology-supporting systems (such as DCOM, SOAP) easy, two types of standard interfaces are prepared; for application and for device.


Application reuse

Providing a common gateway for different communication specifications improves the reusability of existing application.


Development tool options

OLE (COM, Active-X) -supported development tools are available.
●Visual C++  ●C++ Builder  ●Visual Basic  ●Delphi  ●LabVIEW  ●Excel  etc.


Create original provider

With "Provider Wizard", users can create original provider for function expansion.

Package list

Package Type ORiN2 Software Development Kit (Ver. 2.1.58)
Provider Development Runtime + Utilities Set Runtime DENSO Products
Purpose Provider Development +
Execution Environment		 Execution Environment +
Expanded Components		 Execution Environment Execution Environment
(limited to DENSO Products)
Application Support Binary Source Support Binary Source Support Binary Source Support Binary Source
ORiN engine (*1) ✓ ✓   ✓ ✓   ✓ ✓   ✓ ✓
ORiN provider development tools ✓ ✓
ORiN provider (*2)
(quantity)		 ✓ ✓ ✓ ✓ ✓   ✓ ✓   ✓ ✓
39 200 62 39 200 0 39 200 0 22 43 0
Test and configuration tools ✓ ✓   ✓ ✓   ✓ ✓ (*8)   ✓ ✓ (*8)
CaoOPC (*3) ✓ ✓   ✓ ✓
CaoOPCUA (*4) ✓ ✓   ✓ ✓
CaoSQL (*5) ✓ ✓   ✓ ✓   ✓ ✓   ✓ ✓
CaoUPnP (*6)   ✓     ✓
CaoScript (*7)   ✓     ✓
  1. *1. EXE type COM component. It is middleware that implements ORiN interface and works as a core of ORiN. It provides common function and ORiN interface for client.
  2. *2. DLL type COM component. It is communication interface connecting automation devices and computers. It absorbs the communication specification differences among devices.
  3. *3. Gateway module for ORiN that provides OPC server functions.
  4. *4. Gateway module for ORiN that provides OPC UA server functions. If you use CaoOPCUA, you need to prepare an OPC UA server license separately.
  5. *5. It is middleware for data management that collects data from various automation devices and provides the collected data to the client application of CaoSQL (e.g., operation management and production instruction software).
  6. *6. Gateway module for ORiN that provides UPnP (Universal Plug and Play) device functions.
  7. *7. Simple program development environment. Users can develop simple application programs with script language (CaoScript).
  8. *8. Only CaoConfig, and CaoTester are offered.
ORiN is a trademark or registered trademark of Japan Robot Association.
OPC is a trademark or registered trademark of OPC Foundation in the U.S. and/or other countries.


System requirements

OS Windows 11 Pro
Pro for Workstations
Enterprise
Windows 11 IoT Enterprise GAC
Windows 10 Pro
Enterprise
Enterprise LTSC 2021
Enterprise LTSC 2019
Enterprise LTSB 2016
Pro for Workstations
Windows 10 IoT Enterprise GAC / SAC
Enterprise LTSC 2021
Enterprise LTSC 2019
Enterprise LTSB 2016
Windows 8.1 Pro / Enterprise
Windows 7 Professional / Enterprise / Ultimate
Windows Server 2022 Standard / Datacenter / Essentials
Windows Server 2019 Standard / Datacenter / Essentials
Windows Server 2016 Standard / Datacenter / Essentials
Windows Server 2012 R2 Standard / Datacenter / Essentials
CPU Multi-core processor 2GHz or faster
Memory 2GB or more
HDD More than 1GB of free space
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

GatewayGateway

Manufacturer Provider Name Target ORiN2 SDK
Runtime or higher DENSO Products
Alibaba 1 Alibaba Cloud IoT Platform Provider Alibaba Cloud ✓
Amazon 2 AWS IoT Provider Amazon Web Service IoT ✓
Amazon 3 AWS S3 Provider AWS S3 ✓
Balluff 4 Balluff IO-Link Provider IO-Link device (IO-Link communications) ✓
Beckhoff Automation 5 TwinCAT3 ADS Provider TwinCAT3 ADS interface ✓
DENSO 6 IoTDS Provider IoT Data Server, IoT Data Share ✓ ✓
FANUC 7 FIELD system Provider FIELD system BOX ✓
Fujitsu 8 COLMINA Provider COLMINA Platform ✓
Google 9 Cloud IoT Core Provider Cloud IoT Core ✓
Google 10 Cloud Pub/Sub Provider Cloud Pub/Sub ✓
Google 11 Cloud Storage Provider Cloud Storage ✓
IBM 12 Watson IoT Platform Provider IBM Cloud Internet of Things Platform ✓
Microsoft 13 Azure IoT Provider Microsoft Azure IoT Hub ✓
Microsoft 14 Azure Storage Provider Azure Storage ✓
Roboticsware 15 IPLink Provider FA-Driver (Ver4.0, 5.0)-supported device (IPLink connection) ✓ (*1)
SAP 16 SAP Cloud IoT Platform Provider SAP Cloud ✓
Siemens 17 MindConnect Provider MindSphere ✓
― 18 b-CAP Provider b-CAP device (b-CAP communications) ✓ ✓
― 19 CAP Provider CAP device (CAP communications) ✓
― 20 CoAP Provider CoAP device (CoAP communications) ✓
― 21 CORBA Provider CORBA server device (Gateway for CORBA) ✓
― 22 Database Provider OLE database access ✓
― 23 DataImport Provider CSV file read ✓
― 24 DDE Provider DDE connection ✓
― 25 ECHONET Lite Provider ECHONET Lite-ready equipment (Gateways for ECHONET Lite) ✓
― 26 e-CAP Provider e-CAP device (e-CAP communications) ✓
― 27 FL-net Provider FL-net device (Gateway for FL-net) ✓ (*2)
― 28 FTP Provider FTP server (FTP communications) ✓ ✓
― 29 FTPS Provider FTPS server (FTPS communications) ✓ ✓
― 30 HLA Provider HLA platform (Gateway for HLA) ✓
― 31 LocalFile Provider General purpose file access ✓ ✓
― 32 MESX Provider Gateway for MESX ✓
― 33 Modbus Provider Modbus RTU / ASCII / TCP device (Modbus communications) ✓
― 34 OPC Provider OPC server device (Gateway for OPC) ✓
― 35 OPC UA Provider OPC UA server device (Gateway for OPC UA) ✓
― 36 OPC UA Multiple Provider OPC UA server supported devices (Multiple) ✓
― 37 RAC Provider RAC device (RAC communication) ✓
― 38 RAOP Provider RAOP Provider (Gateway for ORiN1) ✓
― 39 rosserial Provider ROS (Robot Operating System) ✓
― 40 SMTP Provider SMTP mail server ✓ ✓
― 41 Stream Provider TCP, UDP, RS-232C (General purpose communication) ✓ ✓
