IoT Data Share

Data integration software
that enables to connect various automation devices
without programming and to provide functions of
data collect, process, save, notify and publish

Overview

IoT Data Share is "Data Integration Software" that enables to connect various automation devices without programming and to provide functions of data collect, process, save, notify and publish.
The collected data can be used as a trigger with setting any conditions. To link with such trigger, emailing, database writing, and external functions are available.

Functions

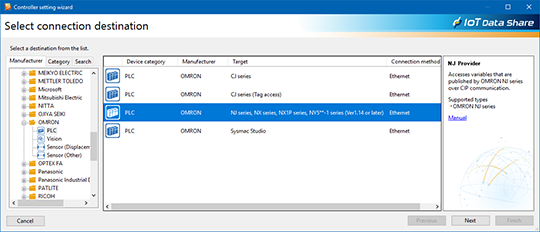

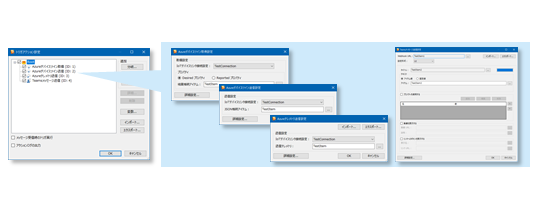

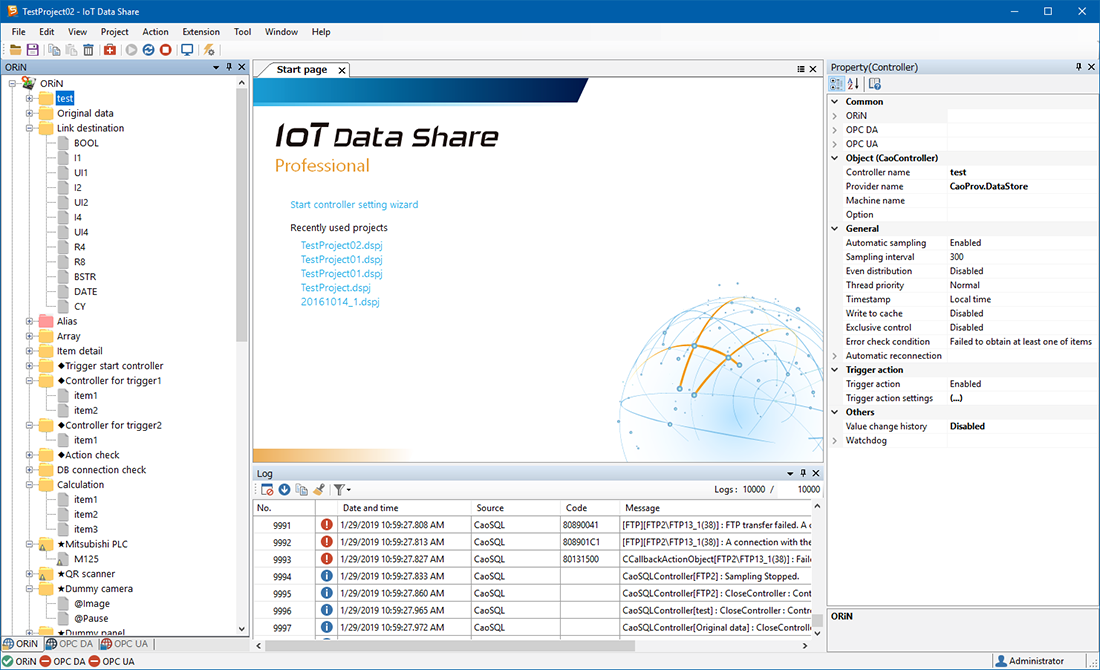

Controller setting wizard

Setting will complete only by selecting the connection destination information (controller and items) by following the wizard.

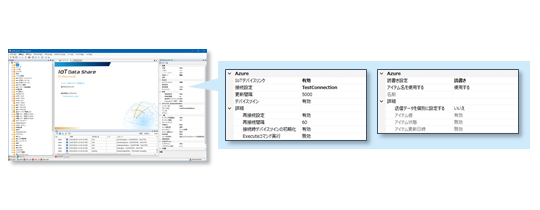

Trigger action settings

Trigger actions, executed when a predetermined condition is satisfied, can be set for sampling threads.
Various conditions can be defined flexibly.

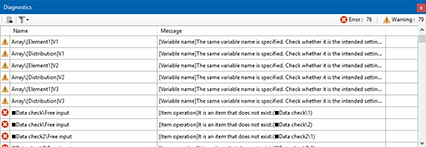

Setting diagnostics

Able to check any setting inconsistency within a project before executing the project.
Target data to be corrected are listed, improving the setting efficiency.

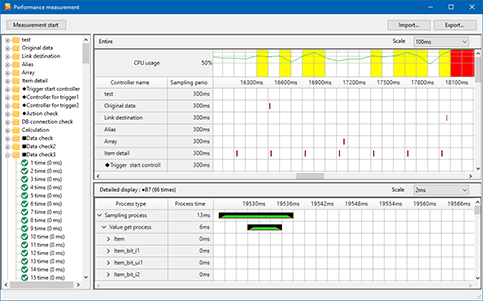

Performance measurement

Performance in each process time can be measured.
Process time and detailed information are plotted to graphs. Useful for the total optimization.

Two types of products matching with various equipment number and scale

Product name		IoT Data Share
Product name		Professional	Standard
Function overview	ORiN2 SDK ^(*1)	Equivalent to Runtime + Utilities Set	Equivalent to Runtime
	OPC UA server license	Included	Not included
	Collect	More than 250 providers for various device connection	More than 190 providers for various device connection
	Process	Functions for data operation, conversion, filtering and decomposition	Functions for data operation, conversion, filtering and decomposition
	Save	Functions to output to database or CSV file	Functions to output to database or CSV file
	Notify	Functions for FTP and mail client	Functions for FTP and mail client
	Publish	Server functions for ORiN, OPC UA, OPC DA interface	Server functions for ORiN interface

*1. A separate license is required to use ORiN2 SDK individually.

ORiN is a trademark or registered trademark of Japan Robot Association.
OPC is a trademark or registered trademark of OPC Foundation in the U.S. and/or other countries.

System requirements

OS	Windows 11	Pro
		Pro for Workstations
		Enterprise
	Windows 11 IoT	Enterprise GAC
	Windows 10	Pro
		Enterprise
		Enterprise LTSC 2021
		Enterprise LTSC 2019
		Enterprise LTSB 2016
		Pro for Workstations
	Windows 10 IoT	Enterprise GAC / SAC
		Enterprise LTSC 2021
		Enterprise LTSC 2019
		Enterprise LTSB 2016
	Windows 8.1	Pro / Enterprise
	Windows 7	Professional / Enterprise / Ultimate
	Windows Server 2022	Standard / Datacenter / Essentials
	Windows Server 2019	Standard / Datacenter / Essentials
	Windows Server 2016	Standard / Datacenter / Essentials
	Windows Server 2012 R2	Standard / Datacenter / Essentials
CPU	Intel® Core i3 2.4GHz or faster
Memory	4GB or more
HDD	More than 1GB of free space

Supported languages: Japanese, English, Simplified Chinese

Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

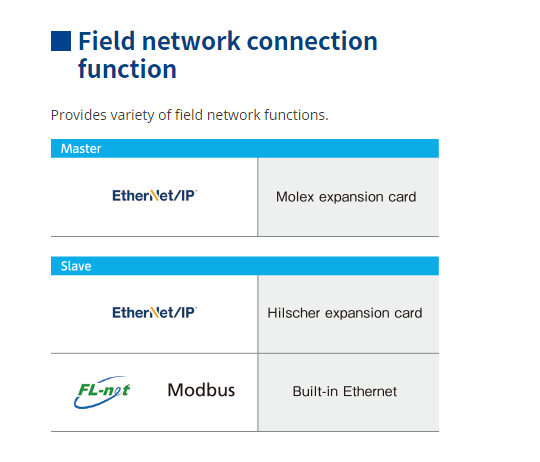

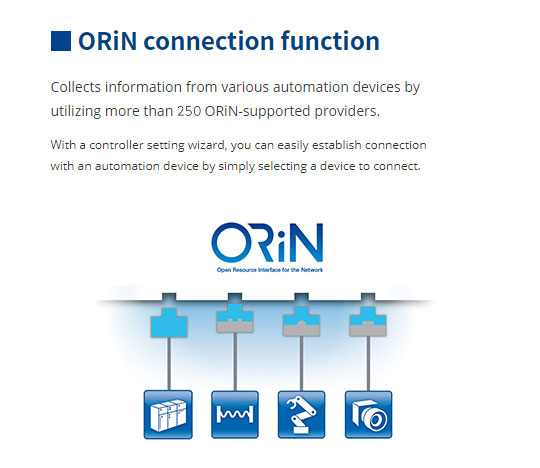

Collect (ORiN connection, Field network connection)

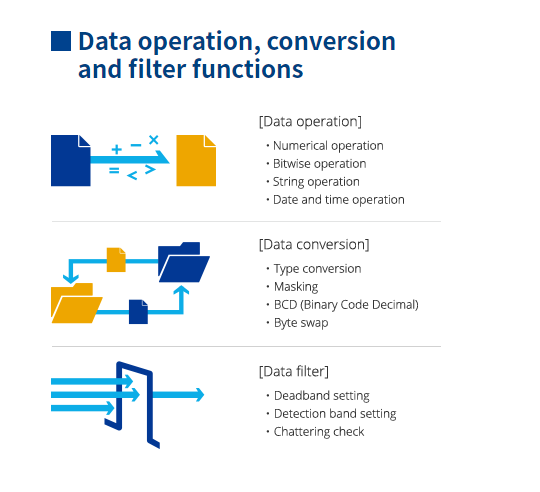

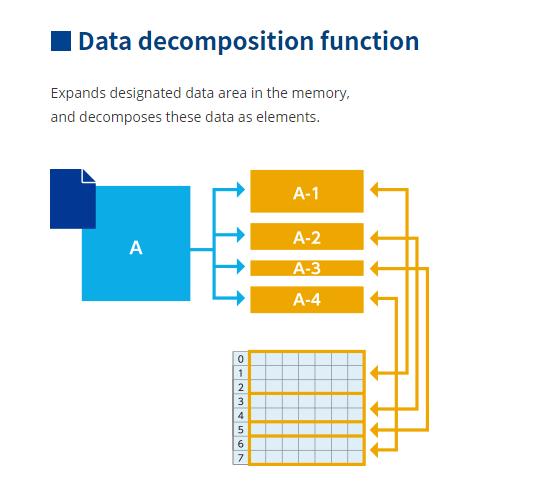

Process (Data operation, conversion and filters, Data decomposition)

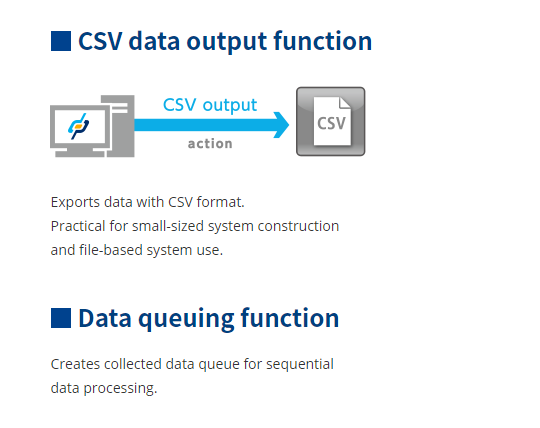

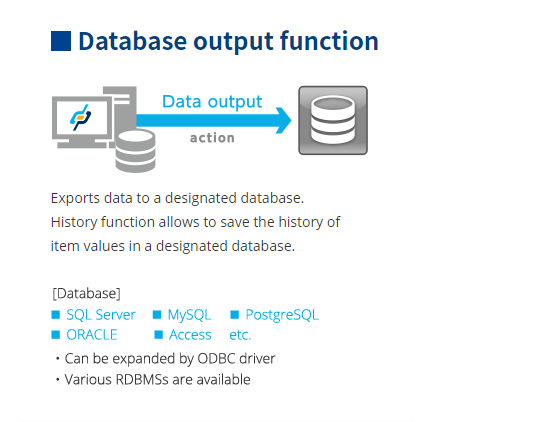

Save (Database output, CSV data output, Data queuing)

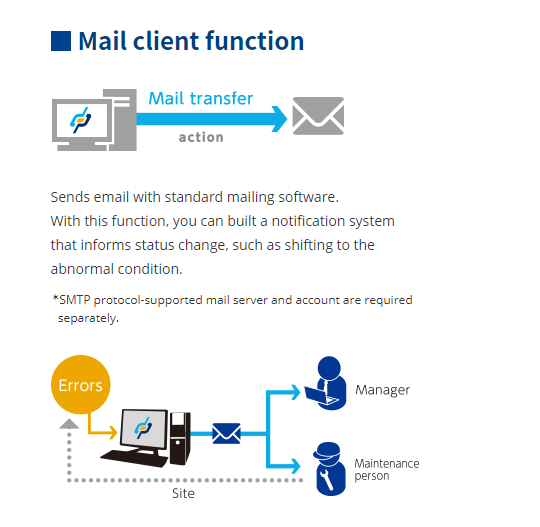

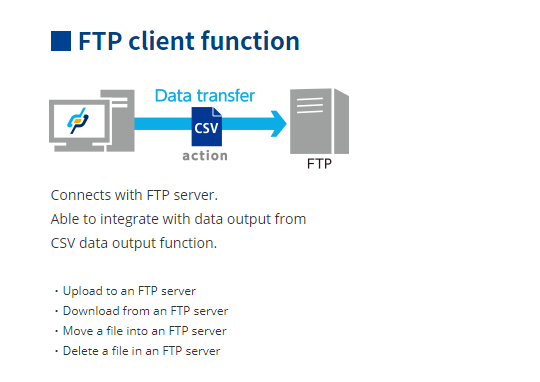

Notify (FTP client, Mail client)

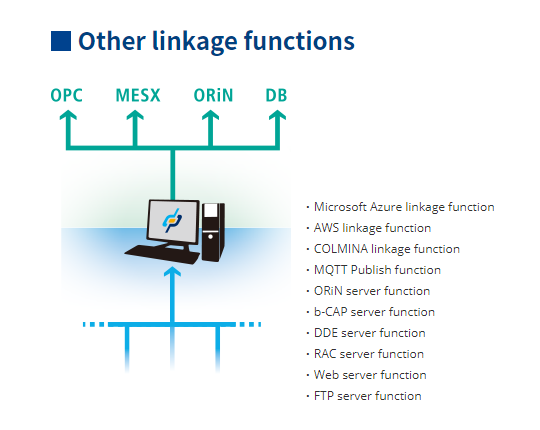

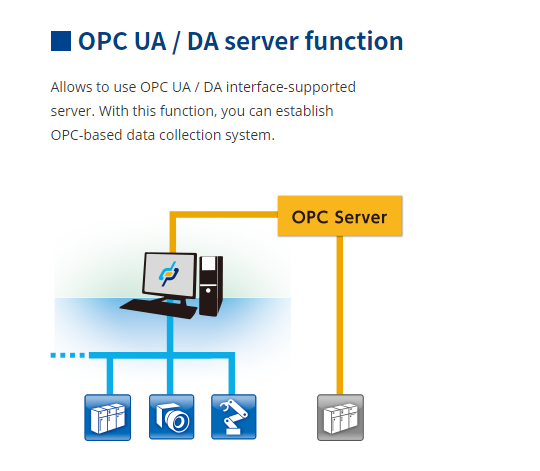

Publish (OPC UA/DA server, Other linkages)

Collect
Process & Order

Save
Notify & Publish

System management
Others

Collect

Function		Description	IoT Data Share		Version (*)
Function		Description	Professional	Standard	Version (*)
ORiN Client		Communicates with automation devices via ORiN provider	✓	✓	1.0.3
OPC UA Client	DA Client	Communicates with OPC UA server using DA specification	✓	✓	1.0.3
OPC UA Client	A&E Client	Communicates with OPC UA server using A&E specification	✓	✓	1.2.0
OPC Client (OPC Classic Client)	DA Client	Communicates with OPC (OPC Classic) server using DA specification	✓	✓	1.0.3
OPC Client (OPC Classic Client)	A&E Client	Communicates with OPC (OPC Classic) server using A&E specification	✓	✓	1.2.0
MTConnect Client		Communicates with MTConnect server	✓	✓	1.0.3
Modbus Client	RTU Client	Communicates with Modbus server using RTU specification	✓	✓	1.0.3
	ASCII Client	Communicates with Modbus server using ASCII specification	✓	✓	1.0.3
	TCP Client	Communicates with Modbus server using TCP specification	✓	✓	1.0.3
	UDP Client	Communicates with Modbus server using UDP specification	✓	✓	1.11.0
RAC Client		Communicates with RAC (Robot Action Command) server	✓	✓	1.0.3
DeviceNet	Slave	Communicates with DeviceNet master	✓ (*1)	✓ (*1)	1.0.3
DeviceNet	Master	Communicates with DeviceNet slave	✓ (*1)	✓ (*1)	1.0.3
PROFIBUS	Slave	Communicates with PROFIBUS master	✓ (*1)	✓ (*1)	1.0.3
PROFIBUS	Master	Communicates with PROFIBUS slave	✓ (*1)	✓ (*1)	1.0.3
CC-Link	Remote Device	Communicates with CC-Link master	✓ (*1)	✓ (*1)	1.0.3
CC-Link	Master	Communicates with CC-Link slave	✓ (*1)	✓ (*1)	1.0.3
EtherNet/IP	Adapter	Communicates with EtherNet/IP scanner	✓ (*1)	✓ (*1)	1.0.3
EtherNet/IP	Scanner	Communicates with EtherNet/IP adapter	✓ (*1)	✓ (*1)	1.0.3
PROFINET	IO-Device	Communicates with PROFINET IO-Controller	✓ (*1)	✓ (*1)	1.0.3
PROFINET	IO-Controller	Communicates with PROFINET IO-Device	✓ (*1)	✓ (*1)	1.0.3
EtherCAT	Slave	Communicates with EtherCAT master	✓ (*1)	✓ (*1)	1.0.3
EtherCAT	Master	Communicates with EtherCAT slave	✓ (*1)	✓ (*1)	1.0.3
FL-net		Communicates as a FL-net specification-supported device	✓	✓	1.0.3
Image data acquisition	IP camera	Acquires image data from an IP camera	✓	✓	1.0.3
	USB camera	Acquires image data from a USB camera	✓	✓	1.0.3
	GigE camera	Acquires image data from a GigE camera	✓	✓	1.0.3
IoT Data Server Client (IoTDS-Link)		Data integration and load balancing between IoT Data Servers	✓	✓	1.0.3
TwinCAT3 system integration		Integrates with TwinCAT3	✓	✓	1.0.3
IO-Link		Integrates with IO-Link master	✓	✓	1.10.0
MQTT Subscriber		Receives MQTT protocol-based data	✓		1.0.3
CSV import		Reads CSV format files	✓	✓	1.0.3
File import		Reads text / binary data from files and writes the data to items	✓	✓	1.10.1
FTP Client		Communicates with FTP server	✓	✓	1.0.3
BACnet Client		Communicates with BACnet server	✓		1.9.0
Slow polling		Dynamically prolongs the communication interval to the predetermined interval in case of communication error occurrence, such as, timeout error or open error	✓	✓	1.6.0

TOP

Process & Order

Function	Description	IoT Data Share		Version (*)
Function	Description	Professional	Standard	Version (*)
Numerical operation	Calculates data as numerical values (such as, addition, subtraction, multiplication and division)	✓	✓	1.0.3
Logical operation	Calculates and judges data as bit data (equality judgment, bitwise operation)	✓	✓	1.0.3
String operation	Processes data as character string (string extraction, string concatenation)	✓	✓	1.0.3
Data type conversion	Converts data type (numerical value to character string, BCD conversion, byte order conversion)	✓	✓	1.0.3
Array operation	Generate / merge / split / sort / extract array data	✓	✓	1.0.3
Sub-item	Accesses data block as structured type data	✓	✓	1.0.3
Data filter	Specifies the range of data change detection area (deadband setting, detection band setting)	✓	✓	1.0.3
Item link	Links devices to exchange data	✓	✓	1.0.3
Script	Executes a created script	✓	✓	1.0.3
Data sharing	Shares data among applications	✓	✓	1.0.3
Timestamp	Records item's acquisition time (system time, local time)	✓	✓	1.0.3
Date and time operation	Calculates date and time data type and timestamp	✓	✓	1.0.3
Input (Output) JSON	Extract value (or create string) from JSON format string, and write to the specified item	✓	✓	1.2.0 (1.11.0)

TOP

Save

Function		Description	IoT Data Share		Version (*)
Function		Description	Professional	Standard	Version (*)
Database integration		Integrates with commercial database (SQL server, ORACLE, and others)	✓	✓	1.0.3
Automatic switch to the secondary database		Switches database to the secondary database in emergency to save data	✓	✓	1.0.3
Retransmission to database		Retransmit data that failed to be transmitted in case of an error to database	✓	✓	1.1.1
ISO-compliance	ISO 22400-compliance	Creates MES KPI information file expressed by ISO 22400 MESA KPI-ML format	✓	✓	1.9.0
	ISO 20242-compliance	Creates device capability information (such as value range) file expressed by ISO 20242-4 format	✓	✓	1.9.0
	ISO 16100-compliance	Creates application capability information file expressed by ISO 16100 format	✓	✓	1.9.0
Image data saving		Saves image data as file format	✓	✓	1.3.0
CSV export		Saves data into a file with CSV format	✓	✓	1.0.3
File export		Outputs item data to text / binary format file	✓	✓	1.3.0
Data queuing		Creates collected data queue for sequential data processing	✓	✓	1.2.0
Collective data send and receive		Collectively sends and receives item information and text file/database information	✓	✓	1.3.0
File operation		Copies, deletes, and moves files or folders	✓	✓	1.2.0

TOP

Notify & Publish

Function		Description	IoT Data Share		Version (*)
Function		Description	Professional	Standard	Version (*)
Trigger action		Execute various types of motions (action) once the predetermined condition (trigger) is satisfied	✓	✓	1.0.3
DDE Server	Local Server	Integrates with Windows DDE application within same computer	✓	✓	1.0.3
DDE Server	Network Server	Integrates with Windows DDE application from a different computer	✓ (*2)	✓ (*2)	1.0.3
ORiN CAP	e-CAP Server	Communicates with devices using HTTP protocol	✓ (*1)	✓ (*1)	1.0.3
ORiN CAP	b-CAP Server	Communicates with devices using TCP/UDP protocol	✓ (*1)	✓ (*1)	1.0.3
RAC Server		Sends and receives data using RAC communication	✓ (*1)	✓ (*1)	1.0.3
OPC UA Server	DA Server	Communicates with OPC UA client using DA specification	✓		1.0.3
OPC UA Server	A&E Server	Communicates with OPC UA client using A&E specification	✓		1.2.0
OPC Server (OPC Classic Server)	DA Server	Communicates with OPC (OPC Classic) client using DA specification	✓		1.0.3
OPC Server (OPC Classic Server)	A&E Server	Communicates with OPC (OPC Classic) client using A&E specification	✓		1.2.0
Modbus Server	RTU Server	Communicates with Modbus client using RTU specification	✓	✓	1.0.3
	ASCII Server	Communicates with Modbus client using ASCII specification	✓	✓	1.0.3
	TCP Server	Communicates with Modbus client using TCP specification	✓	✓	1.0.3
CoAP Server		Communicates with devices using CoAP protocol	✓	✓	1.9.0
Microsoft Excel integration		Reads and writes data to and from Excel files	✓	✓	1.17.0
Program IF	COM	Integrates with IoT Data Server using COM from a different computer	✓ (*1)	✓ (*1)	1.0.3
	Java	Integrates with IoT Data Server using Java from a different computer	✓ (*3)	✓ (*3)	1.0.3
	.NET	Integrates with IoT Data Server using .NET from a different computer	✓ (*1)	✓ (*1)	1.0.3

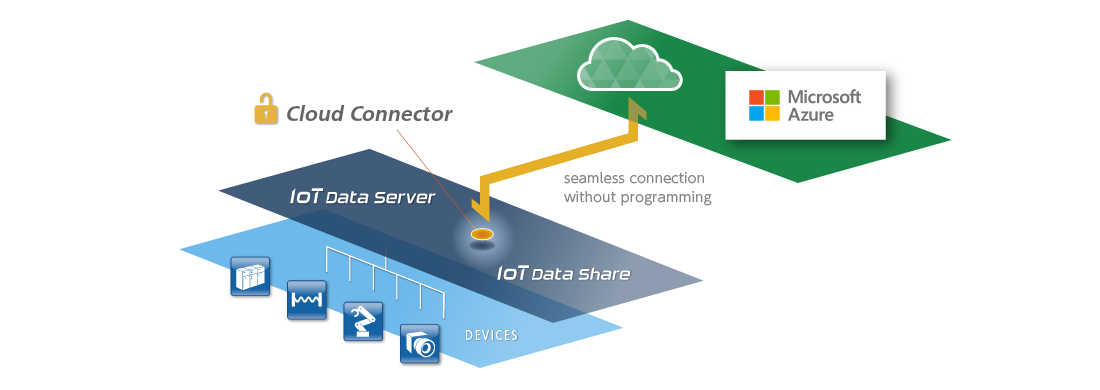

Microsoft Azure integration		Communicates with cloud service platform provided by Microsoft	✓	✓	1.0.3
AWS (Amazon Web Service) integration		Communicates with cloud service platform provided by Amazon	✓	✓	1.1.1
COLMINA integration		Communicates with cloud service platform provided by FUJITSU	✓	✓	1.3.0
IBM Cloud integration		Communicates with cloud service platform provided by IBM	✓	✓	1.7.0
SAP Cloud integration		Communicates with cloud service platform provided by SAP	✓	✓	1.9.0
Alibaba Cloud integration		Communicates with cloud service platform provided by Alibaba	✓	✓	1.9.0
Google Cloud integration		Communicates with cloud service platform provided by Google	✓	✓	1.10.0
Edgecross integration		Communicates with software platform provided by Edgecross Consortium	✓		1.3.1
FIELD system integration		Communicates with open platform provided by FANUC	✓		1.11.0
MindSphere integration		Communicates with cloud service platform provided by Siemens	✓	✓	1.6.0
MQTT Publisher		Sends MQTT protocol-based data	✓		1.0.3
ROS-supported		Inputs or outputs data from or to ROS application running on Linux	✓ (*1)	✓ (*1)	1.3.0
Trac integration		Integrates with the project management assistant tool "Trac"	✓		1.8.0
Redmine integration		Integrates with the project management assistant tool "Redmine"	✓		1.8.0
Email integration (SMTP)		Once data change has detected, email is sent via standard mailing software	✓	✓	1.0.3
IA-Cloud integration		Connects with cloud service using Industrial Automation-defined protocol	✓	✓	1.2.0
IoT Data Server status notification	IoT Data Share-related information	Acquires and notifies the status of IoT Data Share which is installed in IoT Data Server	✓	✓	1.0.3
Syslog-supported		Saves data into Syslog server	✓	✓	1.7.0
HTTP request		Connects to external web server, and sends / receives command with HTTP	✓	✓	1.2.0
Web API Server		Communicates with HTTP / HTTPS client	✓	✓	1.7.0

TOP

System management

Function		Description	IoT Data Share		Version (*)
Function		Description	Professional	Standard	Version (*)
UPS		Shutdown the system safely on sudden power-off	✓ (*1)	✓ (*1)	1.0.3
Watchdog		Monitors whether the predetermined sampling interval is maintained	✓	✓	1.0.3
Device auto-reconnection		Retries connection automatically once the communication with external device or equipment has disconnected	✓	✓	1.0.3
Security	Controller access control	Limits access only to the permitted controller objects	✓	✓	1.7.0
	Access log	Saves the access log (R/W) to objects	✓	✓	1.6.0
	Secure communication (b-CAP Secure)	Improves safety level by encrypting the communication between IoT Data Server	✓ (*1)	✓ (*1)	1.0.3
Closing timing arrangement		At the timing of system close, executes external notification, closes each process normally, and then shuts the system off	✓	✓	1.0.3
Login management		Manages data access and function execution according to the login level	✓	✓	1.0.3
Controller / Item list		Lists the controllers and items being set	✓	✓	1.0.3
Online buffering		At the database shut-off, saves the data to the local buffer	✓	✓	1.0.3
Trend graph		Based on data within the target database, plots the trend graph	✓ (*5)	✓ (*5)	1.4.0
Hot configuration		Allows to change the controller setting and item setting while external devices / equipment are connected	✓	✓	1.1.1
Performance measurement		Measures the motion timing and CPU usage rate of the entire system	✓	✓	1.0.3
Network path check		Issues a ping command to check LAN environment connection	✓	✓	1.0.3
SNMP-supported	Expansion SNMP	Monitors the status of the devices connected to IoT Data Server with SNMP	✓	✓	1.7.0
Device connection establish / disestablish order setting		Designates the order of device connection establish / disestablish	✓	✓	1.9.1

TOP

Others

Function	Description	IoT Data Share		Version (*)
Function	Description	Professional	Standard	Version (*)
Controller setting wizard	Enables to select external device or equipment to be connected easily from the window	✓	✓	1.0.3
Setting diagnostics	Checks the inconsistency of project setting	✓	✓	1.2.0
Setting search	Searches the project settings	✓	✓	1.10.0
Item monitoring	Monitors the collecting data value and status	✓	✓	1.10.0
Data analysis	Analyzes the collected data	✓	✓	1.7.0

TOP

* Indicated by the version when the function was added

*1. Customize according to the operation environment is required (function restriction or module addition)
*2. Supports Windows XP environment only
*3. Client can run on 32-bit environment only
*4. Planned to be released before April, 2024

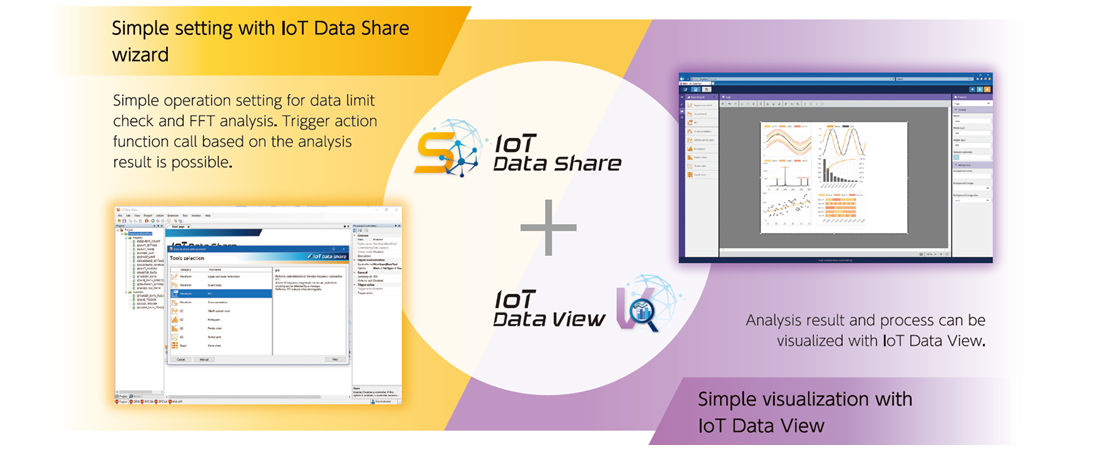

*5. "IoT Data View" is required to display graphs

Gateway
Utility
I/O
Robot

Hand
PLC
NC & MC
Vision

Sensor (Displacement meter)
Sensor (Other)
HID
Other

Gateway

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
Alibaba	Alibaba Cloud IoT Platform Provider	Alibaba Cloud	✓	✓	1.9.0
Amazon	AWS IoT Provider	Amazon Web Service IoT	✓	✓	1.1.2
Amazon	AWS S3 Provider	AWS S3	✓	✓	1.11.0
Balluff	Balluff IO-Link Provider	IO-Link device (IO-Link communications)	✓	✓	1.1.2
Beckhoff Automation	TwinCAT3 ADS Provider	TwinCAT3 ADS interface	✓	✓	1.0.3
DENSO	IoTDS Provider	IoT Data Server, IoT Data Share	✓	✓	1.2.0
FANUC	FIELD system Provider	FIELD system BOX	✓	✓	1.11.0
Fujitsu	COLMINA Provider	COLMINA Platform	✓	✓	1.3.0
Google	Cloud IoT Core Provider	Cloud IoT Core	✓	✓	1.10.0
Google	Cloud Pub/Sub Provider	Cloud Pub/Sub	✓	✓	1.17.0
Google	Cloud Storage Provider	Cloud Storage	✓	✓	1.14.0
IBM	Watson IoT Platform Provider	IBM Cloud Internet of Things Platform	✓	✓	1.7.0
ifm efector	ifm efector IO-Link Provider	AL1342	✓		1.10.0
Microsoft	Azure IoT Provider	Microsoft Azure IoT Hub	✓	✓	1.0.3
Microsoft	Azure Storage Provider	Azure Storage	✓	✓	1.11.0
Roboticsware	IPLink Provider	FA-Driver (Ver4.0, 5.0)-supported device (IPLink connection)	✓ (*1)	✓ (*1)	1.0.3
SAP	SAP Cloud IoT Platform Provider	SAP Cloud	✓	✓	1.9.0
Siemens	MindConnect Provider	MindSphere	✓	✓	1.6.0
UNITEC	BACnet Provider	BACnet	✓ (*1)		1.9.0
―	b-CAP Provider	b-CAP device (b-CAP communications)	✓	✓	1.0.3
―	CAP Provider	CAP device (CAP communications)	✓	✓	1.0.3
―	CoAP Provider	CoAP device (CoAP communications)	✓	✓	1.0.3
―	CORBA Provider	CORBA server device (Gateway for CORBA)	✓	✓	1.0.3
―	Database Provider	OLE database access	✓	✓	1.0.3
―	DataImport Provider	CSV file read	✓	✓	1.0.3
―	DDE Provider	DDE connection	✓	✓	1.0.3
―	ECHONET Lite Provider	ECHONET Lite-ready equipment (Gateways for ECHONET Lite)	✓	✓	1.16.0
―	e-CAP Provider	e-CAP device (e-CAP communications)	✓	✓	1.0.3
―	FL-net Provider	FL-net device (Gateway for FL-net)	✓ (*2)	✓ (*2)	1.0.3
―	FTP Provider	FTP server (FTP communications)	✓	✓	1.0.3
―	FTPS Provider	FTPS server (FTPS communications)	✓	✓	1.6.0
―	HLA Provider	HLA platform (Gateway for HLA)	✓	✓	1.0.3
―	LocalFile Provider	General purpose file access	✓	✓	1.0.3
―	MESX Provider	Gateway for MESX	✓	✓	1.0.3
―	Modbus Provider	Modbus RTU / ASCII / TCP device (Modbus communications)	✓	✓	1.0.3
―	MQTT PUBLISHER Provider	MQTT Broker	✓		1.0.3
―	MQTT SUBSCRIBER Provider	MQTT Broker	✓		1.0.3
―	OPC Provider	OPC server device (Gateway for OPC)	✓	✓	1.0.3
―	OPC UA Provider	OPC UA server device (Gateway for OPC UA)	✓	✓	1.0.3
―	OPC UA Multiple Provider	OPC UA server supported devices (Multiple)	✓	✓	1.16.0
―	POP3 Provider	POP3 mail server	✓		1.0.3
―	RAC Provider	RAC device (RAC communication)	✓	✓	1.0.3
―	RAOP Provider	RAOP Provider (Gateway for ORiN1)	✓	✓	1.0.3
―	Redmine Provider	Redmine	✓		1.7.0
―	SMTP Provider	SMTP mail server	✓	✓	1.0.3
―	Stream Provider	TCP, UDP, RS-232C (General purpose communication)	✓	✓	1.0.3
―	Trac Provider	Trac	✓		1.7.0

TOP

Utility

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
Fujitsu	VPS Provider	VPS (Virtual Product Simulator)	✓	✓	1.0.3
Trellix	EmbeddedControl Provider	Trellix Embedded Control	✓	✓	1.0.3
―	Blackboard Provider	Blackboard model form data sharing	✓	✓	1.0.3
―	CRD Provider	CRD file access	✓	✓	1.0.3
―	DataQueue Provider	General purpose data queuing	✓	✓	1.2.0
―	DataStore Provider	General purpose data sharing	✓	✓	1.0.3
―	Dummy Provider	Dummy for application development	✓	✓	1.0.3
―	Dummy Camera Provider	Dummy camera for application development	✓	✓	1.0.3
―	Dummy CNC Provider	Dummy CNC for application development	✓	✓	1.3.0
―	Dummy Panel Provider	Dummy panel for application development	✓	✓	1.0.3
―	Dummy PLC Provider	Dummy PLC for application development	✓	✓	1.0.3
―	Dummy Robot Provider	Dummy robot for application development	✓	✓	1.0.3
―	HeartBeat Provider	ON-OFF signal generation	✓		1.0.3
―	ICMP Provider	Ping command (ICMP)	✓	✓	1.0.3
―	ISO16100 Provider	ISO16100-compliant XML file	✓	✓	1.0.3
―	ISO20242 Provider	ISO20242 ANNEX C-compliant XML file	✓	✓	1.0.3
―	JSON Provider	JSON	✓	✓	1.0.3
―	Ping Provider	Ping command (Raw socket)	✓	✓	1.0.3
―	Timer Provider	Timer control services	✓	✓	1.0.3
―	VBP Provider	Gateway for VB6 Provider	✓	✓	1.0.3

TOP

I/O

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
CONTEC	AIO Provider	AIO board	✓	✓	1.0.3
CONTEC	CNT Provider	CNT board	✓	✓	1.0.3
CONTEC	DIO Provider	DIO board (WDM)	✓	✓	1.0.3
CONTEC	DIO98 Provider	DIO board (98PC)	✓	✓	1.0.3
CONTEC	FIT Provider	F&eIT series	✓	✓	1.0.3
CONTEC	GPIB Provider	GPIB board	✓	✓	1.0.3
Hilscher	CIF Provider	CIF board	✓	✓	1.0.3
Hilscher	CIFX Provider	CIFX board	✓	✓	1.0.3
Interface	Interface DeviceNet Provider	DeviceNet PCI board	✓	✓	1.0.3
LANTRONIX	XPort Provider	XPort (Small network adapter)	✓	✓	1.0.3
LANTRONIX	XPort6 Provider	XPort6 (Small network adapter)	✓	✓	1.0.3
Molex	DRL Provider	DRL board	✓		1.0.3
OMRON	OMRON DeviceNet Provider	DeviceNet PCI board	✓	✓	1.0.3
PATLITE	PHC Provider	PHC-D08 (Interface converter)	✓	✓	1.0.3
PATLITE	PHN Provider	PHN (Interface converter)	✓	✓	1.0.3
Panasonic Industrial Devices SUNX	S-LinkV Provider	SL-VPCI board	✓	✓	1.0.3

TOP

Robot

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
DENSO	NetwoRC Provider	RC7, RC5	✓	✓	1.0.3
DENSO	RC8 Provider	RC8, COBOTTA, VRC	✓	✓	1.0.3
DENSO	RC9 Provider	RC9	✓	✓	1.11.0
FUTABA	RSC-U485 Provider	RSC-U485	✓	✓	1.2.0
IAI	E-Con Provider	E-Con series	✓	✓	1.0.3
IAI	PCON Provider	Positioner type controller	✓ (*2)	✓ (*2)	1.2.0
IAI	SEL Provider	Program type controller	✓ (*2)	✓ (*2)	1.2.0
KAWADA ROBOTICS	NEXTAGE OPEN Provider	NEXTAGE OPEN	✓	✓	1.15.0
Kawasaki Heavy Industries	KRCC Provider	F series controller, E series controller	✓	✓	1.16.0
Kondo Kagaku	RCB-1 Provider	RCB-1	✓	✓	1.0.3
Kondo Kagaku	RCB-3 Provider	RCB-3	✓	✓	1.0.3
Yamaha Motor	RCX Provider	RCX series	✓ (*2)	✓ (*2)	1.0.3
Yamaha Motor	RCX3 Provider	RCX3 series	✓	✓	1.15.0
Yamaha Motor	SR1 Provider	SR1 / DRCX series	✓ (*2)	✓ (*2)	1.0.3
YASKAWA Electric	MOTOCOMES Provider	YRC1000, YRC1000micro, DX200, DX100, FS100	✓ (*1)		1.6.0

TOP

Hand

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
Koganei	EWHA Provider	EWHA (Controller for electric gripper)	✓	✓	1.0.3
TAIYO	ESC11 Provider	ESC11 (Controller for electric gripper)	✓	✓	1.0.3
TAIYO	ESC11PCI Provider	ESC11 (PCI for DENSO robot controller)	✓	✓	1.0.3

TOP

PLC

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
JTEKT	CMP-LINK Provider	TOYOPUC PC10G series	✓		1.3.0
KEYENCE	KV Provider	KV series	✓	✓	1.0.3
KEYENCE	KVCOM Provider	KV, KV Nano series	✓ (*1)	✓ (*1)	1.0.3
Mitsubishi Electric	MELSEC Provider	MELSEC data link library-supported device	✓	✓	1.0.3
Mitsubishi Electric	MELSEC AnA Provider	MELSEC A series	✓	✓	1.2.0
Mitsubishi Electric	MELSEC QnA3C Provider	MELSEC Q series (Serial communication)	✓	✓	1.0.3
Mitsubishi Electric	MELSEC QnA3E Provider	MELSEC Q series (Ethernet communication)	✓	✓	1.0.3
Mitsubishi Electric	MxComponent Provider	MxComponent-supported device	✓ (*1)	✓ (*1)	1.0.3
Mitsubishi Electric	MxComponent4 Provider	MxComponent4-supported device	✓ (*1)	✓ (*1)	1.16.0
Mitsubishi Electric	PCLink Provider	FX sequencer	✓	✓	1.0.3
OMRON	CJ Provider	CJ series	✓	✓	1.0.3
OMRON	CJHostLink Provider	CJ series	✓		1.10.0
OMRON	CJ TAG Provider	CJ series (Tag access)	✓	✓	1.0.3
OMRON	NJ Provider	NJ series, NX series, NX1P series, NY5**-1 series (Ver1.14 or later)	✓	✓	1.0.3
OMRON	Sysmac Studio Provider	Sysmac Studio	✓	✓	1.0.3
Panasonic	MEWTOCOL-COM Provider	PLC (MEWTOCOL communication)	✓		1.4.0
Rockwell Automation	Logix5000 Provider	ControlLogix, CompactLogix series	✓	✓	1.0.3
SHIBAURA MACHINE	TCmini Provider	TCminiα TC3-02	✓	✓	1.0.3
Siemens	PLCSIM Provider	SIMATIC S7-PLCSIM Advanced	✓ (*2)	✓ (*2)	1.2.0
Siemens	S7NetPlus Provider	S7 series	✓	✓	1.7.0
Siemens	SOFTNET-IE S7 Provider	S7 series	✓ (*1)		1.7.0
YASKAWA Electric	ExMEMOBUS Provider	MP900 series, MP2000 series, MP3000 series	✓		1.11.0
Yokogawa Electric	PCLink ASCII Provider	PLC (Higher-level link service)	✓		1.3.0
Yokogawa Electric	PCLink Binary Provider	PLC (Higher-level link service)	✓		1.3.0
―	SLMP Provider	SLMP compatible device	✓	✓	1.3.0

TOP

NC & MC

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
BROTHER INDUSTRIES	Protocol2 Provider	SPEEDIO series	✓	✓	1.2.0
BROTHER INDUSTRIES	TC Protocol2 Provider	Tapping center	✓		1.3.0
FANUC	FOCAS Provider	CNC 0i / 30i series	✓ (1) (5)		1.2.0
Mitsubishi Electric	EZSocketCNC Provider	M700 / M800 series	✓		1.6.0
Mitsubishi Electric	MELSERVO Provider	MR-J2S-CP	✓	✓	1.0.3
SHIBAURA MACHINE	NCBOY Provider	NCBOY series	✓		1.14.0
YASKAWA Electric	Ns300 Provider	Ns300 series	✓	✓	1.0.3
―	MTConnect Provider	MTConnect device	✓	✓	1.12.0

TOP

Vision

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
Asyril	EYE+ Provider	EYE+ Controller	✓	✓	1.16.0
Basler	Pylon GigE Provider	ACE series (GigE camera)	✓	✓	1.0.3
Baumer	VeriSens Provider	VeriSens series (Smart camera)	✓	✓	1.0.3
Canon	N10-W02 Provider	N10-W02 (Camera for COBOTTA)	✓	✓	1.2.0
Canon	RV Provider	RV series	✓	✓	1.0.3
Canon	WebView Livescope Provider	WebView Livescope series	✓	✓	1.0.3
Cognex	In-Sight Provider	In-Sight series	✓	✓	1.0.3
DALSA	Genie Provider	Genie (Vision-supported area camera)	✓	✓	1.0.3
IDS	uEye Provider	uEye SE, LE series (USB 2.0 camera)	✓	✓	1.0.3
Inaba Denki Sangyo	CHOCO TEI WATCHER mini Provider	IB-MCT001	✓		1.12.0
KEYENCE	CV Provider	CV series	✓	✓	1.0.3
KEYENCE	CVX Provider	CV-X100 series	✓	✓	1.0.3
KEYENCE	V-Works for XG Provider	XG-7000 / 8000 series	✓	✓	1.0.3
KEYENCE	XGX Provider	XG-X2000 series	✓	✓	1.0.3
LINX	GINGA Provider	GINGA board	✓	✓	1.0.3
Matrox	RobCom Provider	Matrox Design Assistant	✓	✓	1.0.3
OMRON	F160 Provider	F160	✓	✓	1.0.3
OMRON	FZ Provider	FZ3, FZ4, FZ5, FH, FZM1, FQ-M, FQ2	✓	✓	1.0.3
Panasonic	A110 Provider	A110 (Micro image checker)	✓	✓	1.0.3
Panasonic	PV Provider	PV series	✓	✓	1.0.3
RICOH	R-GigE Provider	GigE camera	✓	✓	1.0.3
Sharp	IV Provider	IV series	✓	✓	1.0.3
―	DirectShow Provider	DirectShow-supported camera	✓	✓	1.0.3
―	OpenCV Provider	DirectShow-supported camera	✓ (*2)	✓ (*2)	1.0.3
―	USB Camera Provider	DirectShow-supported camera (USB camera)	✓	✓	1.0.3

TOP

Sensor (Displacement meter)

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
KEYENCE	GT Provider	GT & DL-RS1A	✓	✓	1.0.3
KEYENCE	GT2DLEP1 Provider	GT2 & DL-EP1	✓	✓	1.0.3
KEYENCE	ILDLEP1 Provider	IL series & DL-EP1	✓	✓	1.4.0
KEYENCE	LJ-V7000 Provider	Two-dimensional laser displacement meter	✓	✓	1.3.0
KEYENCE	LJ-X8000 Provider	LJ-X8000	✓	✓	1.12.0
KEYENCE	LJ-X8000A Provider	LJ-X8000A	✓	✓	1.12.0
KEYENCE	LK-G3000 Provider	LK-G3000, LK-G3000P, LK-G3000V, LK-G3000PV	✓	✓	1.11.0
KEYENCE	LK-G3000LkIF Provider	LK-G3000, LK-G3000P, LK-G3000V, LK-G3000PV	✓	✓	1.11.0
KEYENCE	LK-G5000 Provider	LK-G5000	✓	✓	1.7.0
Mitutoyo	U-WAVE Provider	U-WAVE	✓		1.12.0
OMRON	ZG2 Provider	ZG2	✓	✓	1.0.3
OMRON	ZS Provider	ZS	✓	✓	1.0.3
OMRON	ZX Provider	ZX	✓	✓	1.0.3
Panasonic Industrial Devices SUNX	HL-C2 Provider	HL-C2	✓	✓	1.0.3
Panasonic Industrial Devices SUNX	HL-D3 Provider	HL-D3	✓	✓	1.0.3
Panasonic Industrial Devices SUNX	HL-G1 Provider	HL-G1	✓	✓	1.0.3
Panasonic Industrial Devices SUNX	TRC11 Provider	TR-C1 (*4)	✓	✓	1.0.3

TOP

Sensor (Other)

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
AMADA MIYACHI	MM370 Provider	MM370 (Weld checker)	✓		1.0.3
AMADA MIYACHI	MM400 Provider	MM400 (Weld checker)	✓		1.6.0
Atlas Copco	Open Protocol Provider	Torque controller	✓		1.3.0
DAI-ICHI SEIKO	ESTORQ Provider	ESTORQ, ES-Gripper	✓	✓	1.9.0
DENSO	AN Provider	AN series	✓	✓	1.7.0
DENSO	FD Provider	FD2 series	✓	✓	1.10.0
DENSO	IC Card Provider	PR-450, PR-550, QK12-IC	✓	✓	1.0.3
DENSO	Q-Platform Provider	Q-Platform	✓	✓	1.2.0
DENSO	Scanner Provider	AT series, GT series, QK series and other scanners	✓	✓	1.2.0
DENSO	SE1-HU-P Provider	SE1-HU-P	✓	✓	1.11.0
DENSO	UR20 Provider	UR20 series	✓	✓	1.4.0
DENSO	UR30 Provider	UR30 series	✓	✓	1.7.0
DENSO	UR40 Provider	UR40 series	✓	✓	1.9.0
HOKUYO AUTOMATIC	URG-04LX Provider	URG-04LX	✓	✓	1.0.3
Ishida	DACS-G Provider	DACS-G series	✓		1.12.0
KEYENCE	FSN40NUEP1 Provider	FS-N40	✓	✓	1.3.0
Mettler Toledo	WMF204C Provider	WMF204C	✓	✓	1.2.0
Murata Manufacturing	Wireless sensing solution gateway Provider	Gateway for wireless sensing solutions	✓		1.16.0
NITTA	IFS Provider	6-axis force sensor	✓	✓	1.0.3
OJIYA SEIKI	ad-L8 Provider	ad-L8 (Digital type air micrometer)	✓	✓	1.0.3
OMRON	V600 Provider	V600 (Compact ID controller)	✓	✓	1.0.3
OMRON	ZN-CTX21 Provider	ZN-CTX21	✓		1.16.0
OMRON	ZN-PD-S Provider	ZN-PD03-S, ZN-PD50-S	✓		1.11.0
Parker	WirelessMSCL Provider	WSDA-2000, WSDA-200-USB, WSDA-Base-101, WSDA-Base-104 (*4)	✓		1.15.0
SINTOKOGIO	ZYXer Provider	ZYXer Low load model, Standard model, Middle load model, High load model	✓	✓	1.11.0
Sugisaki Meter	Torque Provider	Torque tester	✓		1.0.3
Takasu Giken	RLW Provider	Compact torque sensor	✓	✓	1.0.3
Unipulse	TMF Provider	Torque meter, Force measurement	✓	✓	1.0.3
WACOH	DynPick Provider	DynPick series (Force sensor)	✓	✓	1.0.3
WACOH	WDF-6A Provider	6-axis force sensor	✓	✓	1.0.3

TOP

HID

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
DENSO	TPComm Provider	Teaching pendant	✓	✓	1.0.3
SensAble	PHANTOM Provider	PHANTOM	✓	✓	1.0.3
―	3D mouse Provider	3D mouse	✓	✓	1.0.3
―	DirectInput Provider	DirectInput-supported device	✓	✓	1.0.3
―	Joystick Provider	Windows-supported joystick	✓	✓	1.0.3

TOP

Other

Manufacturer	Provider Name	Target	IoT Data Share		Version (*)
Manufacturer	Provider Name	Target	Professional	Standard	Version (*)
CCS	PD3 Provider	PD3 series (Digital dimmer power source for LED light)	✓	✓	1.0.3
CCS	PDS Provider	PDS-10, PDS-30 (Digital dimmer power source for LED light)	✓	✓	1.0.3
CONTEC	SMC Provider	SMC board	✓	✓	1.0.3
EPSON	ESCPOS Provider	ESC/POS command-supported printer	✓	✓	1.2.0
ESPEC	TempHumi Provider	Temperature chamber	✓		1.9.0
ESPEC	ThermalShock Provider	Environmental test chamber	✓		1.9.0
ETAC Engineering	NEOCOM Provider	NEO series	✓		1.7.0
flexfactory	anyfeed Provider	anyfeed	✓	✓	1.0.3
FUJI	MES Interface (Host Interface) Provider	Fujitrax	✓		1.12.0
HIOKI E. E.	LR8400 Provider	LR8400 series	✓		1.9.0
Hitachi Appliances	HeatShock Provider	Thermal shock chamber	✓		1.3.0
Hitachi Appliances	ThermoStat Provider	Thermostat	✓		1.3.0
JRCS	SMS-55 Provider	SMS-55	✓		1.15.0
KEBA	ACF Provider	Active Contact Flange	✓	✓	1.0.3
KEYENCE	LaserMarker Provider	Laser marker	✓	✓	1.7.0
KIKUSUI ELECTRONICS	VISACOM Provider	PIA4800	✓		1.9.0
Leimac	IPPA Provider	IPPA series (LED lighting pulse controller)	✓	✓	1.0.3
MEIKYO ELECTRIC	WATCHBOOT Provider	WATCHBOOT L-zero	✓		1.2.0
OPTEX FA	OPPD Provider	OPPD	✓	✓	1.2.0
Panasonic	ANB Provider	ANB86001 / 3 (Digital dimmer power source for light)	✓	✓	1.0.3
PATLITE	PNS Provider	NH series (Network monitoring signal tower)	✓		1.0.3
PATLITE	WDR Provider	WDR series	✓		1.6.0
PATLITE	WDR-PRO Provider	WDR-L(E)-Z2, WDR-L(E)-Z2-PRO, WDR-L(E)-Z2-PRO-L	✓		1.11.0
SATO	SBPL Provider	CLNX-J series	✓	✓	1.10.0
Schneider Electric Japan Holdings	Memorylink Provider	Pro-face series	✓		1.7.0
SHIBAURA MACHINE	S50V50 Provider	S50, V50, V70	✓		1.9.0
Strawberry Linux	USBRH Provider	USBRH-FG	✓	✓	1.0.3
Sumitomo Heavy Industries	InjectionMolding Provider	Injection molding	✓		1.3.0
T&D	TR7nw Provider	TR-7wb / nw series	✓		1.7.0
THE JAPAN STEEL WORKS	J-ADS Provider	J-ADS series	✓		1.9.0
THE JAPAN STEEL WORKS	J-EL3AD Provider	J-AD series, J-EL3 series	✓		1.7.0
Toshiba Tec	TPCL Provider	B-EX series	✓	✓	1.15.0
Toyo Machinery & Metal	PLCS12 Provider	Injection molding	✓		1.3.0

TOP

* Indicated by the version when the provider was added

*1. Need to purchase additional license from the manufacturer
*2. Need to purchase additional license from DENSO WAVE
*3. Compatible with only Windows XP
*4. Discontinued products
*5. If you would like to use this provider, please contact us here

Data Analysis
Cloud Connector for Microsoft Azure

Data Analysis

Data Analysis is a function to analyze the data collected by IoT Data Share without complicated programming, and to visualize the analysis result and process on IoT Data View dashboard.

* Data Analysis is a license product to activate related IoT Data Share / IoT Data View function.
* "IoT Data View" is required to visualize the analysis result.

TOP

Cloud Connector for Microsoft Azure

Cloud Connection for Microsoft Azure is a function of IoT Data Share to publish the collected data to Microsoft Azure just by simple settings, without programming.

①IoT device link function

Adds dedicated items and tools for Microsoft Azure on the configuration screen.
By configuring connection with dedicated tools and controller property settings, you can easily establish integration with Microsoft Azure, and this reduces configuration time to 1/5 of conventional time.

②Dedicated action function

Adds four dedicated functions for Microsoft Azure as trigger action functions.
Flexible configuration of device twin receive/send, telemetry send, and Teams message send for each item is possible.

③System monitoring function

You can link IoT Data Share installed PC with IoT devices defined in Azure IoT Hub.
Microsoft Azure can get IoT Data Share / IoT Data Server information like project status and version information, enabling status monitoring.

* Cloud Connector for Microsoft Azure is a license product to activate related IoT Data Share function.

Microsoft, Windows, Azure and Dynamics are trademarks or registered trademarks of Microsoft Corporation in the U.S. and / or other countries.

TOP
