IoT Data Server Field-B

We announced the field-network compatible data integration controller "IoT Data Server Field-B", which collects information from various devices in the factory and realizes the smart factory, and will be released from April 12.



To realize a smart factory, it is crucial to connect various devices in the factory. In order to promote your smart factory, we have provided "IoT Data Server" that enables program-less connection with any device to collect, process, save, notify and publish data since 2018.



In addition to the basic functions mentioned above, IoT Data Server Field-B supports field networks including EtherNet/IP, PROFINET, EtherCAT, DeviceNet, and PROFIBUS all over the world, greatly expanding the target of connectable devices.


We will add "IoT Data Server Field-B" that supports various field networks to a new product line-up and contribute to the needs of a wider range of customers.



■Overview
　Product name: IoT Data Server Field-B
　Price: Discretionary price



Product name		IoT Data Server
		Field-B	Premium-D	Basic-D	Entry-D

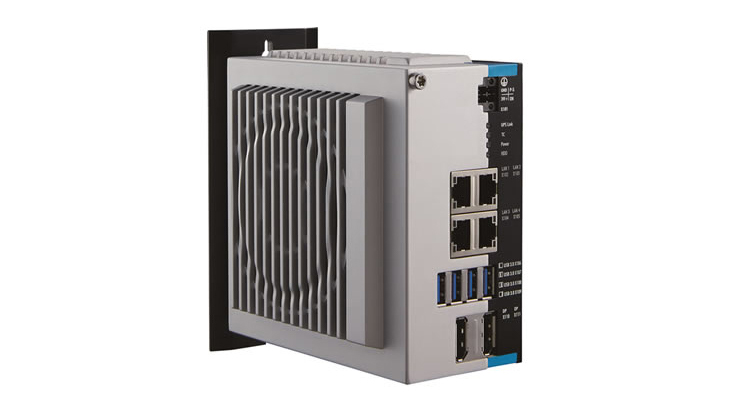

Appearance
Category		Field-net Type	High-performance Type	Standard Type	Low-cost Type
Target user		For realtime data processing and field network connection	For large scale equipment: to connect a lot of devices		For small scale equipment: to IoT at affordable price
Specifi- cations	CPU	Intel® Core i5-7500	Intel® Core i7-6820EQ	Intel® Core i5-6440EQ	Intel® Atom E3845
	OS	Windows 10 IoT Enterprise	Windows 10 IoT Enterprise		Windows 10 IoT Enterprise
	Memory	8 [GB]	8 [GB]		4 [GB]
	Storage	SSD 160 [GB]	SSD 64 [GB] + 128 [GB]		SSD 64 [GB]
	Size	W145 [mm] × D78.6 [mm] × H150 [mm] (Including mounting plate)	W246 [mm] × D270 [mm] × H107.2 [mm] (Except for projection part)		W236.5 [mm] × D160.8 [mm] × H60 [mm] (Except for projection part)
	Weight	1.7 [kg] (Except for projection part)	5.8 [kg]		2.8 [kg]
Functions	Collect	More than 180 providers*1 for various device connection	More than 180 providers*1 for various device connection		More than 150 providers*1 for various device connection
	Publish	Server functions for ORiN, OPC UA, OPC DA interface	Server functions for ORiN, OPC UA, OPC DA interface		Server functions for ORiN interface
	Visualize	Built-in dashboard creation and publishing functions	Built-in dashboard creation and publishing functions		—

1. *1. The name of the interface defined by the ORiN Consortium that absorbs differences between models and manufacturers to connect various devices and standards.
