Protect your robot controller from harsh environments where equipment is exposed to oil, dust, and other contaminants. The product offers the same waterproof performance as the previous design, but at a lower price.
Supported controllers|
RC8A(standard specifications, safety motion specifications, and safety I/O-less specifications)、RC8

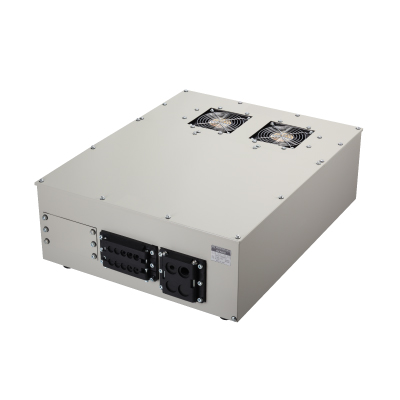

The RC8 Controller Protective Box Light delivers the same IP54 protection as the original RC8 Controller Protective Box, but at a more affordable price point.

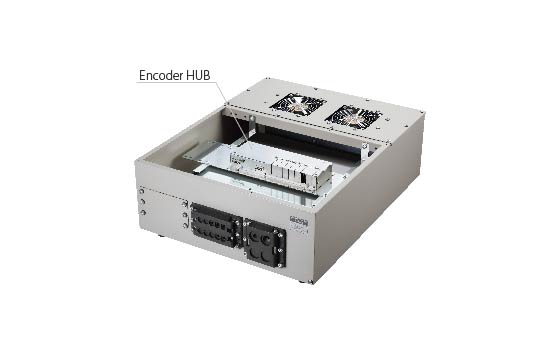

The box can accommodate an encoder HUB.

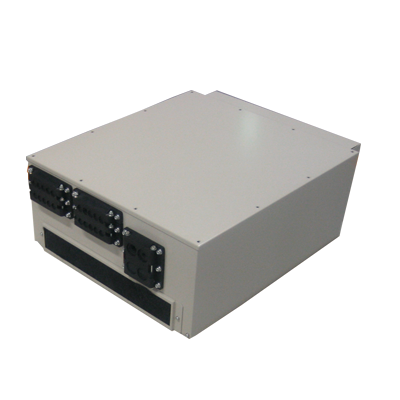

Use the original RC8 Controller Protective Box with the following products:
• VM Series
• VS068/087 with additional axis
• MC8 (with total motor capacity of 2,000 W or greater)
RC8 Controller Protective Box Light | |||
Supported controllers | RC8 type controllers (with space for encoder hub)*² | ||
Operating environment (temperature and humidity) |
During operation | 0°C to 40°C, 90% RH or less (non-condensing) | |
During storage or transport | -10°C to 60°C, 75% RH or less (non-condensing) | ||
Protective structure | IP54 or equivalent | ||
Installation orientation | Freestanding | ||
Weight | About 17.5 kg (not including robot controller) | ||
Power supply*¹ | 3-phase | 185 to 253 V AC (200 V AC -7% to 230 V AC +10%) | |
Single-phase | 207 to 253 V AC (230 V AC ±10%) | ||

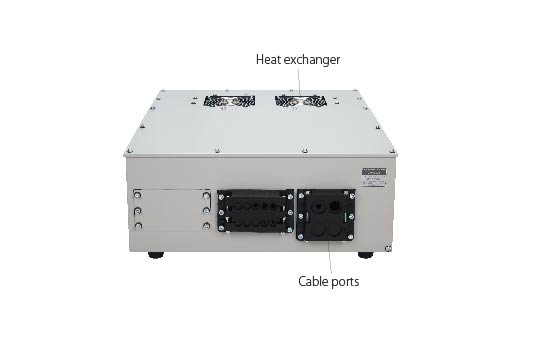

Heat exchanger | |||
Cooling capacity | 25 W/K (calculated for temperature difference of 1°C) | ||
Power supply | From controller power supply (using single-phase 200 V AC from branch at terminal block) |
