Easy Ethernet connectivity

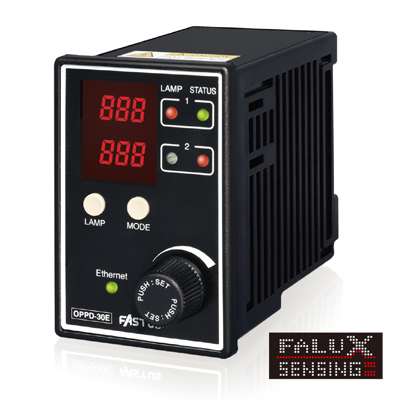

With support for DHCP, the OPPD-30E can automatically obtain IP addresses and
other information necessary for connection. Communication can
be easily established.

Brightness/temperature monitoring and feedback control

The initial brightness can be maintained by measur­ing brightness with the built-in sensor in the light­ing and performing monitoring and feedback con­trol with the controller. The OPPD-30E also makes it possible to visualize the amount of lighting dete­rioration externally, which is useful for predictive lighting maintenance.

Summary of specifications

- Connectable lighting: Max . 30 W (total for 2 channels)
- Input voltage: 24 VDC
- Dimming control: PWM dimming method
- Frequency: 100 kHz at 1,000 gradations
- Output voltage: 12 VDC, Illumination output:2 channels/30 W
- Outer dimensions: W 48 x H 72 x D 72 mm
