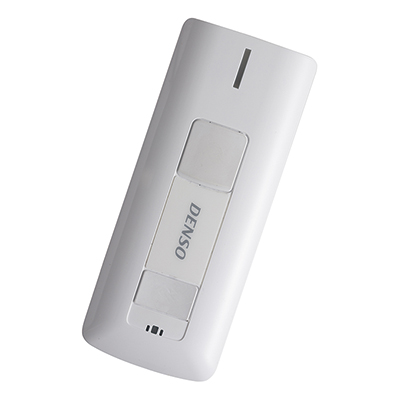

SE1-BUB-C

Pocket RFID

Inquiries by email
Demonstration machines
Downloads

Features
Specification
Option
Software

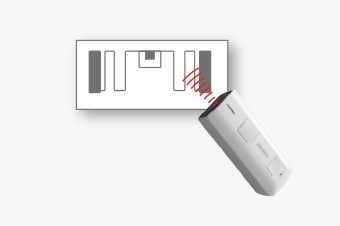

Optimal for reading/writing on individual tags

The reading distance of about 3 cm (1) is optimal for one-by-one RF processing. It eliminates the risk of reading surrounding RF tags and enables smooth one-by-one RF tag processing. This device provides the kind of comfort that a high-output RF device for wide-area bulk reading can’t offer.

(1) Distance depends on RF tags.

Convenient portability

Users can carry this small pocket device throughout the day without any stress. A specified low-power model, it can be used anywhere without a license. Recommended for use at a site where all members need to have scanners.

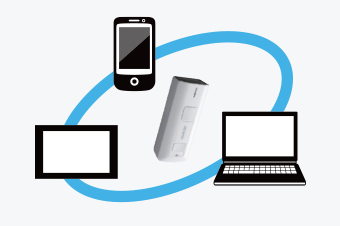

Easily connectable with smartphones and tablets

Can be easily connected to Bluetooth®-equipped devices simply by reading the code for the setting. Users can check inventory right on the spot at their stores while serving customers.

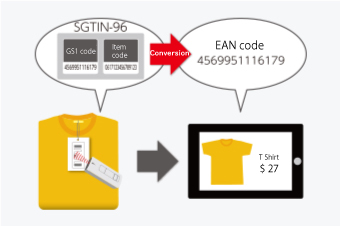

Easy to switch to the use of RF tags

Equipped with a SGTIN-96 to JAN code conversion function (2), this device allows for the use of JAN code-based apps. Because the same scanner is used for barcode and RF tag reading, you can smoothly switch to the use of RF tags without any differences in the ease of handling.

(2)Only for RF tags of SGTIN-96 format.

＊Sales availability varies by country and region. Please contact us for more information.

Model		SE1-BUB-C
RFID	Readable and recordable RF tag	ISO/IEC18000-63 TypeC(EPCglobal Class1 Gen2)-supported tag
	Transmission rate	40kbps
	Scanning distance	30mm(1)
Scanner	Reading system	Advanced scan plus(CCD)
	Readable codes	EAN-13/8(JAN-13/8)、UPC-A/E、UPC/EAN(With add-on)、Interleaved 2 of 5(ITF)、CODABAR(NW-7)、 CODE32、CODE39、CODE93、CODE128、GS1-128(EAN-128)、MSI、Plessey、GS1 DataBar(RSS)
	Minumum resolution	0.125mm
	PCS value	0.3 or more
	Slope angle/elevation angle	±50°
	Scan confirmation	Visual (3 color LED), acoustic(signal sound)
Communication Interface	Interface	Bluetooth　Ver.2.1＋EDR based class2
Communication Interface	Profile	SPP、HID
Power	Power supply	eneloop×2
Power	Operating time	12 hours(2)
Environmental reqquirements	Protection rating	IPX2
	Drop resistance(3)	１.2ｍ x 6times drop on concrete floor
	Operating temperature(4)	-5～50℃
Weigh（excl. batteries）		Approx. 115g

1.The communication distance varies according to the target tag. The communication distance is subject to charge depending on the conditions in the actual environment.
2.Reading barcodes once every five seconds.
3.Result obtained in a test under regular temperature is shown and not meant as a guarantee.
4. 0 to 40℃ during charging.

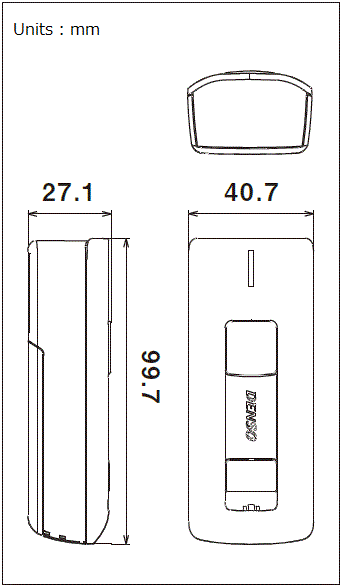

Dimensional diagram

Strap

	名称	Model
	Neck Strap	NSBHT-1300
	Hand Strap	HSSE1

Charger

	Model	Charging time	Power Supply
Single device charger	CH-SE11	11 hours	AC adoptor
Four-device charger	CH-SE14	11 hours	AC adoptor

Silicone cover

		型式
	Silicone cover	Silicone cover for SE1 series(Clear)
	Silicone cover	Silicone cover for SE1 series(Black)

Communication Unit

名称	Model	Communication		Communication
名称	Model	Scanner ⇔ BA	BA ⇔ Host	Power supply
Bluetooth^® Communication Unit	BA11-RKU(1)	Bluetooth®Specification Ver.2.0	RS-232C/ PS/2Keyboard I/F /USB(2)	Supplied from the connection target
Bluetooth^® Communication Unit	BA20-RU(1)	Bluetooth®Specification Ver.2.1+EDR	RS-232C/USB(2)	Supplied from the connection target

1. This product has a built in wireless system based on Blutooth Wireless Technology.
2. Supports both USB keyboard interface and USB-COM interface. Please use USB-COM interface mode for configuration.
