BHT-600｜Hand-held terminal｜products｜automatic data capture

BHT-600(End of sale)

A tough body strengthened through demanding onsite use combined with reliable performance.

Inquiries by email
Demonstration machines
Downloads

Feature
Specifications
Option
Software

High depth scanning

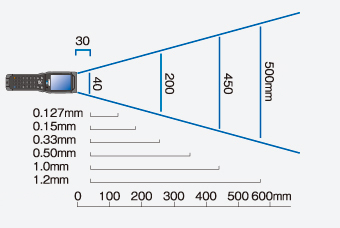

High-depth scanning that is able to support a range of tasks, from close proximity scanning to long range scanning.

Scanning Angle

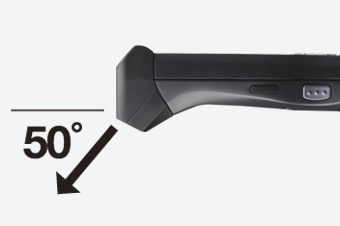

From the upper to lower portions of shelves, a 50° scanning angle is set to allow for easy scanning while checking the screen.
Work can also be carried on desks without strain.

QVGA color LCD

With an icon display for the task menu, intuitive and easy-to-follow screen design is now possible

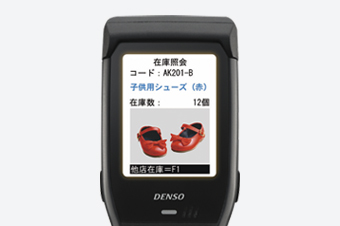

Company logos, product images and the like can also be displayed

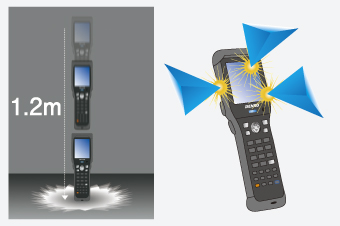

Drop resistance performance and Strengthened LCD protective plate

Achieves a high level of durability to meet the demands of actual operation using the technology we´ve acquired as a pioneer in barcode Hand-held terminals.
The thickness of the LCD protective plate has been increased, offering enhanced impact resistance that is double the strength of previous models.

Keyboard

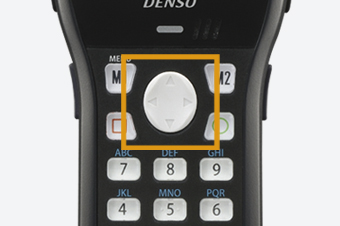

User-friendly cursor keys for menu selection or image switching

Other

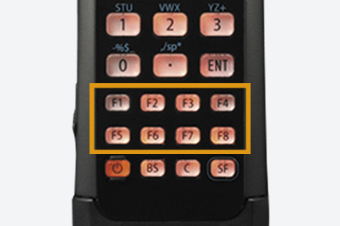

Equipped with eight function keys which can be assigned task selection or functions

Compatibility

As for the compatibility, please check FAQ pages.
https://www.denso-wave.com/en/adcd/support/faq/bht-os/compatibility/

FAQ contents are available only for QBdirect members. Click here to login.

			Barcode Model		2D Code Model
			Batch model	Wireless LAN Model	Batch model	Wireless LAN Model
Model			BHT-604B	BHT-604BW	BHT-604Q	BHT-604QW
Memory			16 MB (user file area approx. 10 MB)		16 MB (User file area approx. 8.7MB)
Display	Size (1)		QVGA (240 × 320 dots)
	Inches		2.8 inch
	Display device		Liquid crystal dot matrix color display
Scanner	Pointer		Laser		Area Sensor
	Readable Codes	2-dimensional codes	-		QR Code, Micro QR Code, DataMatrix (ECC200),PDF417,Micro PDF417, Maxi Code,GS1 DataBar Composite
	Readable Codes	Barcodes	EAN-13/-8(JAN-13/-8), UPC-A/-E, UPC/EAN with add-on,Interleaved 2 of 5, CODABAR(NW-7), CODE39, CODE93,CODE128, GS1-128, STF, GS1 DataBar		EAN-13/-8(JAN-13/-8), UPC-A/-E, UPC/EAN with add-on,Interleaved 2 of 5, CODABAR(NW-7), CODE39, CODE93,CODE128, GS1-128, GS1 DataBar
	Minimum Resolution	2-dimensional codes	-		0.25 mm
	Minimum Resolution	Barcodes	0.127 mm		0.15 mm
	Scanning reference position		-		105 mm
	Marker		-		Area guide marker
	PCS Value		-		0.45 or higher
	Skew angle		-		360°
	Angle ofelevation/slope		-		±35°
	Scanning Confirmation		3-color LED (red, green & blue), beeper and vibration
Key pad	Number of keys		28 keys (incl. power key) + 2 trigger keys + cursor keys
Communications	Optical I/F	Communication System	Infrared (IrDA Ver.1.2 compliant)
		Communication Speed	4 Mbps MAX.
		Transmission Distance	Approx. 0.15 m MAX.
	Wireless I/F	Standard	-	IEEE802.11 b/g	-	IEEE802.11 b/g
		Wavelength	-	2.4 GHz	-	2.4 GHz
		Number of Channels	-	13	-	13
		Transmission Distance(2)	-	Indoors: Approx. 75 m, Outdoors: Approx. 200 m	-	Indoors: Approx. 75 m, Outdoors: Approx. 200 m
		Modulation System	-	Spread spectrum system (direct sequence)Orthogonal frequency division multiplexing	-	Spread spectrum system (direct sequence)Orthogonal frequency division multiplexing
		Communication Speed(2)	-	54 Mbps MAX.	-	54 Mbps MAX.
		Access System	-	Infrastructure mode, ad-hoc mode	-	Infrastructure mode, ad-hoc mode
		Security	-	WEP40,128, WPA-PSK(TKIP), WPA2-PSK(AES),WPA-1x(TKIP/EAP-TLS, PEAP),WPA2-1x(AES/EAP-TLS, PEAP), 802.1x(EAP-TLS, PEAP)	-	WEP40,128, WPA-PSK(TKIP), WPA2-PSK(AES),WPA-1x(TKIP/EAP-TLS, PEAP),WPA2-1x(AES/EAP-TLS, PEAP), 802.1x(EAP-TLS, PEAP)
	Cable I/F		RS-232C (115.2 kbps MAX.)
Power supply	Main battery		Lithium-ion battery
	Operation hours		40 hours(3)	40 hours(3)	27 hours(3)	27 hours(3)
	Operation hours		40 hours(3)	24 hours(4)	27 hours(3)	16 hours(4)
Auxiliary Functions			clock, beeper, vibration, low-battery indication, remote wake-up function
Environment Requirements	Operating Temperature		-5°C to 50°C
	Protection rating		IP54
	Drop resistance(5)		30 times from 1.2 m
Weight (incl. battery)			Approx. 265 g		Approx. 275 g

1. The LCD panel is manufactured using high-precision technologies. While its effective pixel count is over 99.99%, please be aware that there may be up to 0.01% of dead or stuck-on pixels.
2. Communication speed and transmission distance are theoretical values, and may vary according to actual environmental conditions.
3. In the case of 2 scans every 10 seconds, at backlight level 1.
4. In the case of Scanning : Wireless communication : Screen rewriting : Standby = 1:1:1:20. Backlight level: 1. Wireless device turns ON only during communication, otherwise it turns OFF.
5. Tested value, not guaranteed.

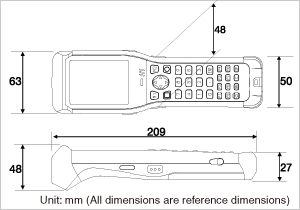

Dimensions

Communication

A lineup of cradles that perform data communications between BHTs and higher ranking units with various interfaces.

	Type	Communication			Charge time	LEDs	Power source
	Type	BHT⇔CU Communication system	BHT⇔CU Communication speed	CU⇔host Communication system	Charge time	LEDs	Power source
-	CU-601	Infrared (IrDA-SIR Ver1.2 [Low Power] compliant)	115.2kbps MAX.	RS-232C(3)	Apporox.3 hours	Power ON & Communication status	AC adapter(5)
-	CU-611	Infrared	4Mbps MAX.	Ethernet (10BASE-T)(3)	Apporox.3 hours		AC adapter(5)
-	CU-621(1)	Infrared(2)	115.2kbps/ 460.8kbps MAX.	USB1.1Full-Speed compliant(3)	Apporox.7 hours(4)		Connection target

1. The communication unit may not be successfully connected depending on the type of PC or USB-HUM model being used; Check the connection prior to use.
It is necessary to purchase the AC adapter (sold separately) when the connected device does not have power supply or the scanner needs recharging while the connected device is turned off or suspended.
2. Complies with IrDA-SIR Ver1.2[Low Power] up to 115.2kbps.
3. Cables are optional.
4. Charging time depends on the power source. When AC adapter is used, charging will take about 3 hours.
5. The AC adapter is optional.

Charger

Model	Type	Charging time	Power supply	Size(mm)
CH-201B	Battery charger	Standard battery：approx.3H Thin battery：approx.2H	AC100V	80(D)×68(W)×17.5(H)
CH-651	Scanner charger	1 unit, charging time: approx. 3H	AC adapter(1)	134.4(D)×114(W)×92(H)
CH-704	Multiple battery charger	Approx. 3H		205.5(D)×190(W)×38.2(H)
CH-654	Multiple battery charger	Approx. 3H		-

1. The AC adapter is optional.

Battery

Backup batteries for BHTs

	Type	Model	Feature
	Lithium-ion battery	BT-20LB	Lithium-ion battery

Cable

Name	Model	Interface	Shape	Length
USBcable 4PAtype-4PBtype(1)	CB00-US1400/4A-4B-01	USB	PC(4PAtype)-CU(4PBtype)	1.4m
I/Fcable D9S-D9S cross(1)	CB00-RS1500/9-9-01	RS-232C	PC(Dsub9S)-(Dsub9S)	1.5m
IFcable BHT-PC/RS(1)	CBBHT-RS1000/3-9-02	RS-232C	PC(Dsub9S)	1m

1. Cables are optional.

Case and others

Exclusive covers protecting BHTs from dirt.

	Type	Model
	Soft case	SCBHT-600Q
	Soft case	SCBHT-600B
	Belt holster	WHBHT-7000/7500
	Neck strap	NSBHT-500

Accessories

・Hand strap
・Operation guide
・Lithium-ion battery BT-20LB
・Instructions manual can be downloaded from our technical support site QBdirect.

Development Tools

Basic tool for BHT application development

Name	Feature
BHT-BASIC4.0 Development Pack	The software package required for BHT application development.
BHT-BASIC4.0Transfer Utility	Communication software to perform data communications between BHTs and PCs.
BHT-BASIC4.0Transfer Utility DLL Pack	Dynamic link library (DLL) files that can be used with development languages such as Visual Basic and Visual C++, as well as having access to the communication functions of the transfer utility.
BHT-BASIC4.0Remote Debugger	Significantly reduces debugging work in BHT software development.
BHT-BASIC4.0 Program Converter (Free)	A supplementary tool that converts programs created in the BHT-BASIC3.6 compiler to programs that can be used on BHT-300 series models, available for download from QBdirect.
BHT LAN Communication Library	Library to reduce development related to LAN communications.

BHT Software

Application software for BHT

Name	Feature
BHT Term Emulator	Software enabling the use of a wireless BHT as a terminal in online business systems such as those operated on AS/400 systems (wireless models only)
BHT Browser	Browser software enabling the use of a wireless BHT as a web client in web-based business systems (restrictions depending on model and version)
