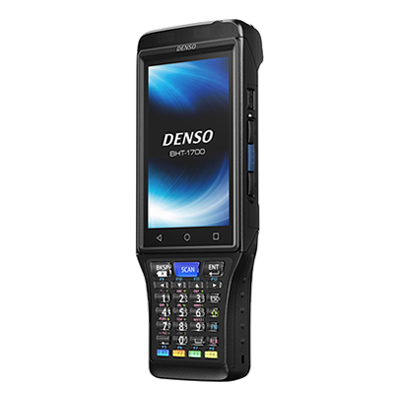

BHT-1700｜Hand-held terminal｜products｜automatic data capture

BHT-1700

Android™ 7.1.2
Model equipped with a numeric keypad to increase one-handed operability

3-year warranty
Inquiries by email
Demonstration machines
Downloads

Feature
Specifications
Option
Software

Creation of new value in addition to Higher Operational Efficiency

The combination of Android^TM(1), 4G LTE, and Google Mobile Service(2) integrated with a range of application software creates unlimited new value in addition to increase in existing operations efficiency.

Robust Enough to Keep Operations on Track

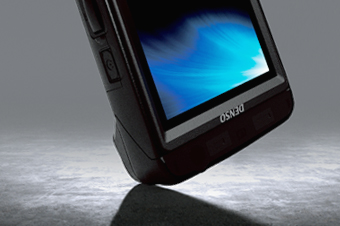

Withstands Drops from Height of 2.5m

The terminals are built to be robust, smart terminals with lightweight stylish design. The pursuit of a robust yet lightweight design has resulted in terminals that do not need unnecessary components.

Strong Yet Lightweight Materials

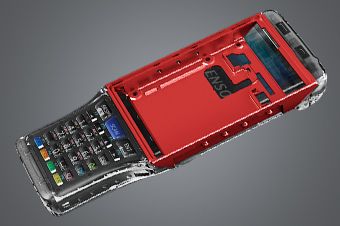

The frame is made from a highly rigid, yet light magnesium alloy while the corners of the main unit, which are most likely to be subject to damage, have a more optimal design. The exterior jacket with few seems is made from durable polycarbonate and protects the terminal from dust and water droplets.

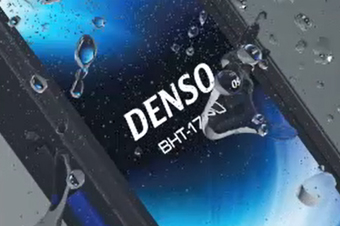

Protection Level as High as IP67 Achieved by Advanced Sealing Technology

For higher protection against dust and water droplets, high-performance sealing materials developed by DENSO for manufacturing of automotive components are adopted for the numeric keypad, side key, battery cover and other components to ensure the correct functioning of the terminal even under unfavorable conditions.

Tempered Glass Provides Strength and Visibility

For the display , chemically strengthed Dragontrail® (3)PRO glass panel is adopted to protect the screen from external pressure and drop-related shocks. The display is also very hard and highly resistant to scratches, ensuring the terminal's usability even in punishing environments.

Superior Reading Performance Realizes High Efficiency

New, More Powerful Reading Module

A new module which can read codes at a distance of 35mm. The module will not read codes by mistake and can read even stained, blurred or distorted codes instantly, eliminating the need for repeated scaning.

Exclusive CPU for Stable Scanning Performance

In addition to the quad-core CPU for running application software, an exclusive CPU is mounted to the terminal for reading and decoding. This allows multiple high-load applications to be run on the terminal while the scanner is reading codes smoothly and promptly.

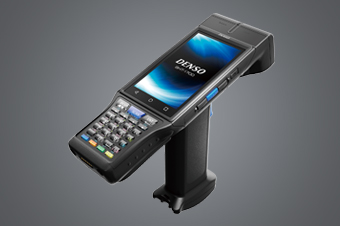

The Long-Range Terminal:A Scanning Distance is 10m

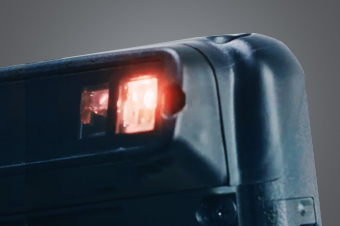

Even workers who are on a forklift can easily scan a code attached to an item on a shelf, substantially improving operational efficiency. The terminal is the first handheld terminal in the world to be equipped with four lamps (conventional products have only two) for ease of scanning in warehouses and other poorly lit places.

Easy to Use for On-site Workers

Check the Terminal's Screen While Scanning

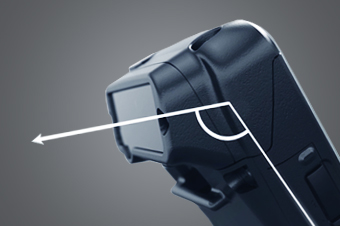

Based on our experience at a wide-range of worksites, DENSO WAVE developed the uniquely angled scan head for the reading module.

Customizable for Better Use

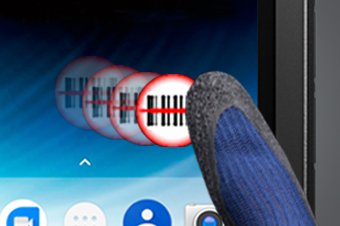

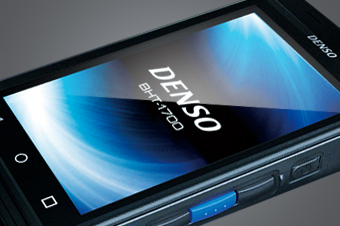

In addition to the trigger key, multiple magic keys are arranged on the side of the terminal for flexible key assignment of frequently-used functions. "Touch Trigger" can also be placed in an easy-to-tap position on the screen.

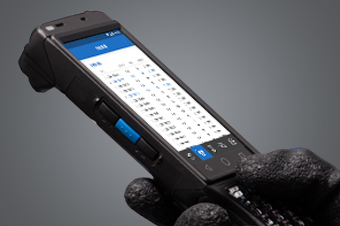

Touch Panel Operable with Gloves on

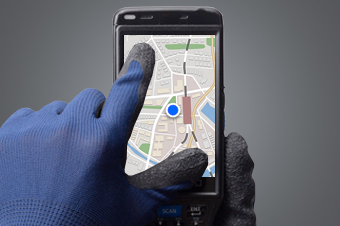

The capacitance multi-touch panel is intended for smooth operation. The user can readily operate the touch panel even while wearing gloves, thanks to the technology adopted to give the screen high sensitivity.

Numeric Keypad to Increase One-handed Operations

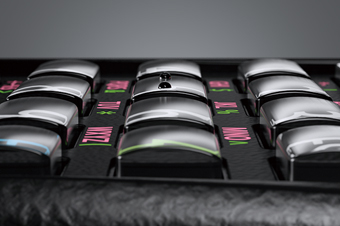

For one-handed operations, frequently-used buttons are placed within easy reach to the thumb. The dome-shaped keys allow the user to press the buttons precisely, even whit wearing gloves.

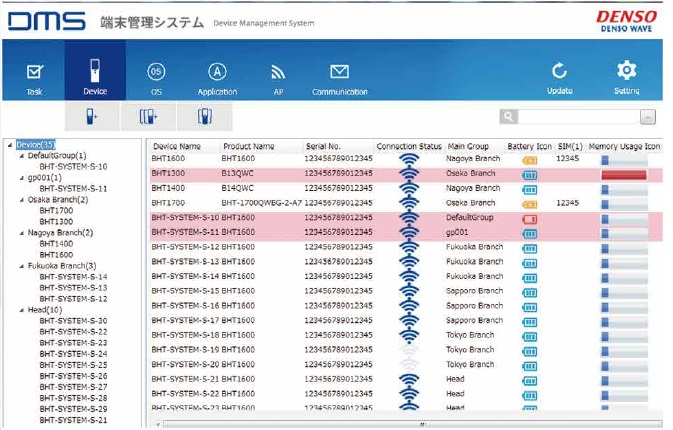

Central Management of BHT Devices Across the World with Software(4)

The BHT DMS(Device Management System) is composed of a client application designed to run on terminal and a management application on a PC. The DMS is used to manage the terminal, update the application software and OS, transmit master files and others, and collect result files. Central management based on a network will reduce the burden imposed on the system administrator.

1. Android is a trademark of Google LLC.
2. Google Mobile Service is a software package contains application and services from Google.
3. 「Dragontrail®」is a registered trademark of Asahi Glass CO.,Ltd
4. The software is available for a fee
*Sales availability varies by country and region. Please contact us for more information.

			2D code model				2D code long model	Barcode model
Model			Wireless LAN		Wireless LAN+Wireless WAN		Wireless LAN	Wireless LAN
Model			BHT-1700QWB-1	BHT-1700QWB-2	BHT-1700QWBG-1	BHT-1700QWBG-2	BHT-1700QLWB-P	BHT-1700BWB-1
OS			Android^TM7.1.2
CPU			1.3GHz Quad-core
Memory	RAM		2 GB
Memory	Flash memory		16 GB
Display	Number of dots(1)		4.0inch WVGA（480×800 dots）
	Display system		Liquid crystal dot matrix display（Color）
	Backlight		White LED
Scanner	Reading system		Area sensor				Auto focus Area sensor	Advanced scan plus（CCD）
	Readable codes	2D codes	QR Code®、Micro QR Code、SQRC®、iQR Code、PDF417、Micro PDF417、MaxiCode、DataMatrix（ECC200）、GS1 Composite				QR Code®、PDF417、 Micro PDF417、MaxiCode、DataMatrix（ECC200）、 GS1 Composite	̶
	Readable codes	Barcodes	EAN-13/8（JAN-13/8）、UPC-A/E、UPC/EAN（with add-on）、Interleaved 2 of 5（ITF）、Standard 2 of 5（STF）、Codabar（NW-7）、CODE39、CODE93、CODE128、GS1-128(EAN-128)、GS1 DataBar（RSS）
	Minimum resolution	2D Codes	0.167 mm				0.25 mm	̶
	Minimum resolution	Barcodes	0.125 mm				0.15 mm	0.125 mm
	Marker		Area guide marker				Point marker	-
	Scan confirmation		Blue LED、Speaker、Vibelator
Keypad		Keys	31keys (2)+3 trigger keys				31 keys(2)+4 trigger keys	31 keys(2)+3 trigger keys
Touch screen			Dragontrail® PRO
Network	Wireless LAN(3)	Compatible standards	IEEE802.11a/b/g/n compliant
		Frequency band	IEEE802.11a/n:5.2GHz、5.3GHz、5.6GHz、IEEE802.11b/g/n:2.4GHz
		Transmission distance(4)	IEEE802.11a: Indoors＝approx.50 m、IEEE802.11b/g/n: Indoors＝approx.75 m、Outdoors＝approx.200 m
		Security	Encryption：WEP(40/128)/TKIP/AES WPA authentication：WPA/WPA2 User authentication：PSK/EAP-TLS/PEAP
	Wireless WAN compatible standards		̶		4G LTE/3G/GSM、VoLTE		̶
	GPS		̶		A-GPS/GLONASS		̶
	Bluetooth®		Bluetooth®Ver4.1＋EDR/LE（Compatible authentication Profile:GAP/SDAP/HSP/SPP/GOEP/OPP/HFP（AG1.5）/PAN/A2DP/AVRCP/GAVDP/HID/PBAP/HOGP/MAP/GATT）
Card slot	Memory		Micro SDHC/SDXC(~128GB)
Card slot	SIM		-		Nano SIM ×2		-
Power supply	Main battery		Lithium-ion battery
	Operating time(5)	Standard battery	28 hours(6)		26 hours(7)		30 hours	34 hours(6)
	Operating time(5)	High-capacity battery	42 hours(6)		39 hours(7)		45 hours	51 hours(6)
NFC(8)			̶	Yes	̶	Yes	̶
Camera			̶	8MP auto focus	̶	8MP auto focus	̶
Environmental requirements	Operating temperature(9)		-20～50℃
	Operating fumidity		20 to 80％ RH (without dews)
	Protection rating		IP67
	Drop resistance(10)		1.5 m×60 times or more, 2.5 m				1.2 m×60 times or more, 2 m	1.5 m×60 times or more, 2.5 m
Weight（incl. battery）			約308 g				approx.438 g	approx.298 g

1. Although the effective number of picture elements is more than 99.99% thanks to high-precision technologies used to manufacture LCDs, allow thepossibility of some elements, less than 0.01%, that are missing or permanetly turned on
2. Incl. power key
3. IEEE802.11a:5.2GHz（W52）、5.3GHz（W53）are for indoor use only
4. The communication distance shown is a reference value, adn it may vary accordingly, depending on the actual environmental conditions. The transmission speed shown is a logical variable only, not the guaranteed value.
5. The described operating time is are ference figure under regular temperatures and may very depending on usage conditions.
6. Scanning to wireless communication to screen update to standby = 1:5:1:60. The Vibrator and buzzer are disabled.The wireless function is always enabled, and all other functions are disabled.
7. Scanning to scan update to standby = 1:30:270. Data is transmitted via a wireless WAN while the screen is displayed.
8. The NFC function needs to be well tested for readability by using the card that you will actually use.
9. Zero to 40 degrees Celsius when batteries are being recharged.
10. Results obtained in a test done by DENSO WAVE at room temperature. They are not meant to be guaranteed values.

Dimentions

Communication・Charger

Type	Model	Description
Communication Unit	CU-BU1-17(USB)	-
Communication Unit	CU-BL1-17(Ethernet)	-
4-slot battery charger	CH-1104	-
4-slot unit charger	CH-B4-17	-

Case and others

Type	Mocel	Description
Soft Case	SCBHT-1700(1)	-
Waist case	WHBHT-1100/1200(1)	-
Waist case	WHBHT-1700QL（Four 2D code long model）	-
Shoulder Belt	SBBHT-700(1)	-
USB Direct cable	CBBHT-US2000/C17-4A	-

Battery

Type	Model	Description
Battery	BT-110LA(Standard Type Battery Only)	-
	BT-170LA-C(Standard Type Battery + Battery Cover)	-
	BT-110L(High-capacity Battery only)	-
	BT-170L-C(High Capacity Battery + Battery Cover)	-

Components of a Set

・Main Unit
・Hand Belt(2)
・Hand Strap（Only for the 2D code long model）
・Stylus Pen
・Operation Guide

※Battery is not supplied with the product

(1)For Barcode model and the 2D code model
(2)Unusable for the 2D code long model

Development Tool

Model
BHT-1700 Series Software Development Kit for Android（SDK）(1)

Peripheral Software

Model
BHT DMS(Device Management System)(2)
BHTLink(2)

Pre-installed Software

Model	Features
Touch Trigger	Scan Button that can be repositioned on the screen
Scan Settings	Code setting/ Reading software（with keyboard interface）
OCR Reader(2)	Character reading software
Code Reader"Q"	SQRC and Frame QR reading software
BHT-Browser for Android	Operational browser for BHT devices
Application Launcher	Software to manage the permission/prohibition of the startup of various applications
BHT-DMS Client(2)	BHT management and operation support tool
Wlan Manager	Wireless LAN setting software with which site surveys are possible
