BHT-1400

Large screen, durability and single-handed operation

Feature
Specifications
Option
Software

Designed to deliver maximum productivity from your field force.

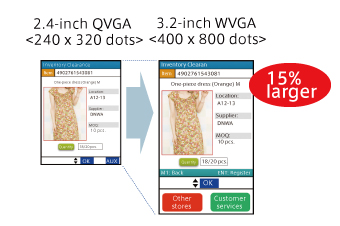

The 3.2-inch WVGA large screen enables easy operation

The high resolution BHT-1400 display ensures crystal clear visibility of your applications whether indoors or outdoors in bright sunlight.

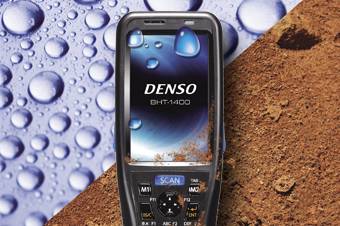

Operates in any environment IP65 rated

The BHT-1400 series has an IP65 rating and so can be relied upon to perform well even in the harshest of operational environments.

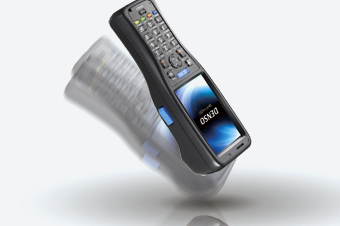

Highly durable, impact-resistant design

Durable polycarbonate is used for the BHT-1400 series to achieve best-in-class impact resistance. The BHT-1400 is designed to resist multiple drops during daily operations giving operators peace of mind about integrity of the product.

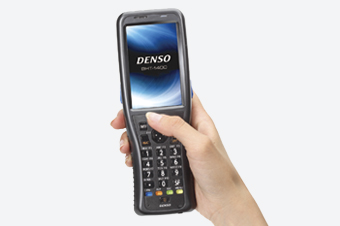

Ergonomic design facilitates easy single-handed operation

The BHT-1400 series is designed under the concept of “large screen model perfect for single handed operation.” The construction in the center of the grip makes it easier to hold and at the same time enables easy one-thumb operation. To further improve single handed operability, this product also has a nonslip grip for greater control.

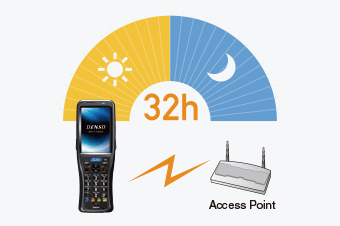

Extended operational capability from improved power save features

The unique power saving design enables continuous operation for up to 30 hours even when the wireless function is always enabled. This reduces the need for frequent charging and minimizes operational downtime

High-performance scanning brought to you exclusively by the manufacturer that developed the QR Code®

powerful reading algorithm, created exclusively by the manufacturer that developed the QR Code® enables high-performance reliable scanning that contributes to improvements in efficiency and productivity.

Support that provides peace of mind for management!!

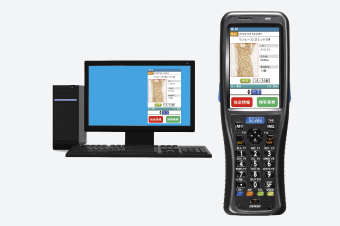

Remote desktop and web browser reduce development resource requirements

The remote desktop plug-in and web browser plug-in enable thin client implementation with lower development costs. They not only eliminate the need to develop applications for each device and thereby significantly reduce the time required for development, but also offer more advantages. Development with general-purpose languages such as HTML and JavaScript is possible, and it is not necessary for each device to update data.
Since the device itself does not contain any data, there are no security concerns.

Overseas on-site maintenance with“Global Support Service”

DENSO WAVE offers a Global Support Service, through which customers can receive on-site support locally. This ensures that, no matter where sourced, product returned for repair is handled expeditiously to minimize downtime.
* Prior application is required.

3-year warranty provides peace of mind

DENSO WAVE provides a three-year warranty to customers who have registered on its website, giving peace of mind. Our customer service personnel and sales representatives quickly respond to any issue our customers may experience including device failures and make every effort to ensure that customers can use DENSO WAVE's handheld terminals with confidence.

＊Sales availability varies by country and region. Please contact us for more information.

			2D code model	Barcode model
Type			BHT-1461QWB-CE	BHT-1461BWB-CE
OS			Windows® Embedded Compact 7
CPU			ARM Cortex-A8 800MHz
Memory	Flash ROM		2.0GB(1.2GB for user area)
Display	Number of Dots(1)		3.2 inch WVGA(480×800 dots)
	Display device		Liquid crystal dot matrix display（color）
	Back light		White LED
Scanner	Mode		Area sensor	Advanced scan plus (CCD)
	Decode	2D code	QR code, micro QR code, SQRC, iQR code, PDF417, micro PDF417, Maxi code, DataMatrix(ECC200), GS1 Composite	-
	Decode	Barcode	EAN-13/8(JAN-13/8), UPC-A/E、UPC/EAN(Add-on embedded), Interleaved 2 of 5(ITF), Standard 2 of 5(STF), CODABAR(NW-7), CODE39、CODE93, CODE128, GS1-128(EAN-128), GS1 Databar(RSS)
	Minimum resolution	2D code	0.167mm	-
	Minimum resolution	Barcode	0.125mm
	Reading reference position		100mm	110mm
	Marker		Area guide maker	-
	Scan Confirmation		LED in two colors:Blue/red, speaker, vibrator
Key input section	Number of keys		21keys(including power key) + cross cursor key + 3trigger Keys
Touch panel			Resistive; working load: 1N
Communication	Wireless LAN	Suitable standard	IEEE802.11b/g/nCompliant
		Frequency	2.4GHz band
		Communication distance(2)	IEEE802.11n：indoors＝approx. 50m, IEEE802.11b/g/n：indoors＝approx. 75m, outdoors＝approx.200m
		Transmission speed(2)	IEEE802.11b：11/5.5/2/1Mbps, IEEE802.11g：54/48/36/24/18/12/9/6Mbps, IEEE802.11n：65/58.5/52/39/26/19.5/13/6.5Mbps
		access method	Infrastructure mode
		Security	WEP40,128、WPA-PSK(TKIP,AES)、WPA2-PSK(TKIP,AES)、WPA-1x(TKIP,AES/EAP-TLS, PEAP, LEAP, EAP-FAST)、WPA2-1x(TKIP,AES/EAP-TLS, PEAP, LEAP, EAP-FAST)、802.1x(WEP/EAP-TLS, PEAP, LEAP, EAP-FAST)
	Bluetooth®		Bluetooth Ver.2.1 + EDR based class 2
Card slot			microSDHC or microSD(up to 32GB)×1(FAT32 compliant)
Power	Main battery		Lithium-ion battery
Power	Operating time(3)		35 hours(4)/32 hours(5)	36 hours(4)/30 hours(5)
Additional functionality			Clock, speaker, vibrator, battery and voltage in
Environmental performance	Operating temperature		-20 to 50℃(6)
	Security level		IP65
	Drop resistance(7)		Dropped from 2.0m/1.5m above concrete floor, on all 6 faces, 10 times each （total 60 times）
Mass(including battery)			Approx. 255g

1. Although the effective number of picture elements is more than 99.99% thanks to high-precision technologies used to manufacture LCDs, allow thepossibility of some elements, less than 0.01%, that are missing or permanetly turned on;
2. The communication distance shown is a reference value, adn it may vary accordingly, depending on the actual environmental conditions. The transmission speed shown is a logical variable only, not the guaranteed value.
3. The described operating time is are ference figure under regular temperatures and may very depending on usage conditions;
4. Scanning every 5 seconds. Backlight level 1.
5. When the ratio of reading, wireless communication, screen rewriting and holding durations are 1:1:1:20 under continued wireless operation and backlight level 1.
6. Zero to 40℃ when batteries are being recharged;
7. Result obtained in a test under regular temperature is shown and not meant as a guarantee.

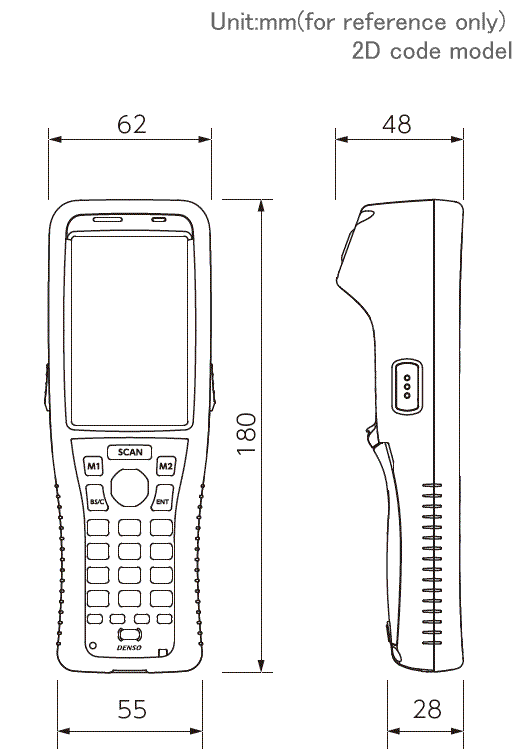

Dimensions

Communication

Holder, which performs data communication with BHT communication unit and the up-level device.

Model	Description	Communication mode	Battery charge time	Power supply	Size(mm)
CU-AR1-14	RS-232C+recharging	RS-232C	Approx. 3 hours	AC adapter(2)	110(D)×95(W)×109(H)
CU-AL1-14	Ethernet communication+recharging	Ethernet(100BASE-TX)	Approx. 3 hours	AC adapter(2)
CU-AU1-14	USB communication+recharging	USB2.1 Full speed compatible	Approx. 12 hours(1)	Supplied from USB port/AC adapter(2)

1.Charge time may vary according to the power supply capability of the connected device. Charge time is 3 hours when using the AC adapter.
2.The AC adapter is sold separately.

Charger

A lineup of various BHT main unit charging type and backup cartridge charging type devices.

	Type	Model	Feature	Charging time	Power supply	Size(mm)
	Multiple battery charger	CH-1104	Up to 4 BT-20LB (or BT-110LA or BT-110L) unit can be charged.	Approx.3H(BT-110LA,BT-20LB) Approx.6H(BT-110L)	AC adapter (1)	205.5(D)×190(W)×29.0(H)

1.The AC adapter sold separately.

Battery

Batteries for BHT-1400 series

	Type	Model	Feature
-	Lithium-ion battery	BT-110LA	battery only
-	Lithium-ion battery	BT-140LA-C	battery + battery cover

Cable

Name	Model	Interface	Shape	Length
USBcable 4PAtype-4PBtype(1)	CB00US1400/4A-4B-01	USB	PC(4PAtype)-CU(4PBtype)	1.4m
I/Fcable D9s-D9s cross(1)	CB00-RS1500/9-9-01	RS-232C	PC(Dsub9s)-CU(Dsub9s)	1.5m

1.Cable is sold separately.

Case and others

Type	Model	Feature
Soft case	SCBHT-1400	BHT-1400 series common
Waist case	WHBHT-1400(1)
Neck strap	NSBHT-1300

1.Waist case does not include belt.

Accessories

・Hand strap with stylus
・Guidelines for operation
・Instruction manual can be download from our technical support site QBdirect.
※Battery and battery cover are not supplied with the product.

Development tools

Name
Windows Embedded Compact 7-based Software Development Kit for BHT(SDK)(1)

Preinstalled software

Name	Feature
Keyboard interface application software [kbifCE](Free)	This software is preinstalled.
Wireless setting tool [WLAN Manager]	-
Launcher[Application Launcher]	-
Back-up tool[BHT Backup]	-
Cloning tool[BHT Clone]	-
