[Basics] / Chapter 1　Using IoT products to "visualize" information on equipment

Lesson 1

Setting up IoT Data Server 13

Step 3Network settings for IoT Data Server4/5

Setting up IP address

IP address setup

1. Click "System Settings" from the top screen.
2. The system settings screen is displayed.
   Select "Ethernet 1" from networking.
3. Click the "Properties" button.

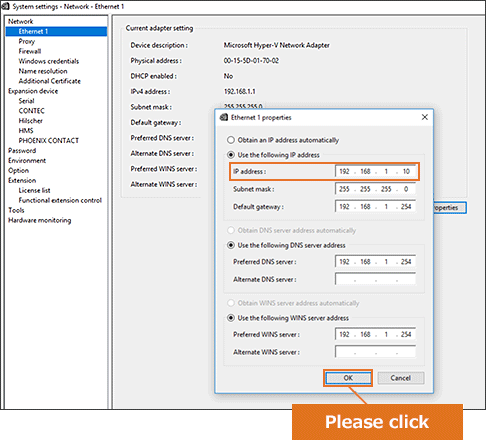

4. Enter the IP address and click the "OK" button.
5. Verify that the IP address has been changed.
